DTC Troubleshooting: C1811-13, C1812-13, C1813-13, C1814-13

DTC C1811-13  : Right-Front Initiator Circuit Open DTC C1812-13  : Left-Front Initiator Circuit Open DTC C1813-13  : Right-Rear Initiator Circuit Open DTC C1814-13  : Left-Rear Initiator Circuit Open

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC (TPMS)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   -4. Check for DTCs with the HDS, and note the indicated DTC(s).

   DTC Description	DTC
   C1811-13 Right-Front Initiator Circuit Open
   C1812-13 Left-Front Initiator Circuit Open
   C1813-13 Right-Rear Initiator Circuit Open
   C1814-13 Left-Rear Initiator Circuit Open

   Is DTC C1811-13, C1812-13, C1813-13, or C1814-13 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

2. Open wire check (FR AS+, FR DR+, RR R+, RR L+ lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

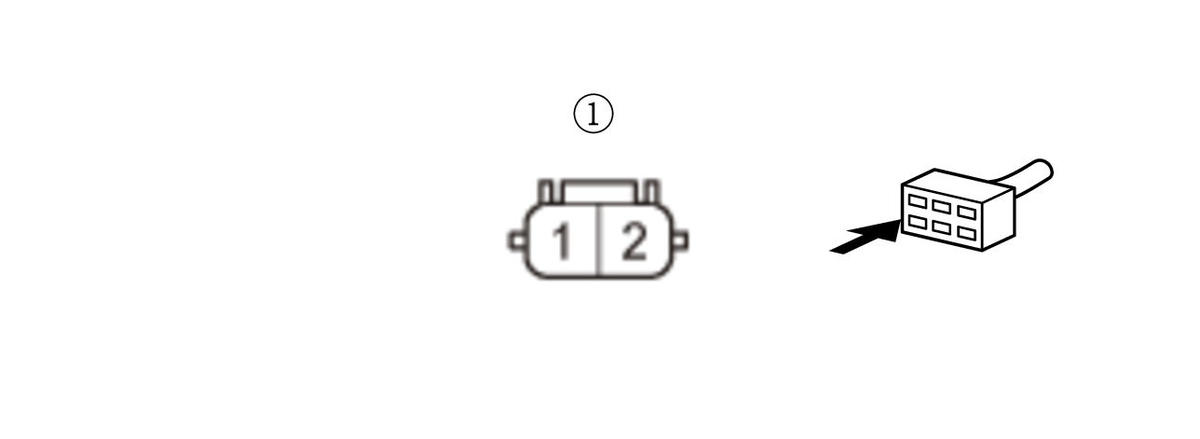

   Appropriate LF antenna/initiator 2P connector

   Body control module connector F (36P)

   DTC	Tire Location
   C1811-13	Right-front
   C1812-13	Left-front
   C1813-13	Right-rear
   C1814-13	Left-rear

   -3. Check for continuity between the appropriate body control module connector F (36P) terminal and appropriate LF antenna/initiator 2P connector terminal No. 2 (see chart).

   Test condition	Vehicle OFF (LOCK) mode
   	Appropriate LF antenna/initiator 2P connector: disconnected
   	Body control module connector F (36P): disconnected

   DTC	Body control module connector F (36P) terminal	Appropriate LF antenna/initiator 2P connector (female terminals) terminal:
   C1811-13	No. 12	No. 2(Right-front)
   C1812-13	No. 13	No. 2(Left-front)
   C1813-13	No. 15	No. 2(Right-rear)
   C1814-13	No. 16	No. 2(Left-rear)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The FR AS+, FR DR+, RR R+, RR L+ wires are OK. Go to step 3.

   NO

   Repair an open in the wire between the body control module and the appropriate LF antenna/initiator.

3. Open wire check (FR AS-, FR DR-, RR R-, RR L- lines)

   -1. Check for continuity between the appropriate body control module connector F (36P) terminal and appropriate LF antenna/initiator 2P connector terminal No. 1 (see table).

   Test condition	Vehicle OFF (LOCK) mode
   	Appropriate LF antenna/initiator 2P connector: disconnected
   	Body control module connector F (36P): disconnected

   DTC	Body control module connector F (36P) terminal	Appropriate LF Antenna/Initiator 2P Connector (female terminals) Terminal:
   C1811-13	No. 30	No. 1(Right-front)
   C1812-13	No. 31	No. 1(Left-front)
   C1813-13	No. 33	No. 1(Right-rear)
   C1814-13	No. 34	No. 1(Left-rear)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The FR AS-, FR DR-, RR R-, RR L- wires are OK. Go to step 4.

   NO

   Repair an open in the wire between the body control module and the appropriate LF antenna/initiator.

4. DTC check

   -1. Check for noted DTC(s) in Problem verification.

   DTC Description	DTC
   C1811-13 Right-Front Initiator Circuit Open
   C1812-13 Left-Front Initiator Circuit Open

   DTC Description	DTC
   C1813-13 Right-Rear Initiator Circuit Open
   C1814-13 Left-Rear Initiator Circuit Open

   DTC C1811-13, C1812-13, C1813-13, and C1814-13 indicated at the same time?

   YES

   Check for loose terminals and poor connections in the body control module connectors. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace the body control module .

   NO

   Go to step 5.

5. LF antenna/initiator check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Swap a known-good LF antenna/initiator with the LF antenna/initiator indicated by the DTC.

   DTC	Tire Location
   C1811-13	Right-front
   C1812-13	Left-front
   C1813-13	Right-rear
   C1814-13	Left-rear

   -3. Reconnect the following connectors.

   Appropriate LF antenna/initiator 2P connector

   Body control module connector F (36P)

   -4. Turn the vehicle to the ON mode.

   -5. Clear the DTC with the HDS.

   -6. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.

   -7. Check for DTCs with the HDS, and compare the indicated DTC with the noted DTC(s) in Problem verification.

   DTC Description	DTC
   C1811-13 Right-Front Initiator Circuit Open
   C1812-13 Left-Front Initiator Circuit Open
   C1813-13 Right-Rear Initiator Circuit Open
   C1814-13 Left-Rear Initiator Circuit Open

   Does the indicated DTC change between the initiators that were replaced in step 5-2?

   YES

   Replace the appropriate LF antenna/initiator .

   NO

   Check for loose terminals and poor connections in the body control module connectors. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting. If they are OK, replace the body control module .
