Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs

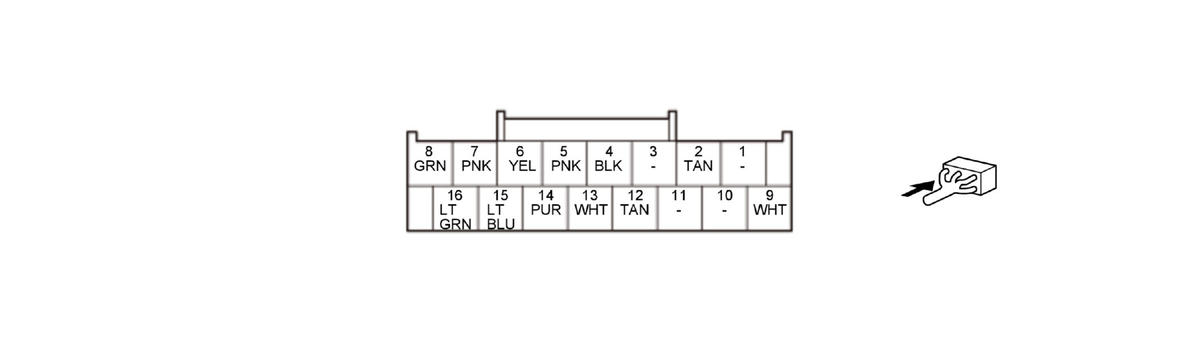

Parking and Back-Up Sensor Control Unit 16P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | --- | --- |
| 2 | B-CAN_L | Communication line | --- |
| 3 | Not used | --- | --- |
| 4 | SGND | Ground for parking and back-up sensor control unit | Less than 0.2 V at all times |
| 5 | C/SNSR IND | Outputs C/SNSR IND signal | Parking and back-up sensor switch indicator OFF: about battery voltage Parking and back-up sensor switch indicator ON: less than 0.2 V |
| 6 | SOF SIDE R | Detects SOF SIDE R signal | --- |
| 7 | BOF SIDE R | Power source for front sensor | With the vehicle in the ON mode: about battery voltage |
| 8 | IG1 METER | IG1 power source | With the vehicle in the ON mode: about battery voltage |
| 9 | B-CAN_H | Communication line | --- |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | E2 SIDE L | Ground for rear sensor | Less than 0.2 V at all times |
| 13 | E1 SIDE R | Ground for front sensor | Less than 0.2 V at all times |
| 14 | SOR SIDE L | Detects SOR SIDE L signal | --- |
| 15 | PARK SNSR SW | Detects PARK SNSR SW signal | With the vehicle in the ON mode and parking and back-up sensor switch ON: about battery voltage If none of the above conditions are met: less than 0.2 V |
| 16 | BOR SIDE L | Power source for rear sensor | With the vehicle in the ON mode: about battery voltage |
