Gauge Control Module Connector for Inputs and Outputs (2018 2019 2020 2021 2022 2023 2024)
| Connector Index |
|---|
| Gauge Control Module Connector A (32P) |
| Gauge Control Module Connector B (12P) |
| Gauge Control Module Connector C (3P) |

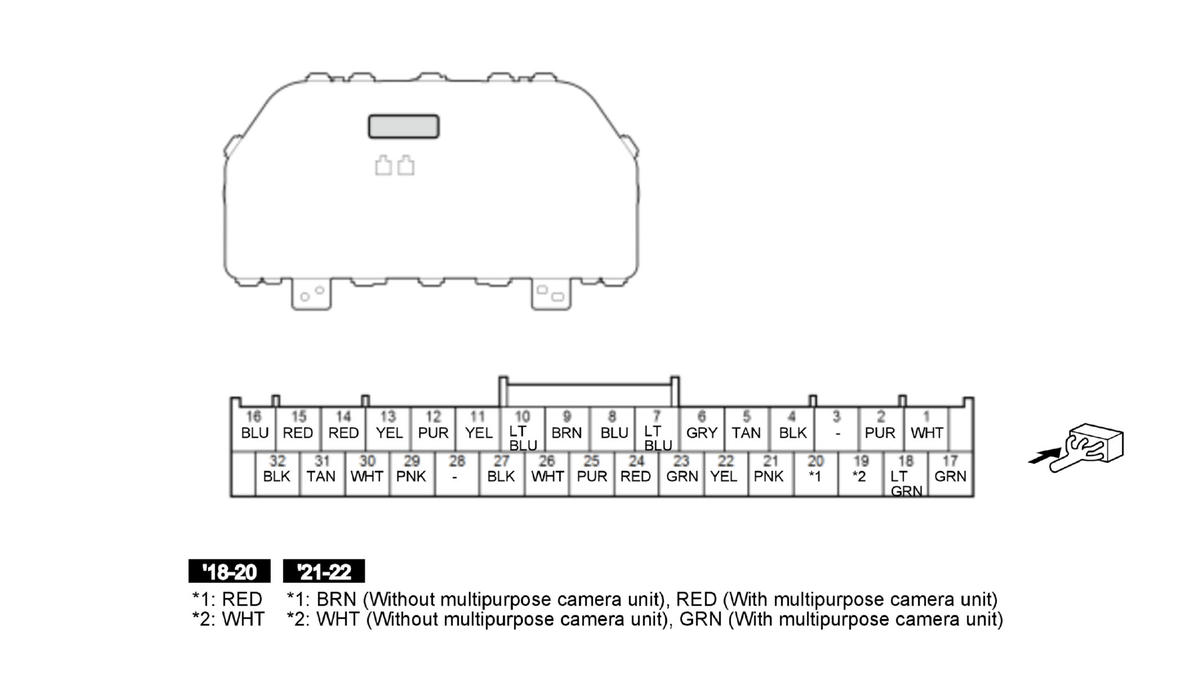

Gauge Control Module Connector A (32P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACK UP | Power source for gauge control module | About battery voltage at all times |
| 2 | CRUISE SW | Detects CRUISE SW signal | With the vehicle in the ON mode: about 0.8-4.4 V (depending on cruise control combination switch) |
| 3 | Not used | --- | --- |
| 4 | GND | Ground for gauge control module | Less than 0.2 V at all times |
| 5 | CRUISE SW GND | Ground for ACC/cruise control combination switch and audio remote-HFL switch | Less than 0.2 V at all times |
| 6 | EPB ACT SW | Detects EPB ACT SW signal | --- |
| 7 | SNOW SW | Detects SNOW SW signal | With the vehicle in the ON mode and snow switch OFF: about battery voltage With the vehicle in the ON mode and snow switch ON: less than 0.2 V |
| 8 | ECON SW | Detects ECON SW signal | With the vehicle in the ON mode and ECON switch OFF: about battery voltage With the vehicle in the ON mode and ECON switch ON: less than 0.2 V |
| 9 | VSA OFF SW | Detects VSA OFF SW signal | With the vehicle in the ON mode and VSA off switch OFF: about battery voltage With the vehicle in the ON mode and VSA off switch ON: less than 0.2 V |
| 10 | HFT/NAVI REMOTE SW | Detects HFT/NAVI REMOTE SW signal | With the vehicle in the ON mode: about 0.8-4.9 V (depending on audio remote-HFL switch) |
| 11 | BRAKE LEVEL SW | Detects BRAKE LEVEL SW signal | With the vehicle in the ON mode and brake fluid level switch OFF: about battery voltage With the vehicle in the ON mode and brake fluid level switch ON: less than 0.2 V |
| 12 | BRAKE HOLD | Detects BRAKE HOLD signal | --- |
*1: With multipurpose camera unit
*2: Without auto idle stop system
*3: With auto idle stop system
*4: With decoration light
*5: Display audio type (8-inch screen) with 7 speakers
*6: Display audio type (8-inch screen) with 11 speakers
*7: Canada models
*8: With power sliding door
*9: 2018-19
*10: 2020-23
*11: 2018-20
*12: 2021-23
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 13 *3 | I/S OFF SW | Detects I/S OFF SW signal | With the vehicle in the ON mode and auto idle stop off switch OFF: about battery voltage With the vehicle in the ON mode and auto idle stop off switch ON: less than 0.2 V |
| 14 *4 | ILLUMI+IP LT *9 | Detects ILLUMI+IP LT signal | --- |
| ILLUMI-IP LT *10 | Detects ILLUMI-IP LT signal | ||
| 15 | ILL-(LED) | Detects ILL-(LED) signal | --- |
| 16 *8 | ILLUMI-(BULB) | ILLUMI-(BULB) signal | --- |
| 17 | IG1 METER *2 | IG1 power source | With the vehicle in the ON and START mode: about battery voltage |
| IG1 METER(DC/DC) *3 | |||
| 18 *1 | DISTANCE SW | Detects DISTANCE SW signal | With the vehicle in the ON mode: about 0.4-4.4 V (depending on distance switch) |
| 19 | F-CAN A_H | Communication line | --- |
| 20 | F-CAN A_L | Communication line | --- |
| 21 | FUEL PUMP- *9 | Ground for fuel gauge sending unit | --- |
| FUEL PUMP SENS- *10 | |||
| 22 | FUEL PUMP+ *9 | Detects FUEL PUMP+ signal | --- |
| FUEL PUMP SENS+ *10 | Detects FUEL PUMP SENS+ signal | ||
| 23 | LIN(METER) | Communication line | --- |
| 24 | MOST ECL 1 | MOST ECL 1 signal | --- |
| 25 | MOST ECL 1 *5 | MOST ECL 1 signal | --- |
| MOST ECL 8 *6 | MOST ECL 8 signal | ||
| 26 *1 | CMBS OFF SW *11 | Detects CMBS OFF SW signal | With the vehicle in the ON mode and CMBS OFF switch OFF: about battery voltage With the vehicle in the ON mode and CMBS OFF switch ON: less than 0.2 V |
| ISS SW *12 | Detects ISS SW signal | With the vehicle in the ON mode and safety support switch OFF: about battery voltage With the vehicle in the ON mode and safety support switch ON: less than 0.2 V | |
| 27 *7 | WASHER LEVEL SNSR | Detects WASHER LEVEL SNSR signal | With vehicle in the ON mode and washer fluid level switch OFF: about battery voltage With vehicle in the ON mode and washer fluid level switch ON: less than 0.2 V |
| 28 | Not used | --- | --- |
| 29 | AUDIO REMOTE SW | Detects AUDIO REMOTE SW signal | With the vehicle in the ON mode: about 0.4-4.9 V (depending on audio remote-HFL switch) |
| 30 | B-CAN_H | Communication line | --- |
| 31 | B-CAN_L | Communication line | --- |
| 32 | PGND | Ground for gauge control module | Less than 0.2 V at all times |
*1: With multipurpose camera unit
*2: Without auto idle stop system
*3: With auto idle stop system
*4: With decoration light
*5: Display audio type (8-inch screen) with 7 speakers
*6: Display audio type (8-inch screen) with 11 speakers
*7: Canada models
*8: With power sliding door
*9: 2018-19
*10: 2020-22
*11: 2018-20
*12: 2021-23

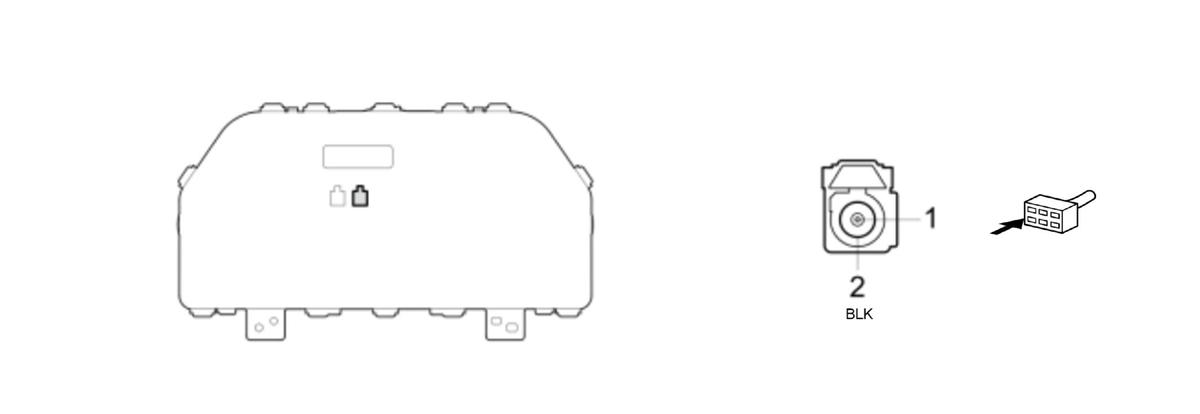

Gauge Control Module Connector B (2P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | MOST RX+ | MOST RX+ signal | --- |
| 2 | MOST RX- | MOST RX- signal | --- |
Gauge Control Module Connector C (2P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | MOST TX+ | MOST TX+ signal | --- |
| 2 | MOST TX- | MOST TX- signal | --- |
