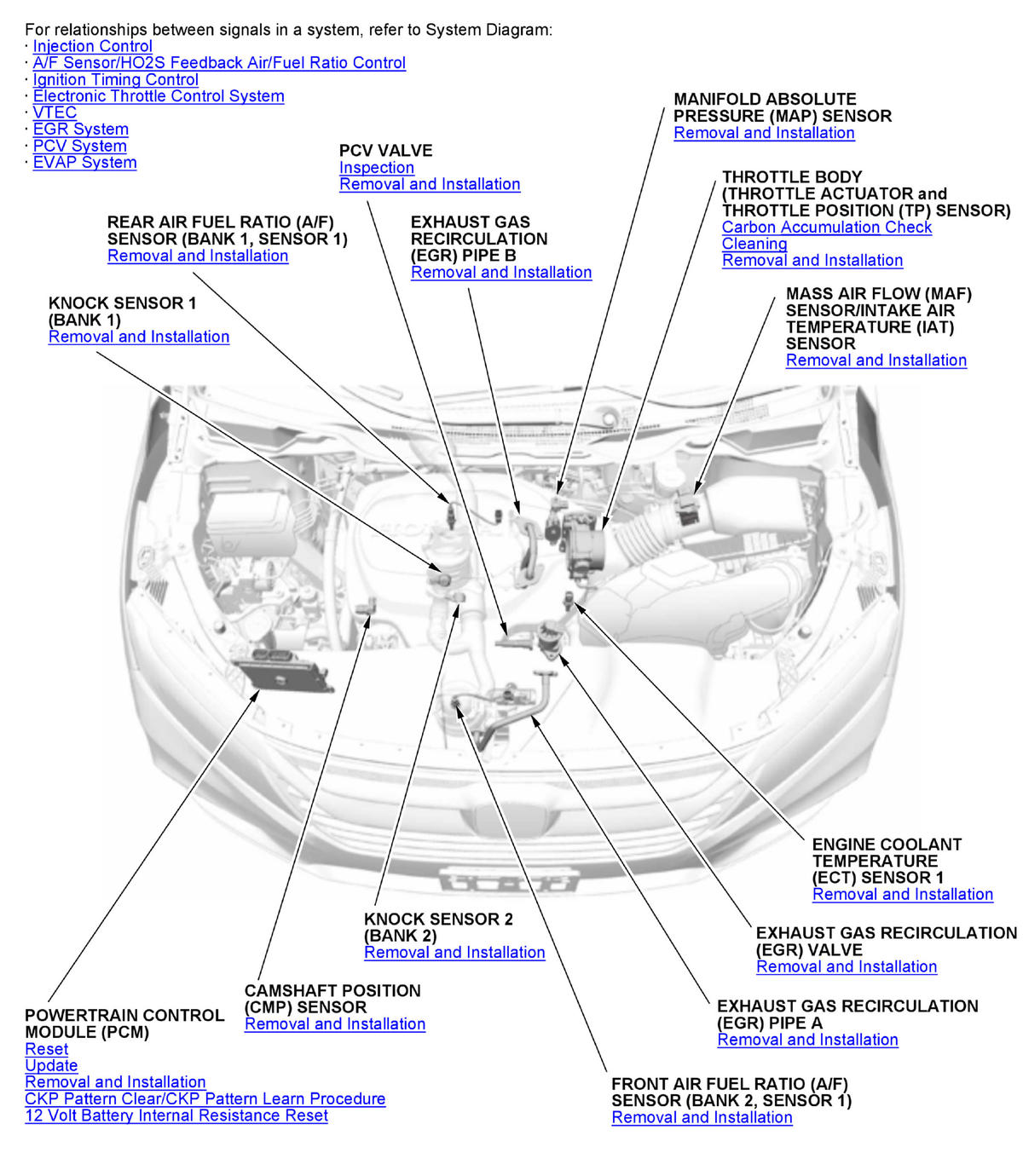

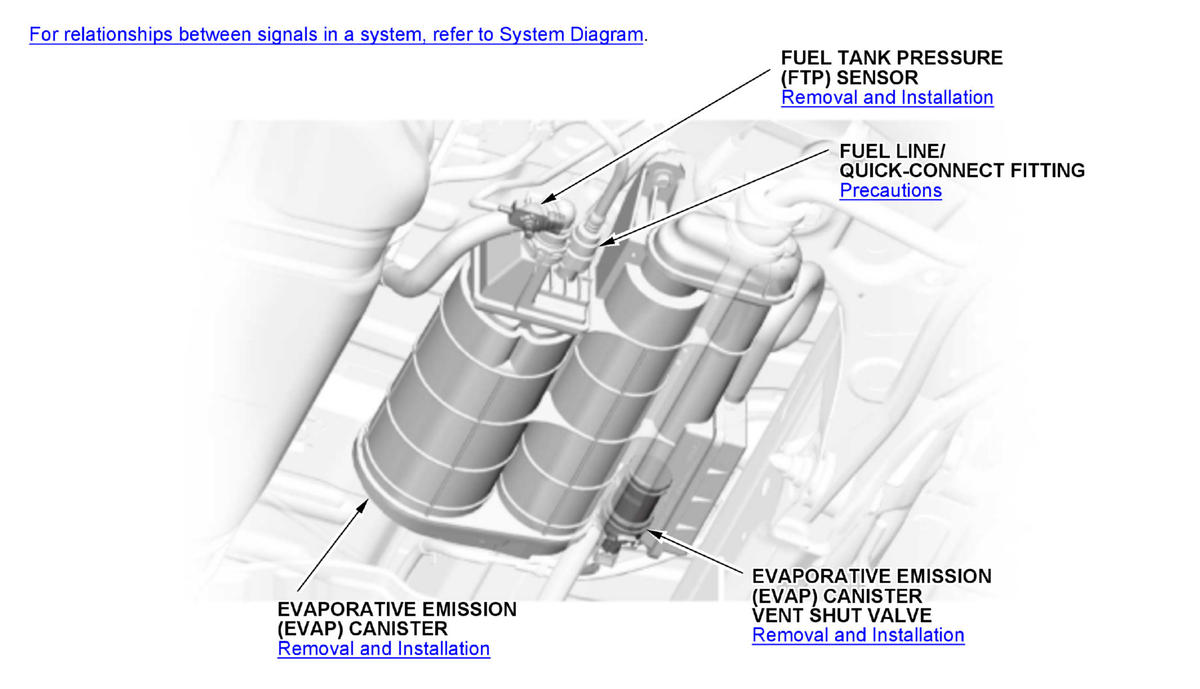

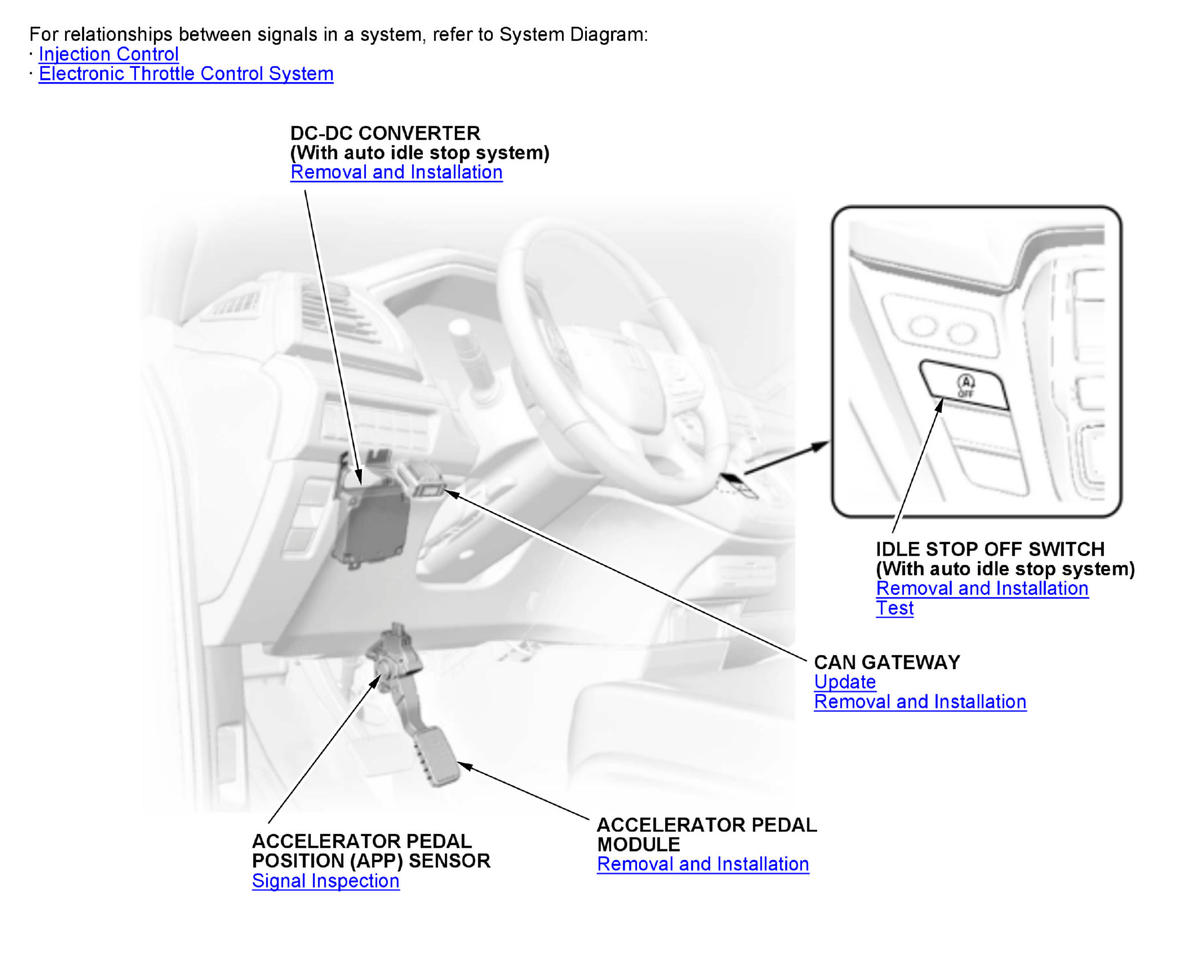

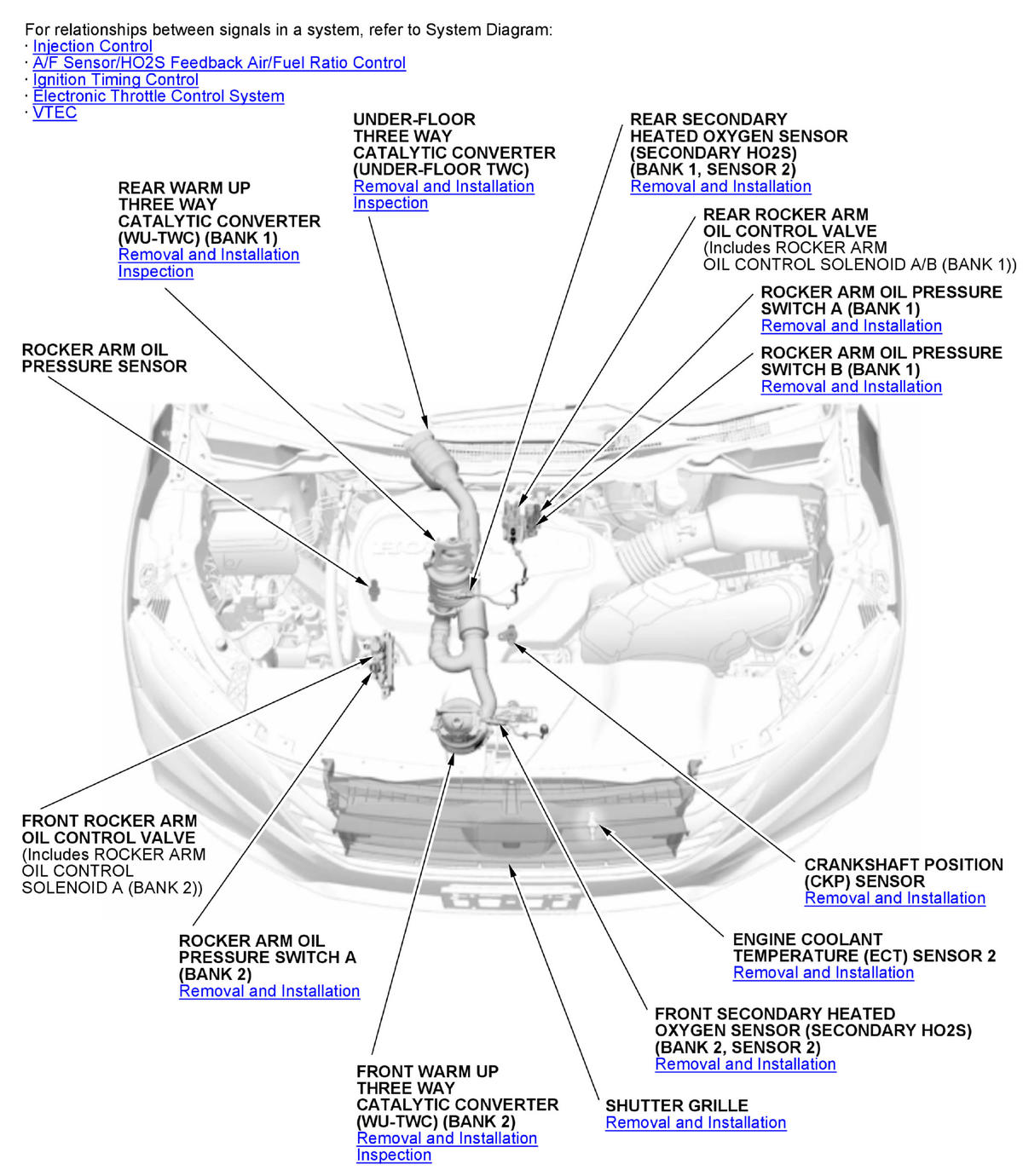

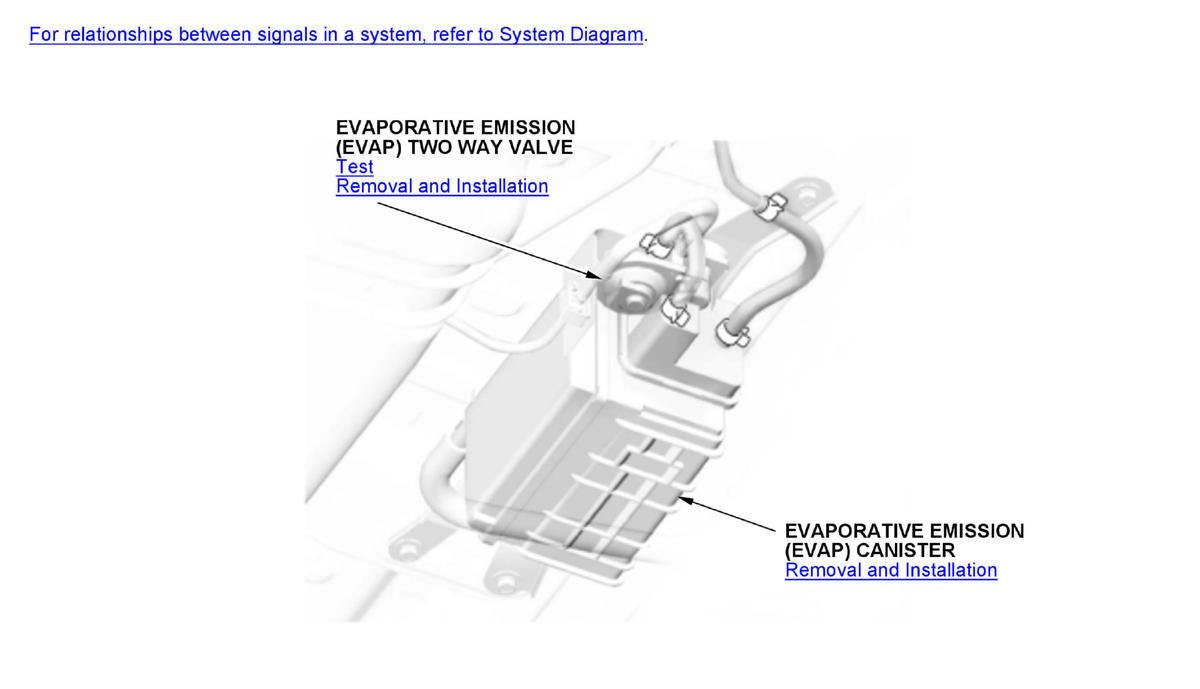

Fuel and Emissions Systems Component Location Index

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

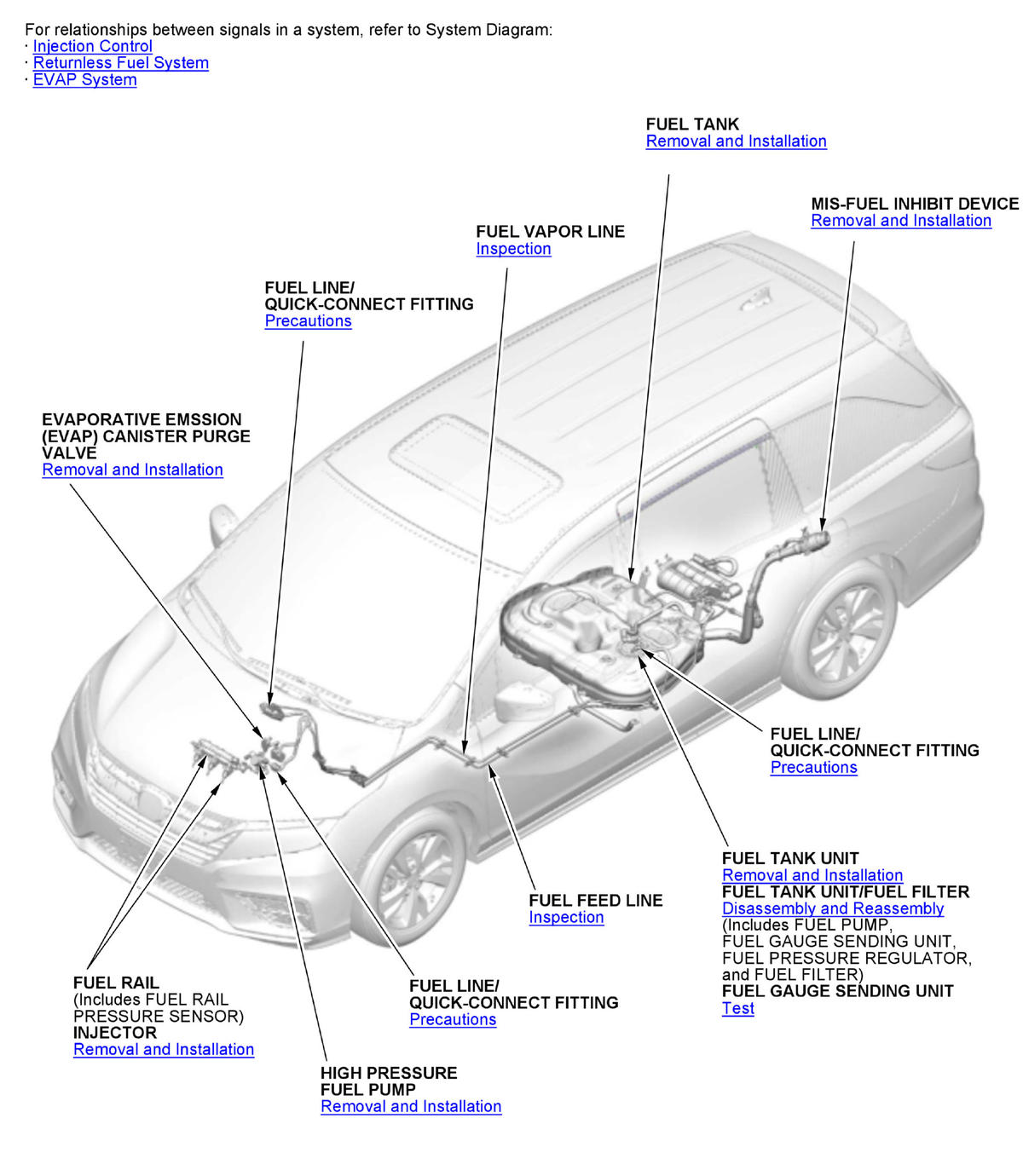

KA, KC

Courtesy of HONDA, U.S.A., INC.

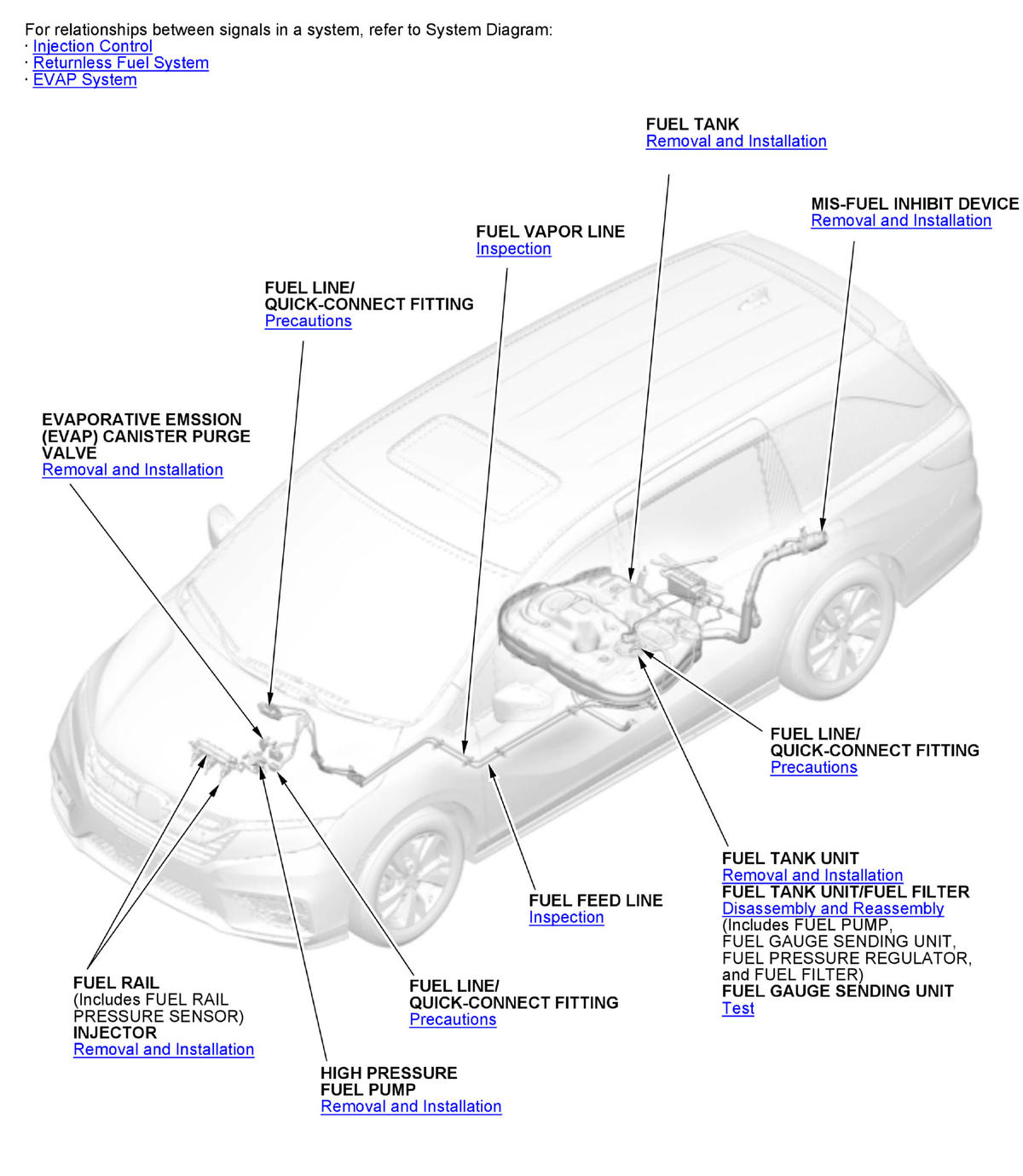

KX

Courtesy of HONDA, U.S.A., INC.

KA, KC

Courtesy of HONDA, U.S.A., INC.

KX

Courtesy of HONDA, U.S.A., INC.
