Gauges Component Location Index (2018 2019 2020)

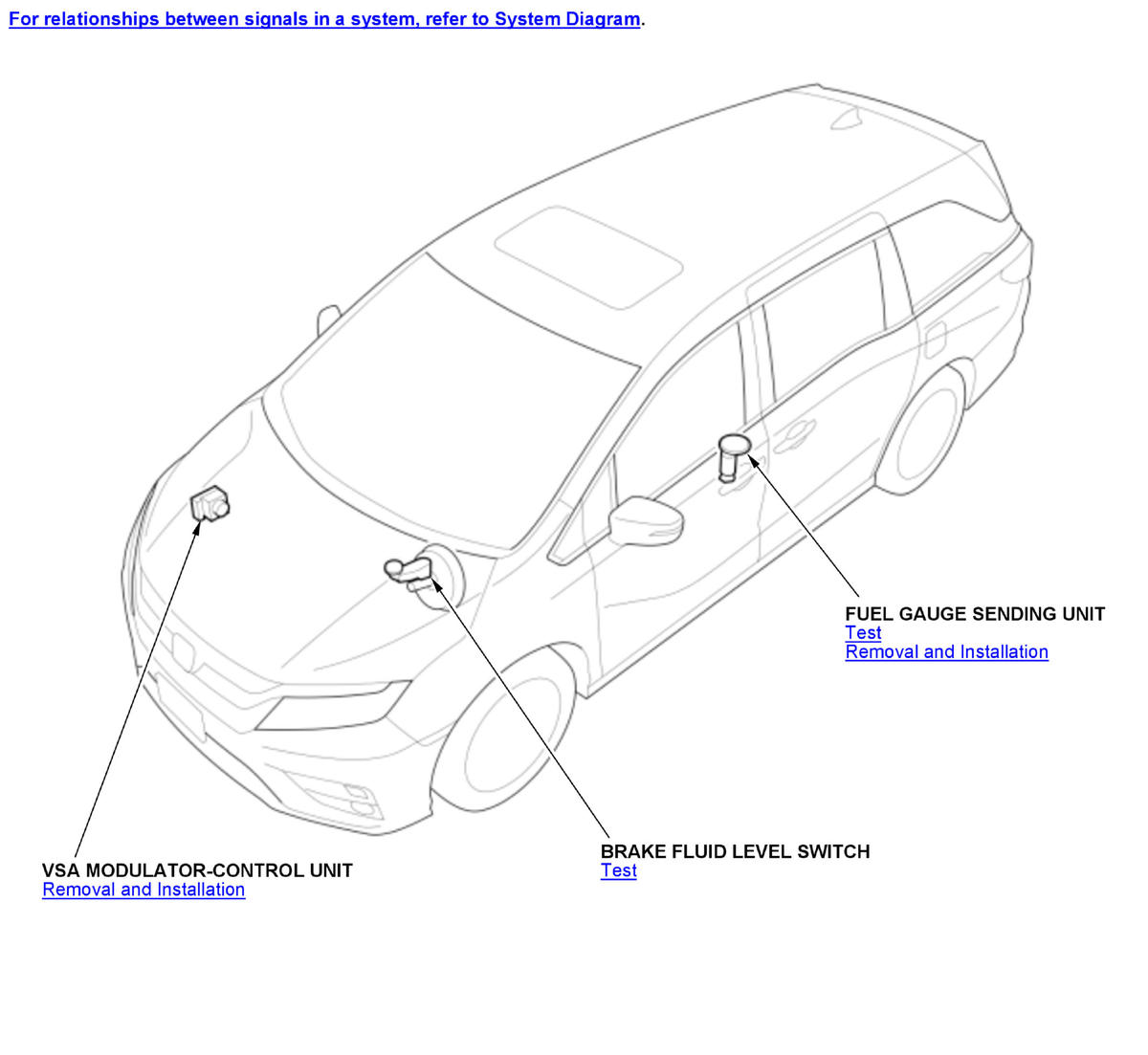

GHH445100

Courtesy of HONDA, U.S.A., INC.

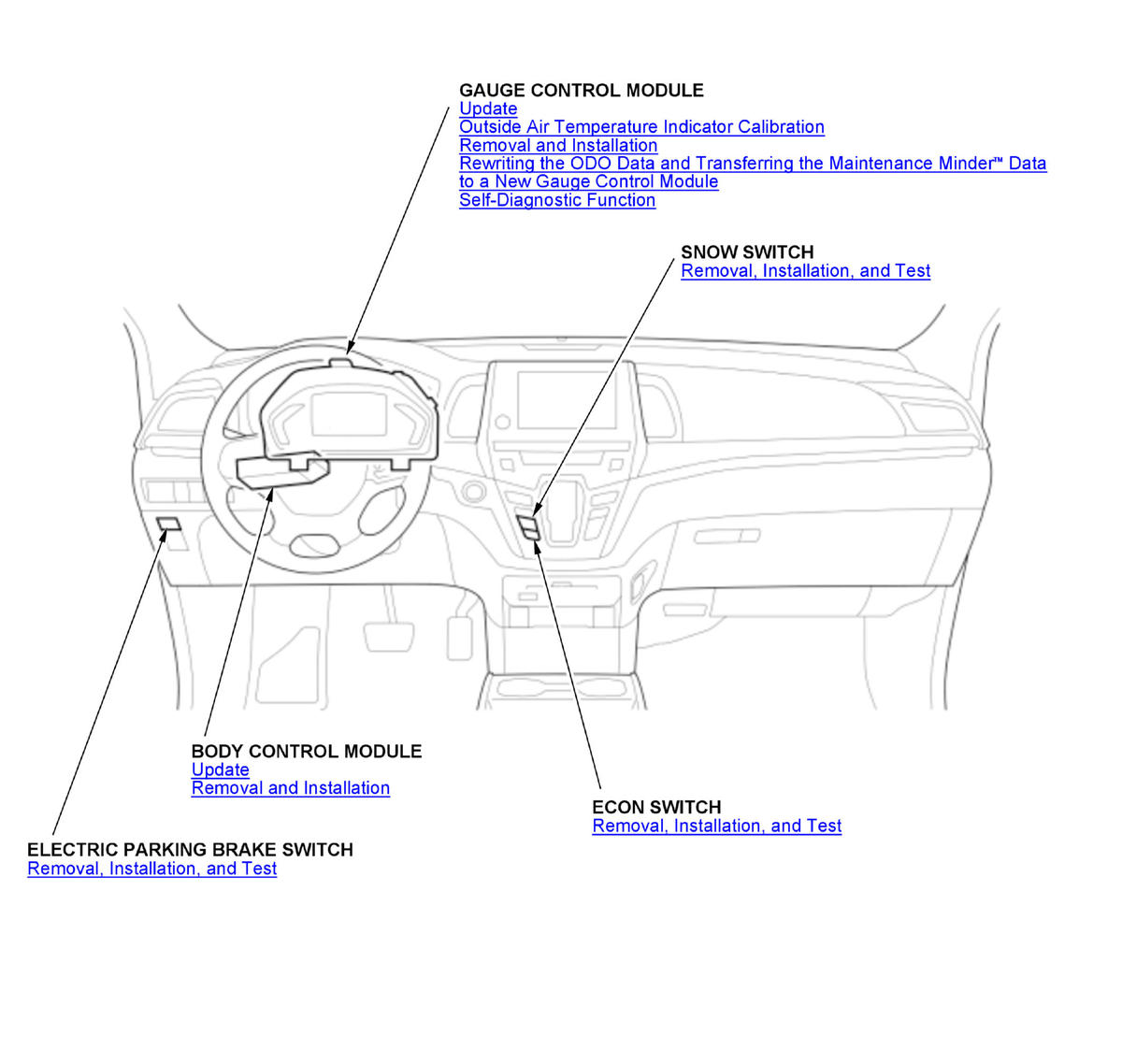

GHH445101

Courtesy of HONDA, U.S.A., INC.

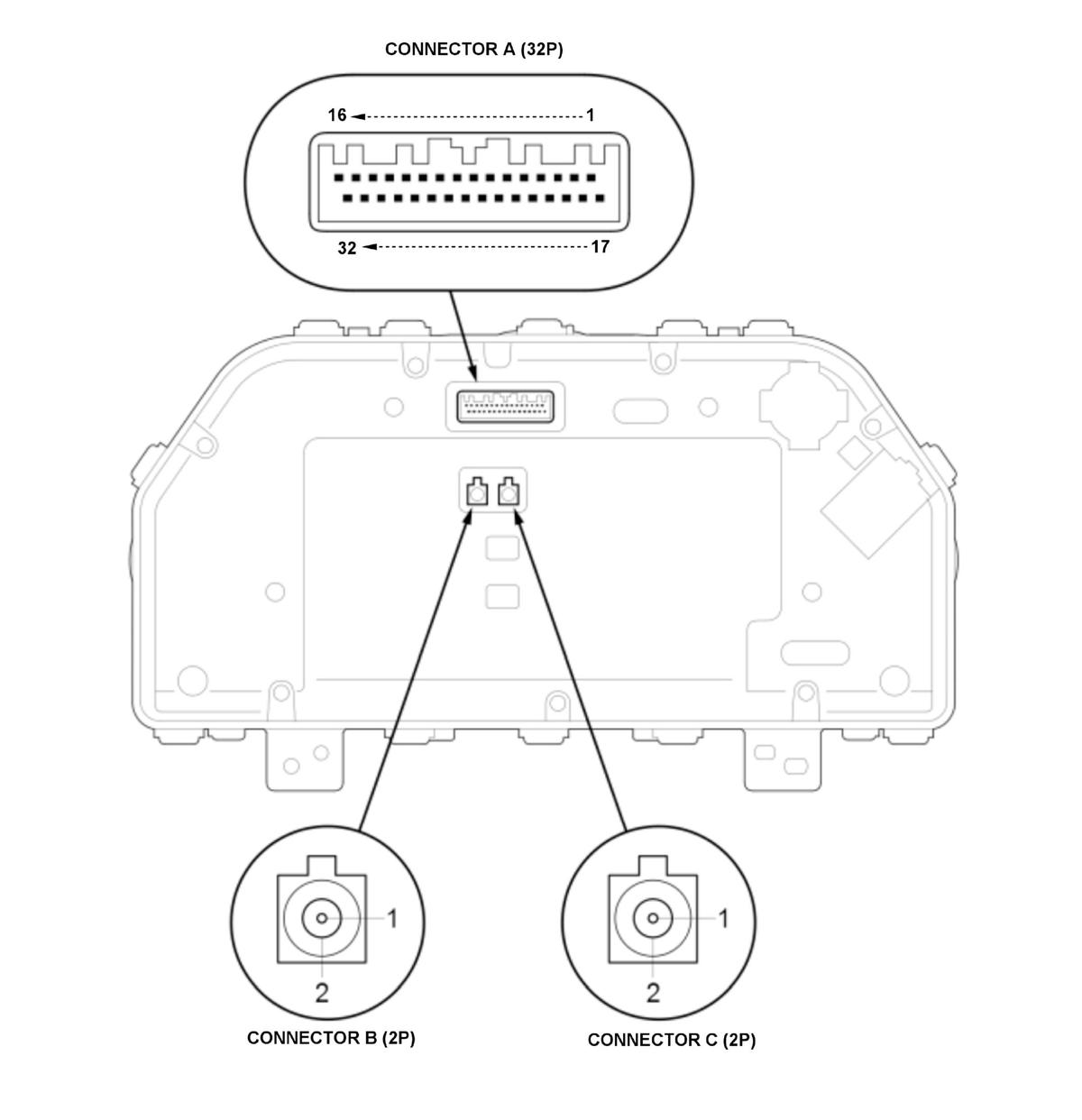

GHH445102

Courtesy of HONDA, U.S.A., INC.

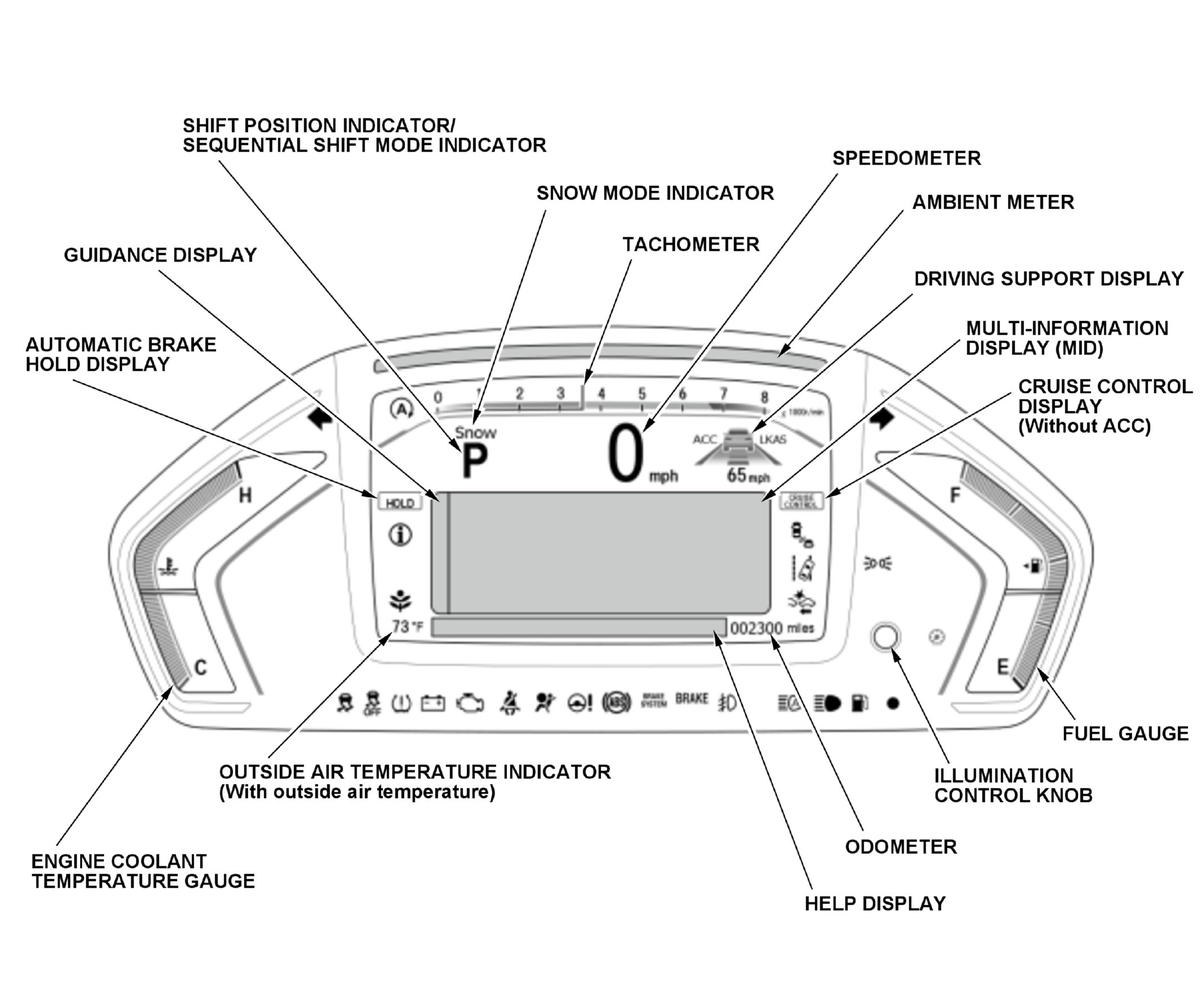

GHH445103

Courtesy of HONDA, U.S.A., INC.

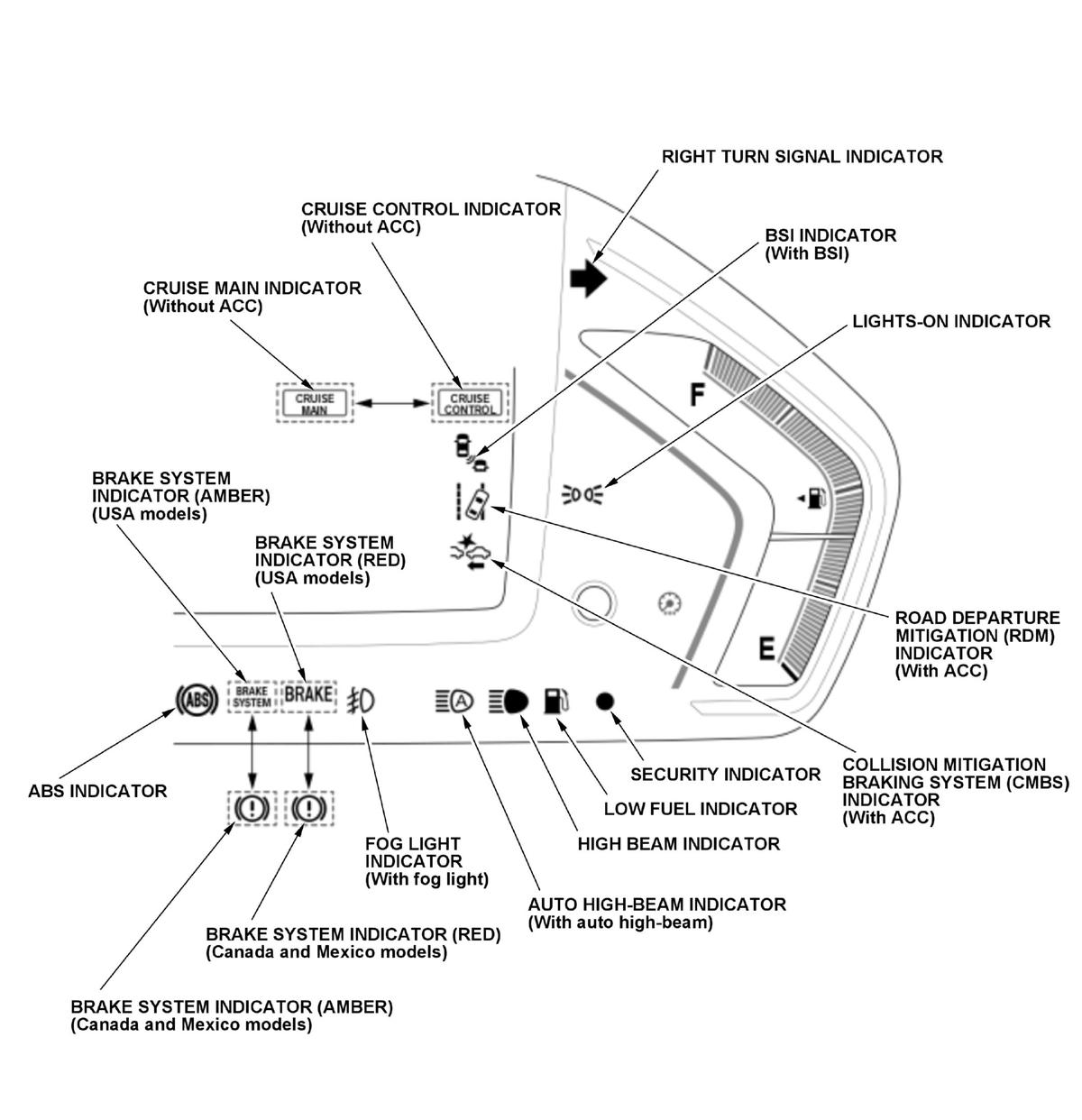

GHH445104

Courtesy of HONDA, U.S.A., INC.

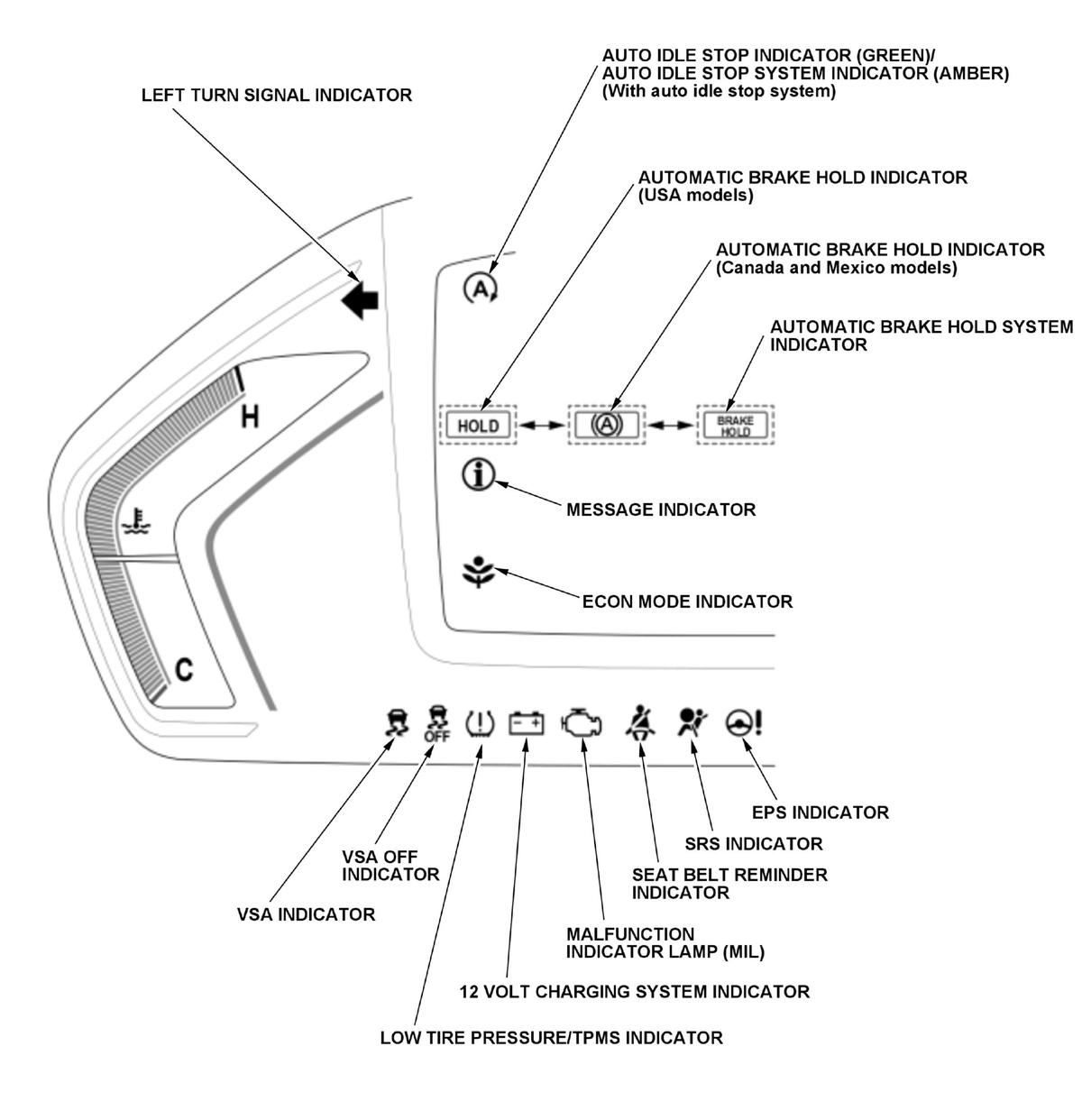

GHH445105

Courtesy of HONDA, U.S.A., INC.
