The Communication Line Check

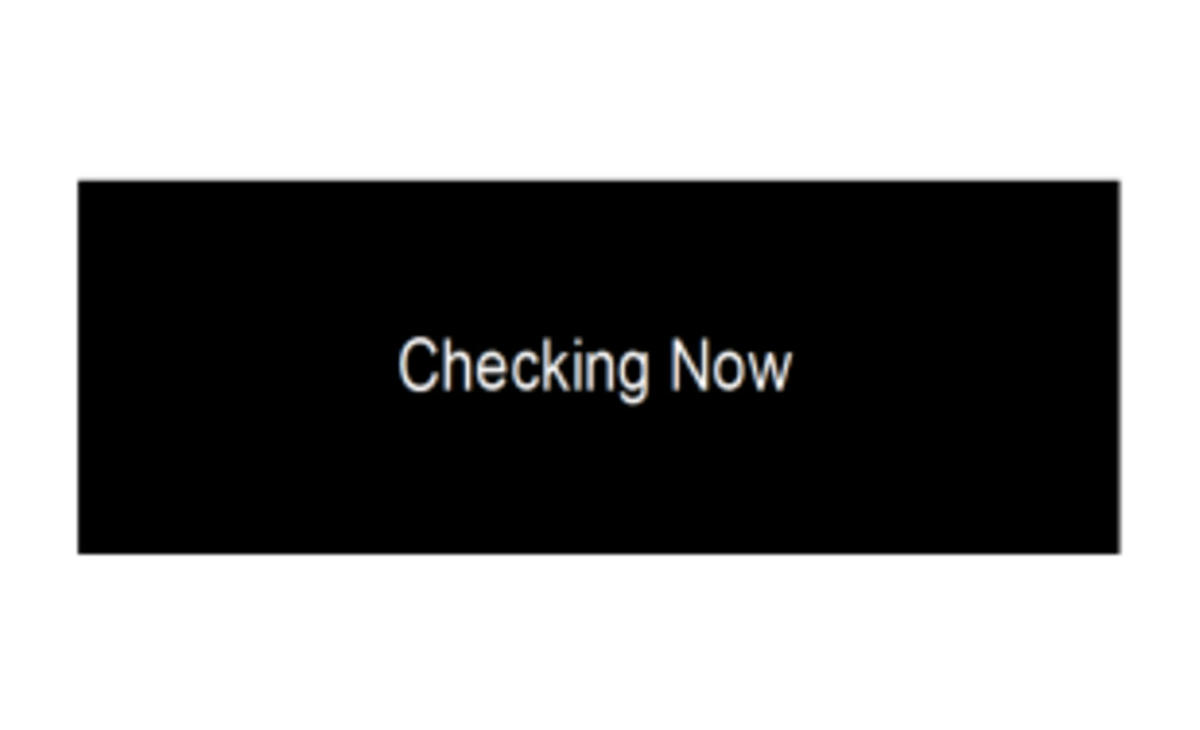

While in the self-diagnostic mode, the Communication Line Check starts.

Courtesy of HONDA, U.S.A., INC.

If the communication line is OK, the word "OK" will be indicated on the multi-information display. If there is a communication line error, the word "ERROR" will be indicated on the multi-information display.

Error Code List

Error code	Type of communication line(s) error
F-CANError	F-CAN communication
B-CANError	B-CAN communication

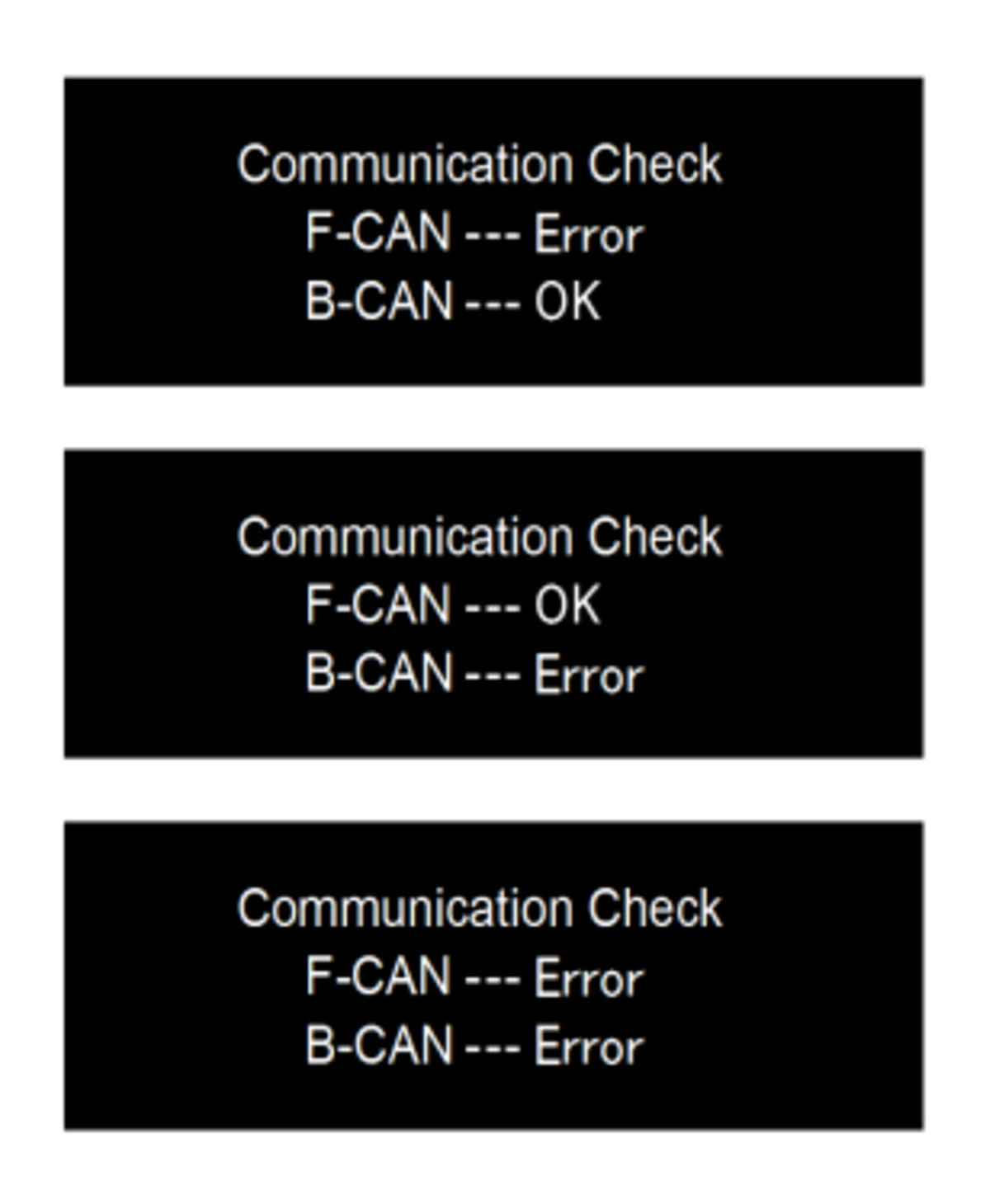

Indication Example

Courtesy of HONDA, U.S.A., INC.

F-CANError: There is a malfunction in the communication line between the gauge control module and F-CAN. Check for DTCs in the PCM, and troubleshoot the indicated DTCs.
B-CANError: There is a malfunction in the communication line between the gauge control module and B-CAN. Check for DTCs in the body electrical system and troubleshoot the indicated DTCs.
