Gauge Control Module Connector for Inputs and Outputs (2025)

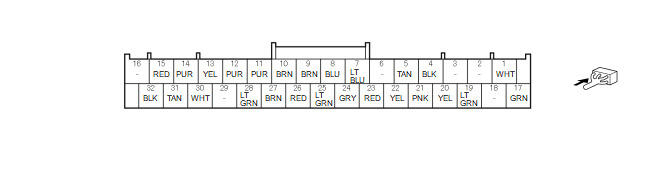

Gauge Control Module Connector A (32P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	+B BACK UP	Power source for gauge control module
2	Not used	---
3	Not used	---
4	GND	Ground for gauge control module
5	CRUISE SW GND	Ground for ACC combination switch
6	Not used	---
7	SNOW SW	Detects SNOW SW signal
8	ECON SW	Detects ECON SW signal
9	VSA OFF SW	Detects VSA OFF SW signal
10	EPB ACT SW	Detects EPB ACT SW signal
11	BRAKE LEVEL SW	Detects BRAKE LEVEL SW signal
12	BRAKE HOLD	Detects BRAKE HOLD signal
13 *2	I/S OFF SW	Detects I/S OFF SW signal
14	CRUISE SW	Detects CRUISE SW signal
15	ILL-(LED)	Outputs ILL-(LED) signal
16	Not used	---
17	IG1 METER *1	IG1 power source
17	IG1 METER(DC/DC) *2	IG1 power source
18	Not used	---
19	F-CAN D_H	Communication line
20	F-CAN D_L	Communication line
21	FUEL PUMP SENS-	Ground for fuel gauge sending unit
22	FUEL PUMP SENS+	Detects FUEL PUMP SENS+ signal
23	LIN(METER)	Communication line
24	WASHER LEVEL SNSR	Detects WASHER LEVEL SNSR signal
25	DISTANCE SW	Detects DISTANCE SW signal
26 *3	ILLUMI- IP LT	Outputs ILLUMI- IP LT signal
27	M-CAN_H	Communication line
28	M-CAN_L	Communication line
29	Not used	---
30	B-CAN_H	Communication line
31	B-CAN_L	Communication line
32	GND	Ground for gauge control module

*1: Without auto idle stop system*2: With auto idle stop system*3: With decoration light
