Parking and Back-Up Sensor System Component Location Index (2018 2019 2020)

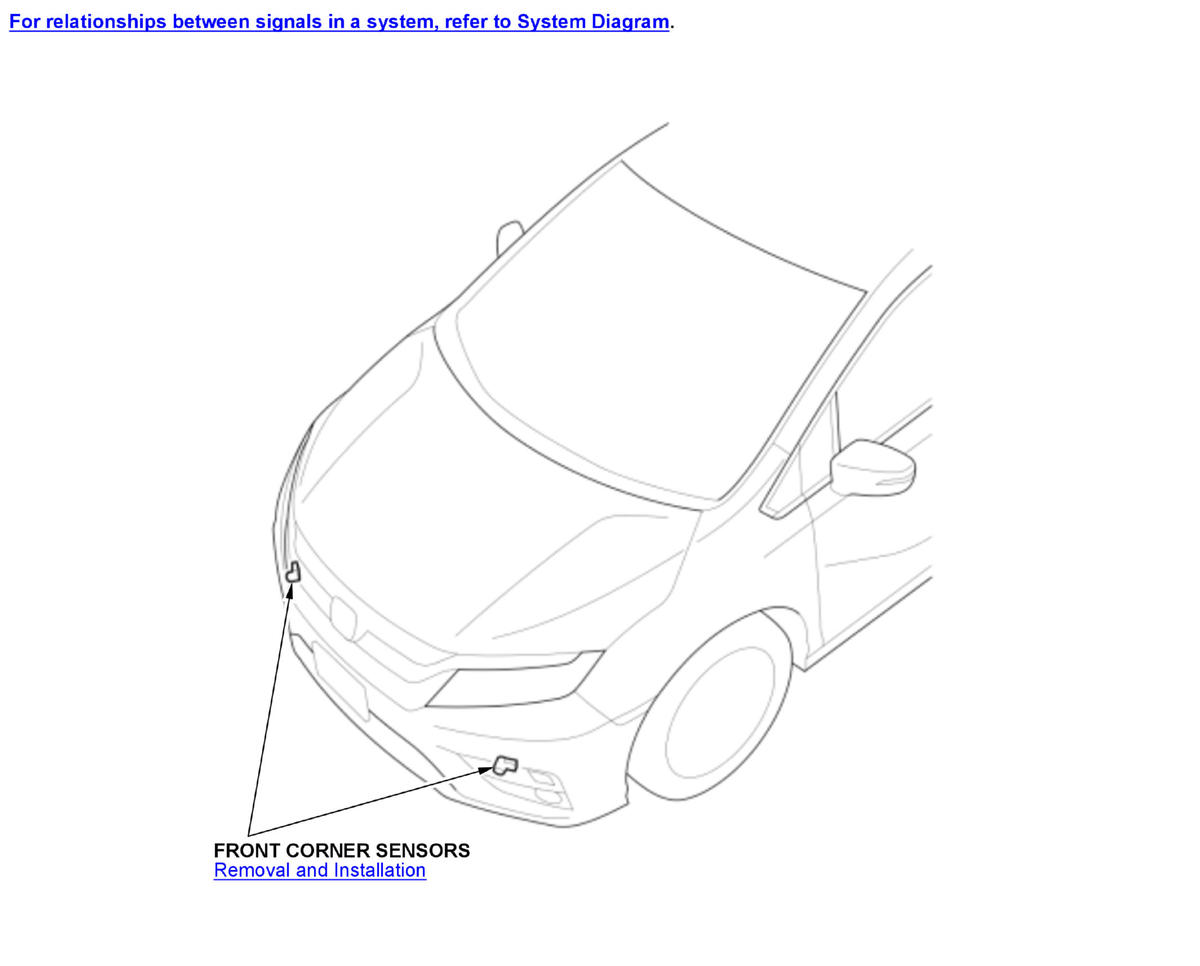

GHH445109

Courtesy of HONDA, U.S.A., INC.

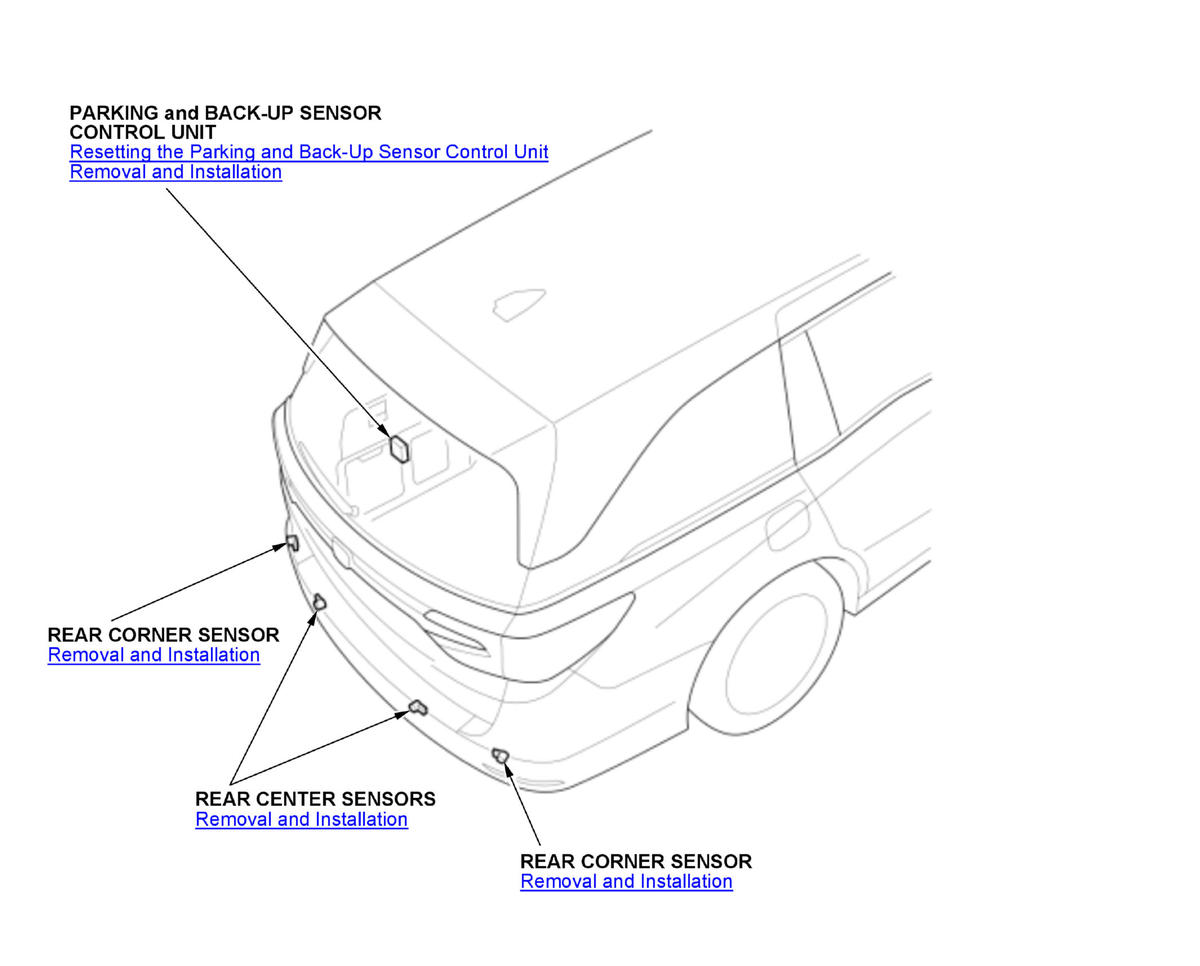

GHH445110

Courtesy of HONDA, U.S.A., INC.

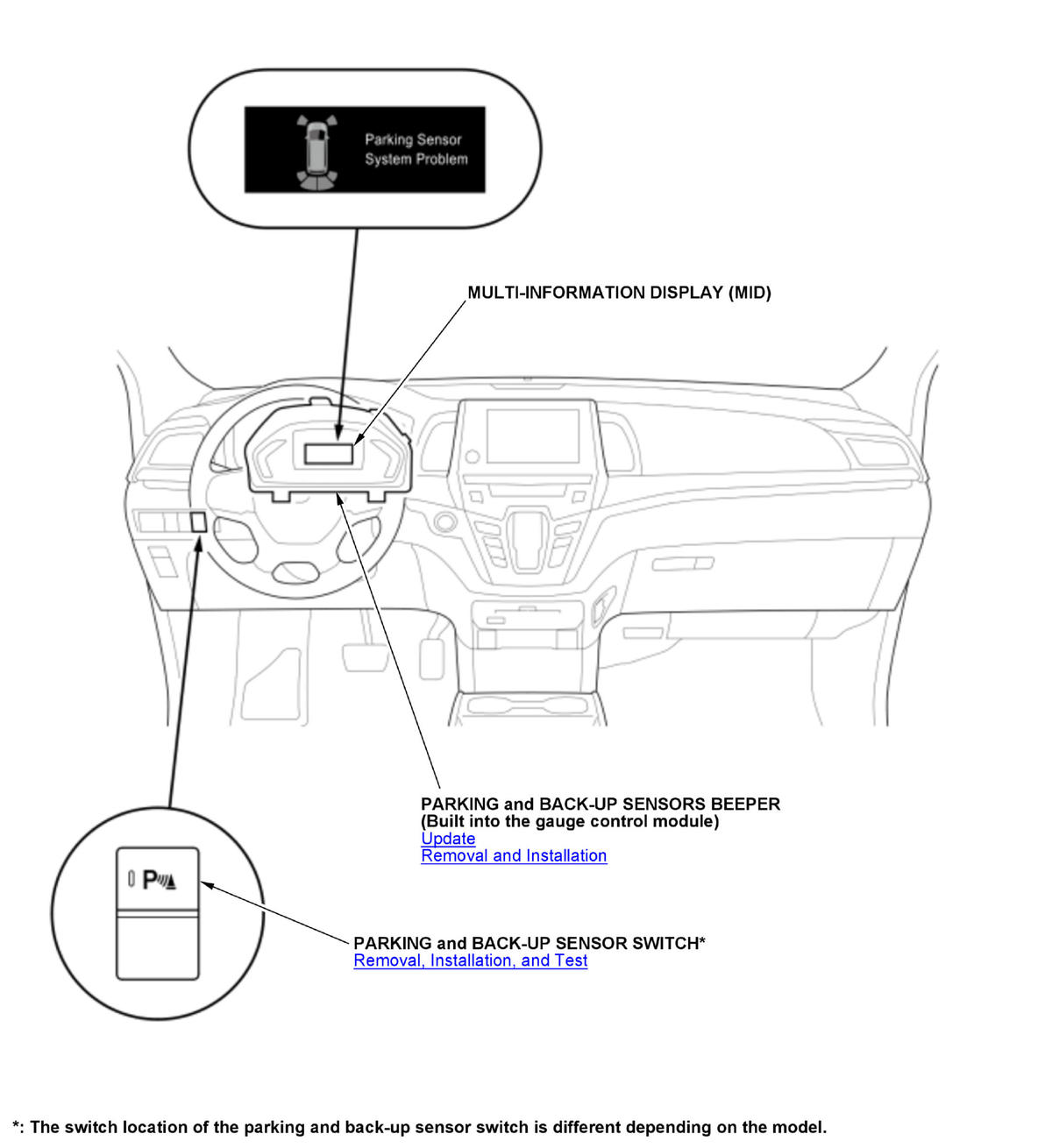

GHH445111

Courtesy of HONDA, U.S.A., INC.
