Parking and Back-Up Sensor System Circuit Diagram

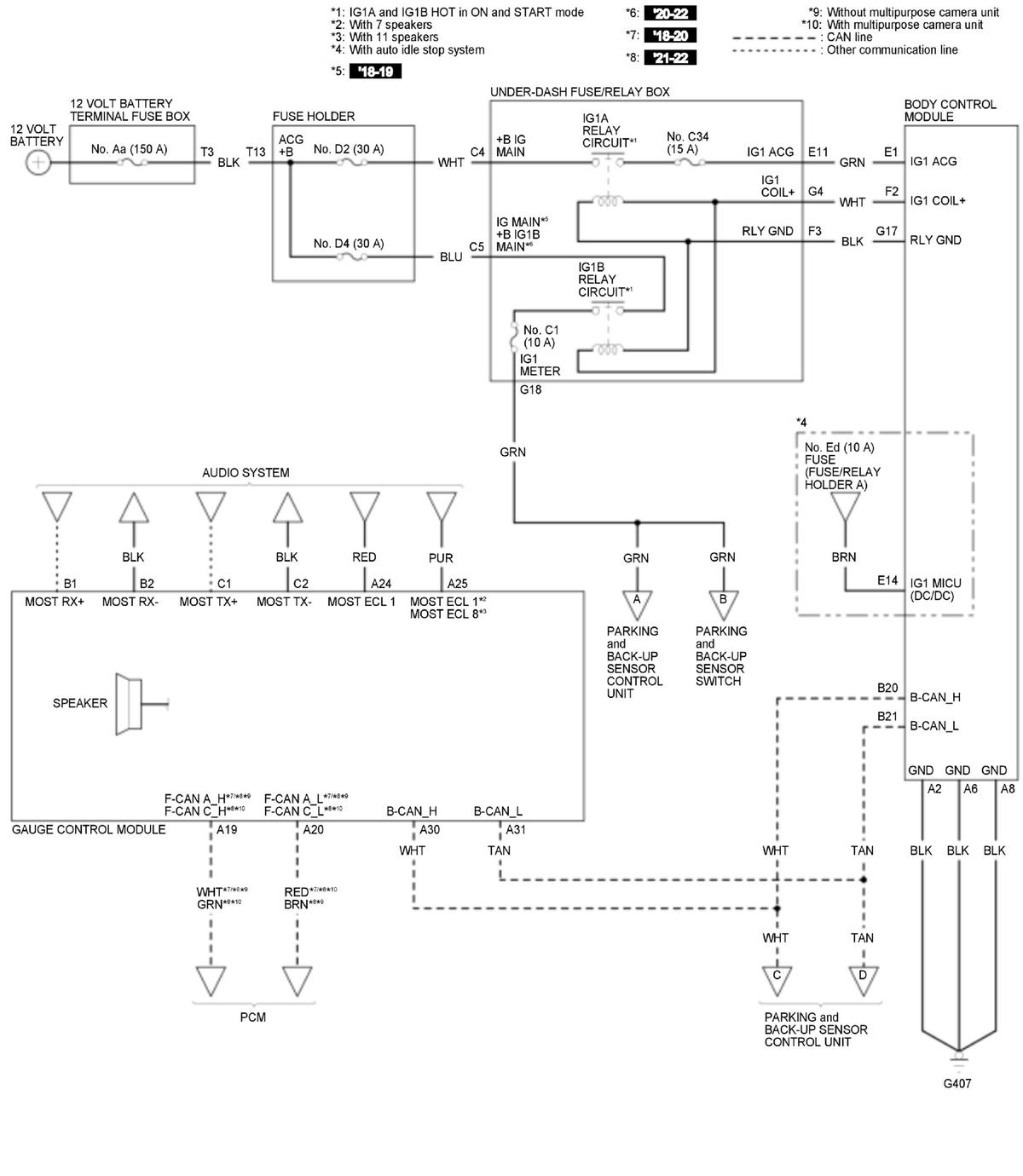

GHH445133

Courtesy of HONDA, U.S.A., INC.

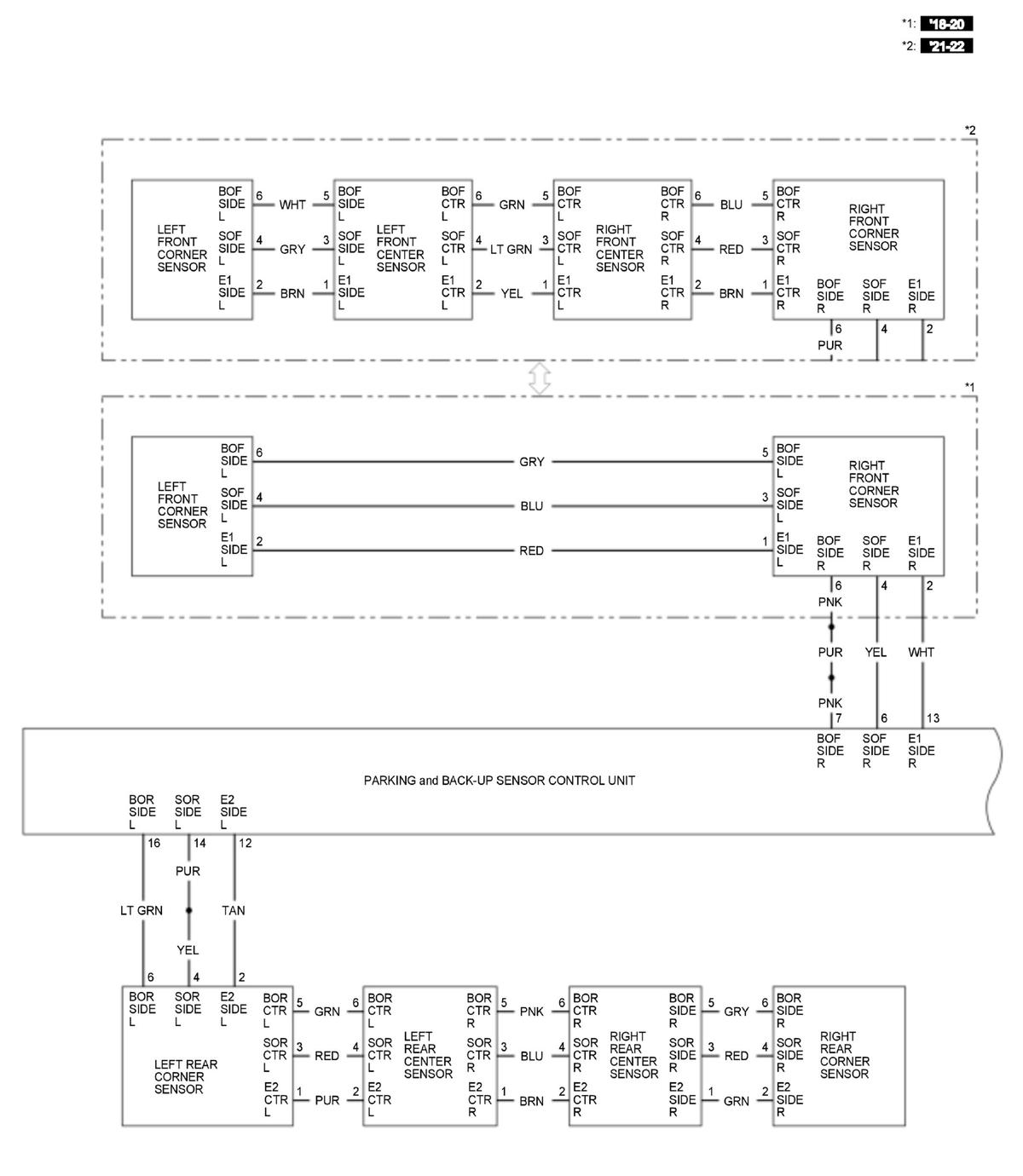

GHH445134

Courtesy of HONDA, U.S.A., INC.

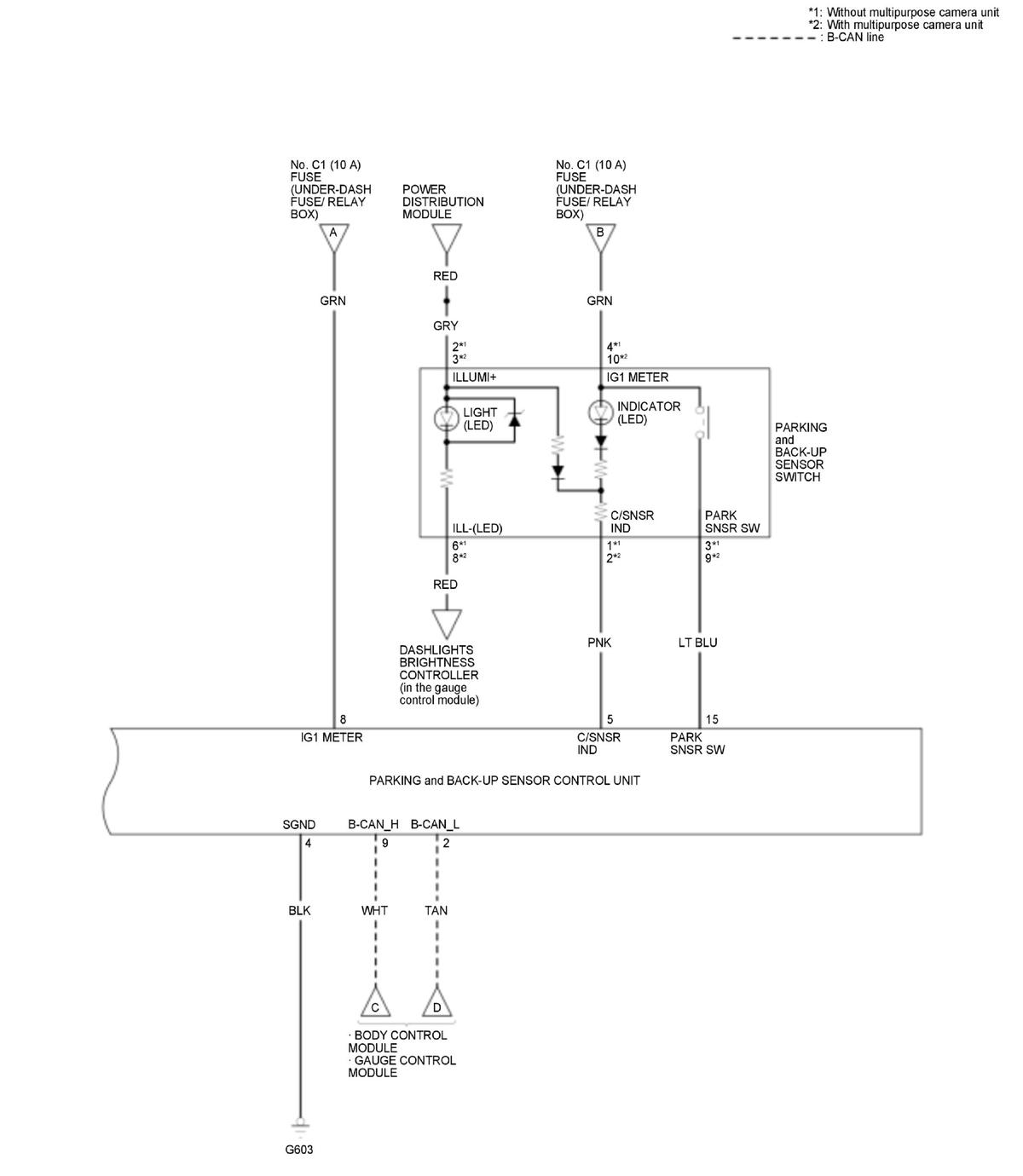

GHH445135

Courtesy of HONDA, U.S.A., INC.
