Gauges Circuit Diagram

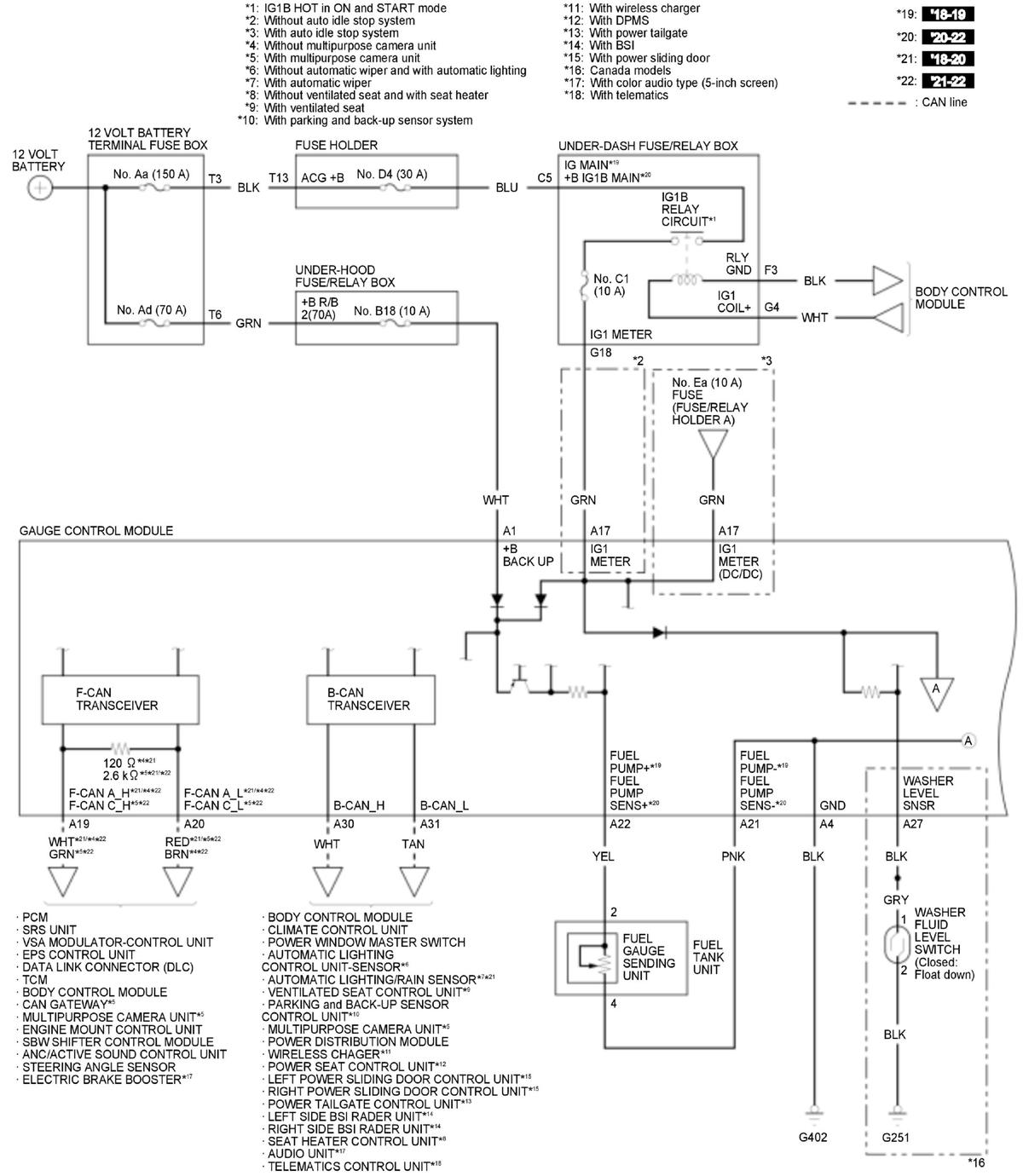

GHH445128Courtesy of HONDA, U.S.A., INC.

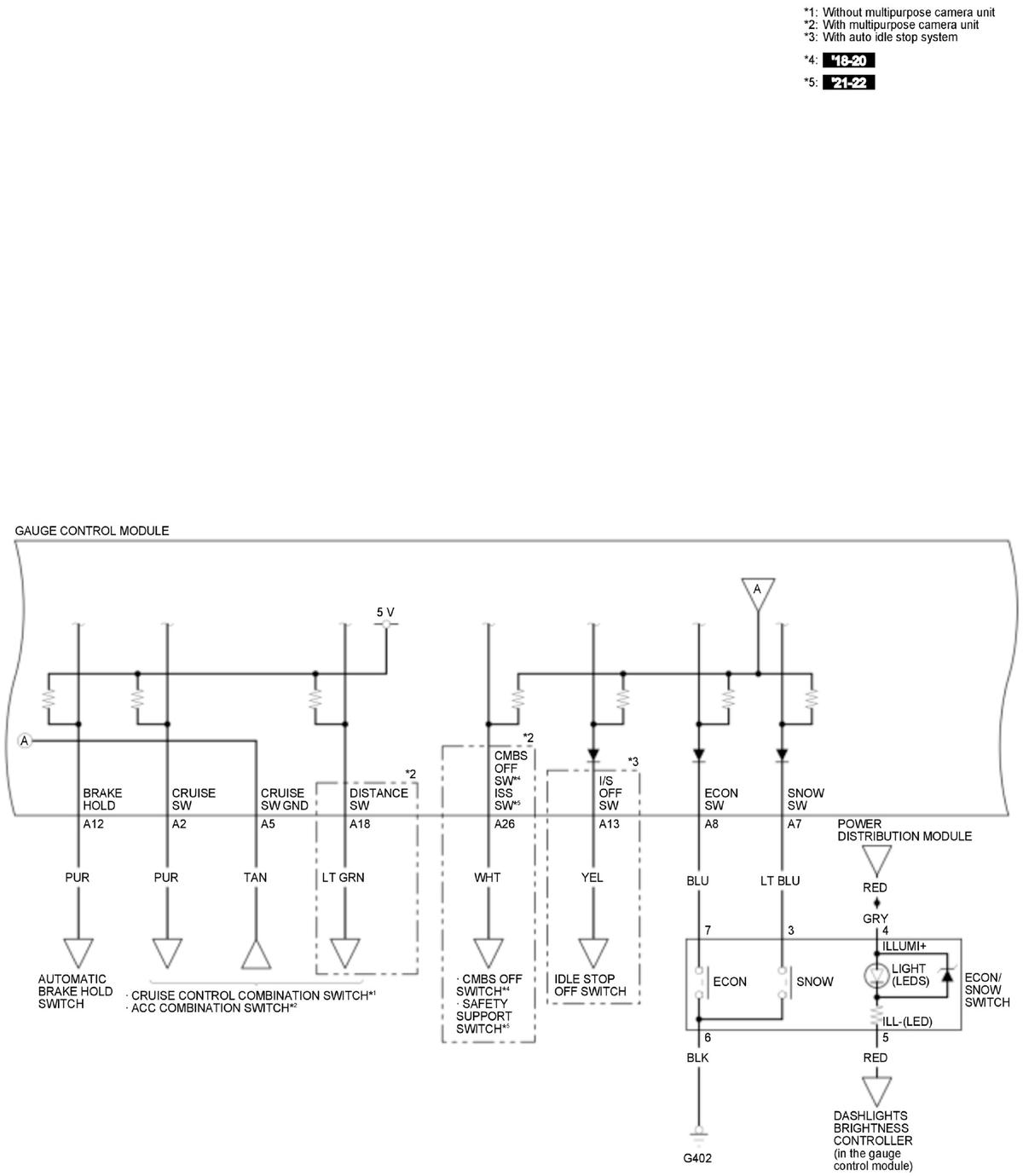

GHH445129Courtesy of HONDA, U.S.A., INC.

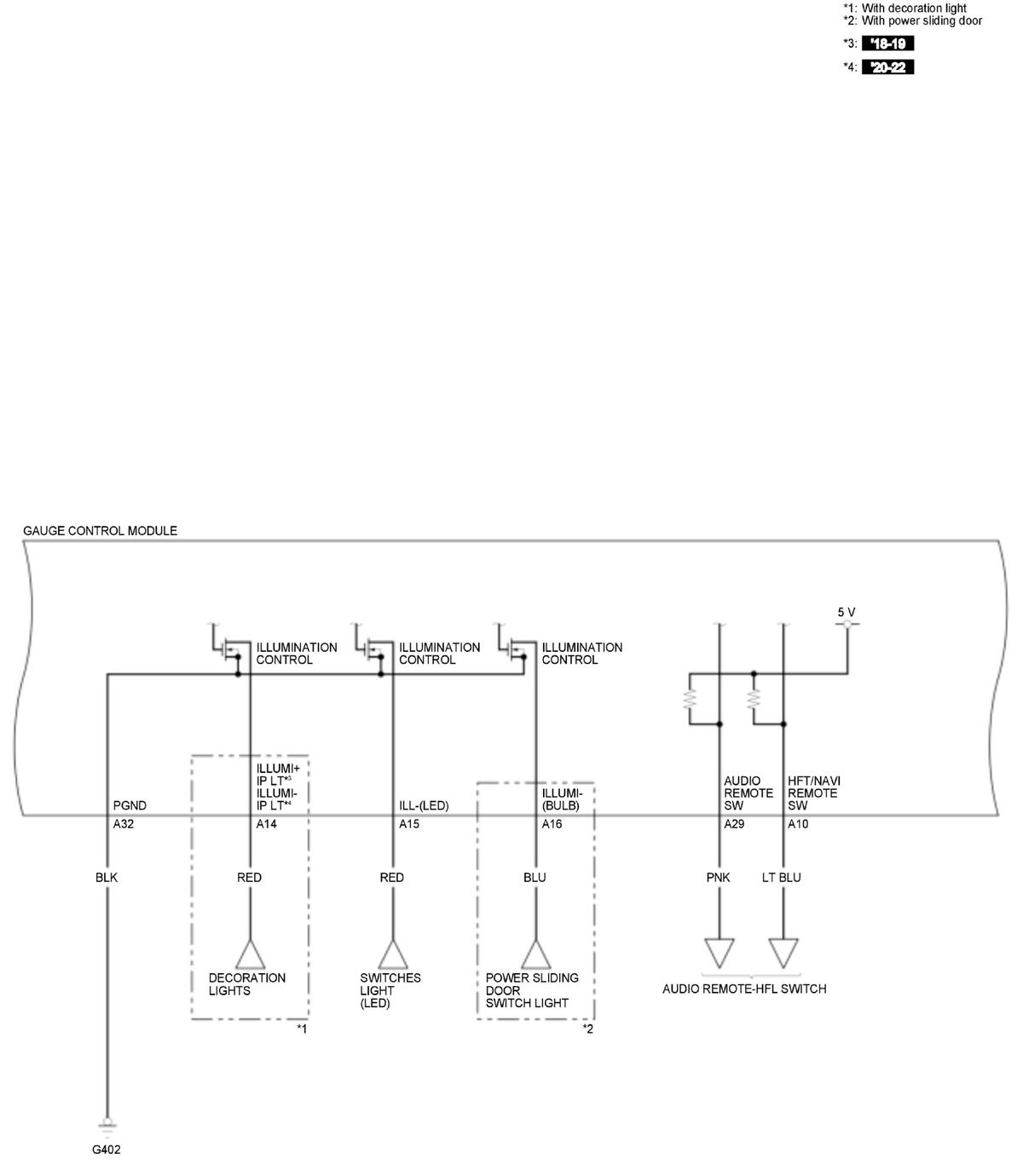

GHH445130Courtesy of HONDA, U.S.A., INC.

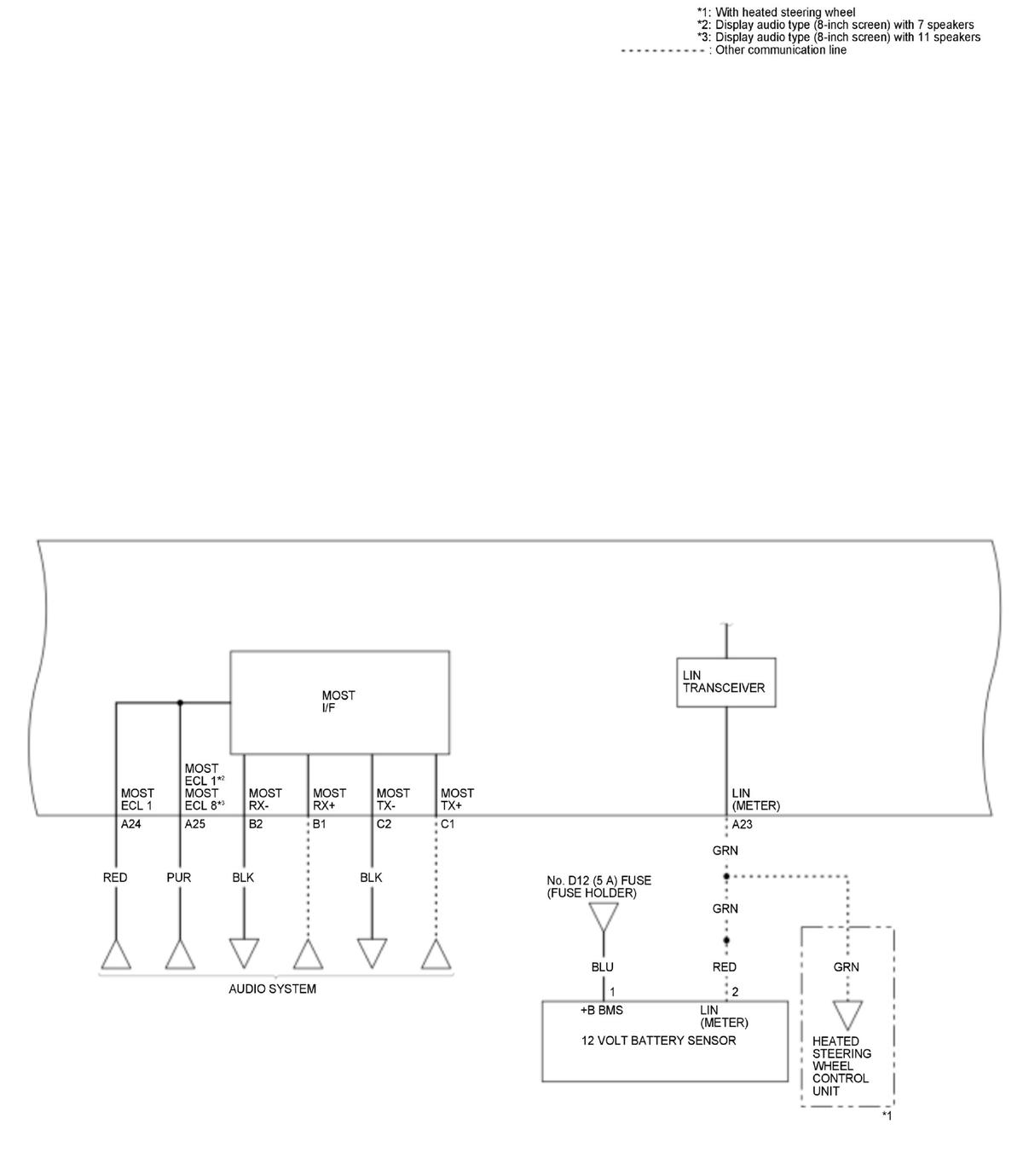

GHH445131Courtesy of HONDA, U.S.A., INC.

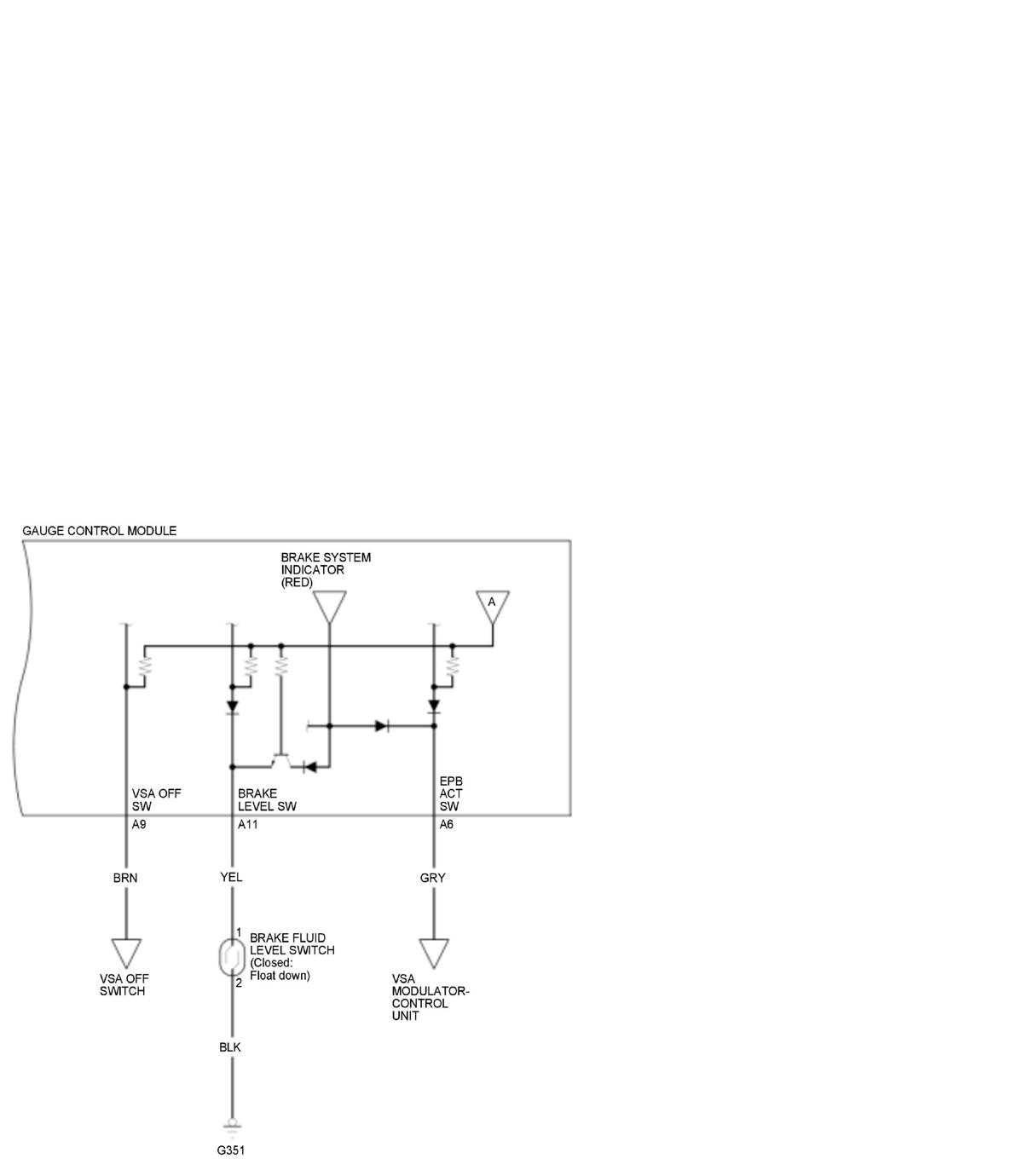

GHH445132Courtesy of HONDA, U.S.A., INC.
