Steering System - Testing & Troubleshooting
>>
Circuit Diagram
>>

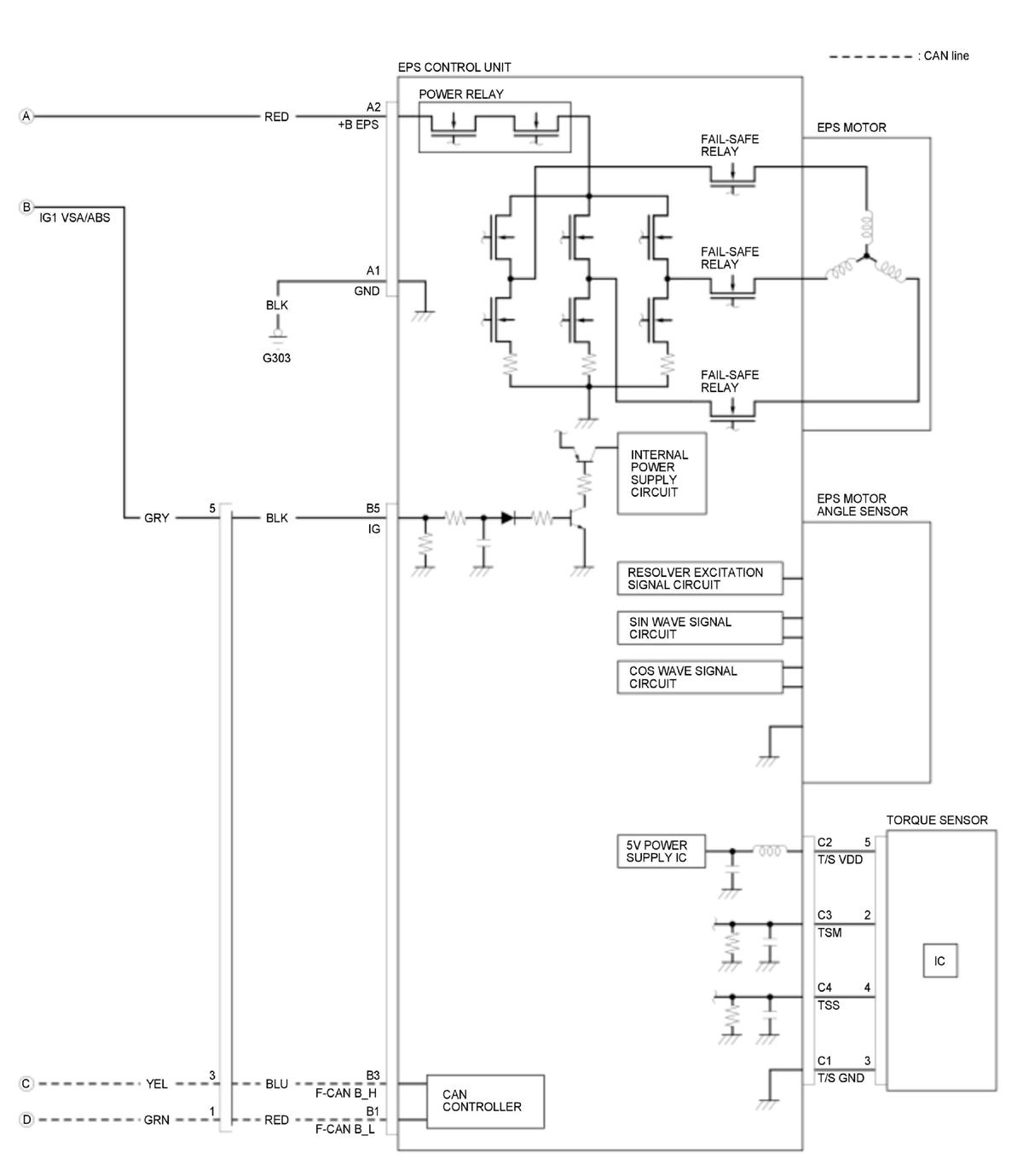

EPS Circuit Diagram
EPS Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
