Acoustic Vehicle Alerting Control Unit Connector for Inputs and Outputs

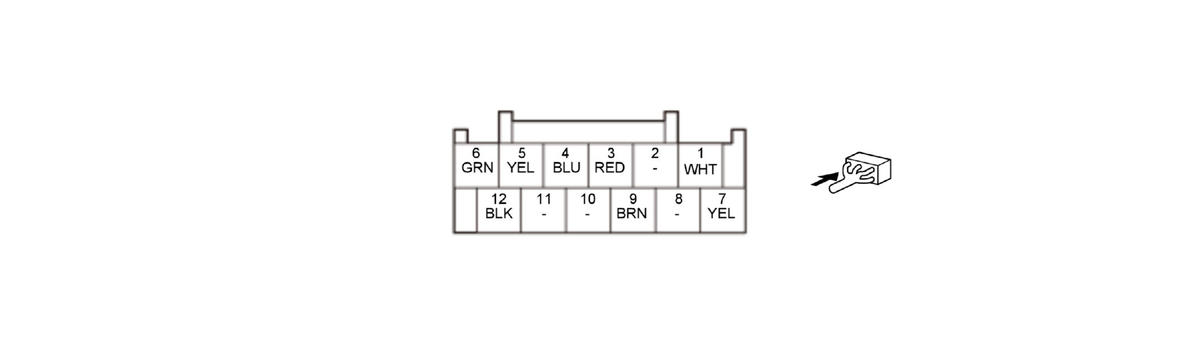

Acoustic Vehicle Alerting Control Unit 12P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | AUDIBLE OFF SW | Detects AUDIBLE OFF SW signal | With the vehicle in the ON mode and acoustic vehicle alerting system off switch ON: about battery voltage If none of the above conditions are met: less than 0.2 V |
| 2 | Not used | --- | --- |
| 3 | AUDIBLE SPKR+ | Drives acoustic vehicle alerting speaker | --- |
| 4 | AUDIBLE SPKR- | Drives acoustic vehicle alerting speaker | --- |
| 5 | F-CAN B_H | Communication line | --- |
| 6 | F-CAN B_L | Communication line | --- |
| 7 | IG1 OPTION | IG1 power source | With the vehicle in the ON or START mode: about battery voltage |
| 8 | Not used | --- | --- |
| 9 | AUDIBLE IND | Outputs AUDIBLE IND signal | When indicator is ON: less than 0.2 V If none of the above conditions are met: about battery voltage |
| 10 | Not used | --- | --- |
| 11 | Not used | --- | --- |
| 12 | GND | Ground for acoustic vehicle alerting control unit | Less than 0.2 V at all times |
