VSA System - VSA cannot be turned OFF

  1. VSA OFF switch check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check the VSA OFF switch .

    Is the VSA OFF switch OK?

    YES

    Go to step 2.

    NO

    Replace the VSA OFF switch .

  2. Determine possible failure area (VSA OFF SW line, GND line)

    -1. Disconnect the following connector.

    VSA OFF switch 5P connector

    -2. Turn the vehicle to the ON mode.

    -3. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    VSA OFF switch 5P connector: disconnected
    Test point 1 VSA OFF switch 5P connector (female terminals) No. 2*1:
    VSA OFF switch 5P connector (female terminals) No. 1*2:
    Test point 2 Body ground

    *1: With SAFETY SUPPORT switch/VSA OFF switch

    *2: Without SAFETY SUPPORT switch/VSA OFF switch

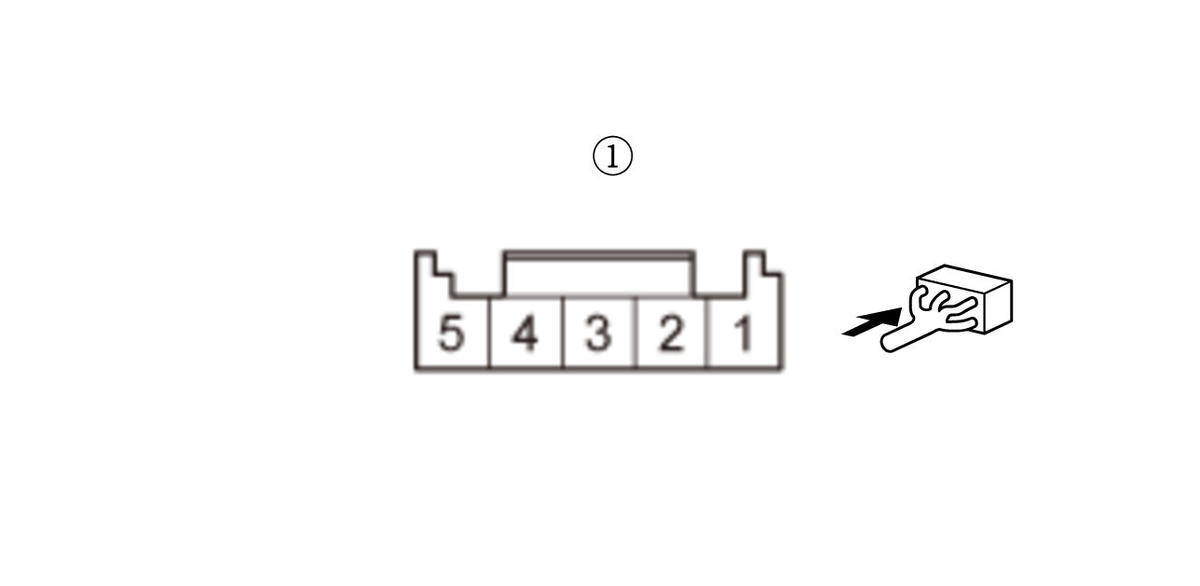

    GHH388609Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Repair an open in the wire between the VSA OFF switch and body ground (G401).

    NO

    Go to step 3.

  3. Shorted wire check (VSA OFF SW line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Gauge control module connector A (32P)

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    VSA OFF switch 5P connector: disconnected
    Gauge control module connector A (32P): disconnected
    Test point 1 VSA OFF switch 5P connector (female terminals) No. 2*1:
    VSA OFF switch 5P connector (female terminals) No. 1*2:
    Test point 2 Body ground

    *1: With SAFETY SUPPORT switch/VSA OFF switch

    *2: Without SAFETY SUPPORT switch/VSA OFF switch

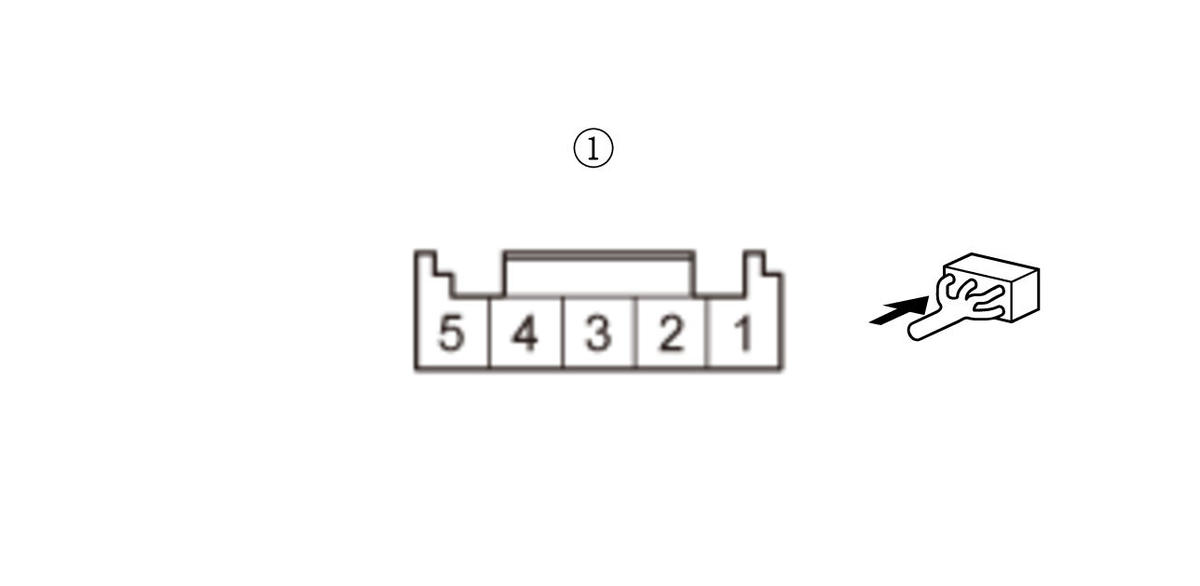

    GHH388612Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to body ground in the wire between the gauge control module and the VSA OFF switch.

    NO

    The VSA OFF SW wire is not shorted. Go to step 4.

  4. Open wire check (VSA OFF SW line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    VSA OFF switch 5P connector: disconnected
    Gauge control module connector A (32P): disconnected
    Test point 1 VSA OFF switch 5P connector (female terminals) No. 2*1:
    VSA OFF switch 5P connector (female terminals) No. 1*2:
    Test point 2 Gauge control module connector A (32P) No. 10

    *1: With SAFETY SUPPORT switch/VSA OFF switch

    *2: Without SAFETY SUPPORT switch/VSA OFF switch

    GHH388615Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Replace the gauge control module .

    NO

    Repair an open in the wire between the gauge control module and the VSA OFF switch.
