DTC B1C55

DTC B1C55  : Driver's Heater Thermistor Circuit Open

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Front Seat Heater Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Turn the seat heater switch ON.

   -4. Wait for at least 90 seconds.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   B1C55 Driver's heater thermistor circuit open

   Is DTC B1C55 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Seat heater check 1

   -1. Disconnect the following connector.

   Front seat heater control unit 24P connector

   -2. Measure the resistance between test points 1 and 2, refer to the following table.

   Test condition	Vehicle OFF (LOCK) mode Front seat heater control unit 24P connector: disconnected
   Test point 1	Front seat heater control unit 24P connector No. 12
   Test point 2	Front seat heater control unit 24P connector No. 22

   Courtesy of HONDA, U.S.A., INC.

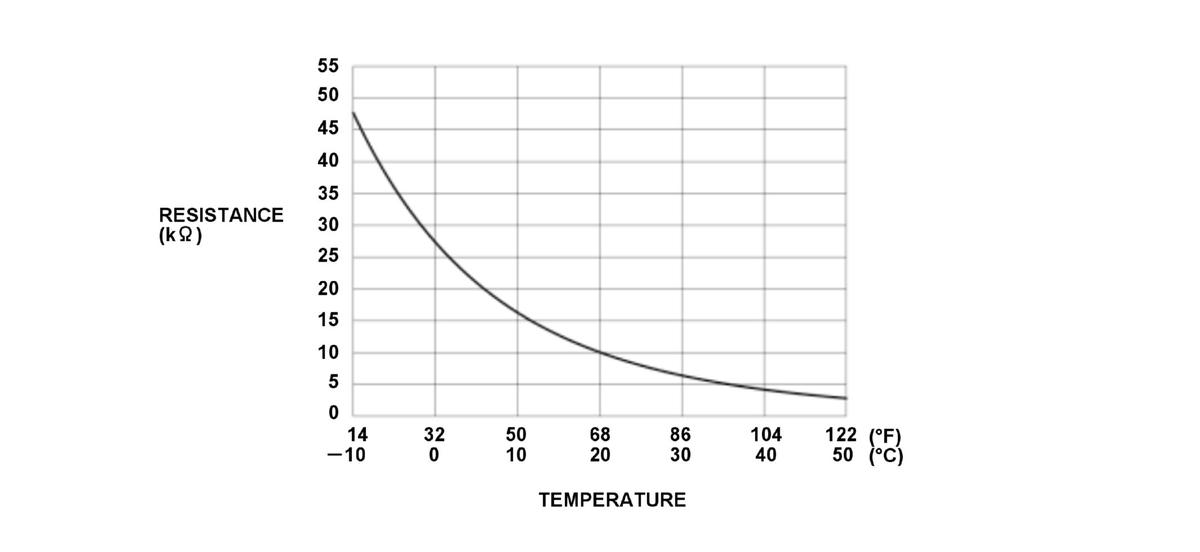

   Is resistance value within the range?

   YES

   Replace the front seat heater control unit .

   NO

   Go to step 3.

3. Seat heater check 2

   -1. Disconnect the following connector.

   Driver's seat heater connector A (4P)

   -2. Measure the resistance between test points 1 and 2, refer to the following table.

   Test condition	Vehicle OFF (LOCK) mode Front seat heater control unit 24P connector: disconnected Driver's seat heater connector A (4P): disconnected

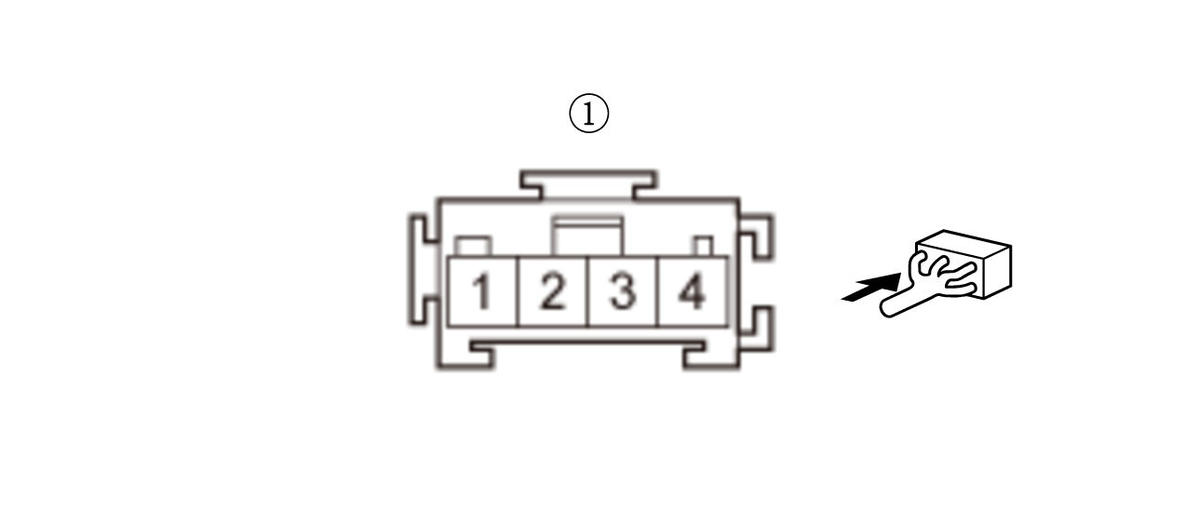

   Test point 1	Driver's seat heater connector A (4P) (male terminals) No. 3:
   Test point 2	Driver's seat heater connector A (4P) (male terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

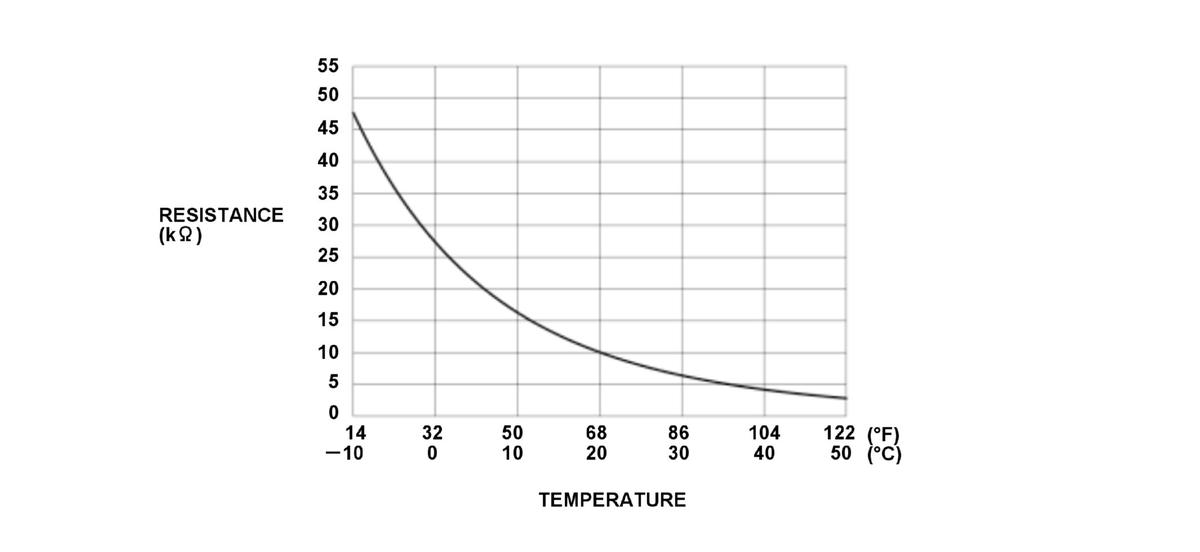

   Is resistance value within the range?

   YES

   Replace the front seat heater control unit .

   NO

   Go to step 4.

4. Open wire check (+THERMISTER (DR) line)

   -1. Connect terminals A and B with a jumper wire.

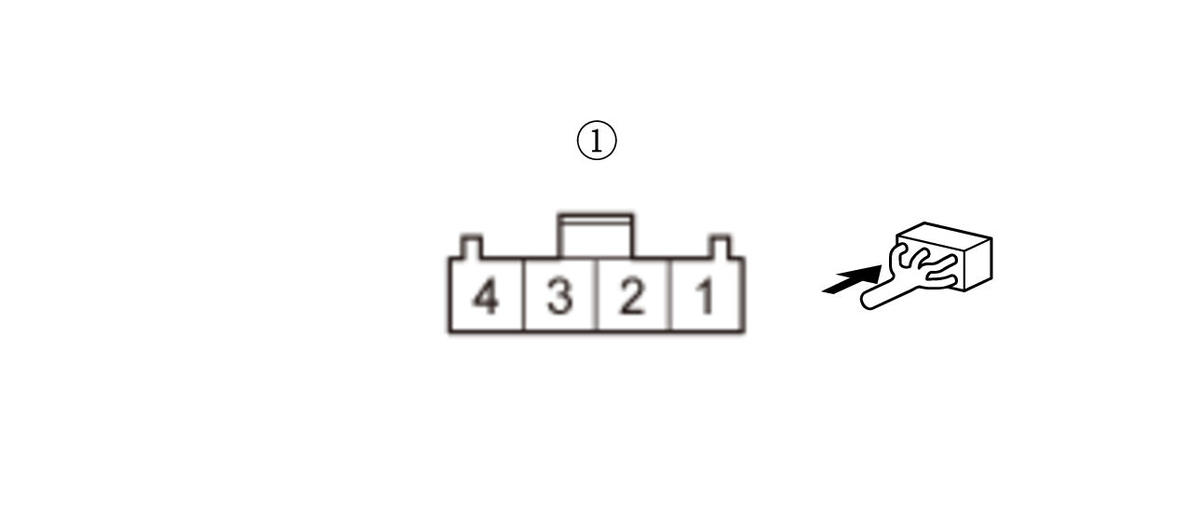

   Terminal A	Driver's seat heater connector A (4P) (female terminals) No. 3:
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Front seat heater control unit 24P connector: disconnected Driver's seat heater connector A (4P): disconnected Driver's seat heater connector A (4P): jumped to body ground
   Test point 1	Front seat heater control unit 24P connector No. 12
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair an open or high resistance in the -THERMISTER (DR) wire.

   NO

   Repair an open or high resistance in the +THERMISTER (DR) wire.
