SRS Indicator

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

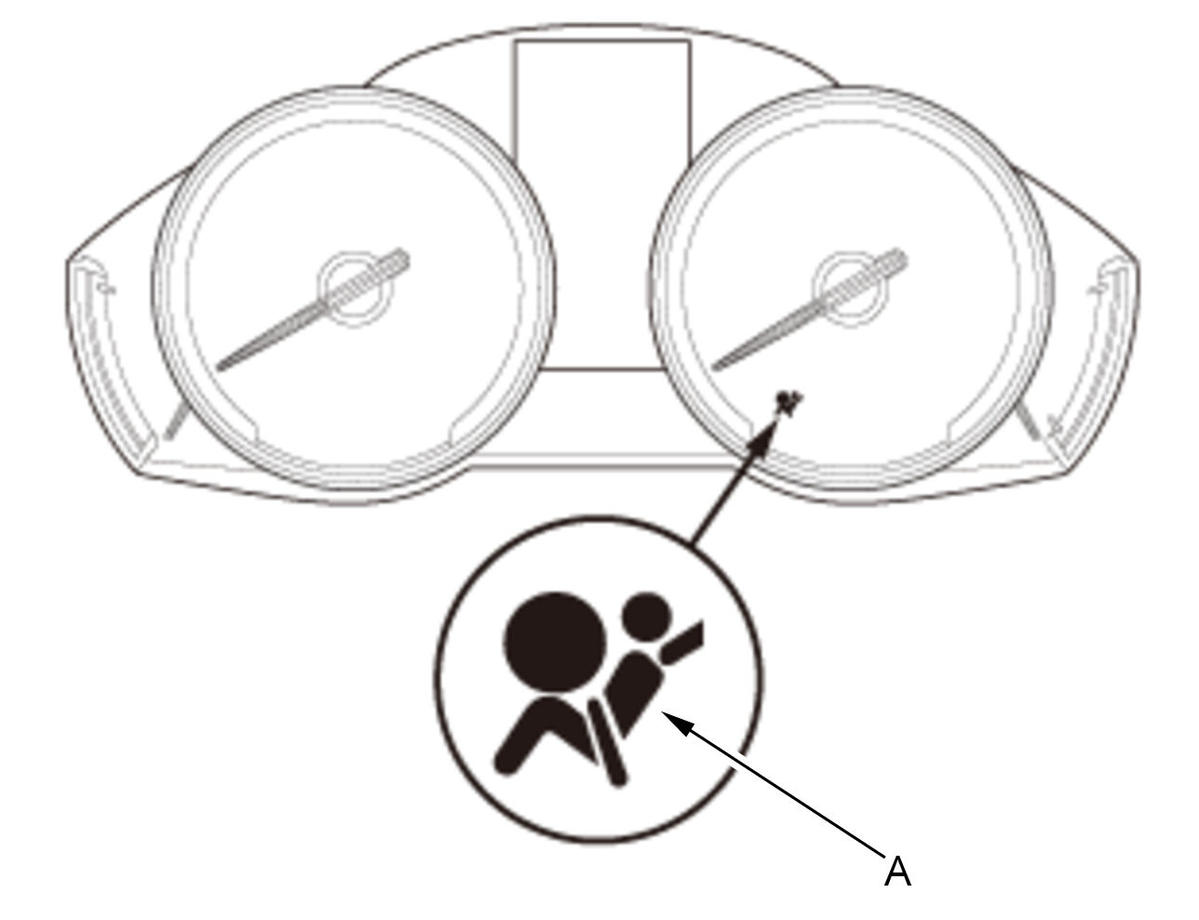

The SRS indicator (A) indicates problems related with SRS and/or E-pretensioner function.

Courtesy of HONDA, U.S.A., INC.

If the system is OK, the SRS indicator should come on when you turn the vehicle to the ON mode, and then goes off 6 seconds later. If it does not, there is a problem with the system.

NOTE:

If the SRS unit detects a problem, do the troubleshooting procedure for the SRS DTC.
If the SRS indicator comes on, and SRS or E-pretensioner DTCs are not indicated, do the SRS symptom troubleshooting.
