E-Pretensioner Unit Connector for Inputs and Outputs (2014 2015)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

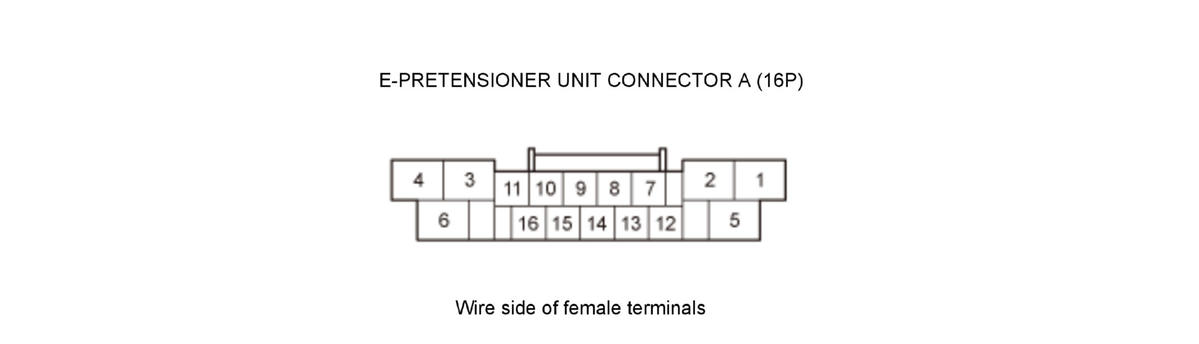

E-Pretensioner Unit Connector A (16P) for Inputs and Outputs
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | YEL | +B E-PT L | Power supply for the left E-pretensioner unit |
| 2 | LT BLU | E-PT L MTR+ | Power supply for the driver's E-pretensioner motor |
| 3 | LT GRN | E-PT L MTR- | Ground circuit for the driver's E-pretensioner motor |
| 4 | BLK | GND | Ground circuit for the left E-pretensioner unit |
| 5 | Not used | Not used | - |
| 6 | Not used | Not used | - |
| 7 | Not used | Not used | - |
| 8 | GRN | E-PT MTR L GB | Driver's E-pretensioner spool sensor B signal input line |
| 9 | Not used | Not used | - |
| 10 | YEL | E-PT MTR L VC | Power supply for the driver's E-pretensioner spool sensor |
| 11 | BRN | FLBO | Driver's seat belt buckle switch input line |
| 12 | BLU | F-CAN A_H | F-CAN communication (high) circuit |
| 13 | PNK | F-CAN A_L | F-CAN communication (low) circuit |
| 14 | BLU | E-PT MTR L GA | Driver's E-pretensioner spool sensor A signal input line |
| 15 | Not used | Not used | - |
| 16 | LT BLU | IG1 E-PT | Detects ignition signal |

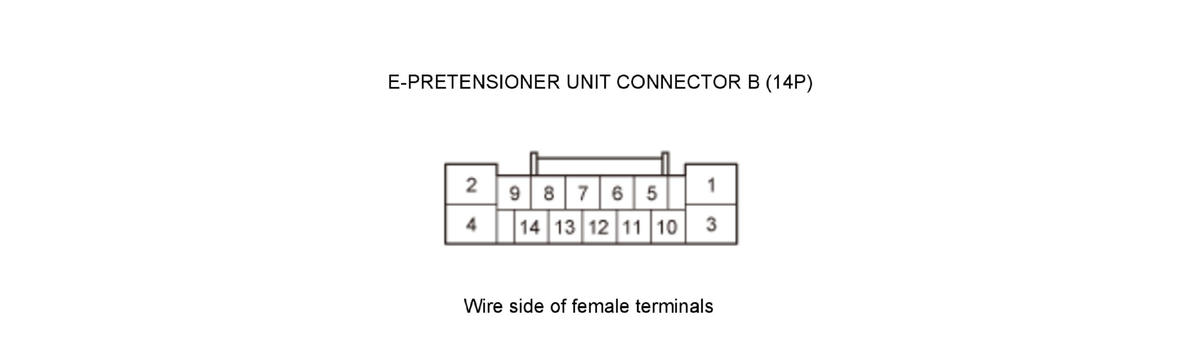

E-Pretensioner Unit Connector B (14P) for Inputs and Outputs
| Terminal Number | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | WHT | E-PT R MTR+ | Power supply for the front passenger's E-pretensioner motor |
| 2 | BRN | E-PT R MTR- | Ground circuit for the front passenger's E-pretensioner motor |
| 3 | RED | +B E-PT R | Power supply for the right E-pretensioner unit |
| 4 | BLK | GND | Ground circuit for the right E-pretensioner unit |
| 5 | Not used | Not used | - |
| 6 | PUR | E-PT MTR R GB | Front passenger's E-pretensioner spool sensor B signal input line |
| 7 | Not used | Not used | - |
| 8 | PNK | E-PT MTR R VC | Power supply for the front passenger's E-pretensioner spool sensor |
| 9 | BLU | FRBO | Front passenger's seat belt buckle switch input line |
| 10 | BLU | F-CAN A_H | F-CAN communication (high) circuit |
| 11 | PNK | F-CAN A_L | F-CAN communication (low) circuit |
| 12 | GRY | E-PT MTR R GA | Front passenger's E-pretensioner spool sensor A signal input line |
| 13 | Not used | Not used | - |
| 14 | LT BLU | IG1 E-PT | Detects ignition signal |
