DTC B2868-12

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

DTC B2868-12 : Front Passenger's E-Pretensioner Motor Circuit Short to Power

NOTE:

Before doing this troubleshooting procedure, review General Troubleshooting Information .
Before replacing the E-pretensioner unit, check the E-pretensioner unit software version with the HDS. If the software version is not the latest, update the E-pretensioner unit software , and retest.

DTC Description	DTC
B2868-12 Front Passenger's E-Pretensioner Motor Circuit Short to Power

DTC (E-pretensioner)

Problem verification

-1. Clear the DTCs with the HDS.

-2. Turn the vehicle to the ON mode.

-3. Check for DTCs with the HDS.

DTC Description	DTC
B2868-12 Front Passenger's E-Pretensioner Motor Circuit Short to Power

Is DTC B2868-12 indicated?

YES

The failure is duplicated. Go to step 2.

Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting.

Shorted wire check (E-PT R MTR+ line to power)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connector.

E-pretensioner unit connector B (14P)

-3. Turn the vehicle to the ON mode.

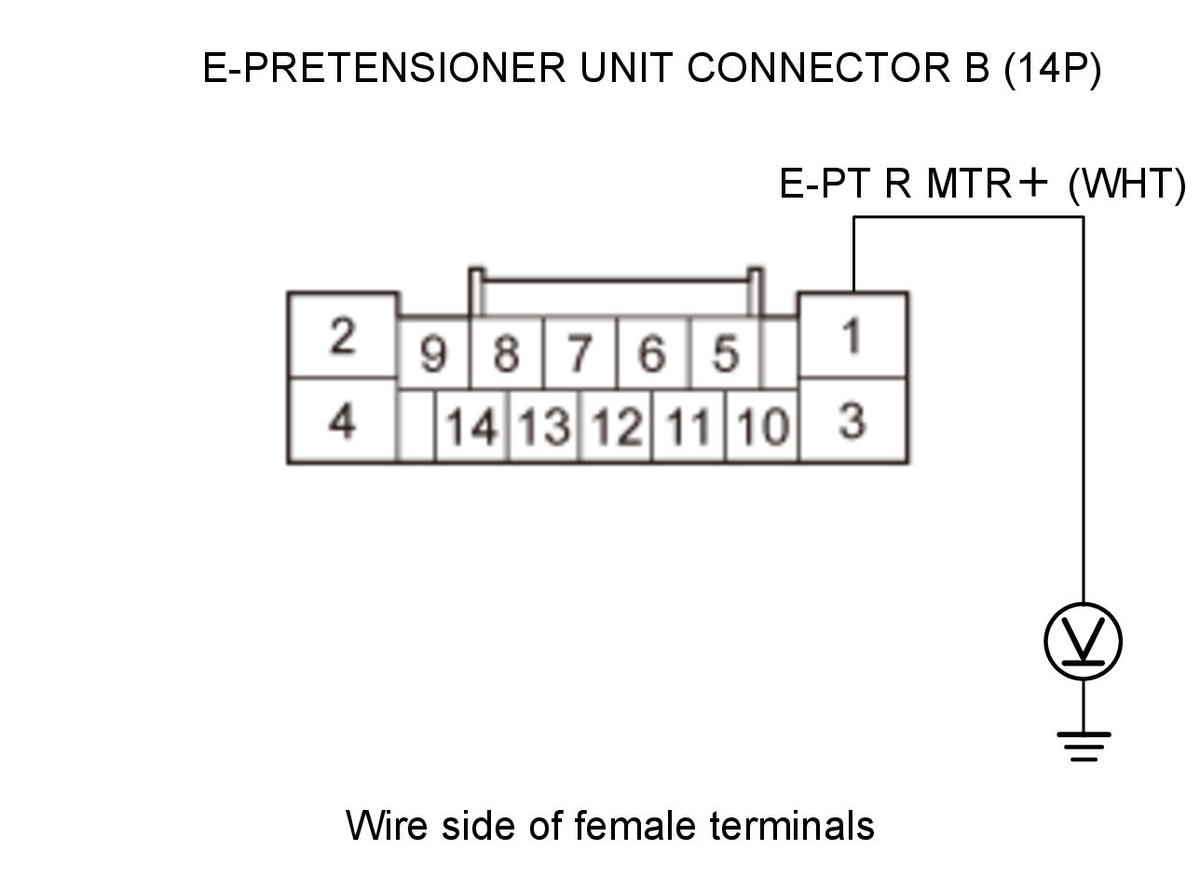

-4. Measure the voltage between test points 1 and 2.

Test condition	Vehicle ON mode
Test condition	E-pretensioner unit connector B (14P): disconnected
Test circuit	E-PT R MTR+
Test point 1	E-pretensioner unit connector B (14P) No. 1 (WHT)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there 3.9 V or more?

YES

Repair a short to power in the wire between the E-pretensioner unit connector B (14P) of the E-pretensioner unit and the front passenger's E-pretensioner motor.

The E-PT R MTR+ wire is OK. Replace the E-pretensioner unit .
