Gauges Component Location Index

For relationships between signals in a system, refer to System Diagram .

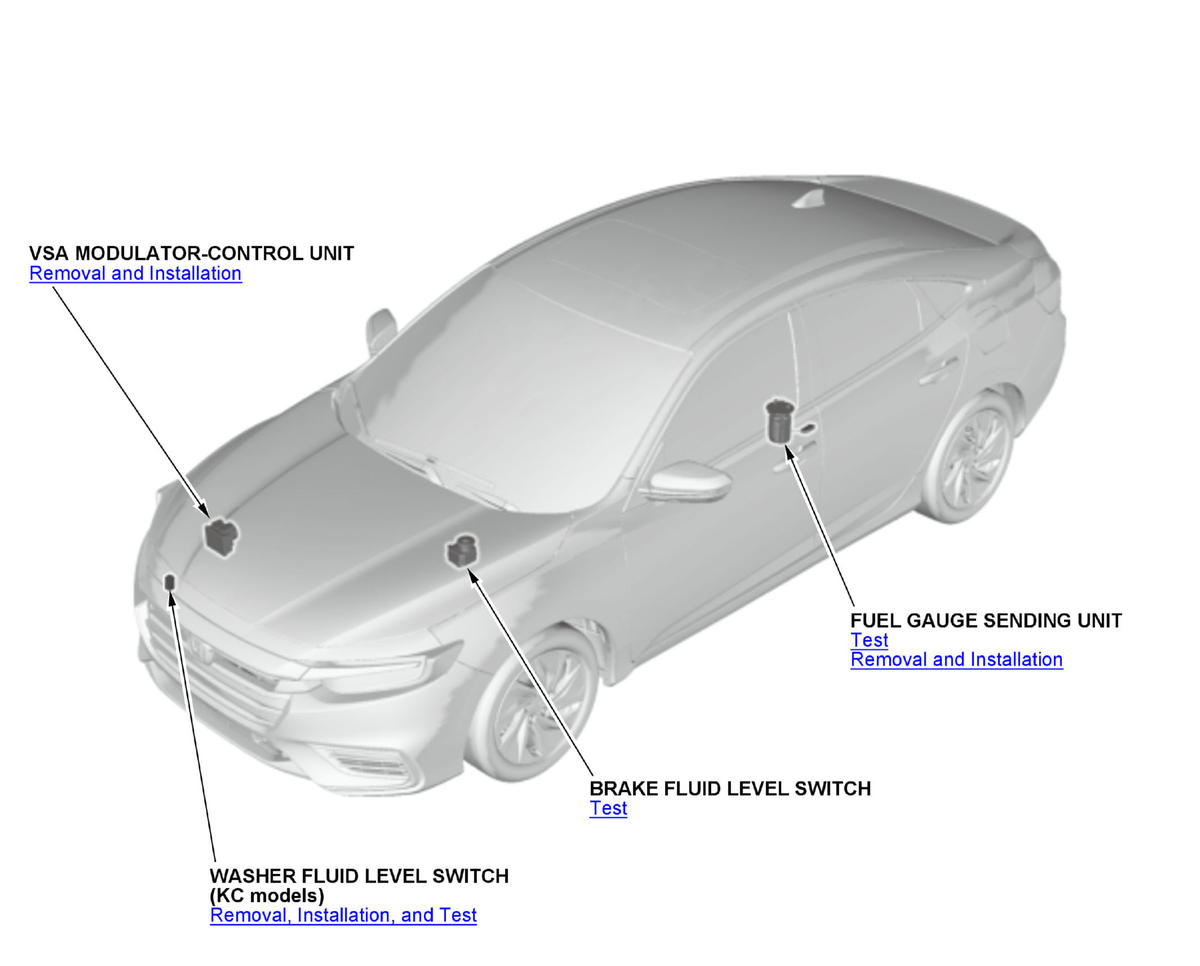

GHH386471Courtesy of HONDA, U.S.A., INC.

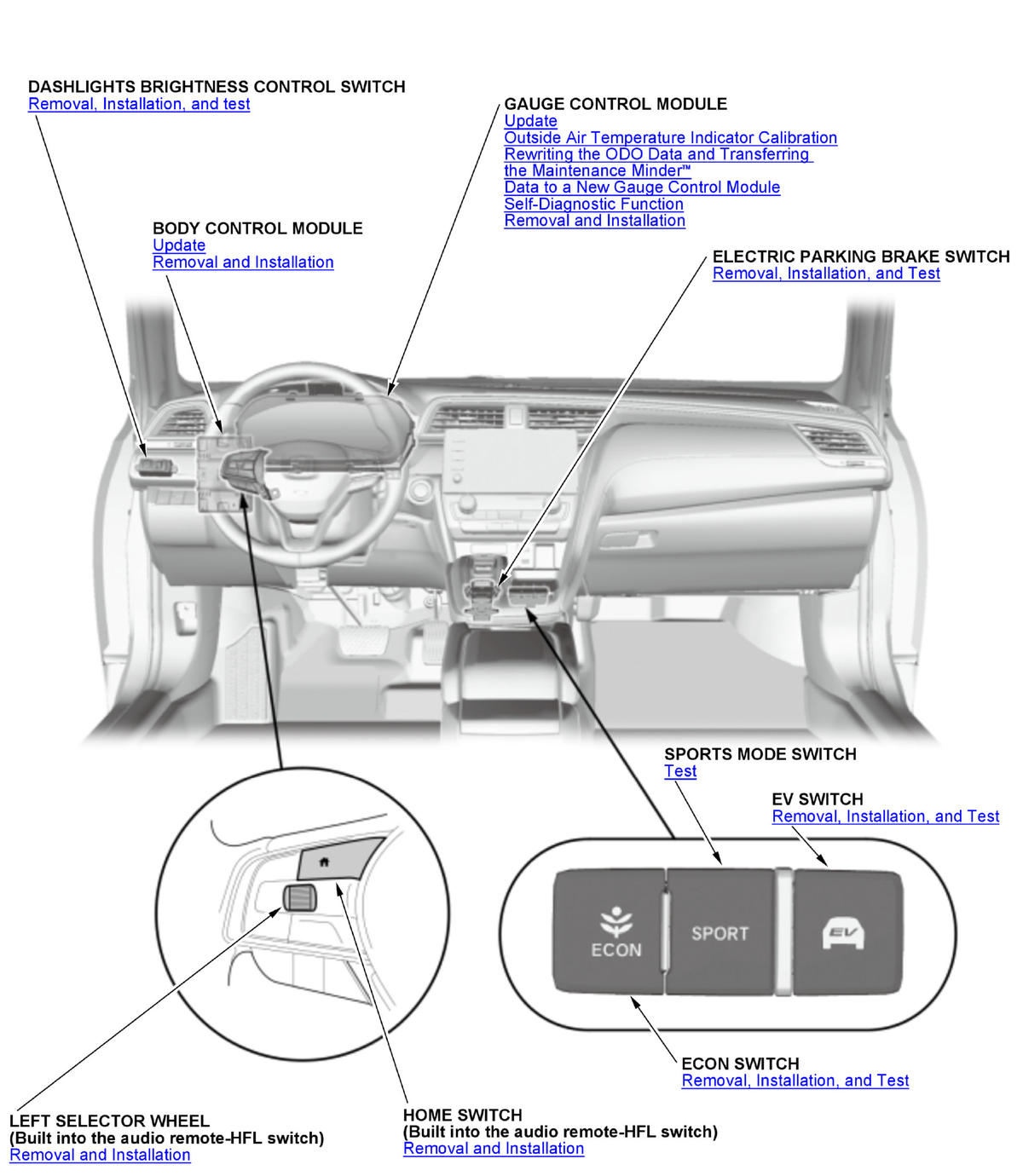

GHH386472Courtesy of HONDA, U.S.A., INC.

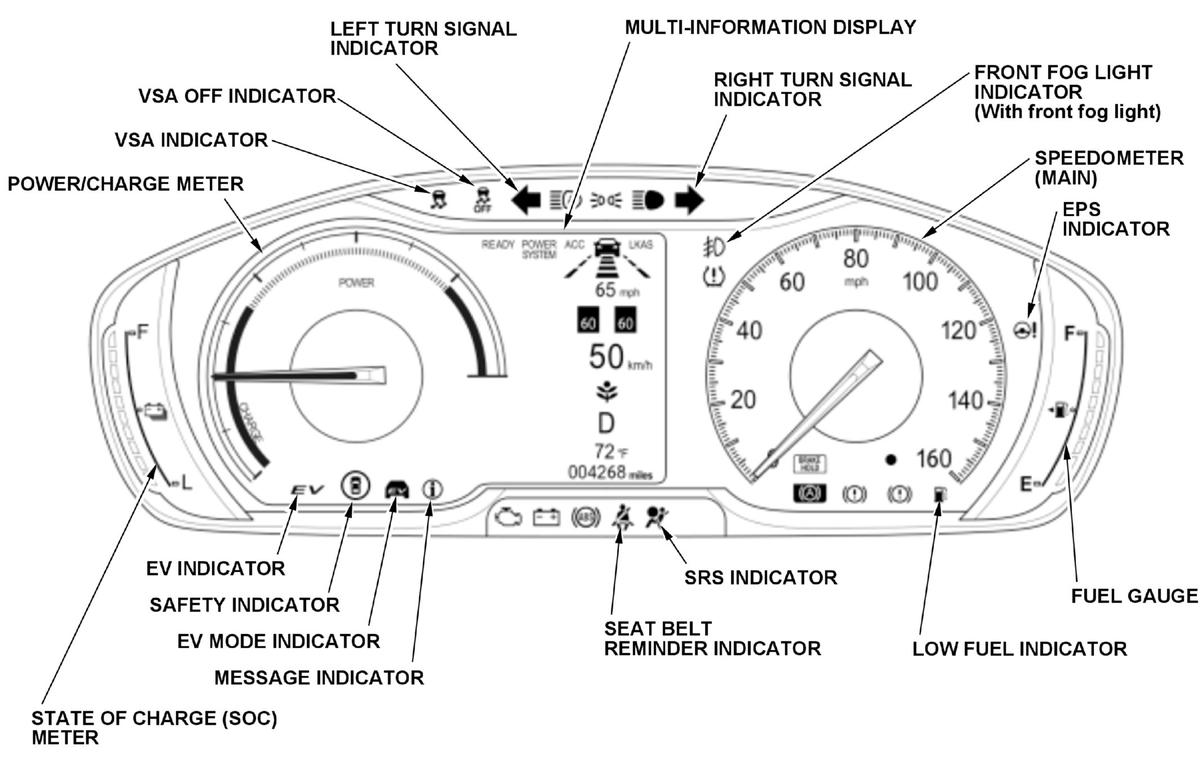

GHH386473Courtesy of HONDA, U.S.A., INC.

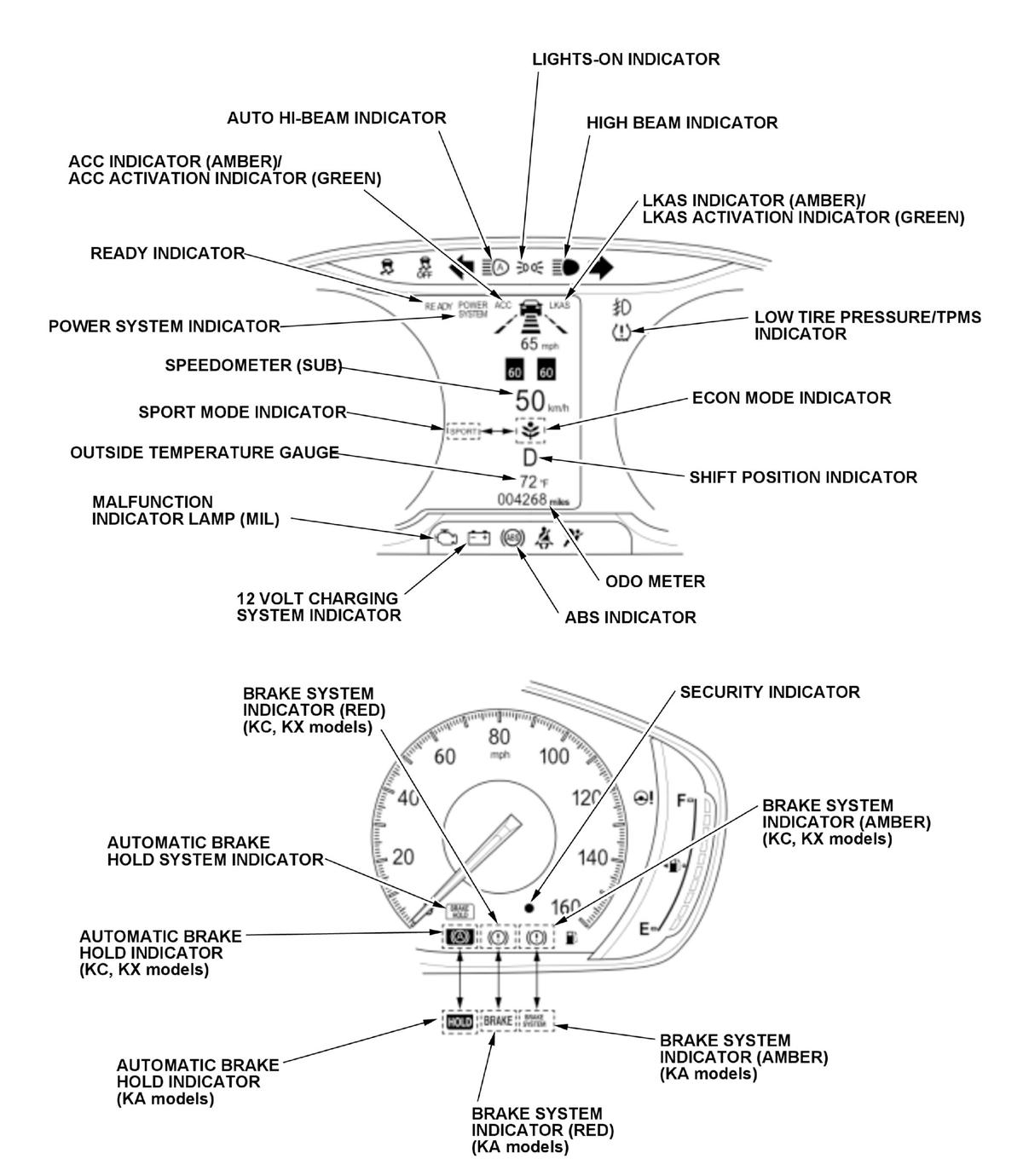

GHH386474Courtesy of HONDA, U.S.A., INC.
