Acoustic Vehicle Alerting System Off Switch Removal, Installation and Test: Test

NOTE:  The switch location of the acoustic vehicle alerting system OFF switch is different depending on the model.

1. Acoustic Vehicle Alerting System Off Switch - Test

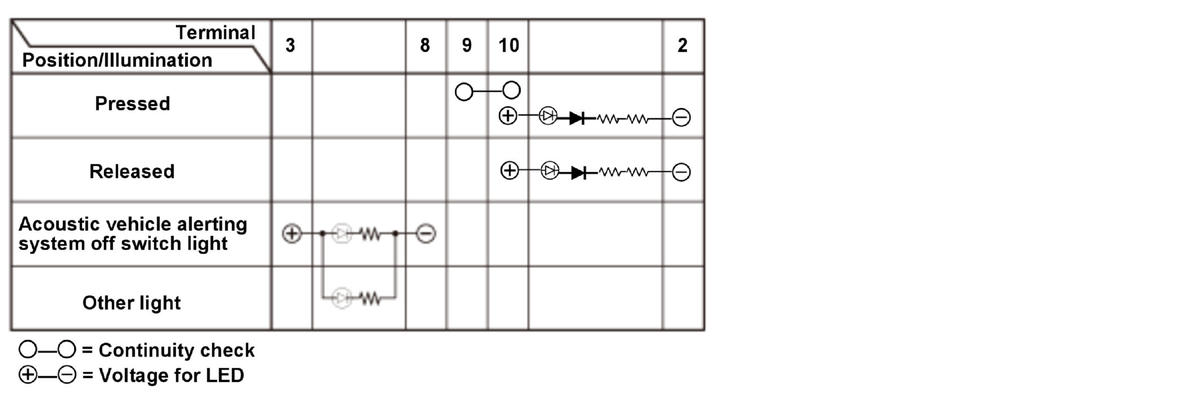

   1. Check the switch according to the table.NOTE:

   • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
   • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
   • Make sure the correct test lead (+or -) is placed on the terminal.
   • When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

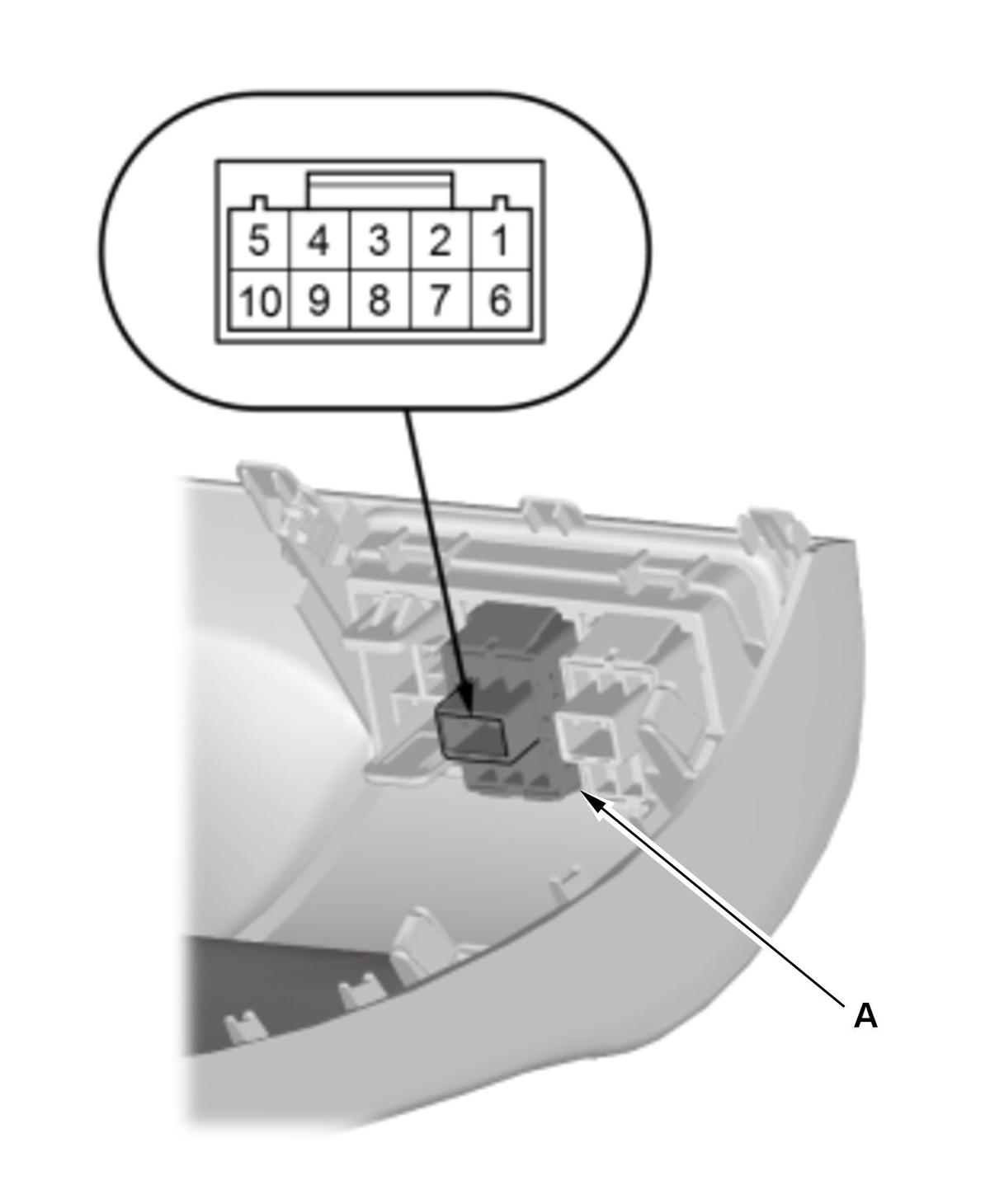

   2. If the result is not as specified, replace the acoustic vehicle alerting system off switch (A).
