Rear Differential Fluid Inspection and Replacement (AWD): Inspection

WARNING: This page is about a different variant/trim than selected.

Rear Differential Fluid - Check

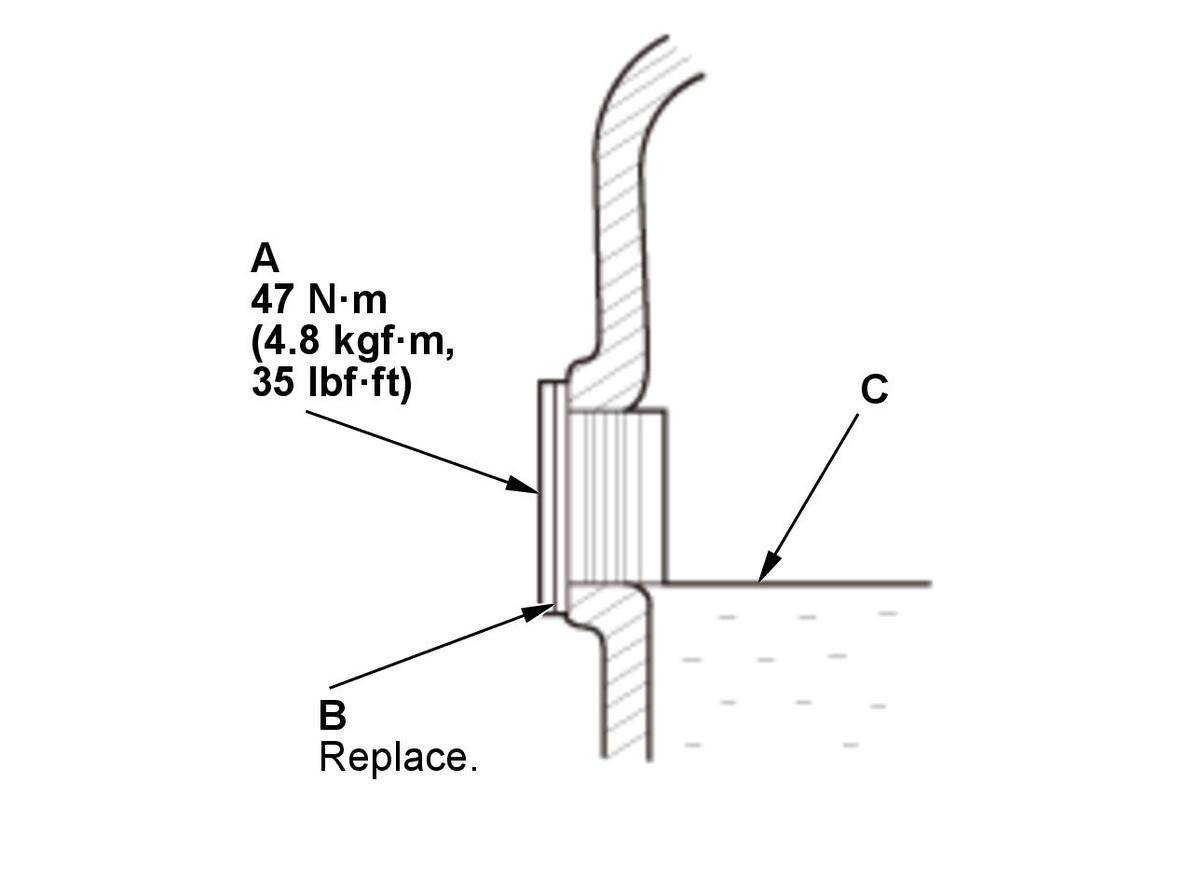

Fig 1: Differential Oil Filler Plug Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Use solvent and a brush to wash any oil and dirt off the oil filler plug, and dry them with compressed air.

2. Remove the oil filler plug (A) and the sealing washer (B).

3. Check the condition of the rear differential fluid, if the fluid is dirty or burnt, replace it.

4. Make sure the rear differential fluid is at the proper level (C).

If the level is below the proper level, check for rear differential fluid leaks at the differential.
If a problem is found, fix it before filling the differential with fluid.

5. The fluid level must reach up to the bottom of the oil filler plug hole.

6. If necessary, add rear differential fluid until it runs out, then reinstall the oil filler plug with a new sealing washer.
