Rear Differential Component Location Index (AWD)

WARNING: This page is about a different variant/trim than selected.

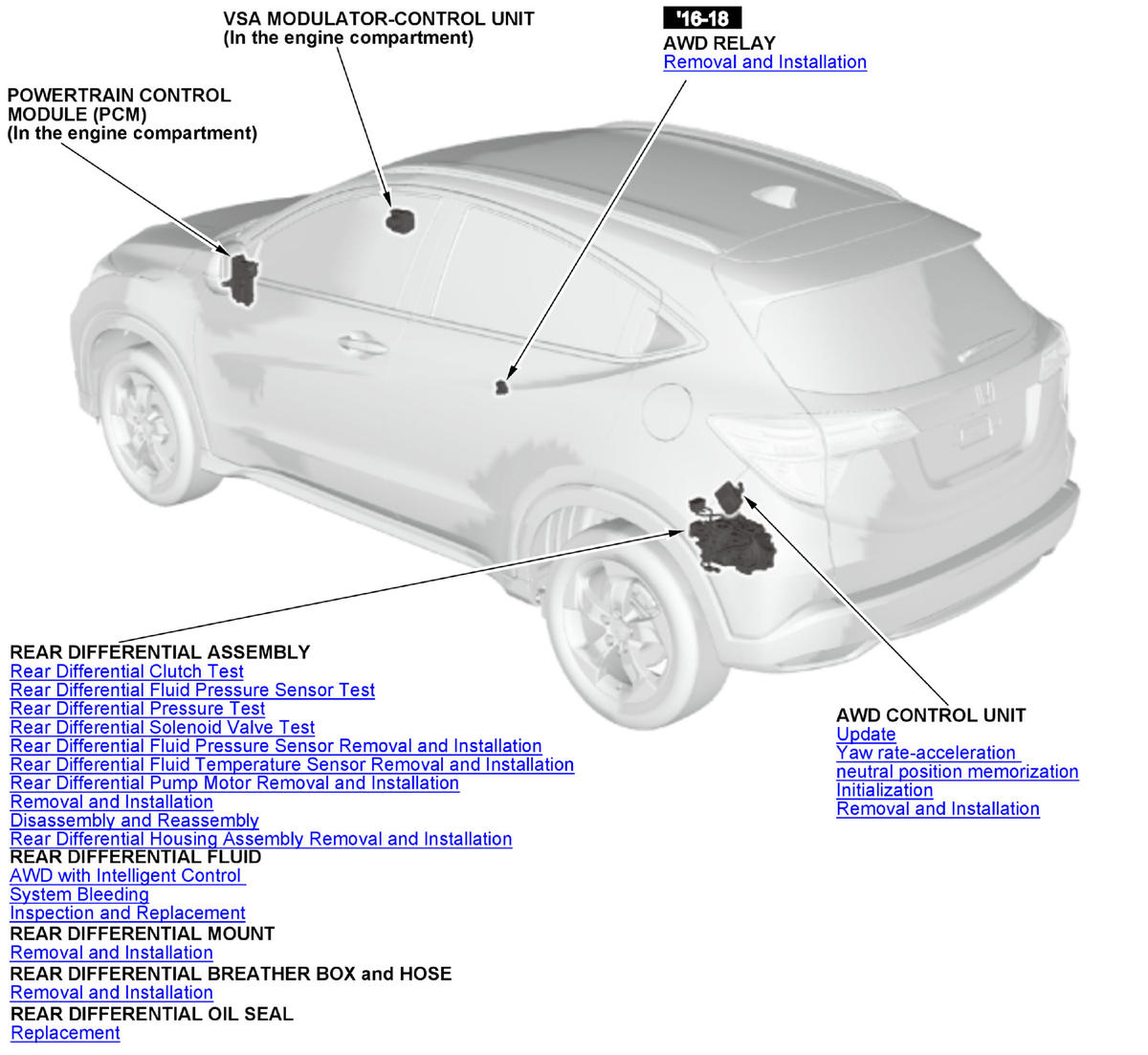

Fig 1: Rear Differential Component Locations (1 Of 2)
GHH433337Courtesy of HONDA, U.S.A., INC.
Fig 2: Rear Differential Component Locations (2 Of 2)
GHH433338Courtesy of HONDA, U.S.A., INC.
