Section 2 (AWD System / Rear Differential - Service, Testing And Troubleshooting)
>>
Circuit Diagram
>>

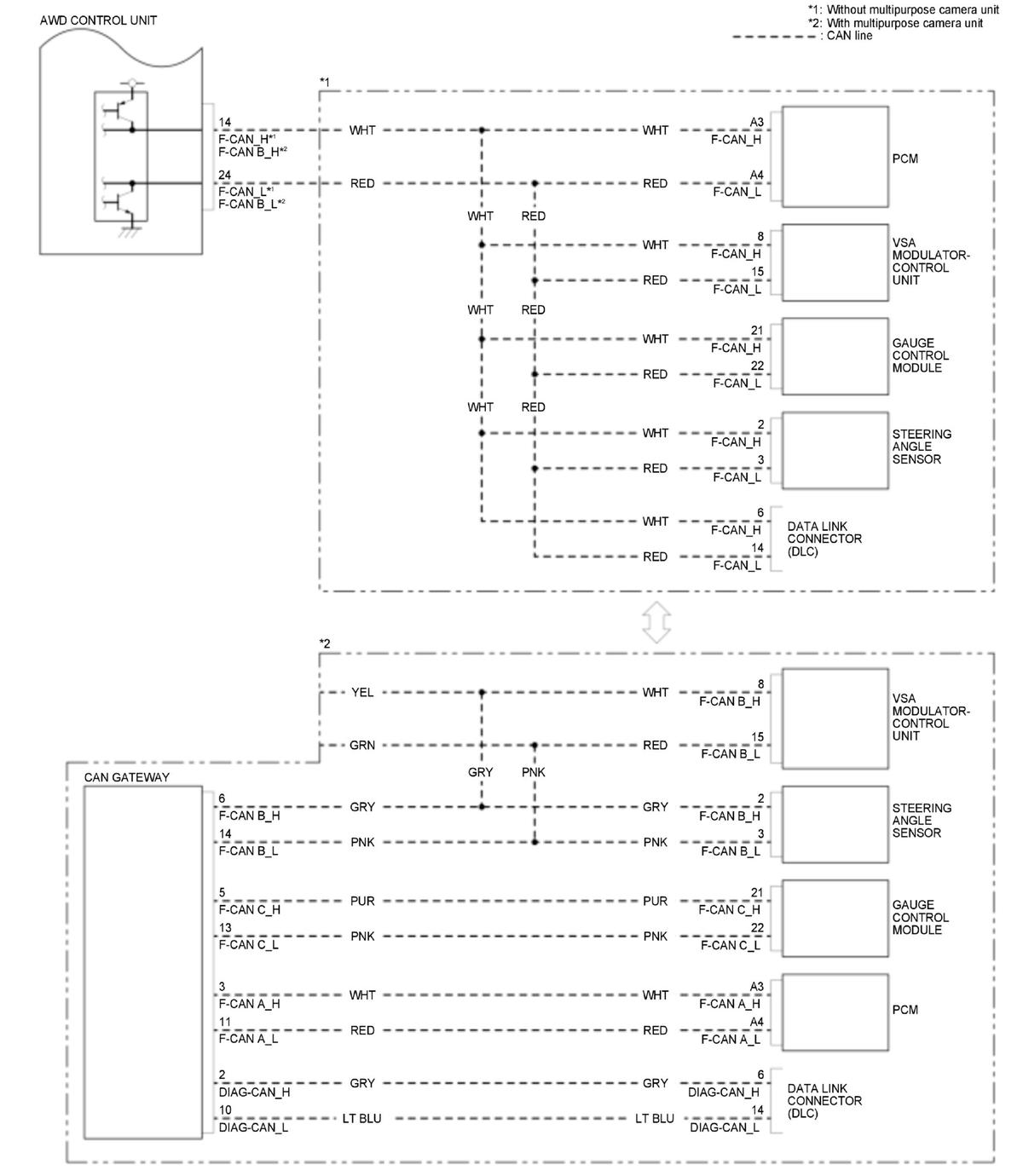

Rear Differential Circuit Diagram (AWD) (2019 2020 2021)

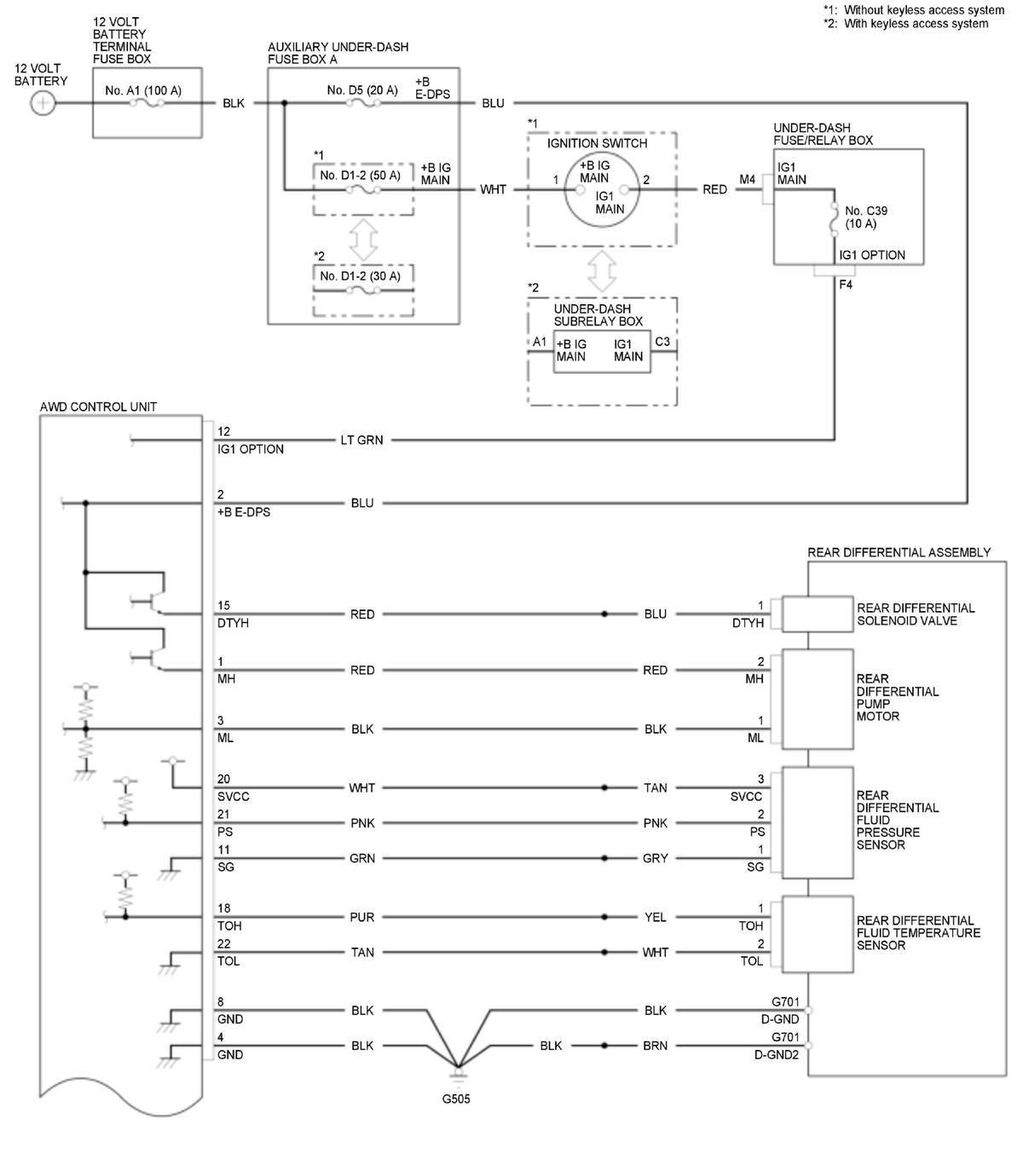

Rear Differential Circuit Diagram (AWD) (2019 2020 2021)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
