Section 2 (AWD System / Rear Differential - Service, Testing And Troubleshooting)
>>
Circuit Diagram
>>

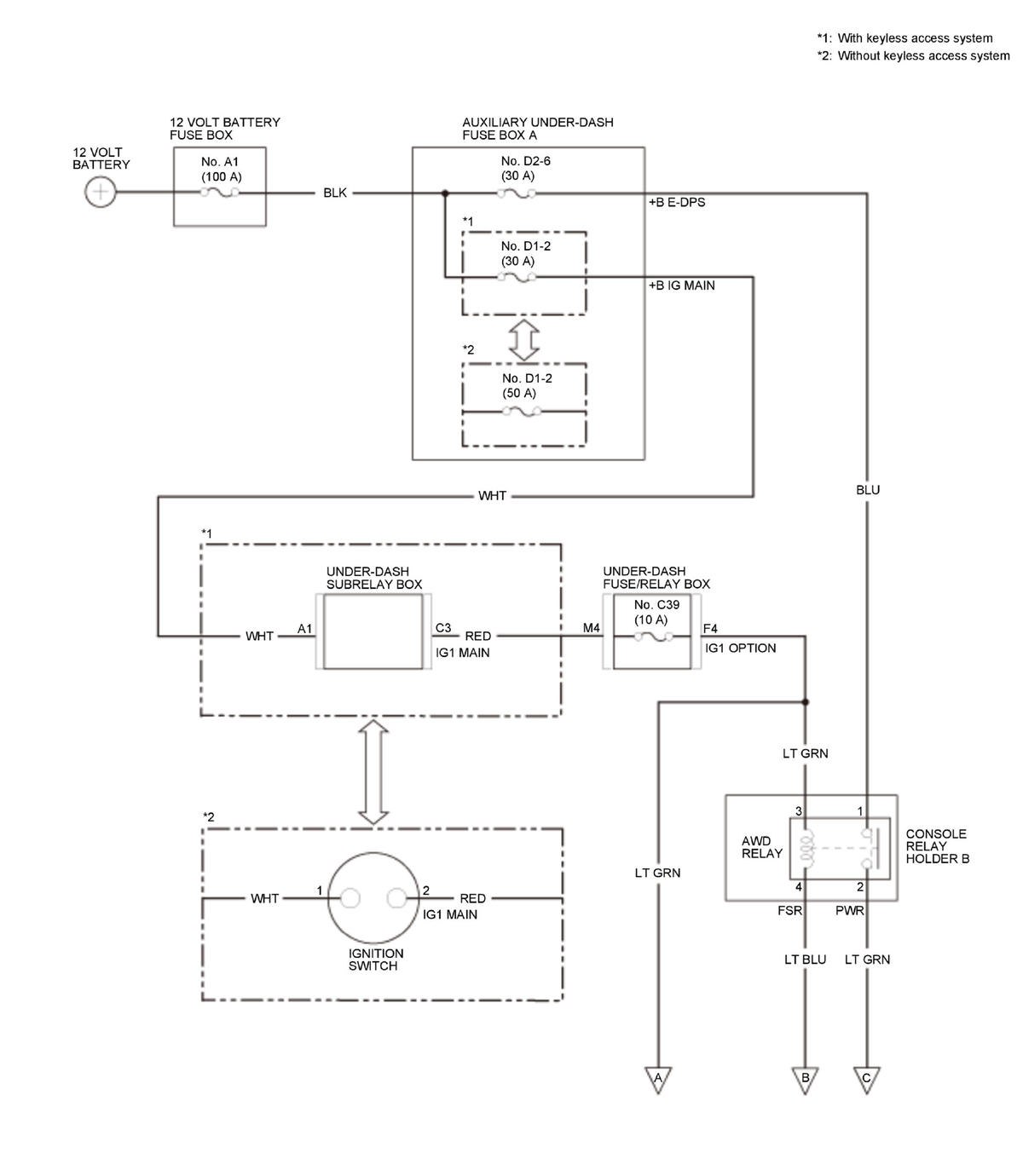

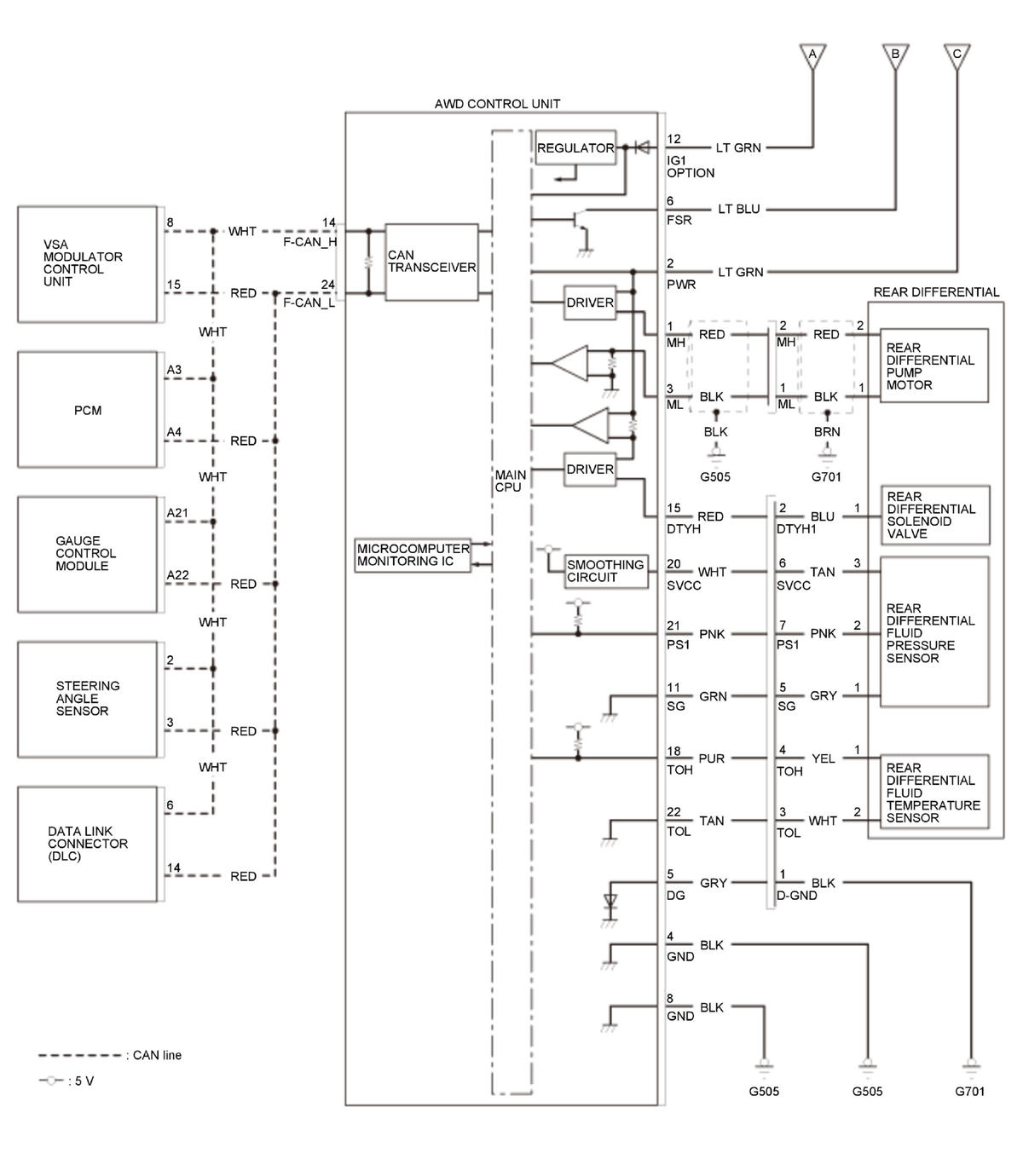

Rear Differential Circuit Diagram (AWD) (2016 2017 2018)
Rear Differential Circuit Diagram (AWD) (2016 2017 2018)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
