How to Troubleshoot Circuits at the AWD Control Unit

WARNING: This page is about a different variant/trim than selected.

Special Tools Required

Backprobe Set 07SAZ-001000A (2)

Courtesy of HONDA, U.S.A., INC.

2. Inspect the circuit on the AWD control unit according to the DTC troubleshooting using the backprobe set and a digital multimeter.

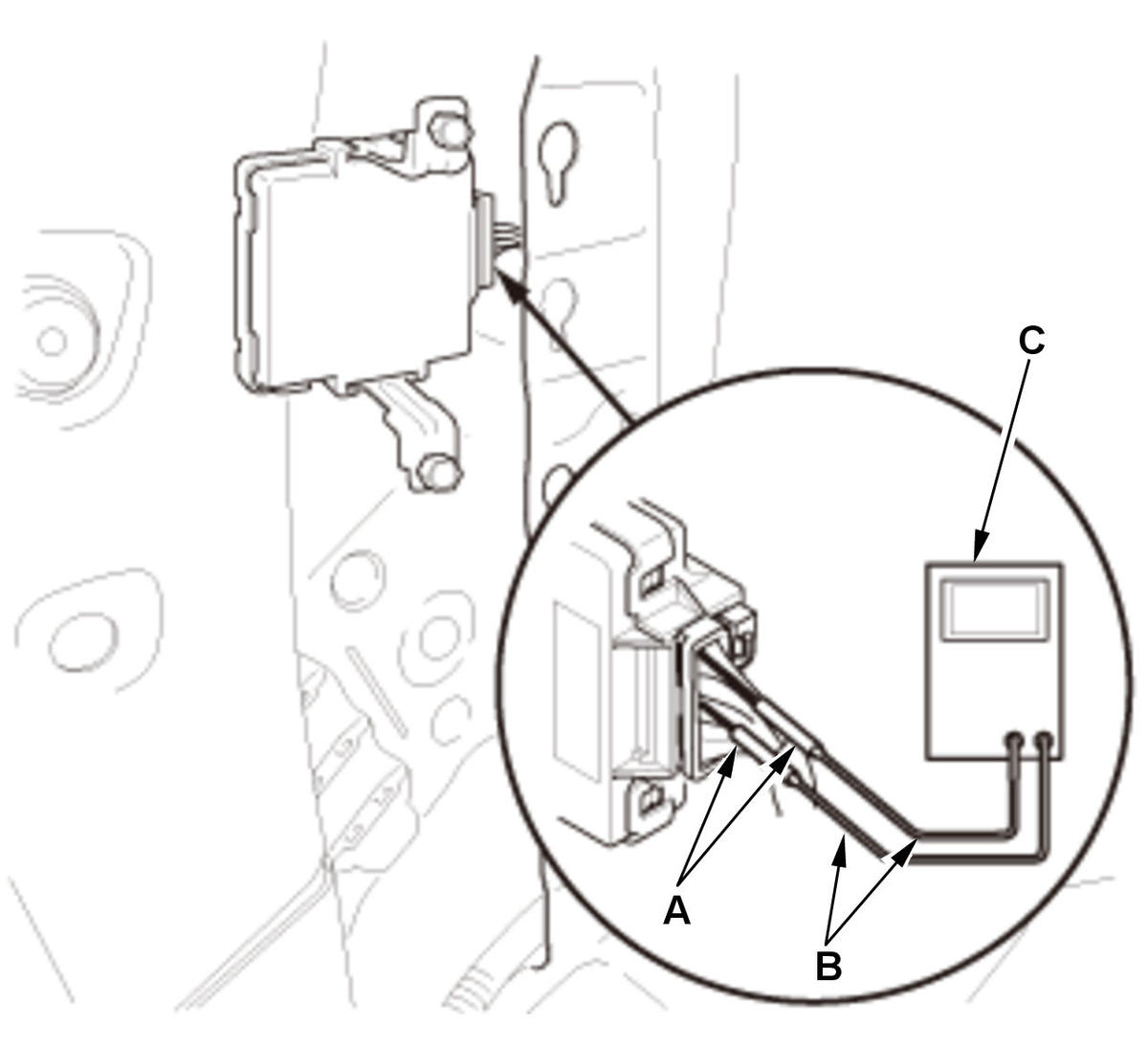

3. Connect the backprobe adapters (A) to the stacking patch cords (B), and connect the cords to a digital multimeter or an analog circuit tester (C). Using the wire insulator as a guide for the contoured-tip of the backprobe adapter, gently slide the tip into the connector from the wire side until it comes in contact with the terminal end of the wires.
