Shift Lever Housing Removal and Installation (M/T) (2016 2017 2018): Removal

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

Shift Lever Knob - Remove

Courtesy of HONDA, U.S.A., INC.

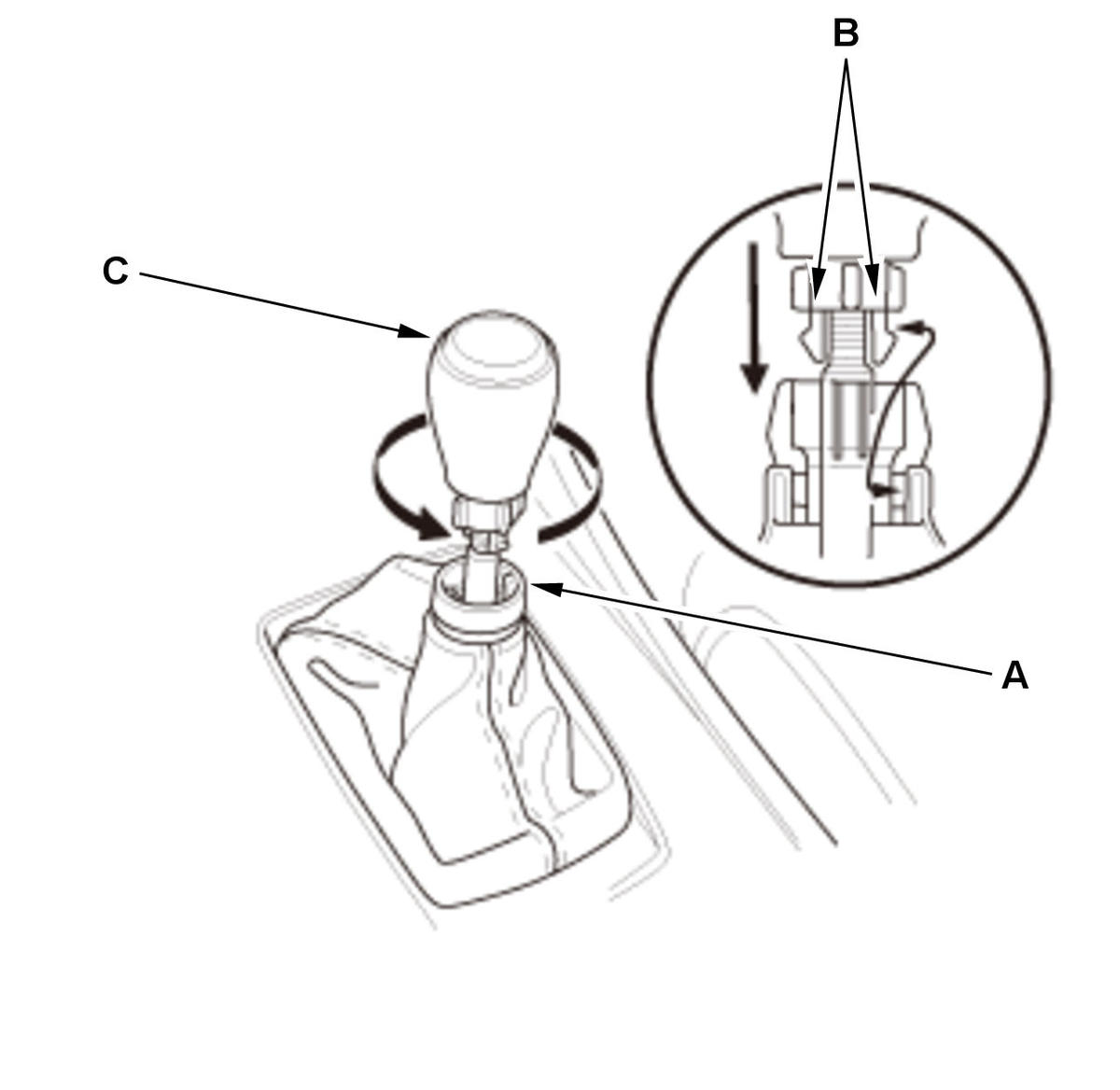

1. Lower the shift lever boot (A) to release the hooks (B) from the boot.

2. Remove the shift lever knob (C).

Center Console - Remove

Shift Lever Housing - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: Do not bend the change wire excessively.

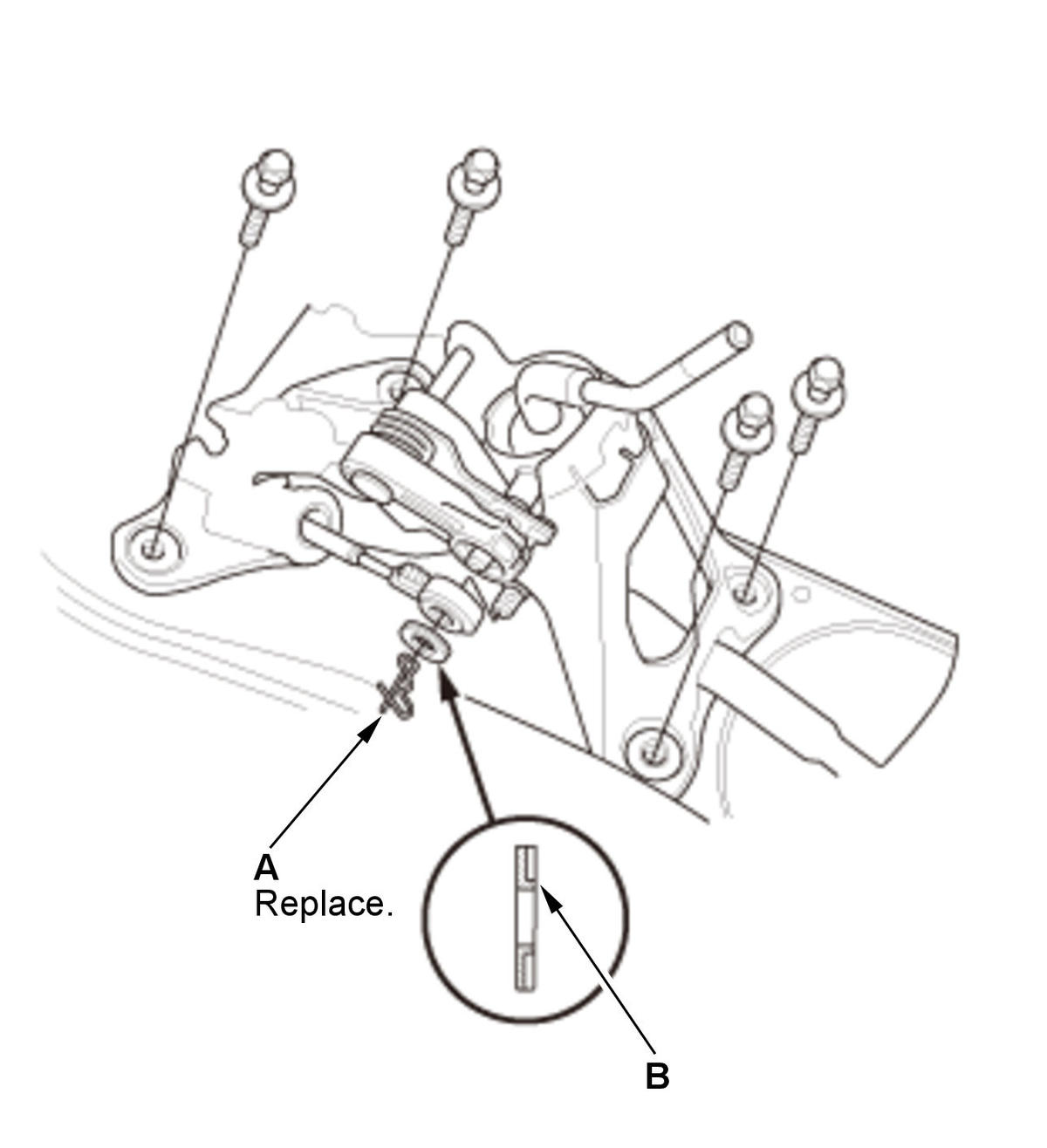

1. Remove the cotter pin (A) and the washer (B).

2. Remove shift lever housing bolts.

Courtesy of HONDA, U.S.A., INC.

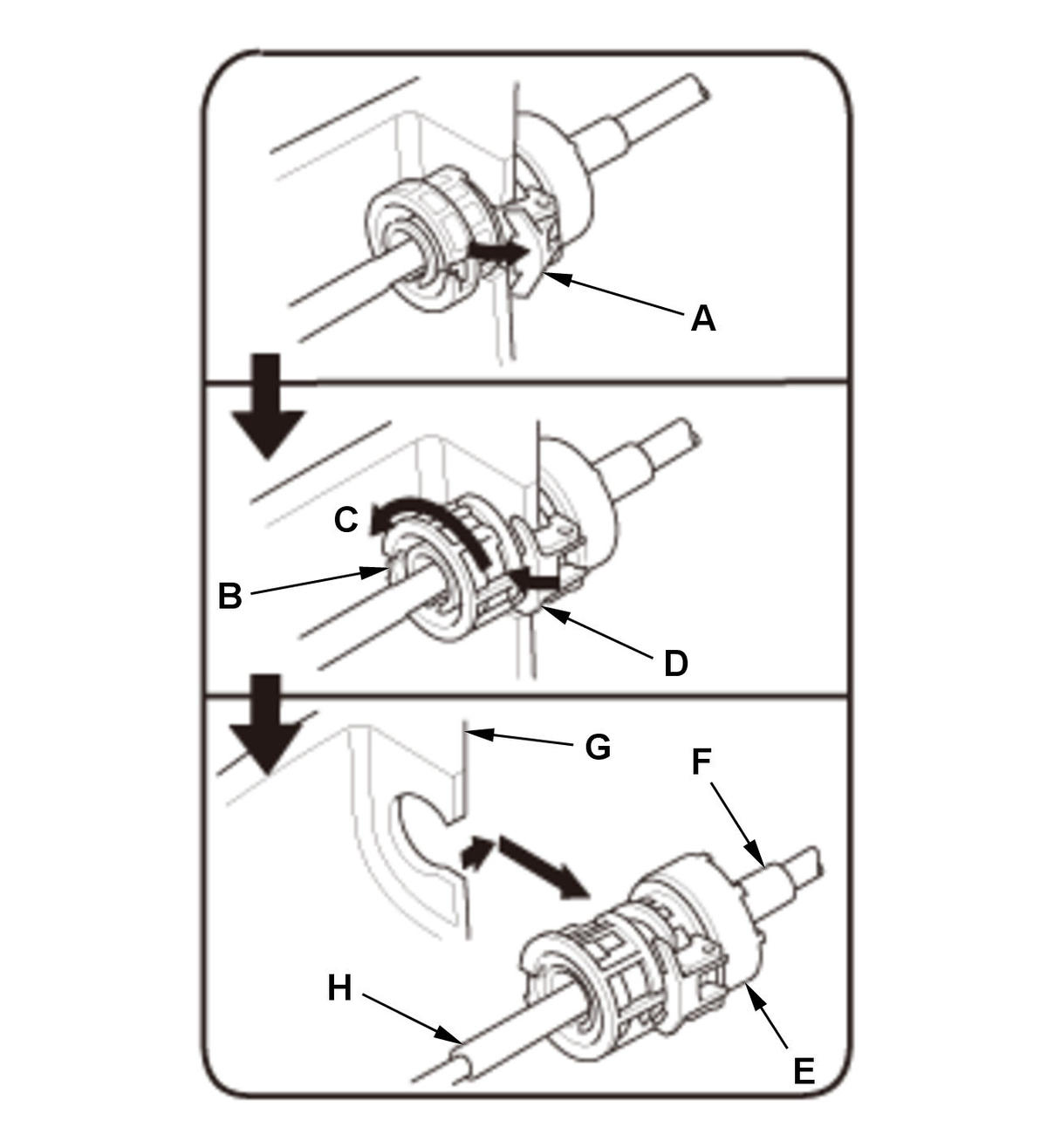

3. Unlock the retainer lock (A).

4. Rotate the socket holder retainer (B) counterclockwise (C) until it stops, and push the retainer lock (D) into the socket holder retainer to lock the retainer.

5. Slide the socket holder (E) and the change wire (F) out of the shift lever housing (G).

NOTE:

Do not remove the change wire by pulling the change wire guide (H).

Courtesy of HONDA, U.S.A., INC.

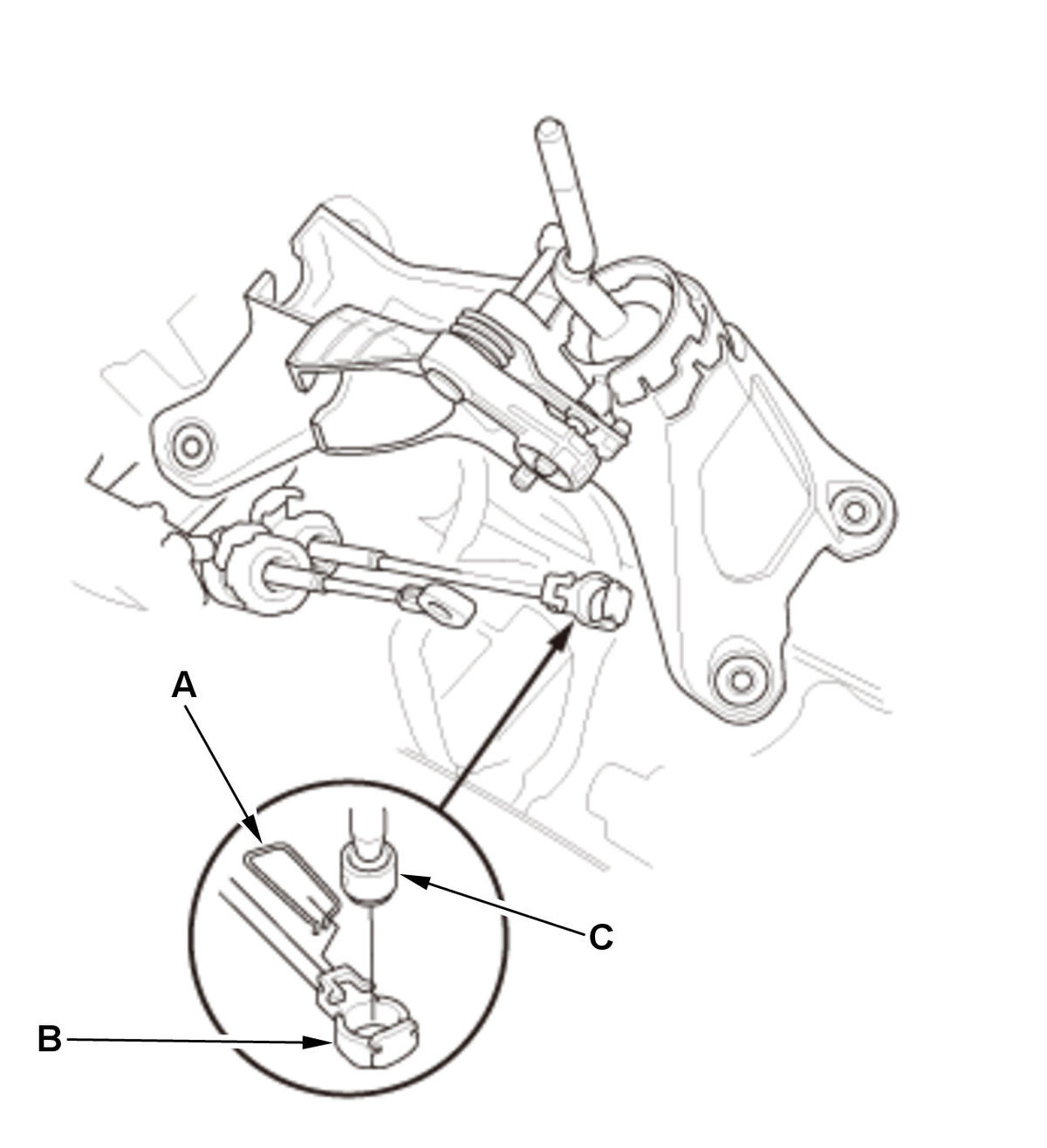

6. Remove the clip (A).

7. Disconnect the shift cable (B) from the shift lever (C).
