Shift Lever Housing Removal and Installation (M/T) (2016 2017 2018): Installation

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

Shift Lever Housing - Install

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

NOTE: Do not bend the change wire excessively.

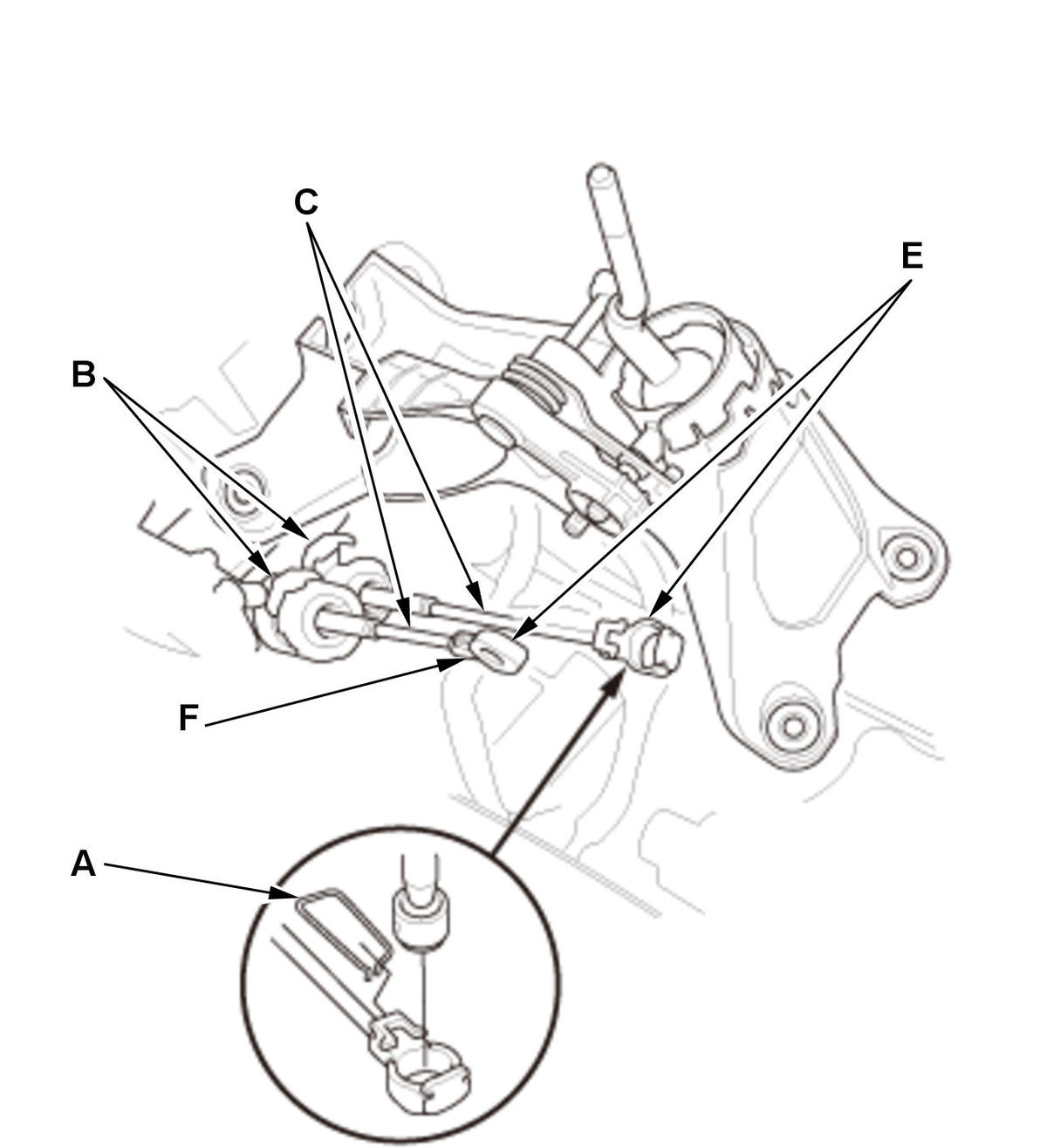

1. Install the clip (A).

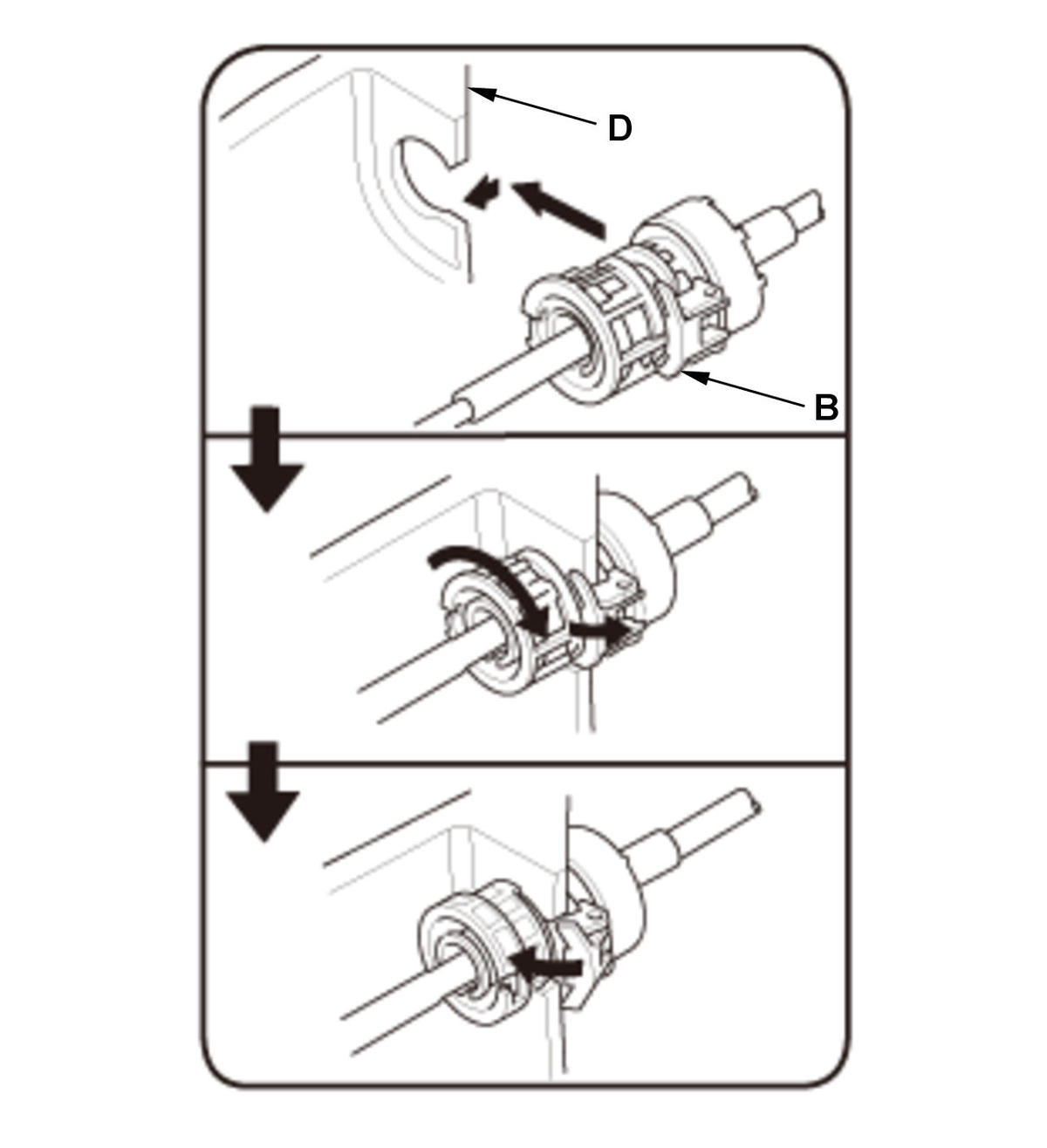

2. Align the socket holder (B) on the shift cables (C) with the slot in the bracket base (D), then slide the holder into the base.

3. Install the shift cable ends (E) to the shift lever assembly.

NOTE:

When installing the shift cable, position the serrated side (F) facing up.

Courtesy of HONDA, U.S.A., INC.

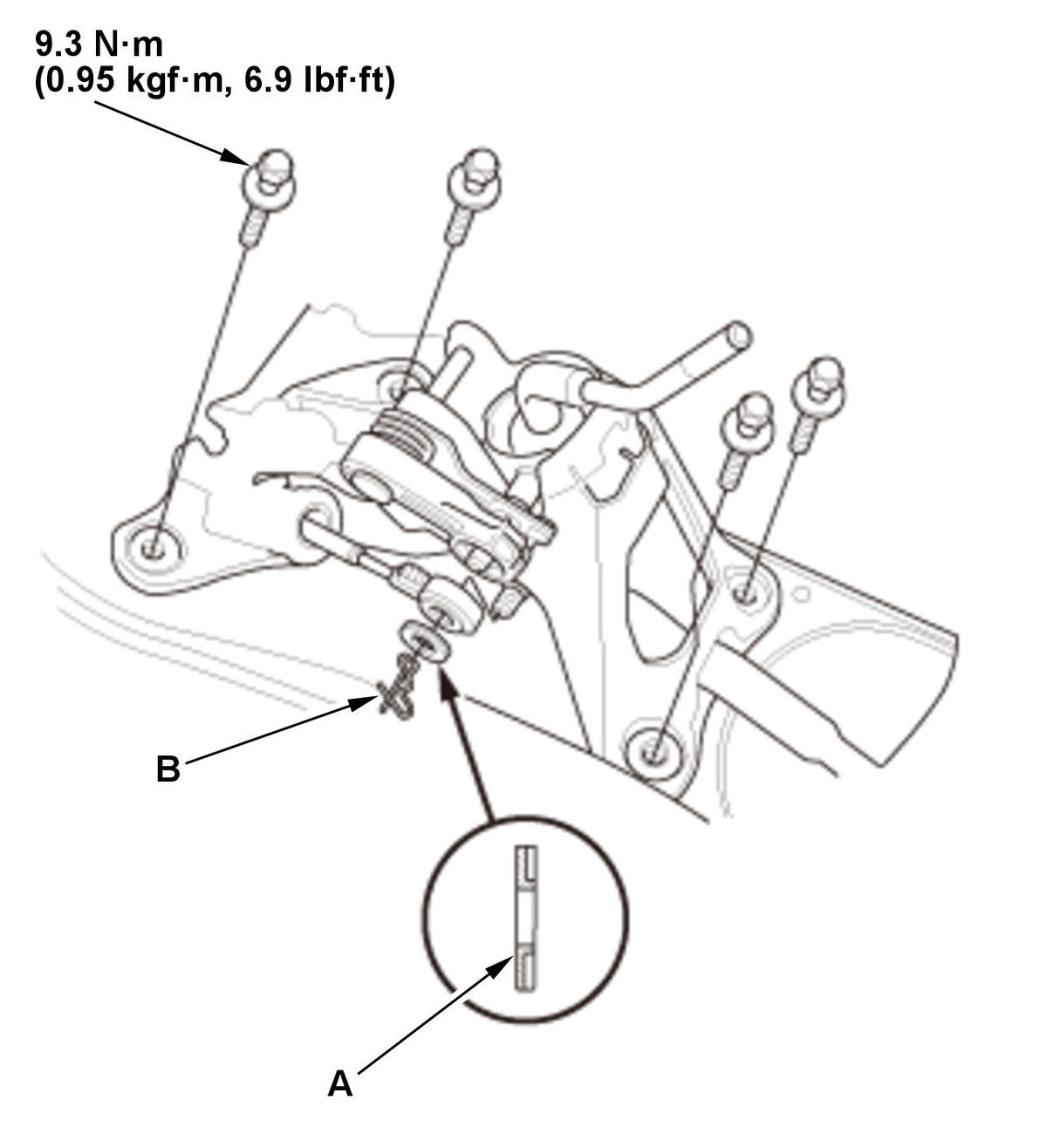

4. Install the shift lever housing bolts.

5. Install the washer (A) and the lock pin (B).

Center Console - Install

Shift Lever Knob - Install

Courtesy of HONDA, U.S.A., INC.

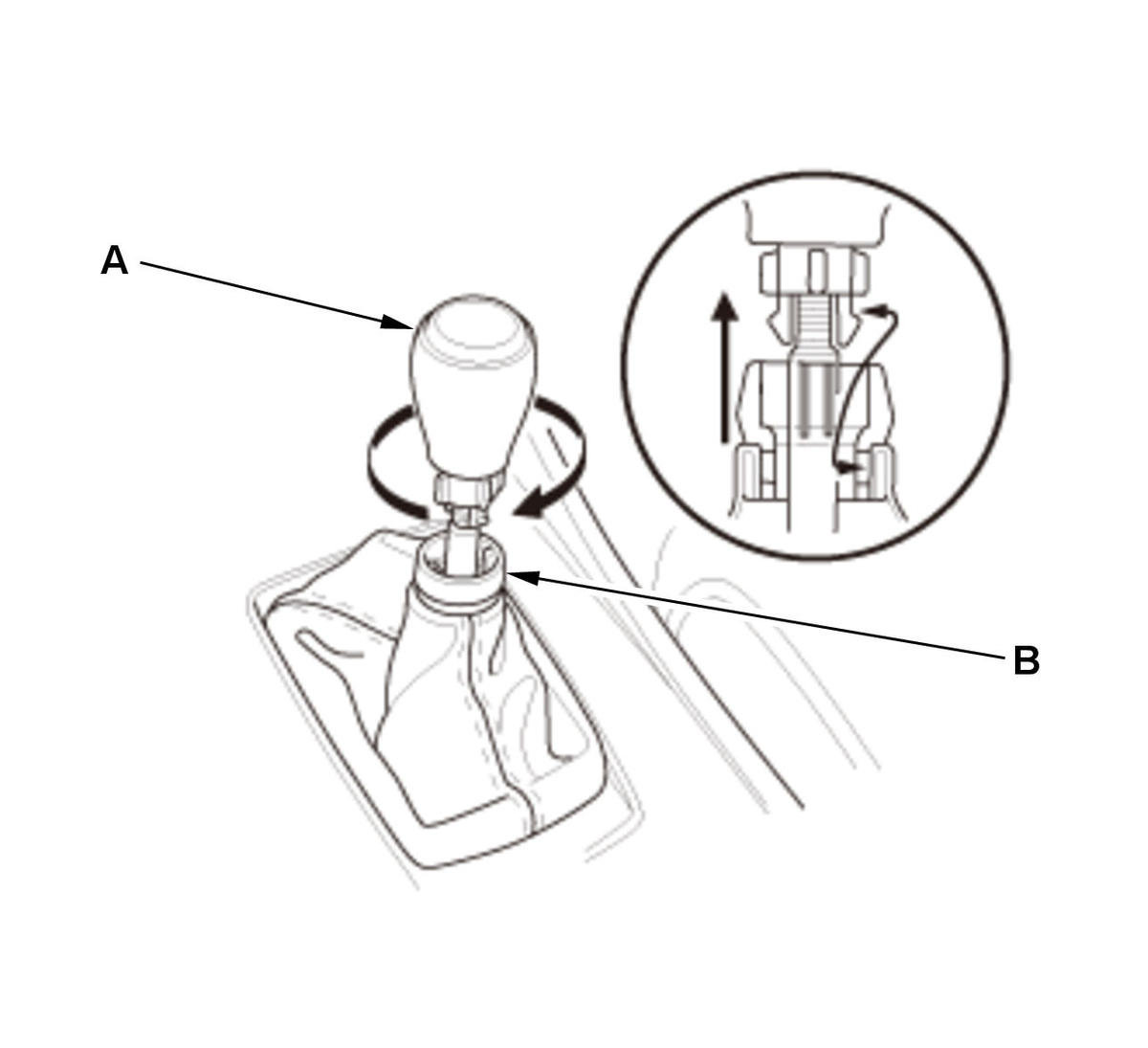

1. Install the shift lever knob (A).

NOTE:

Tighten the shift lever knob until the shift pattern is properly aligned.

2. Install the shift lever boot (B).
