Manual Transmission Removal and Installation (M/T) (2016 2017 2018): Removal

NOTE:  Special tool engine support hanger AAR-T1256 must be used with the side engine mount installed.

1. Vehicle - Lift
2. Hood - Wide Open

   Courtesy of HONDA, U.S.A., INC.

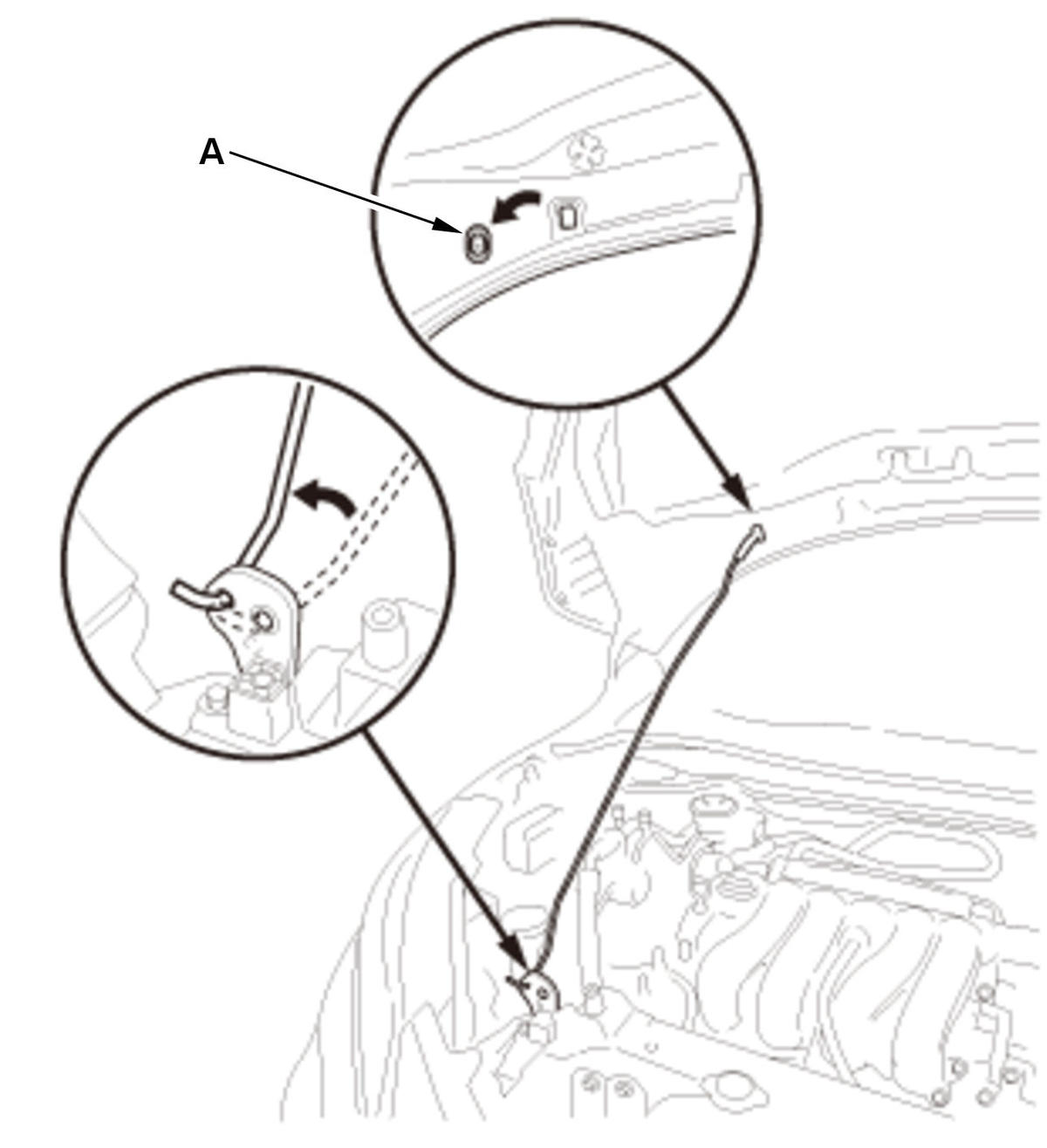

   1. Open the hood, and remove the plug cap (A). 2. Change the hood support rod mounting position. 3. Secure it with the hood support rod in the wide-open position.

3. Cowl Cover - Remove
4. Front Grille Cover - Remove
5. Air Cleaner - Remove
6. 12V Battery - Remove
7. Change Wire Bracket - Remove

   Courtesy of HONDA, U.S.A., INC.

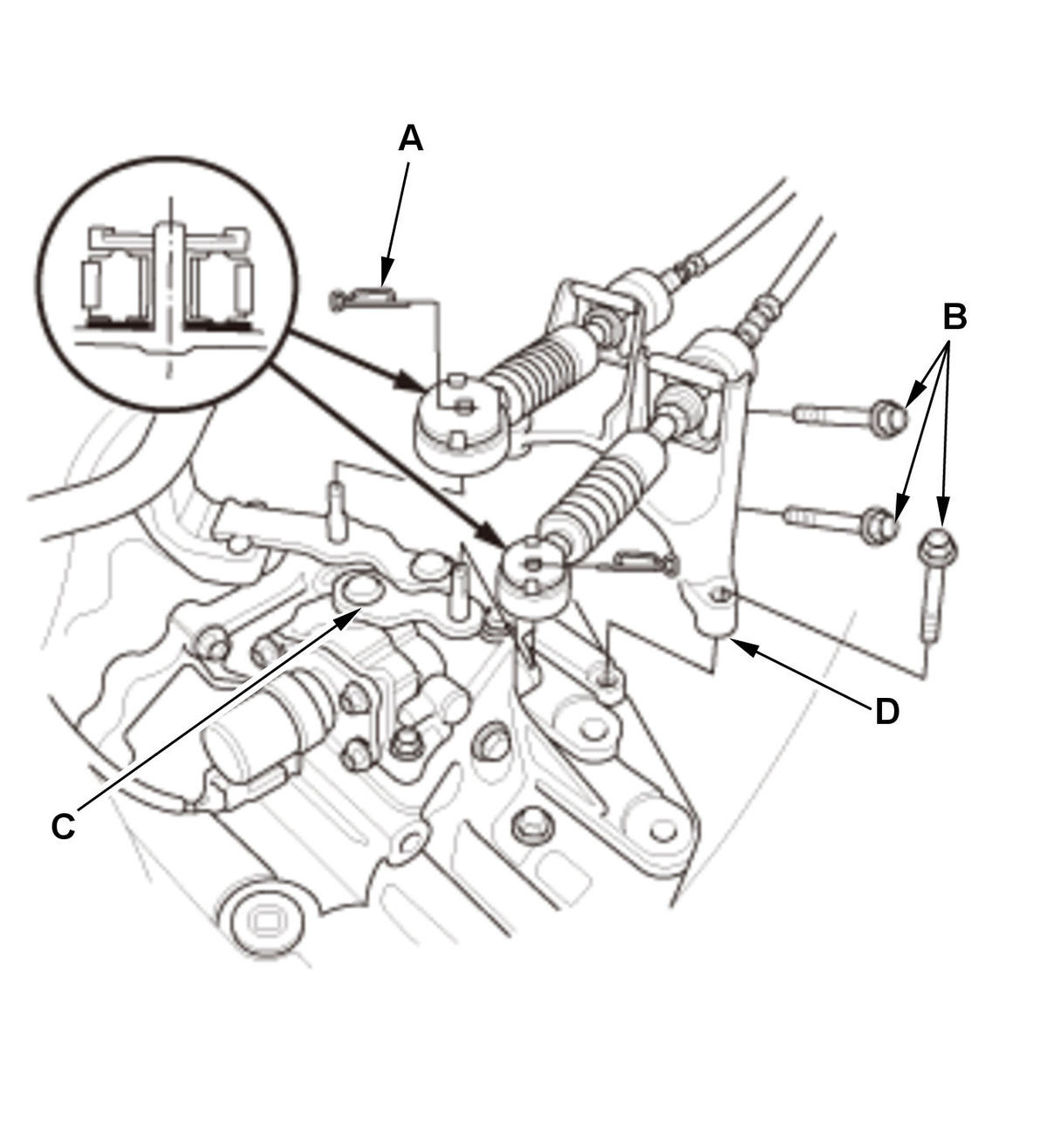

   1. Remove the lock pins (A). 2. Remove the change wire bracket bolts (B). 3. Disconnect the change wire from the change lever assembly (C). 4. Carefully remove the change wire and the change wire bracket (D) together to avoid bending the change wire.

8. Connector (Neutral Position Sensor) - Disconnect

   Courtesy of HONDA, U.S.A., INC.

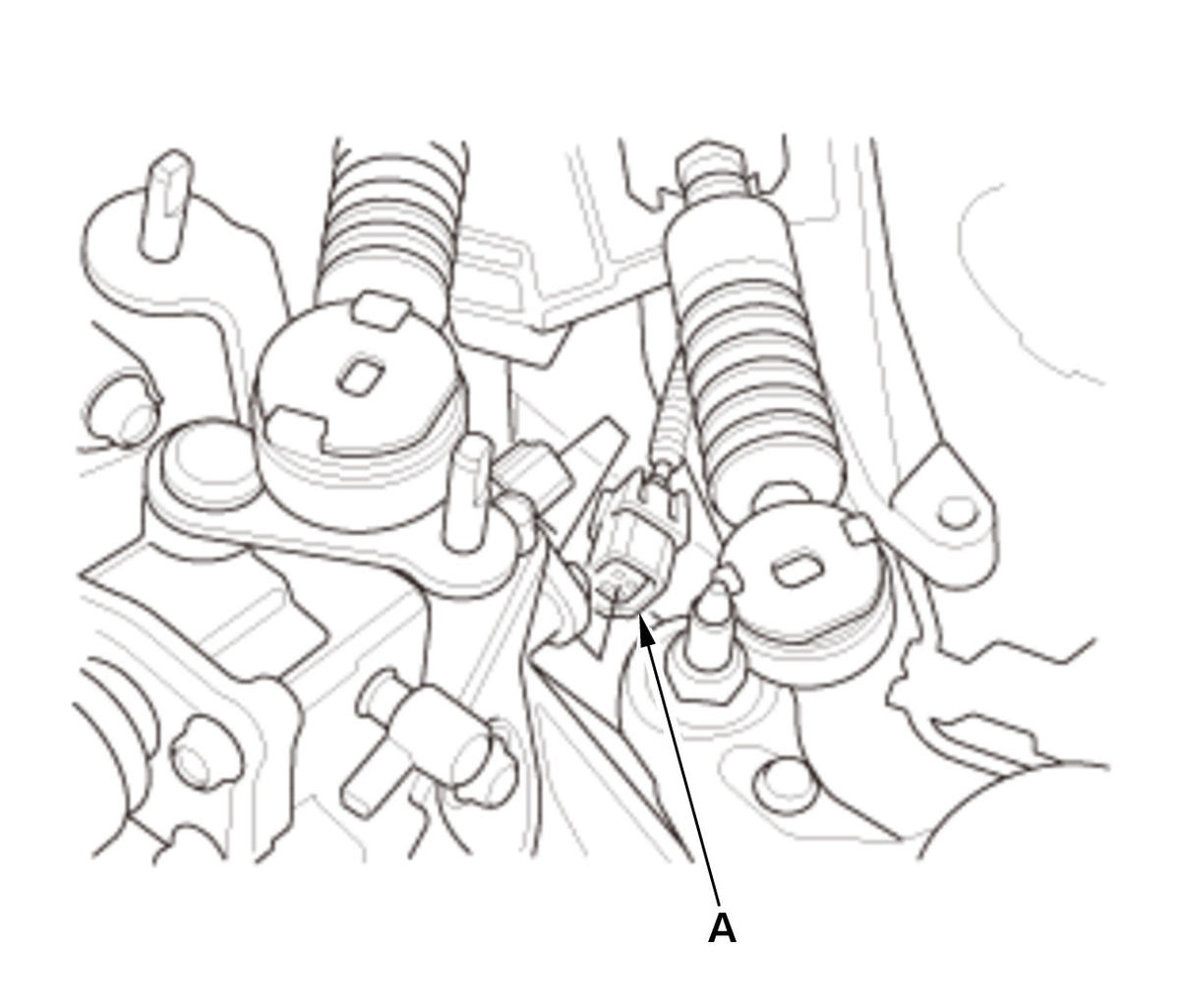

   1. Disconnect the connector (A).

9. Slave Cylinder - Remove

   Courtesy of HONDA, U.S.A., INC.

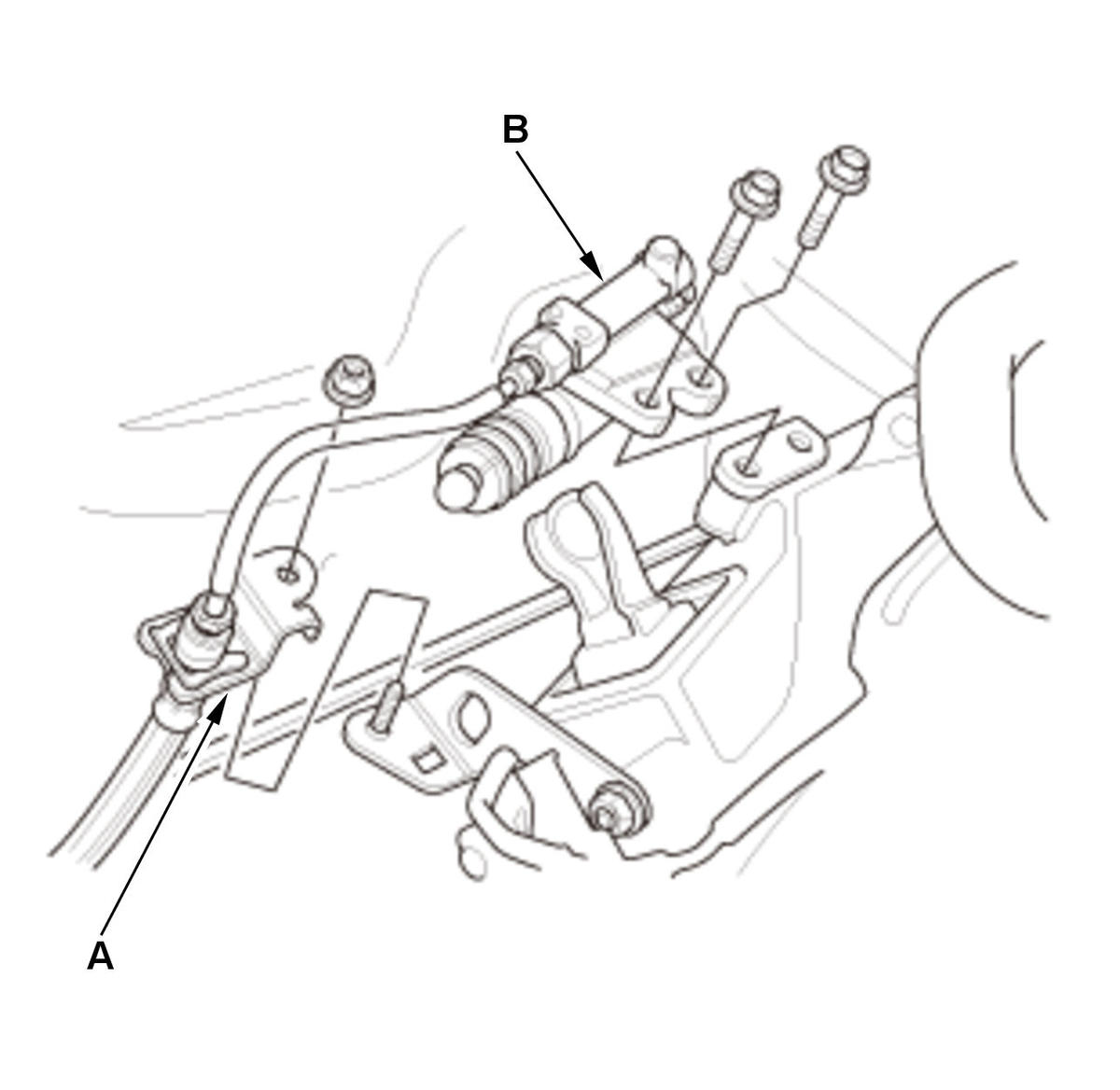

   1. Remove the clutch line bracket (A). 2. Remove the slave cylinder (B). 3. Carefully move the slave cylinder out of the way to avoid bending the clutch line. NOTE: Do not press the clutch pedal after the slave cylinder has been moved. Do not disconnect the clutch line joints.

10. Connectors (Reverse Lockout Solenoid, Output Shaft (Countershaft) Speed Sensor, Back-Up Light Switch) - Disconnect

    Front side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Rear side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

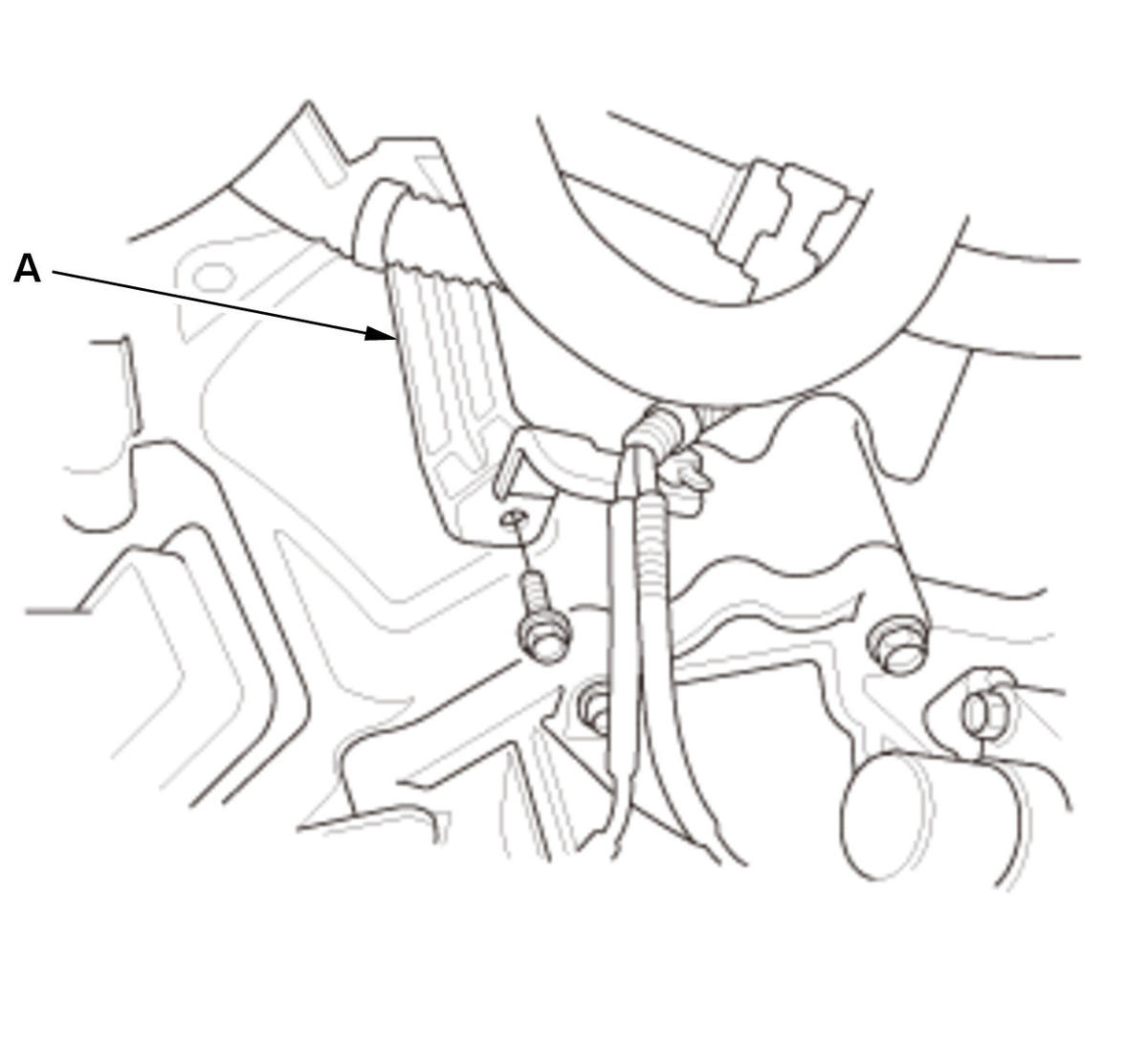

    1. Remove the harness clamp brackets (A).

    Courtesy of HONDA, U.S.A., INC.

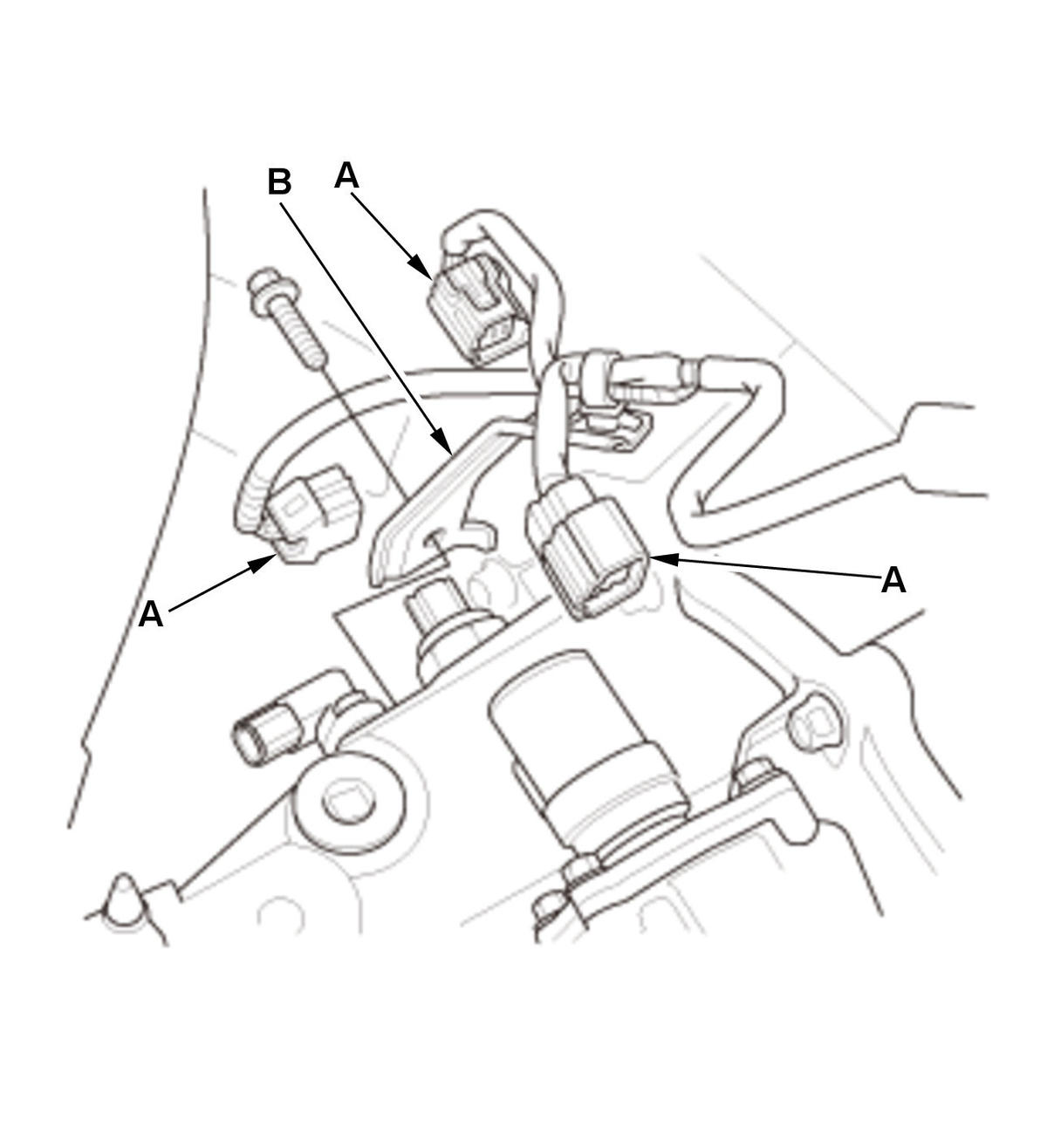

    2. Disconnect these connectors (A). 3. Remove the harness clamp bracket (B).

11. Sub Hanger Stay - Install

    Courtesy of HONDA, U.S.A., INC.

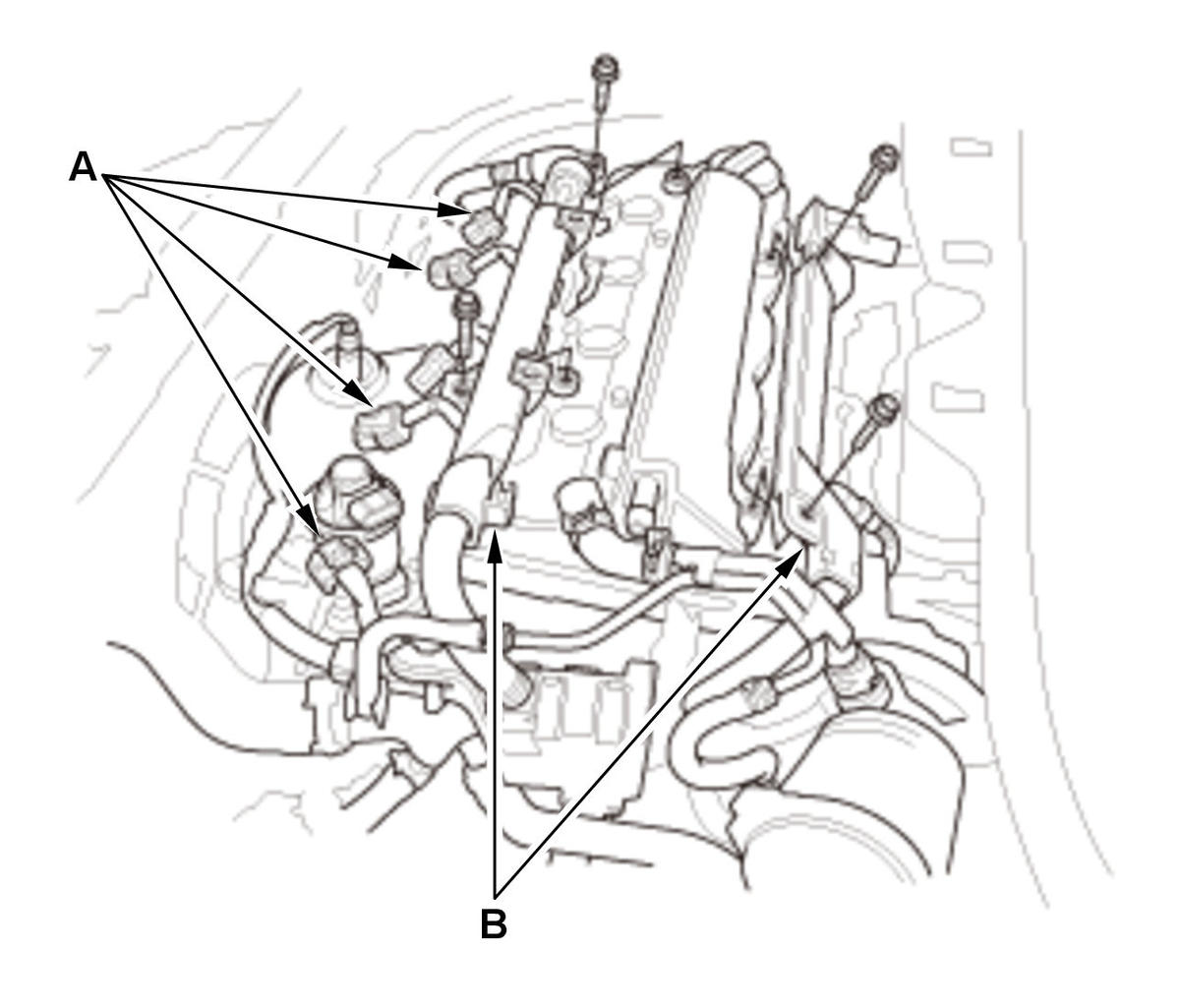

    1. Disconnect these connectors (A). 2. Remove the harness holders (B).

    Courtesy of HONDA, U.S.A., INC.

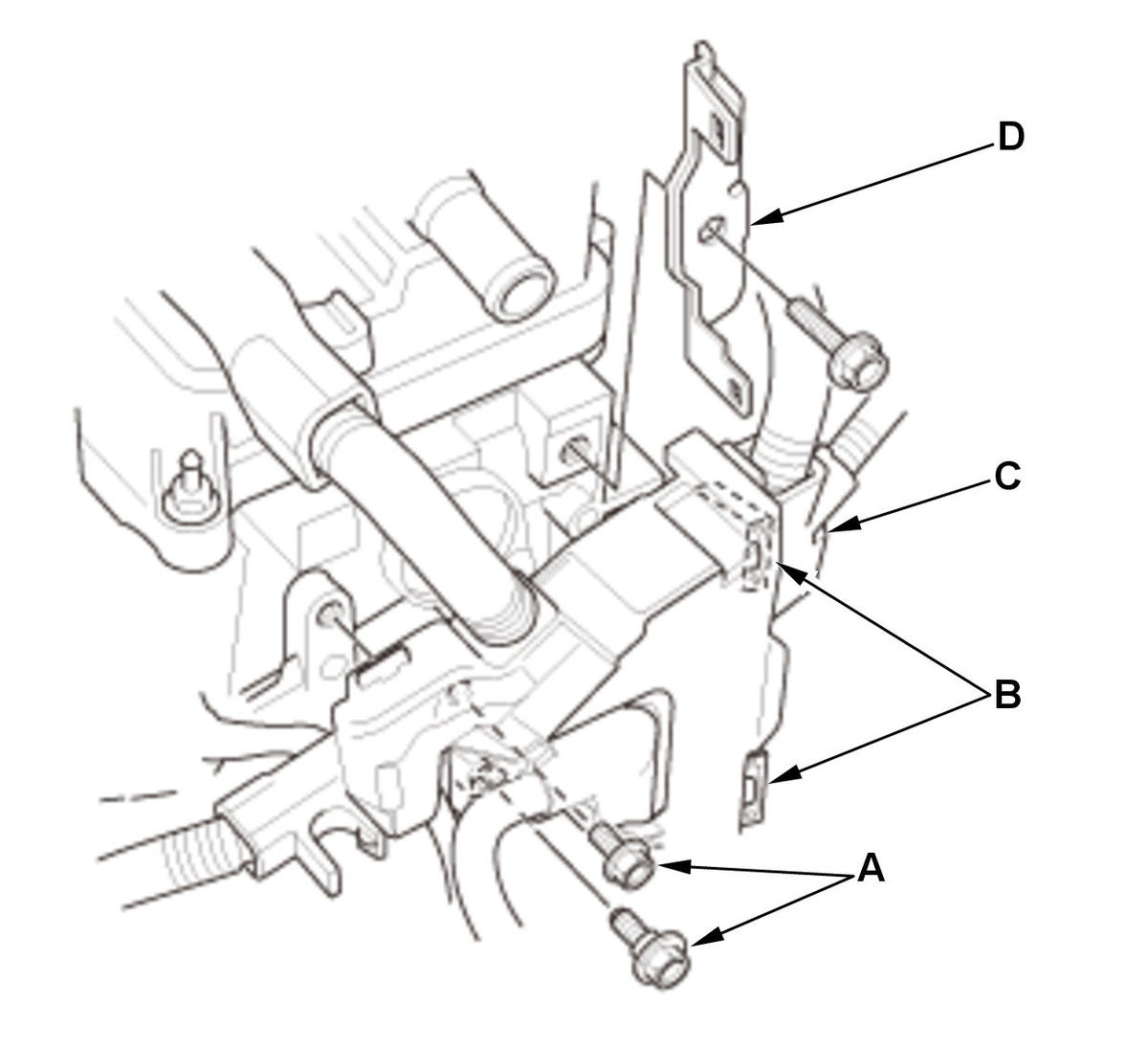

    3. Remove the bolts (A), clamps (B) and move the harness holder (C). 4. Remove the bracket (D).

    Courtesy of HONDA, U.S.A., INC.

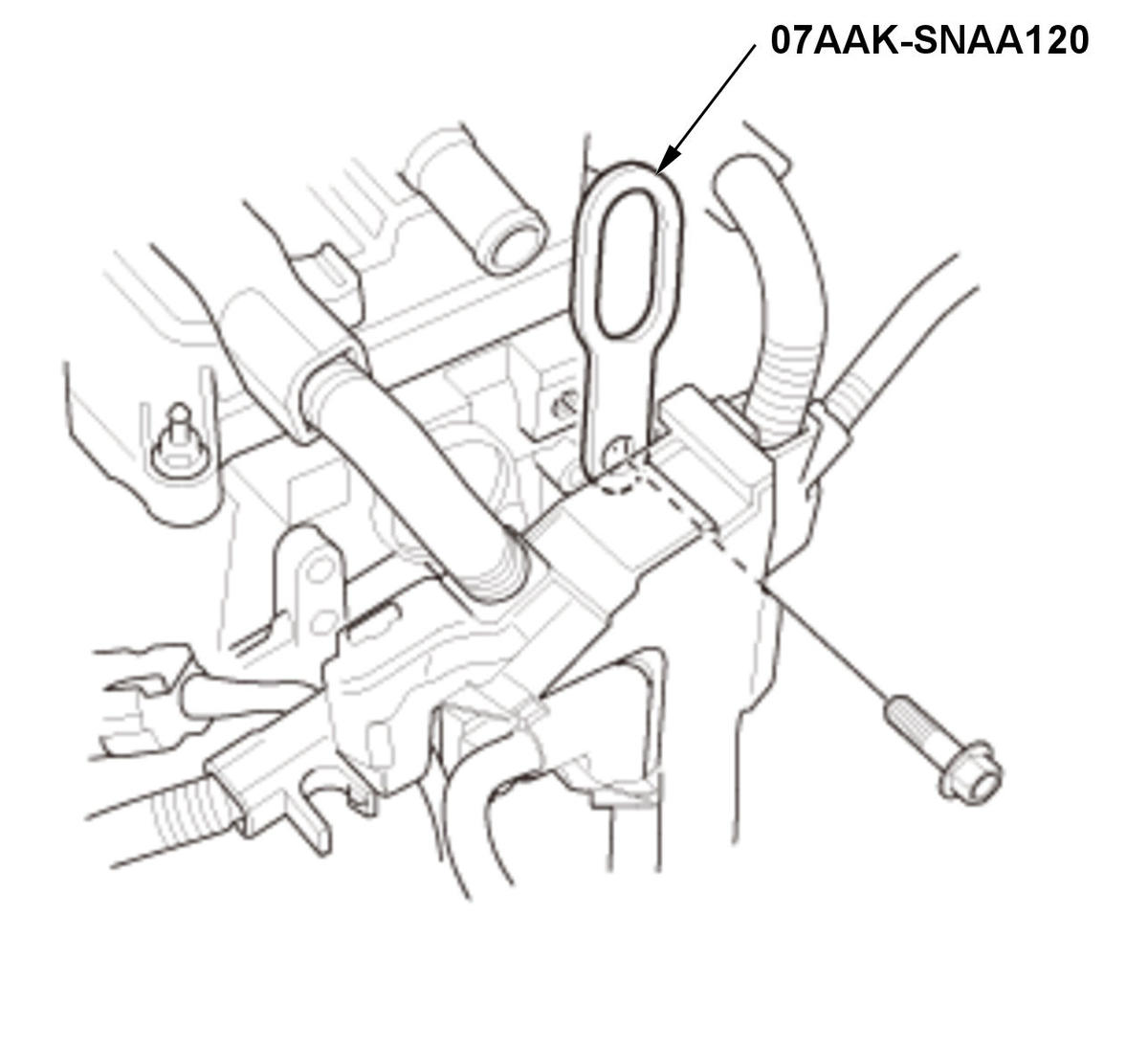

    5. Install the universal lifting eyelet.

12. Engine Support Hanger - Install

    Courtesy of HONDA, U.S.A., INC.

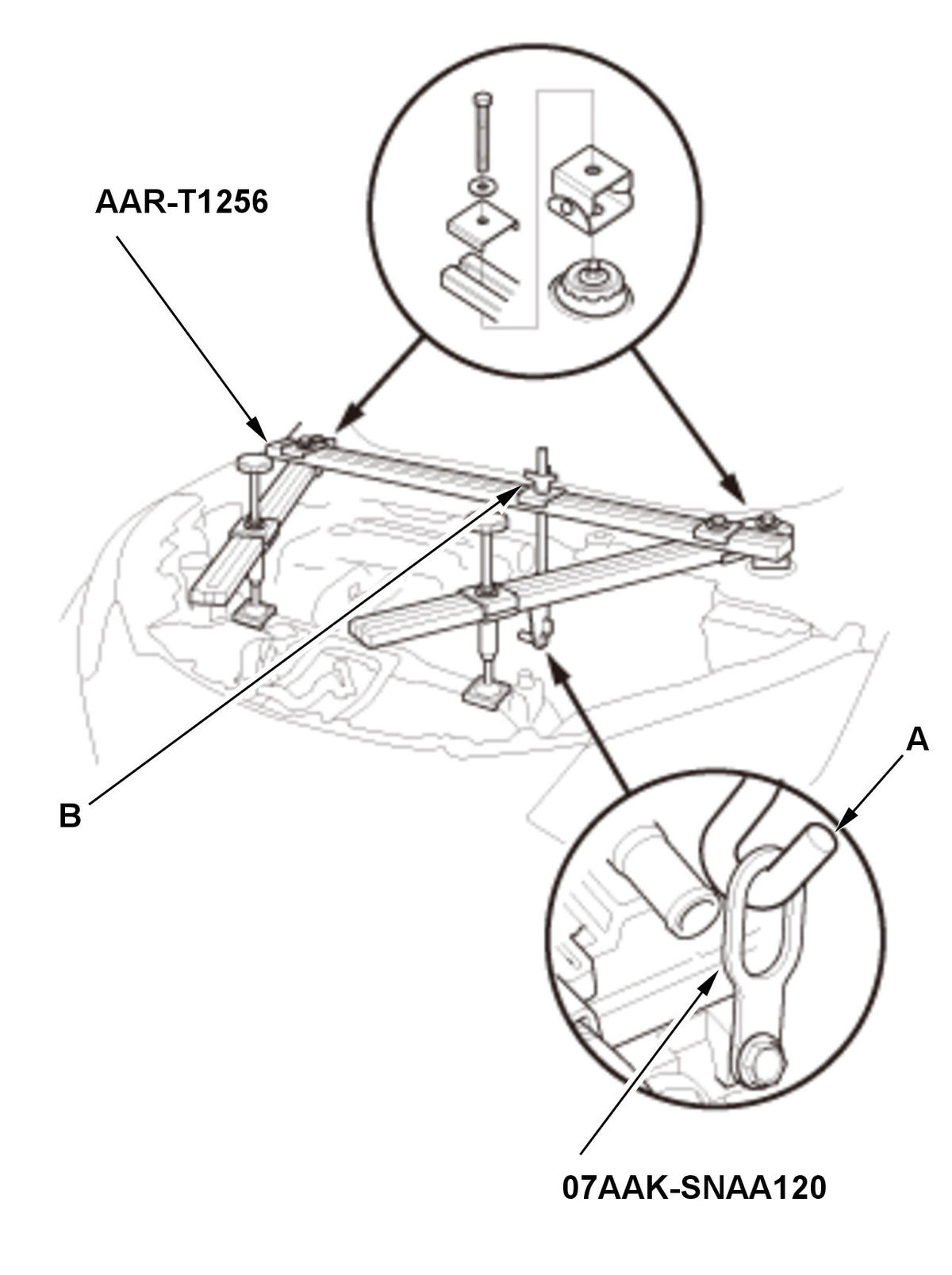

    1. Install the engine support hanger as shown. NOTE: Be careful when working around the windshield. 2. Attach the hook (A) to the slotted hole in the universal lifting eyelet. 3. Tighten the wing nut (B) by hand, and lift and support the engine/transmission.

13. Upper Transmission Mounting Bolt - Remove

    Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

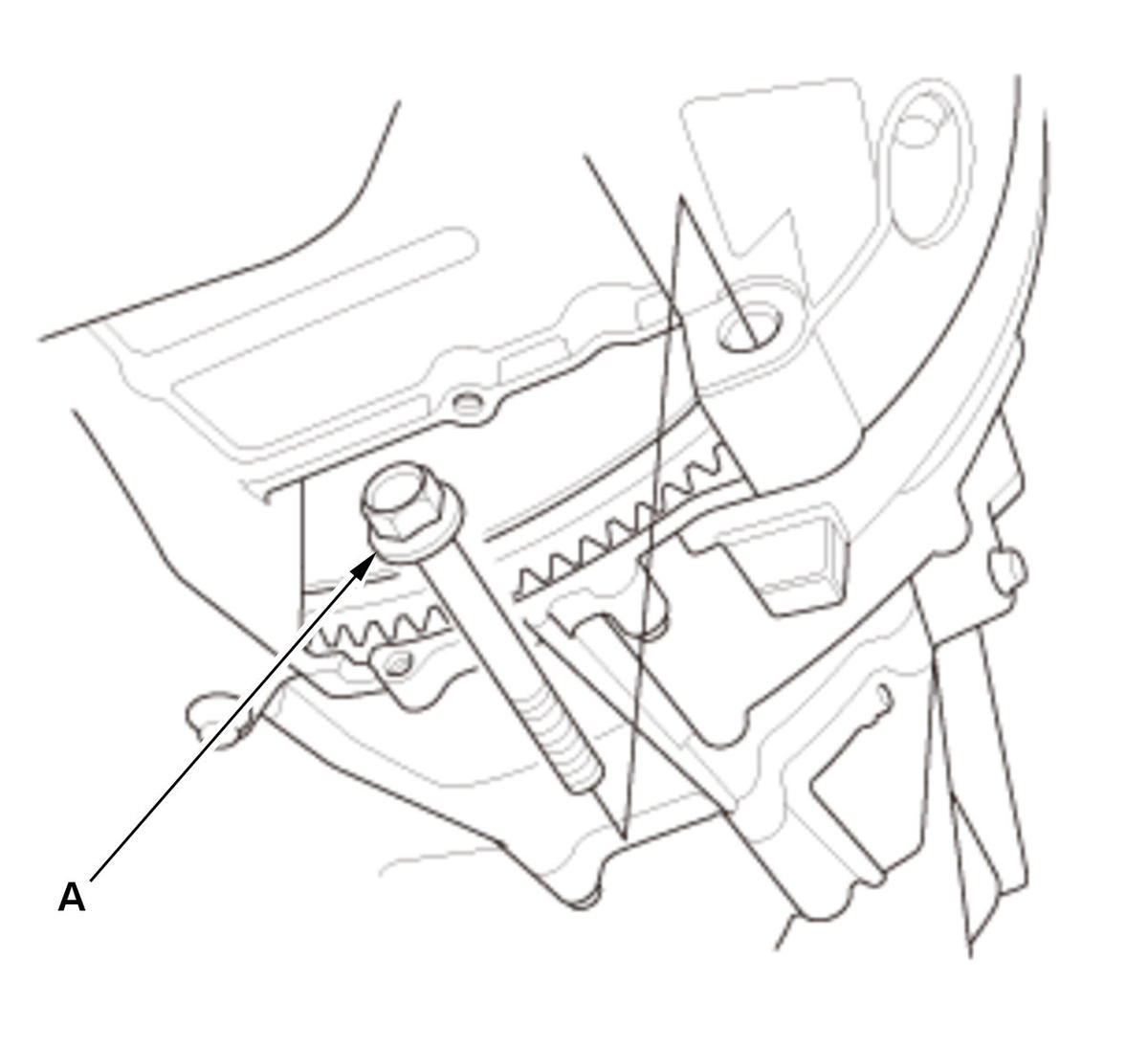

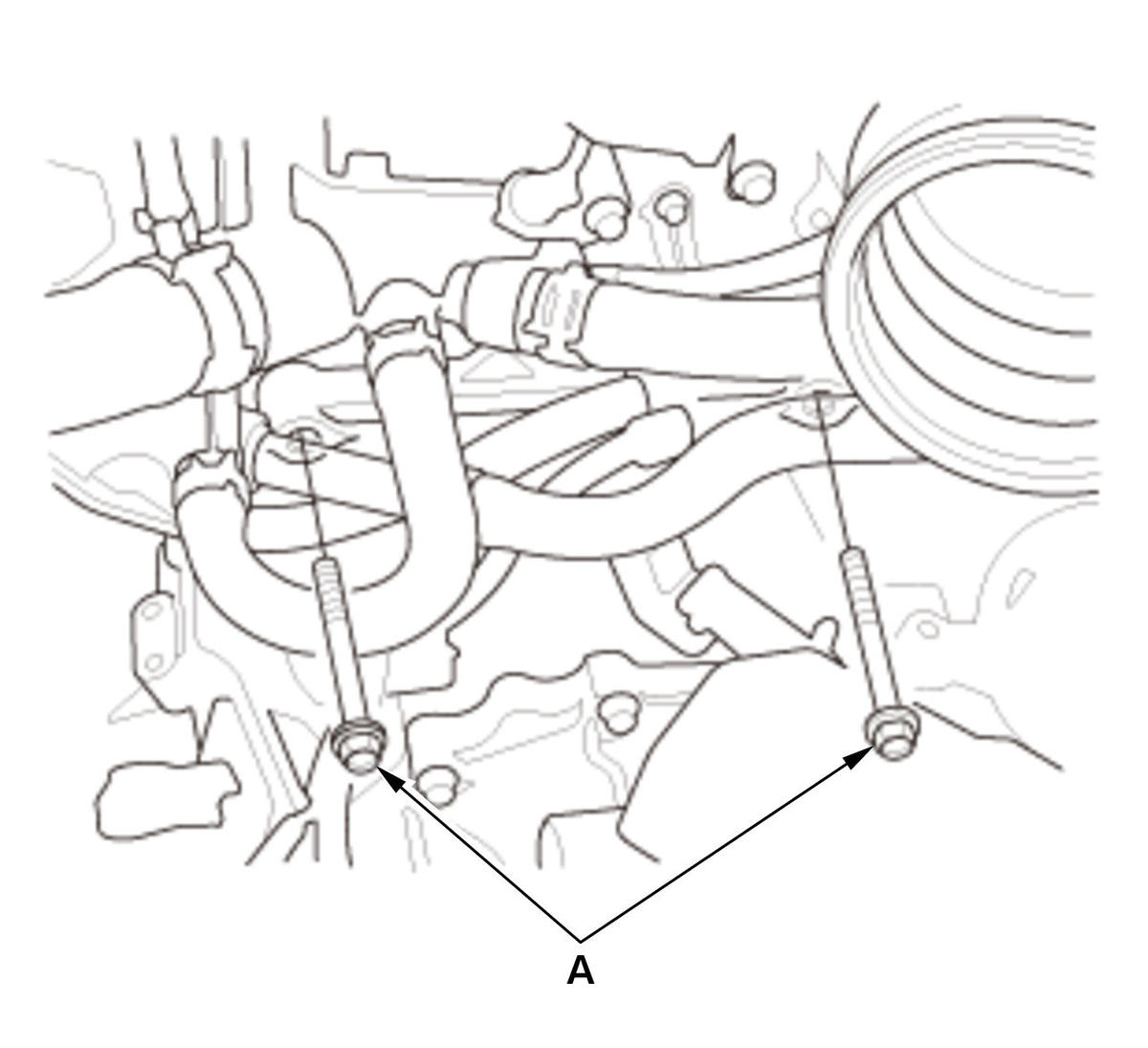

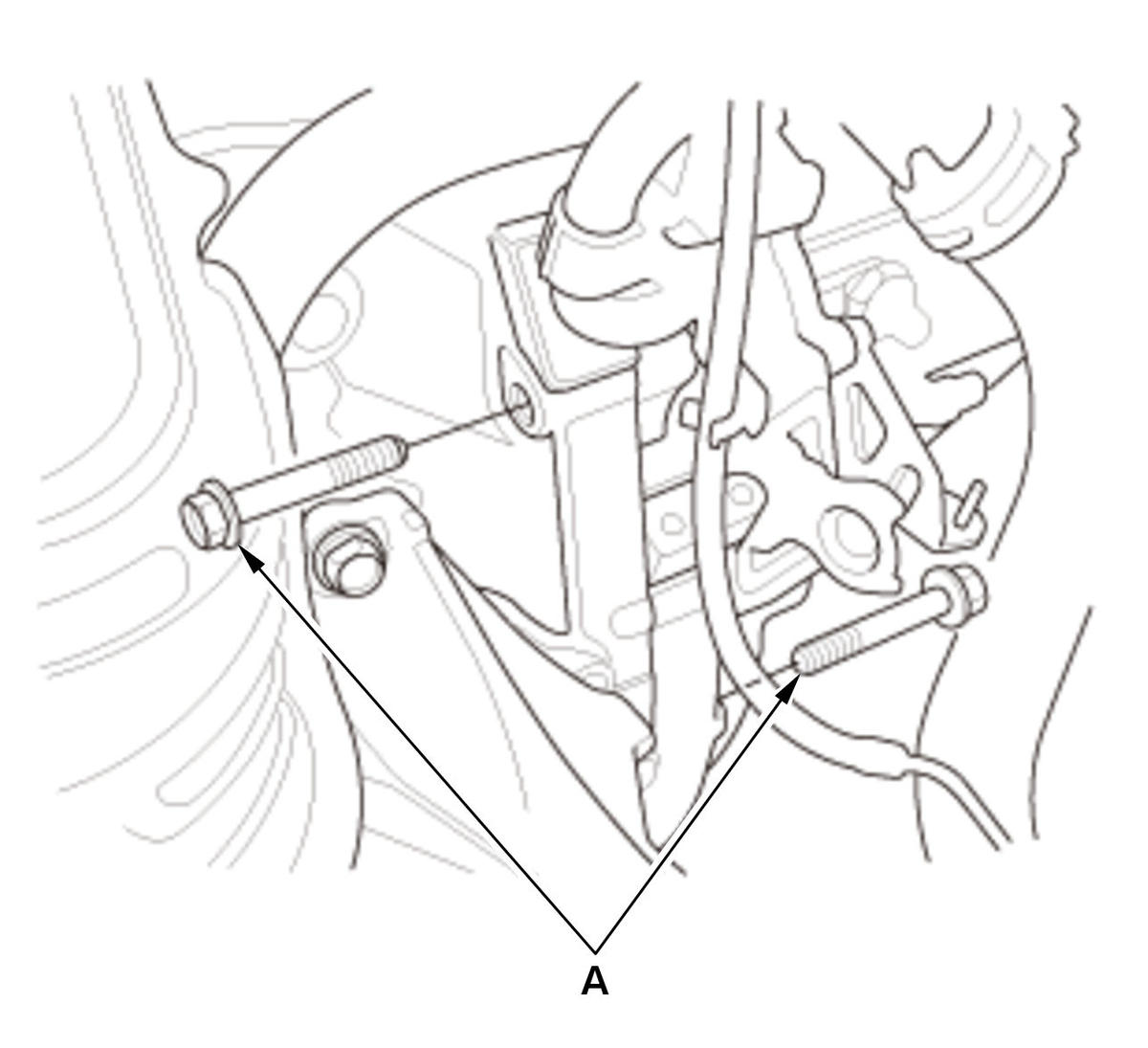

    1. Remove the upper transmission mounting bolts (A).

14. Transmission Mount - Remove
15. Steering Joint - Disconnect

    NOTE:  Hold the steering wheel in the steering wheel holder tool.

16. Vehicle - Lift

    1. Raise the vehicle on the lift.

17. Front Wheel - Remove
18. Engine Undercover - Remove
19. MTF - Drain
20. Front Stabilizer Link Ball Joint - Disconnect
21. Lower Arm Ball Joint - Disconnect
22. Tie-Rod End Ball Joint - Disconnect
23. Front Driveshaft - Remove
24. Intermediate Shaft - Remove
25. Clutch Cover - Remove

    Courtesy of HONDA, U.S.A., INC.

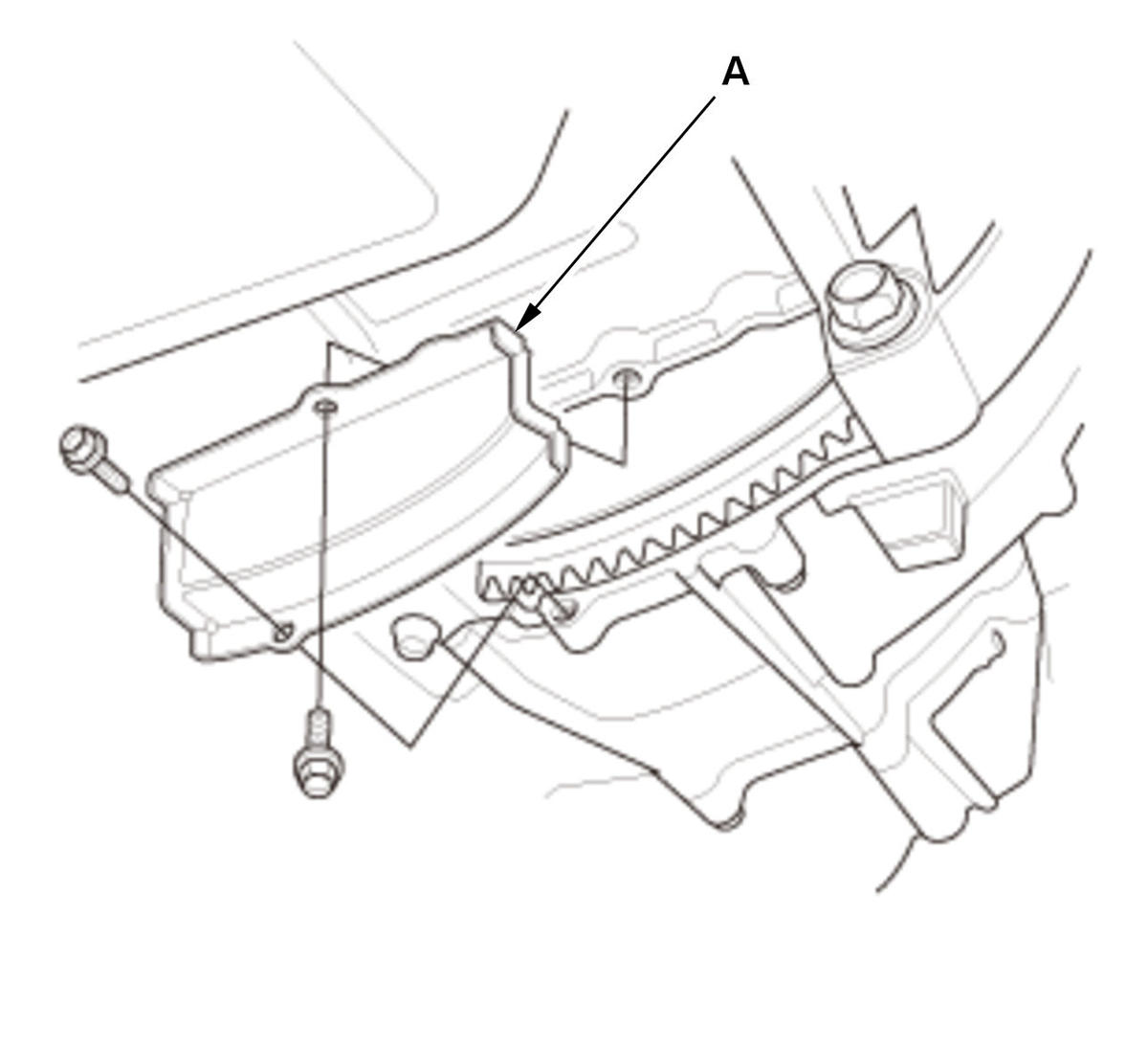

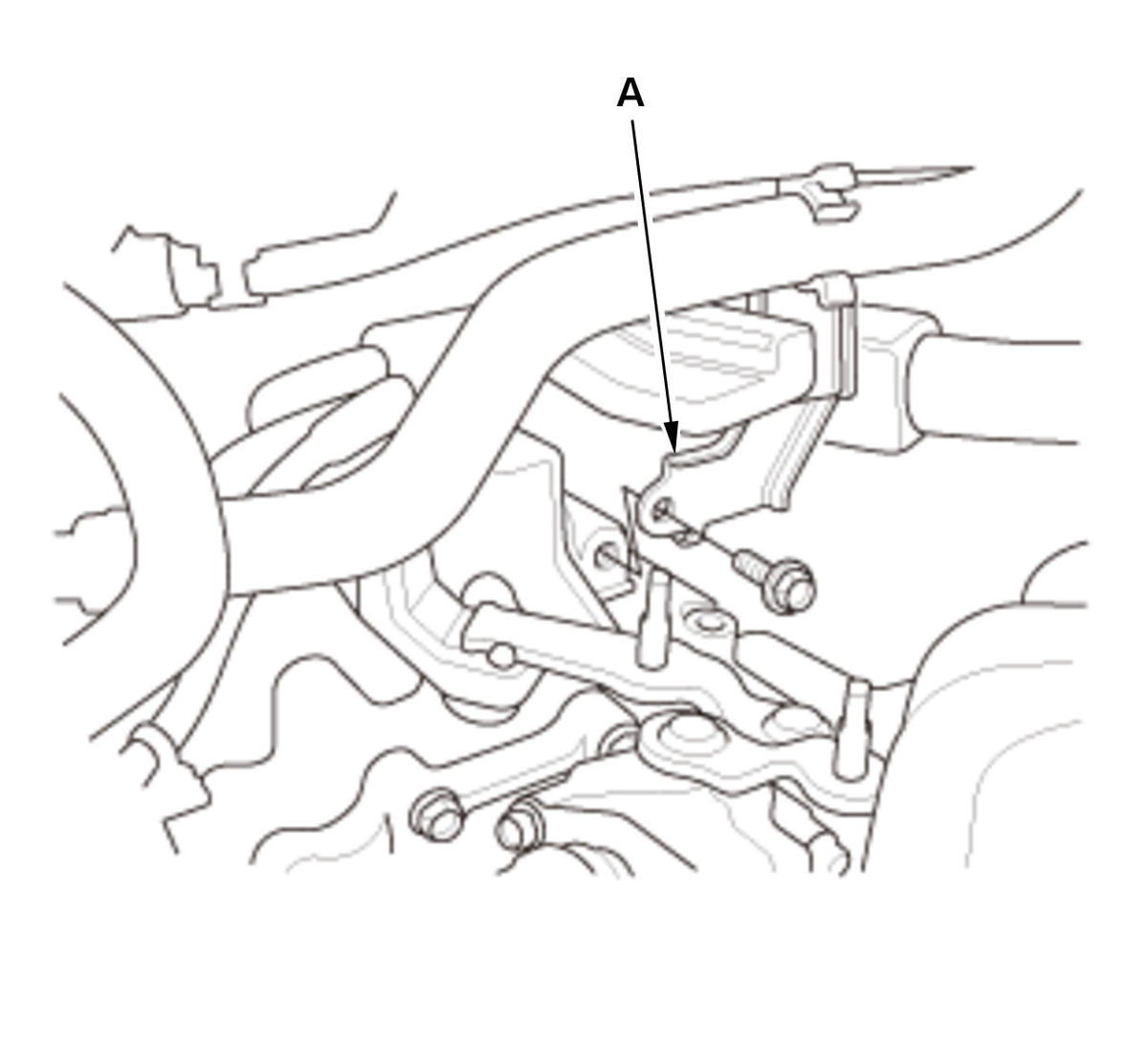

    1. Remove the clutch cover (A).

26. Torque Rod - Disconnect
27. Subframe - Remove
28. Transmission - Support

    1. Support the transmission with the transmission jack and the wood block.

29. Transmission - Remove

    Front side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Rear side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

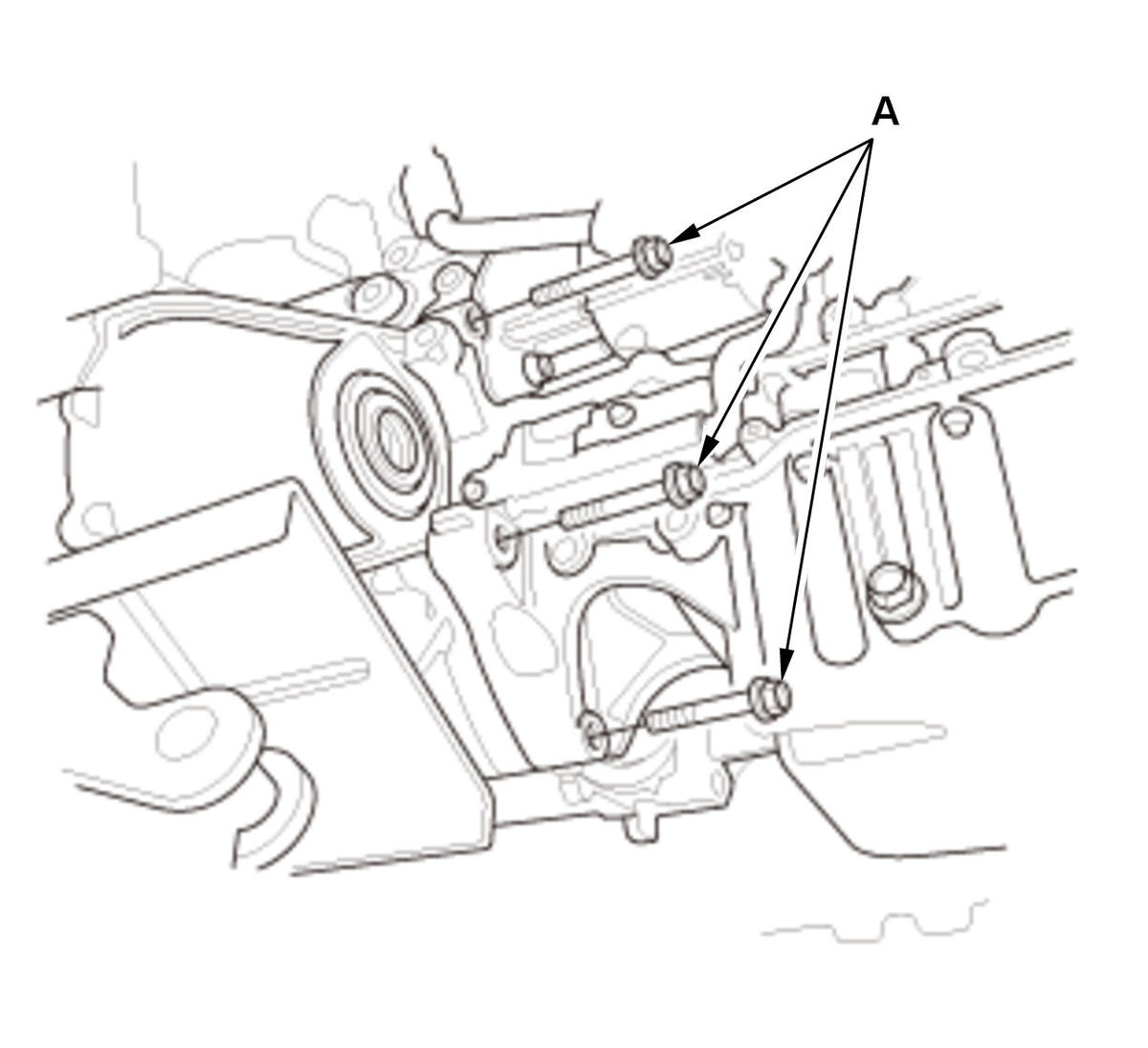

    1. Remove the lower transmission mounting bolts (A). 2. Pull the transmission away from the engine until the transmission mainshaft clears the clutch pressure plate. 3. Slowly lower the transmission about 150 mm (5.91 in). 4. Check once again that all hoses and harness are disconnected and free from the transmission. 5. Lower the transmission.
