M/T Differential Carrier and Final Driven Gear Removal and Installation (M/T) (2016 2017 2018): Removal
WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
- Differential Carrier Bearing - Remove
- Final Driven Gear - Remove

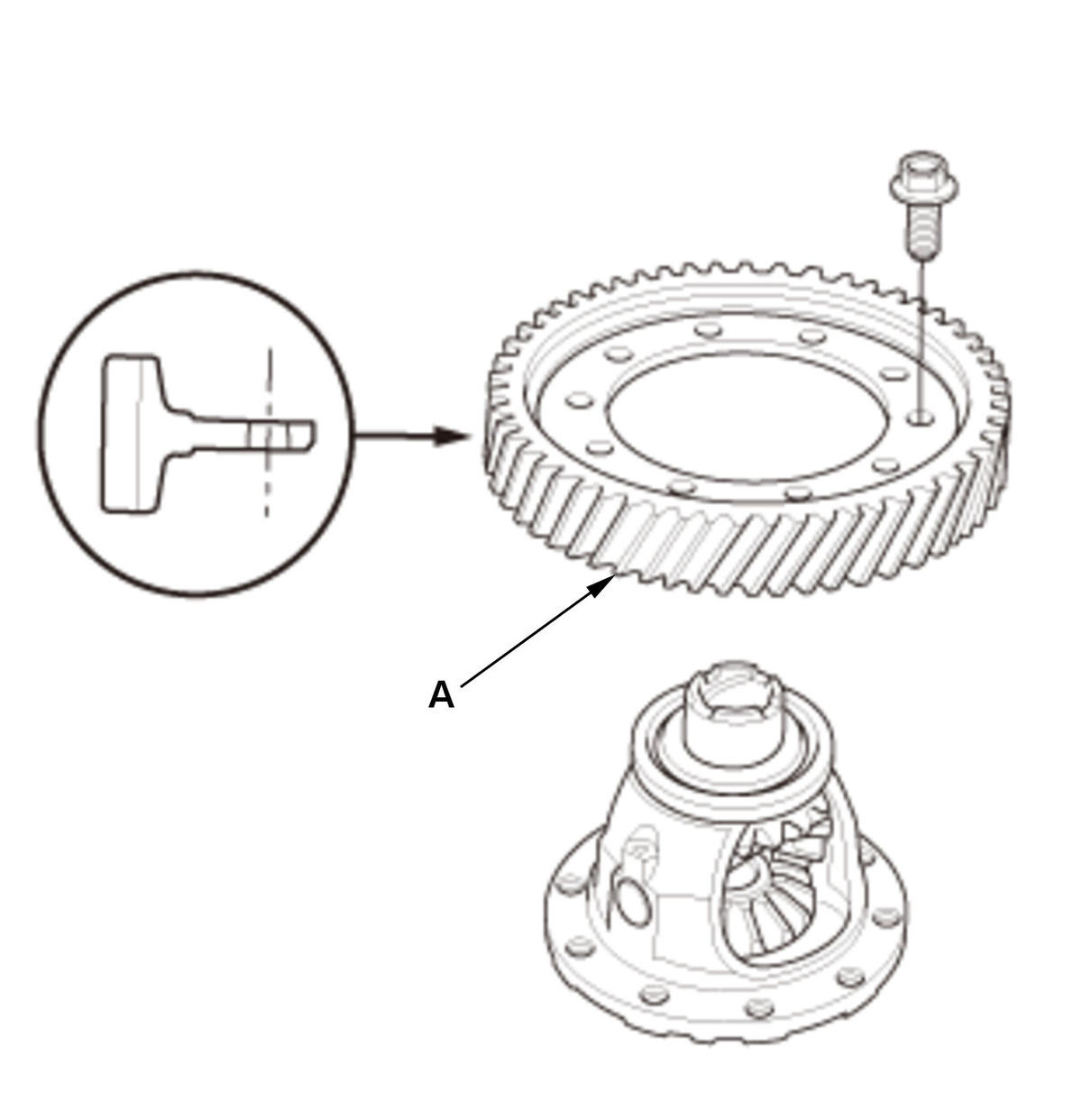

1. Loosen the bolts in a crisscross pattern in several steps, then remove the bolts and the final driven gear (A).
