M/T Differential Carrier and Final Driven Gear Removal and Installation (M/T) (2016 2017 2018): Installation

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

Final Driven Gear - Install

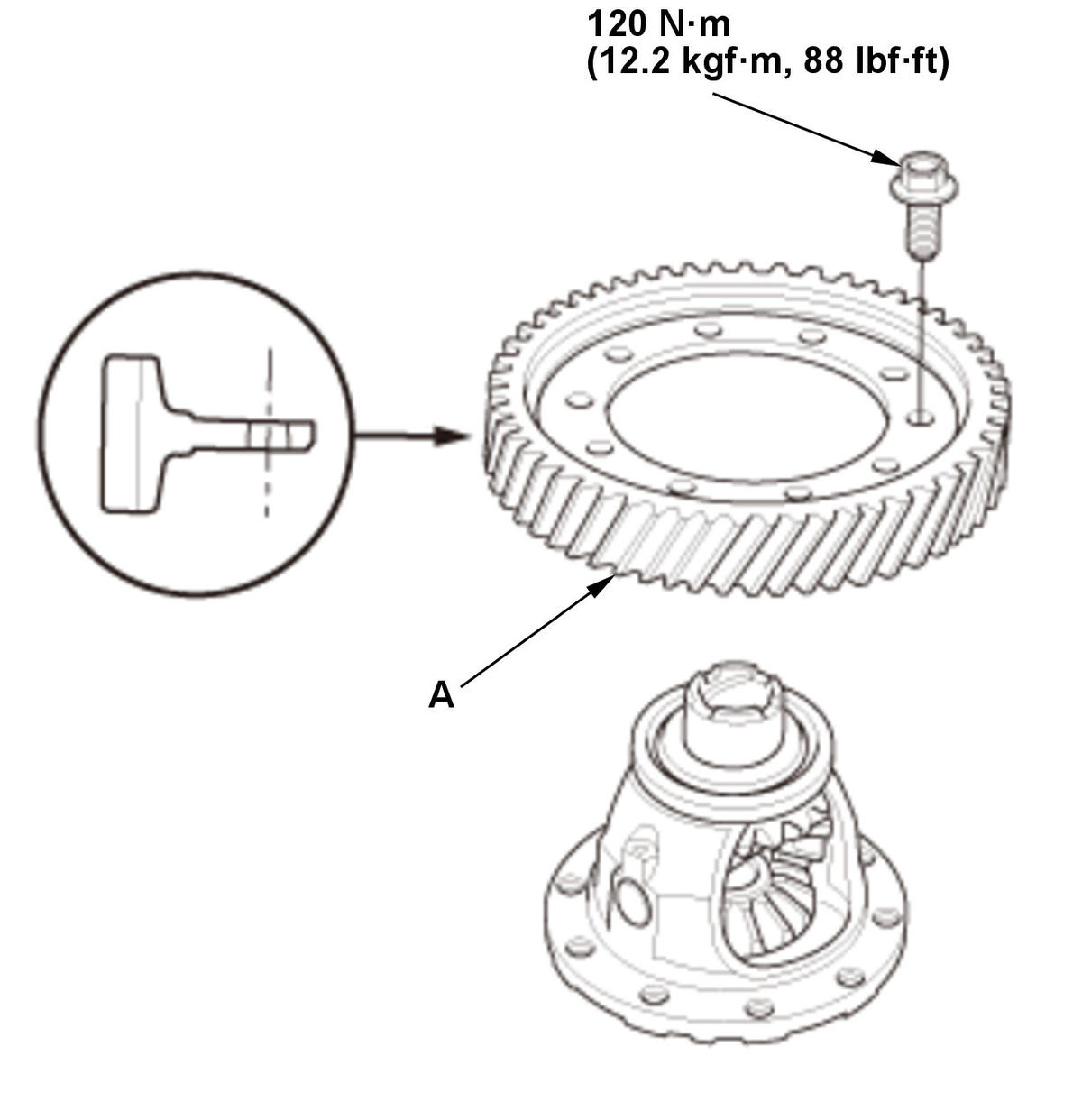

Fig 1: Tightening Final Driven Gear In a Crisscross Pattern In Several Steps With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the final driven gear (A). Tighten the bolts in a crisscross pattern in several steps.
Differential Carrier Bearing - Install
