Clutch Pedal Position Switch Removal and Installation (M/T) (2016 2017 2018): Installation

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

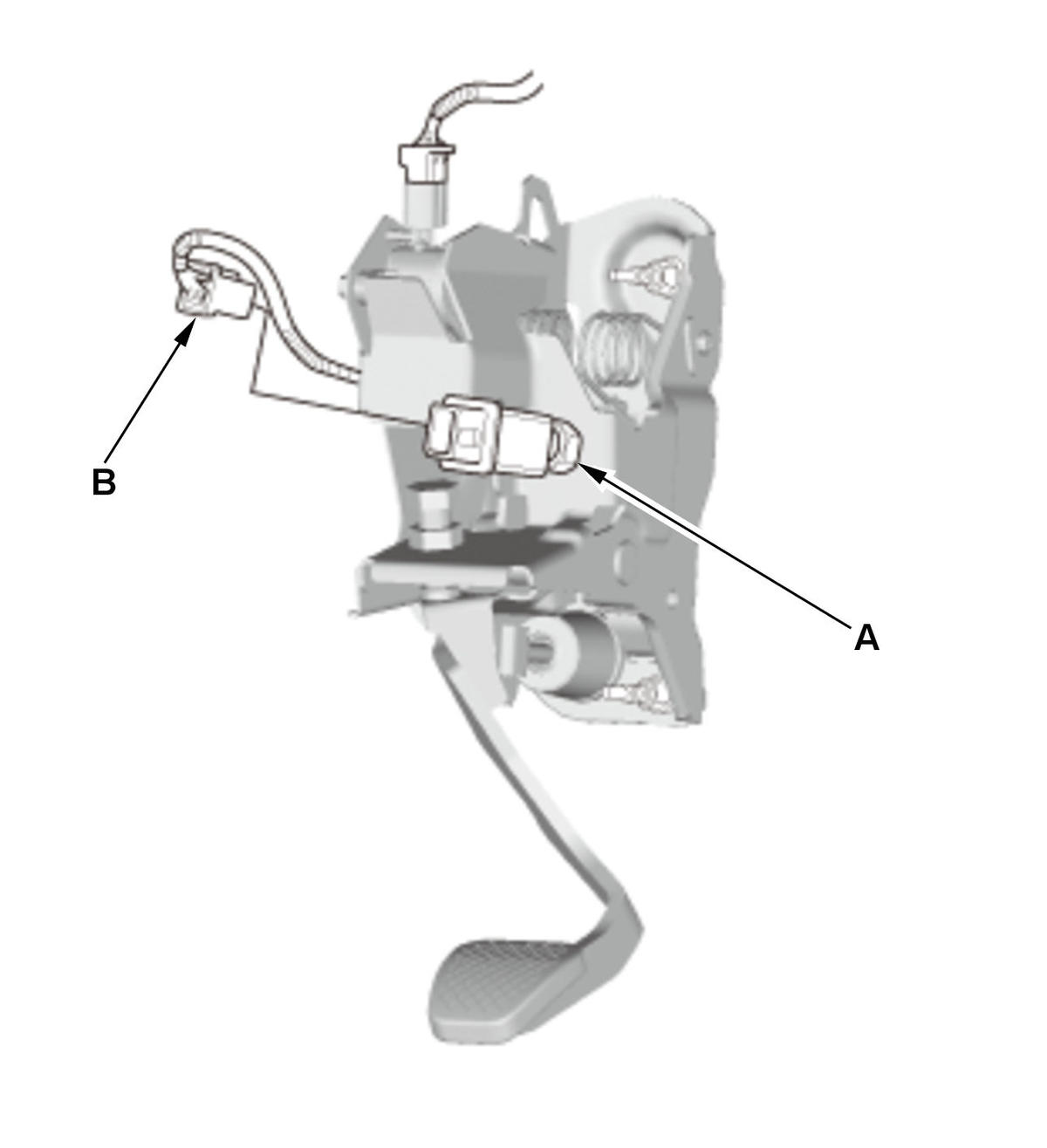

Clutch Pedal Position Switch - Install

Courtesy of HONDA, U.S.A., INC.

1. Loosely install clutch pedal position switch A.

NOTE:

Do not contact clutch pedal position switch A to the clutch pedal.
Make sure the installation position of clutch position switch A.

2. Connect the connector (B).

Clutch Pedal and Clutch Pedal Position Switch - Adjust
