Clutch Pedal Assembly Removal and Installation (M/T) (2016 2017 2018): Removal
WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
- Clutch Pedal Assembly - Remove

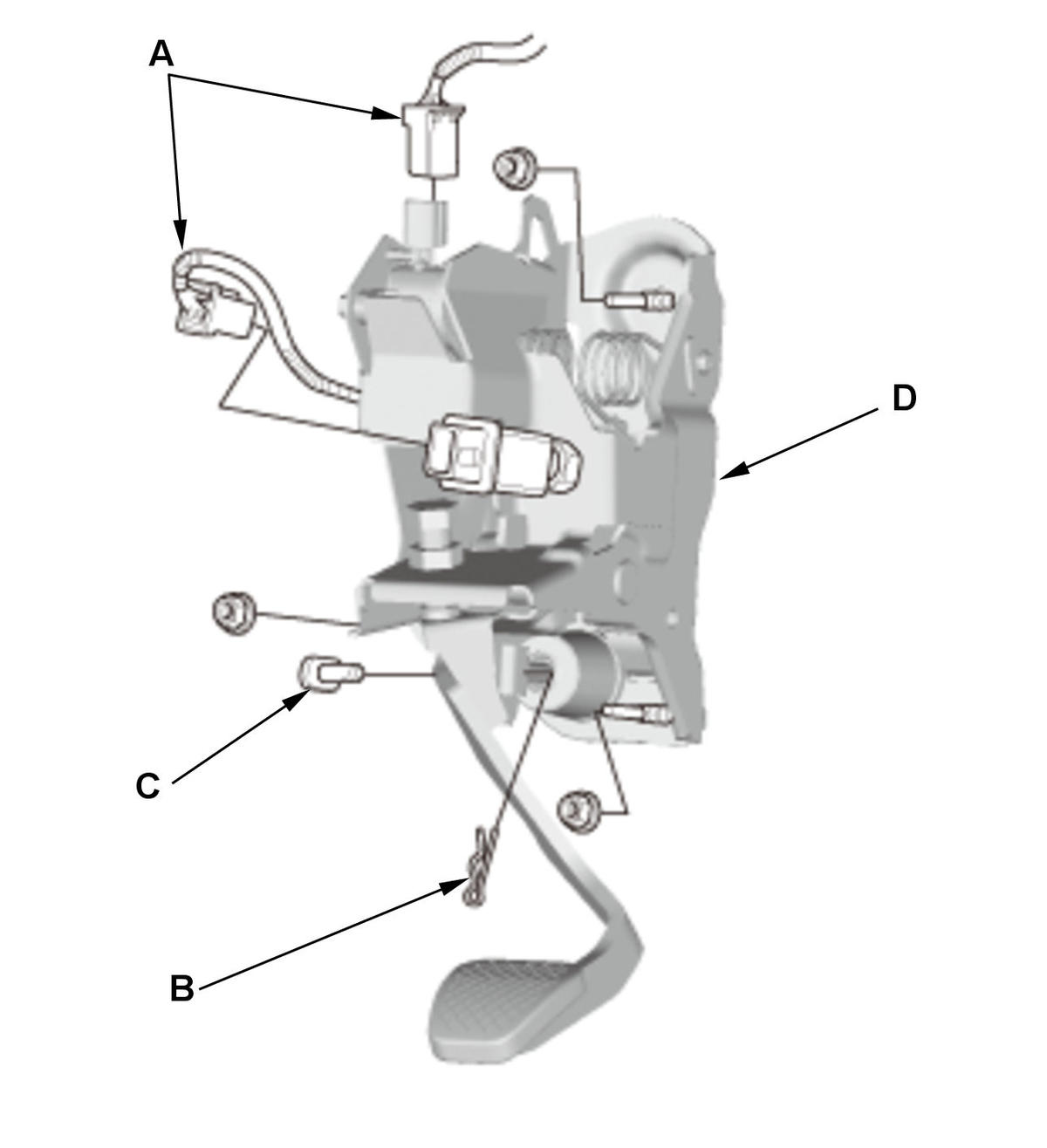

1. Disconnect the connectors (A). 2. Pry out the lock pin (B), and pull the pedal pin (C) out of the yoke.
3. Remove the clutch pedal assembly (D).
- Clutch Pedal Position Switch - Remove
