Clutch Master Cylinder Removal and Installation (M/T) (2016 2017 2018): Installation

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use fender covers to avoid damaging painted surfaces.
Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid gets on the paint or plastic, wash it off immediately with water.
Plug the ends of the reservoir hose and flare nut to prevent spilling brake fluid.

Clutch Master Cylinder - Install

Courtesy of HONDA, U.S.A., INC.

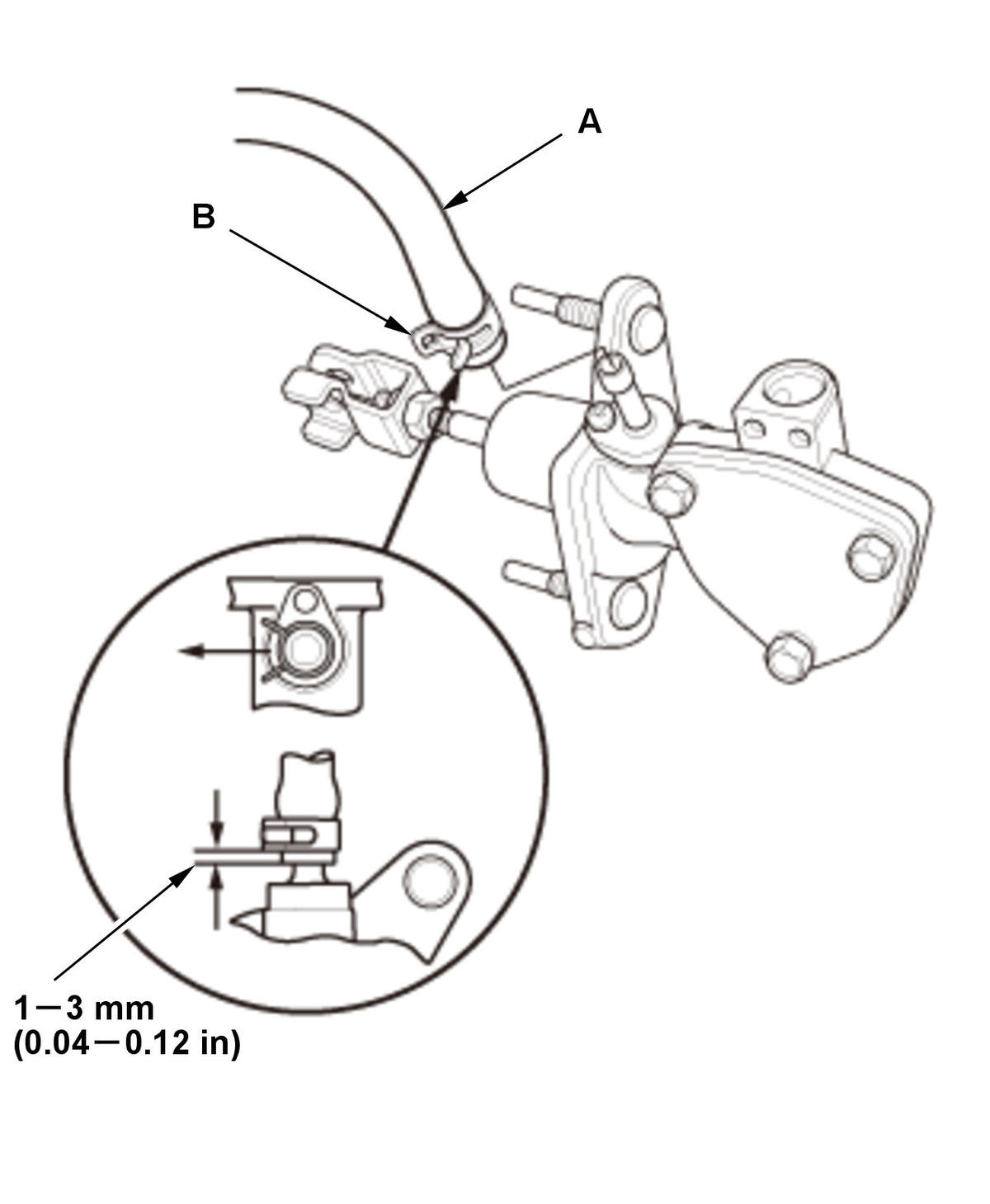

1. Install the reservoir hose (A), and adjust the hose clamp (B) positions and its direction.

Make sure the hose clamp is positioned as shown.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

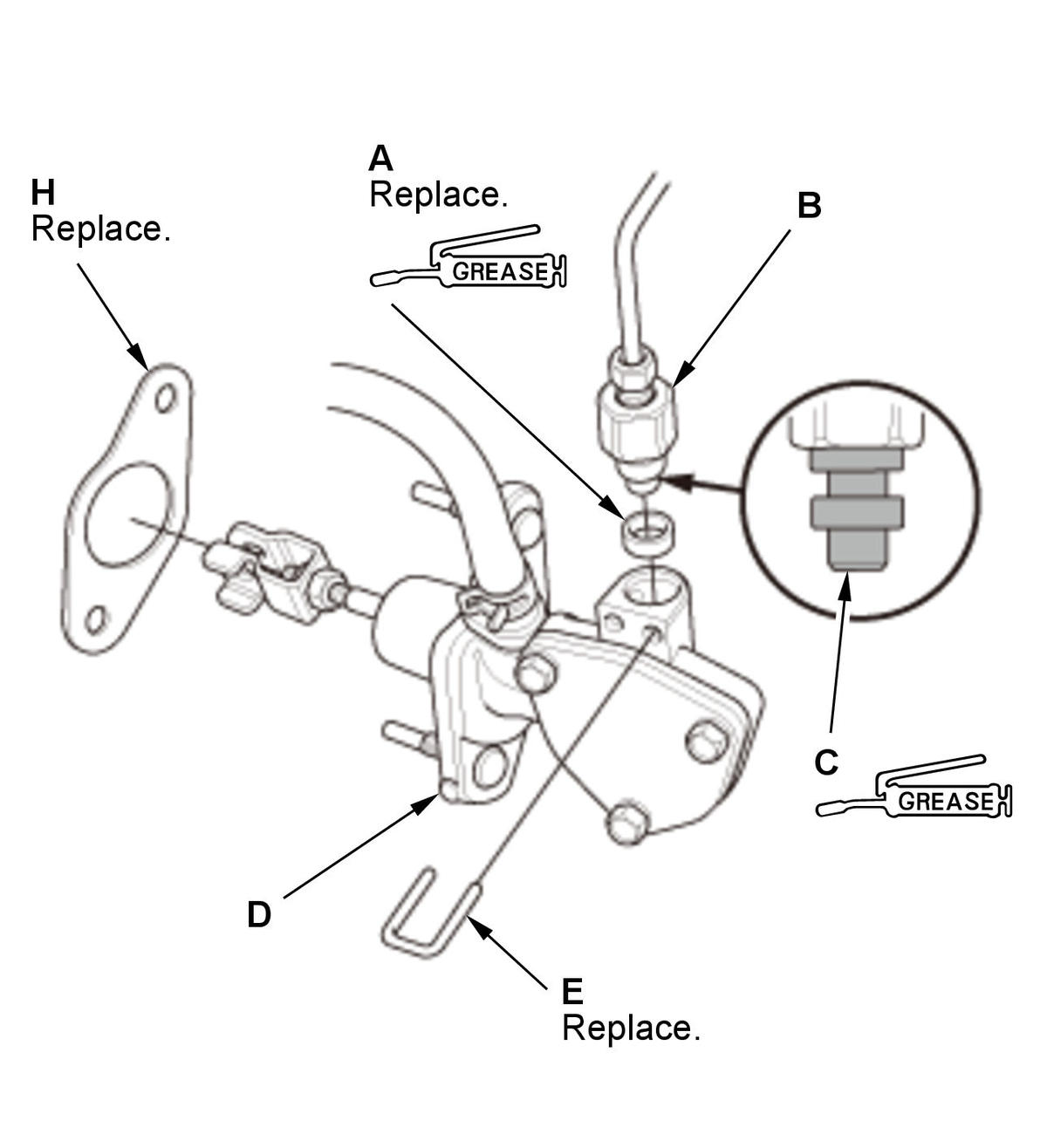

2. Install a new O-ring (A) on the clutch line connector (B).

NOTE:

Apply the rubber grease to the O-ring and the end (C) of the clutch line.

3. Connect the clutch line to the clutch master cylinder (D) with a new retaining clip (E).

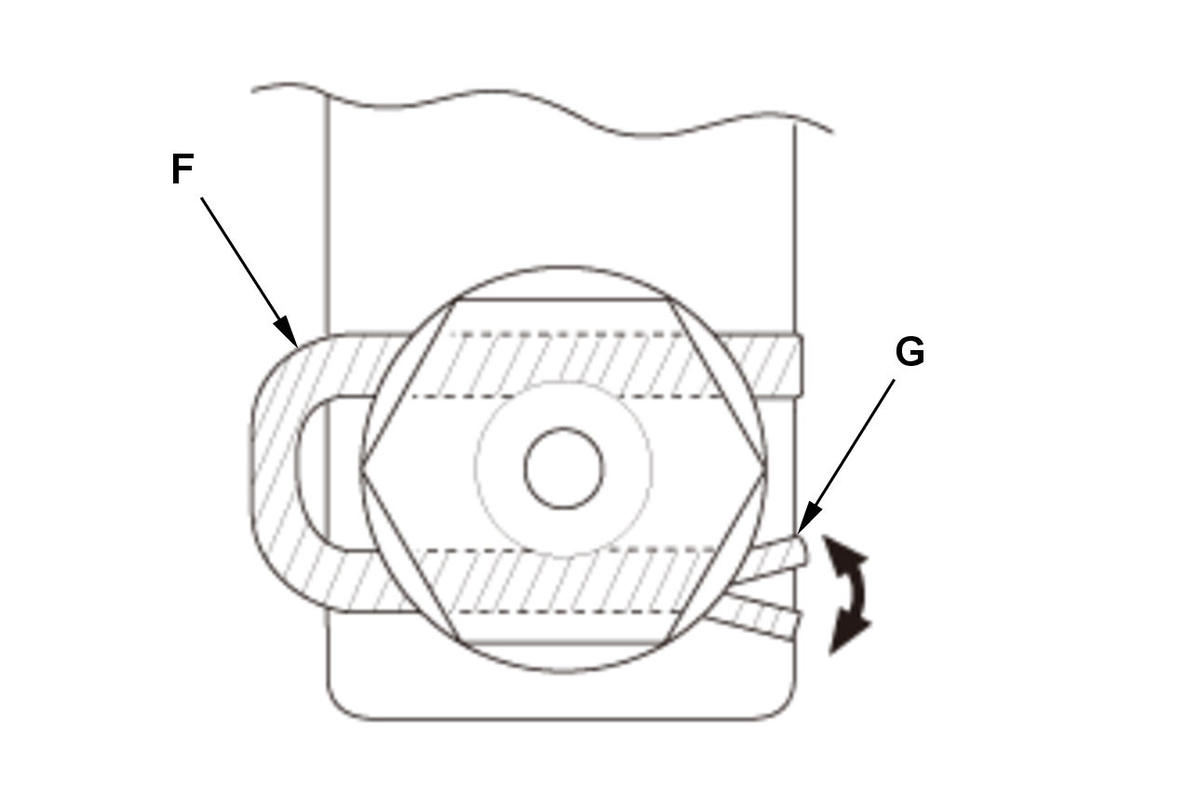

4. To prevent the retaining clip (F) from coming off, pry apart the tip (G) of the clip with a flat-tipped screwdriver.

5. Install a new master cylinder seal (H) and the clutch master cylinder.

Courtesy of HONDA, U.S.A., INC.

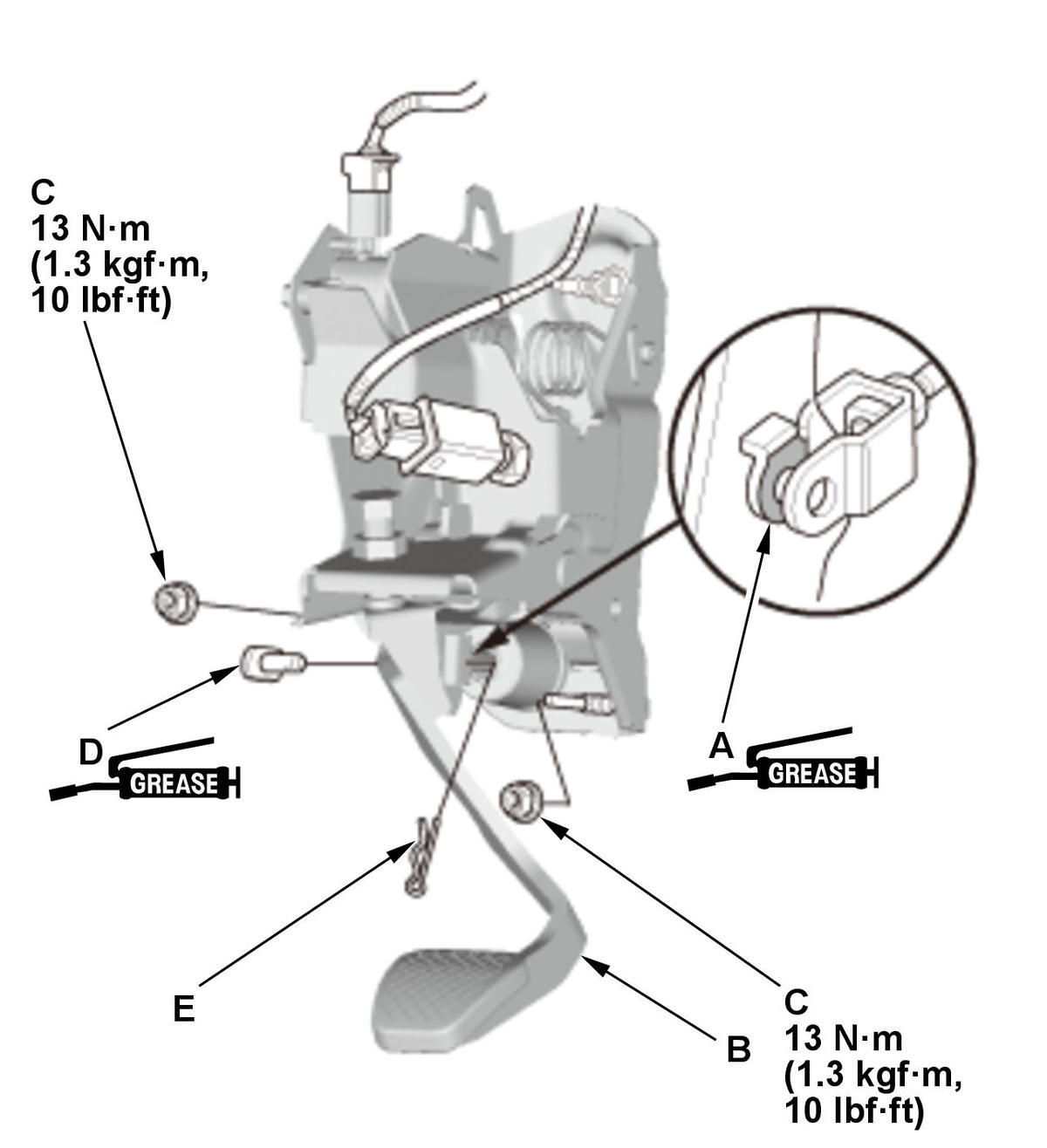

6. Connect the yoke (A) to the clutch pedal (B).

7. Apply multipurpose grease between the clutch pedal and the yoke.

NOTE:

Wipe off any excess grease.

8. Install the master cylinder mounting nuts (C).

9. Apply multipurpose grease to the pedal pin (D).

10. Slide the pedal pin into the yoke, then install the lock pin (E).

Clutch Pedal and Clutch Pedal Position Switch - Adjust
Brake Booster - Install
Clutch Hydraulic System - Bleed

1. Bleed the brake hydraulic system .
2. Bleed the clutch hydraulic system .
3. Check the clutch operation and check for leaking fluid.
Test Drive - Check
