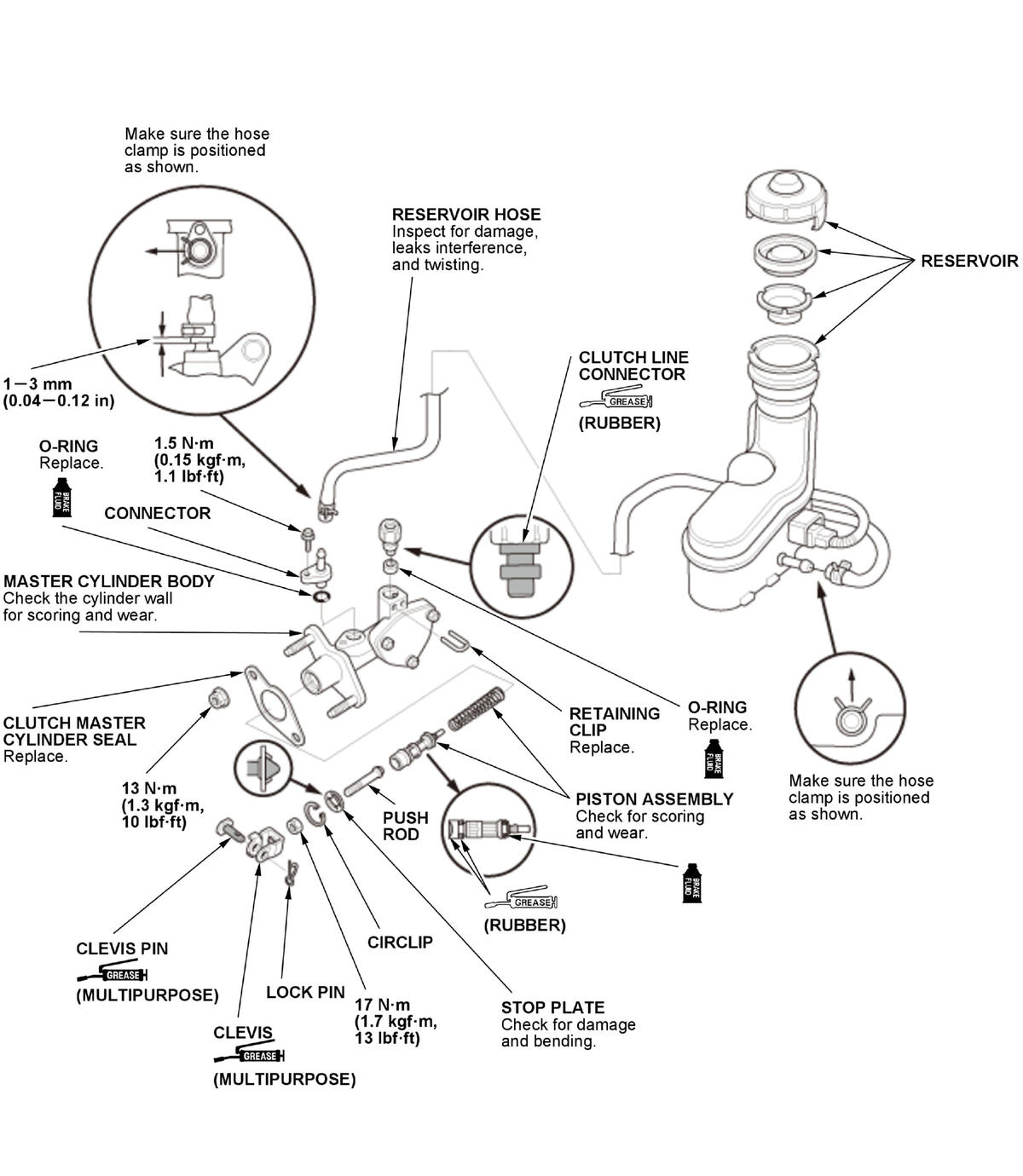

Exploded View
WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When attaching the reservoir hose, align the yellow mark on the hose to the connector rib on the reservoir connection area.
- When attaching the reservoir hose, align the blue mark on the hose to the connector rib on the clutch master cylinder connection area.
