Clutch Master Cylinder Overhaul (M/T) (2016 2017 2018): Disassembly

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Refer to the Exploded View as needed during this procedure.
Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid does contact the paint or plastic, wash it off immediately with water.

Clutch Master Cylinder Piston Assembly - Remove

Courtesy of HONDA, U.S.A., INC.

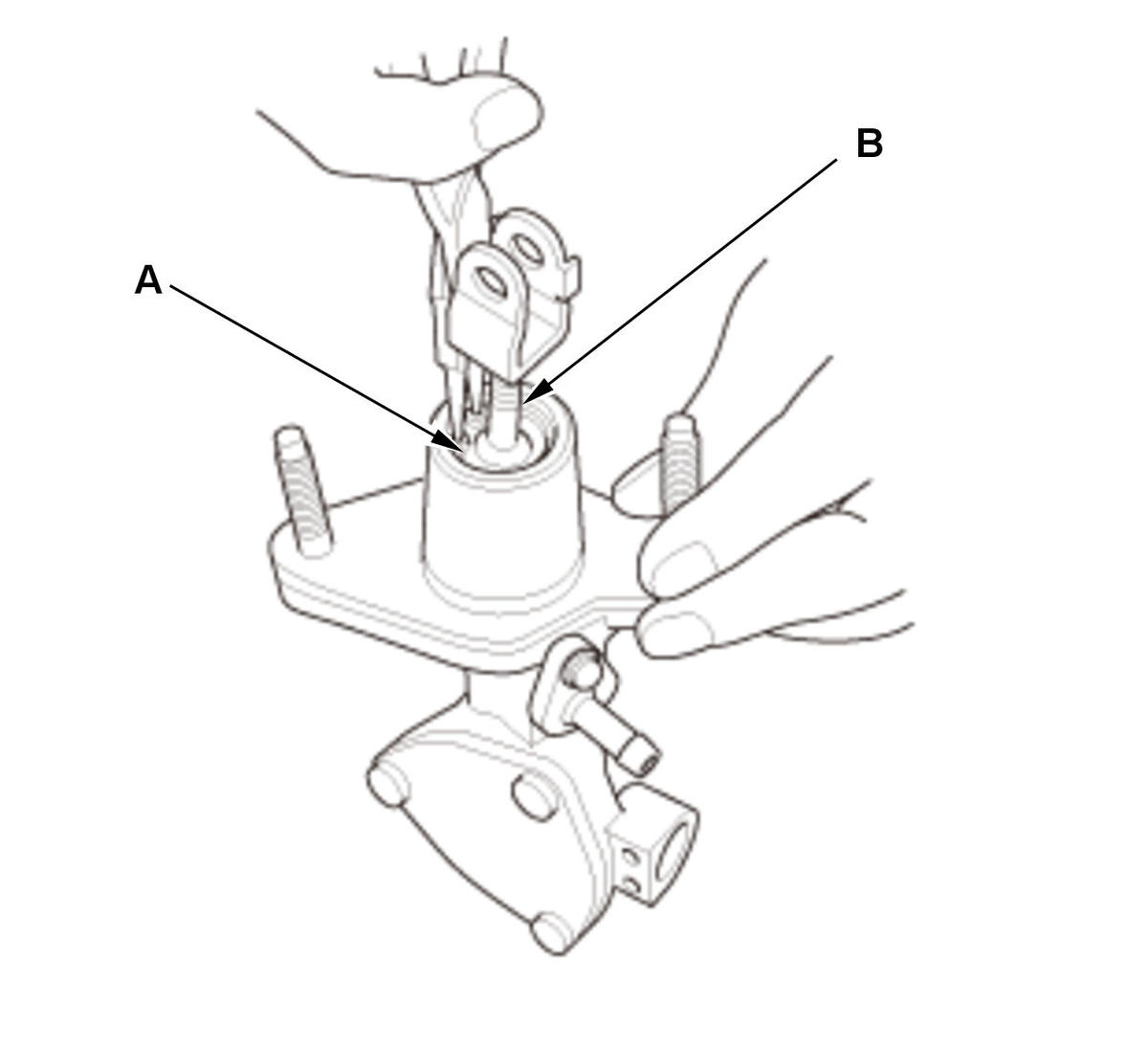

1. Pry the circlip (A).

2. Remove the push rod (B) with the stop plate and the yoke.

Courtesy of HONDA, U.S.A., INC.

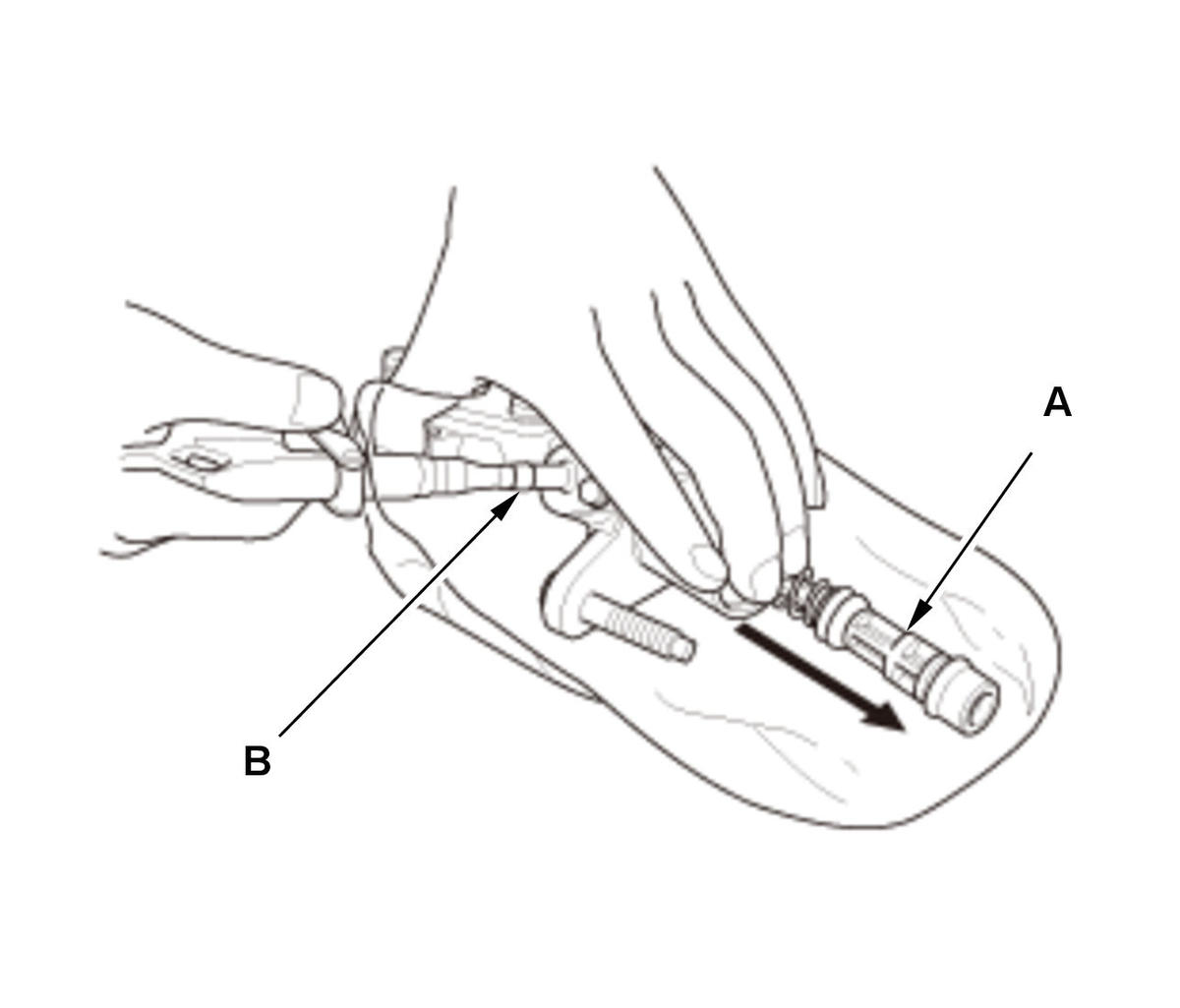

3. Carefully remove the piston assembly (A) by applying air pressure through the clutch line hole (B).

Courtesy of HONDA, U.S.A., INC.

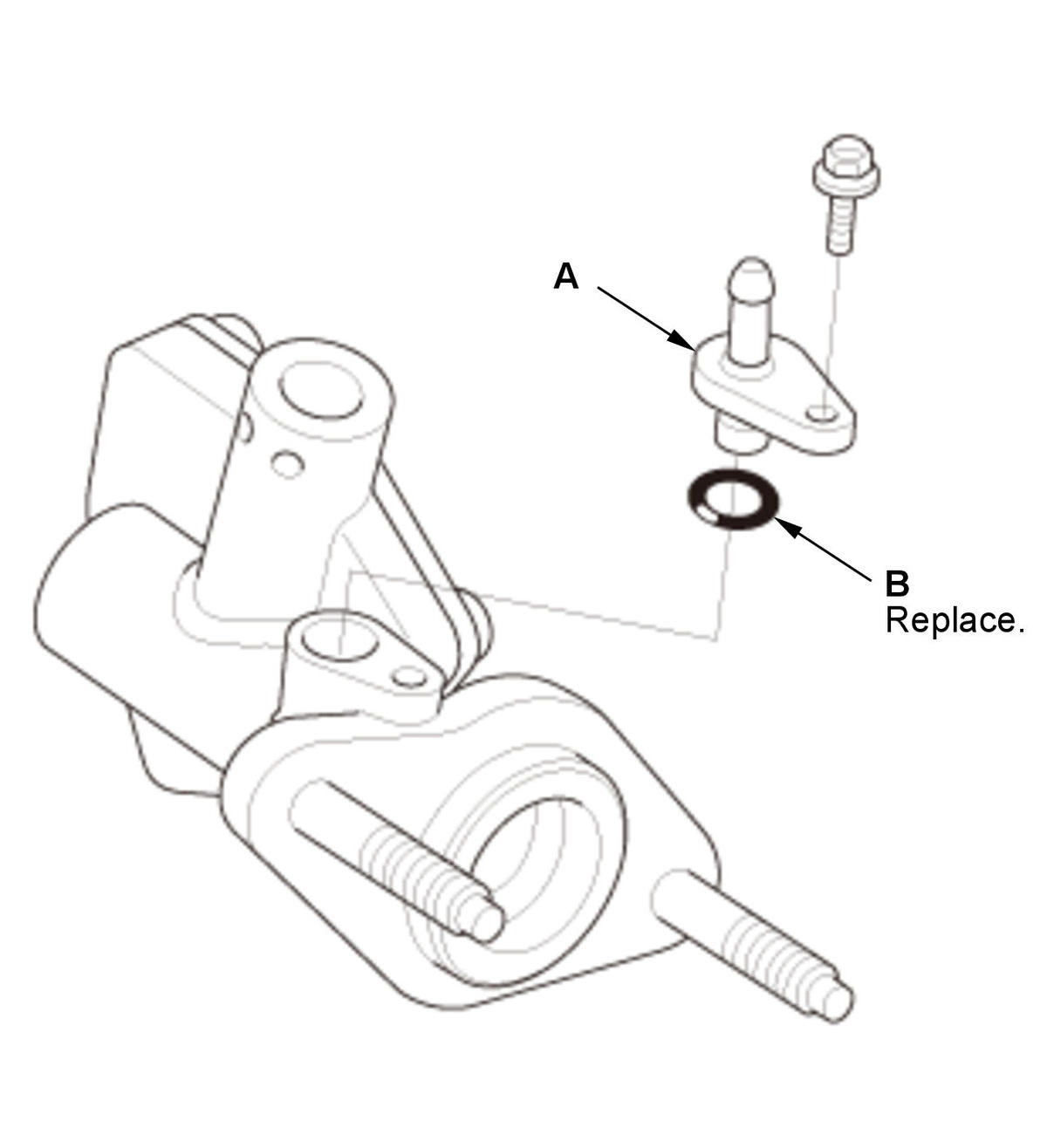

4. Remove the connector (A) and the O-ring (B).
