Reverse Lockout Solenoid Disassembly and Reassembly (M/T) (2016 2017 2018): Disassembly

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

Air Cleaner - Remove

Reverse Lockout Solenoid - Remove

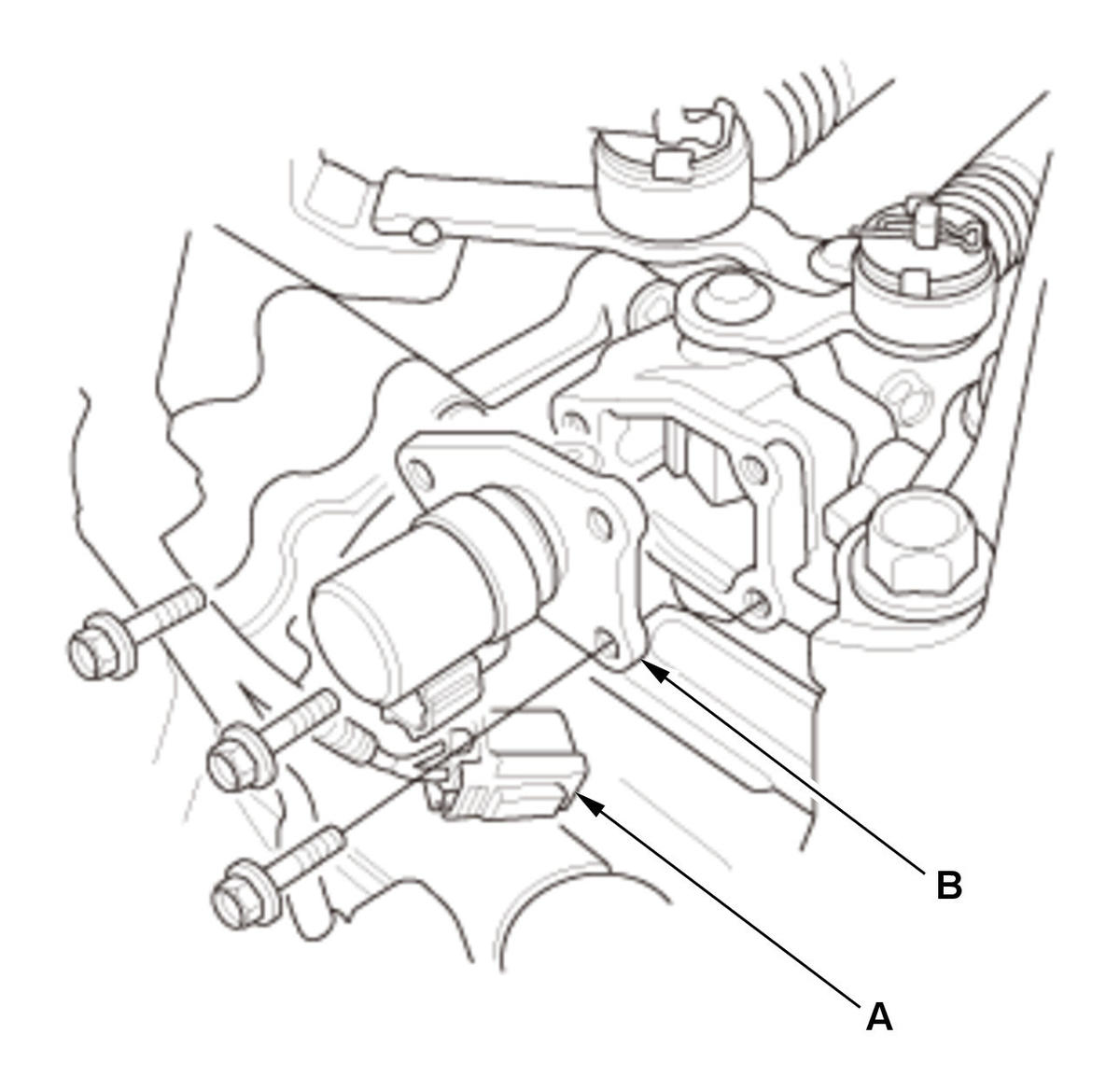

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A).

2. Remove the reverse lockout solenoid (B).

NOTE:

Do not directly hit the reverse lockout solenoid with the hammer.

Reverse Lockout Solenoid - Disassemble

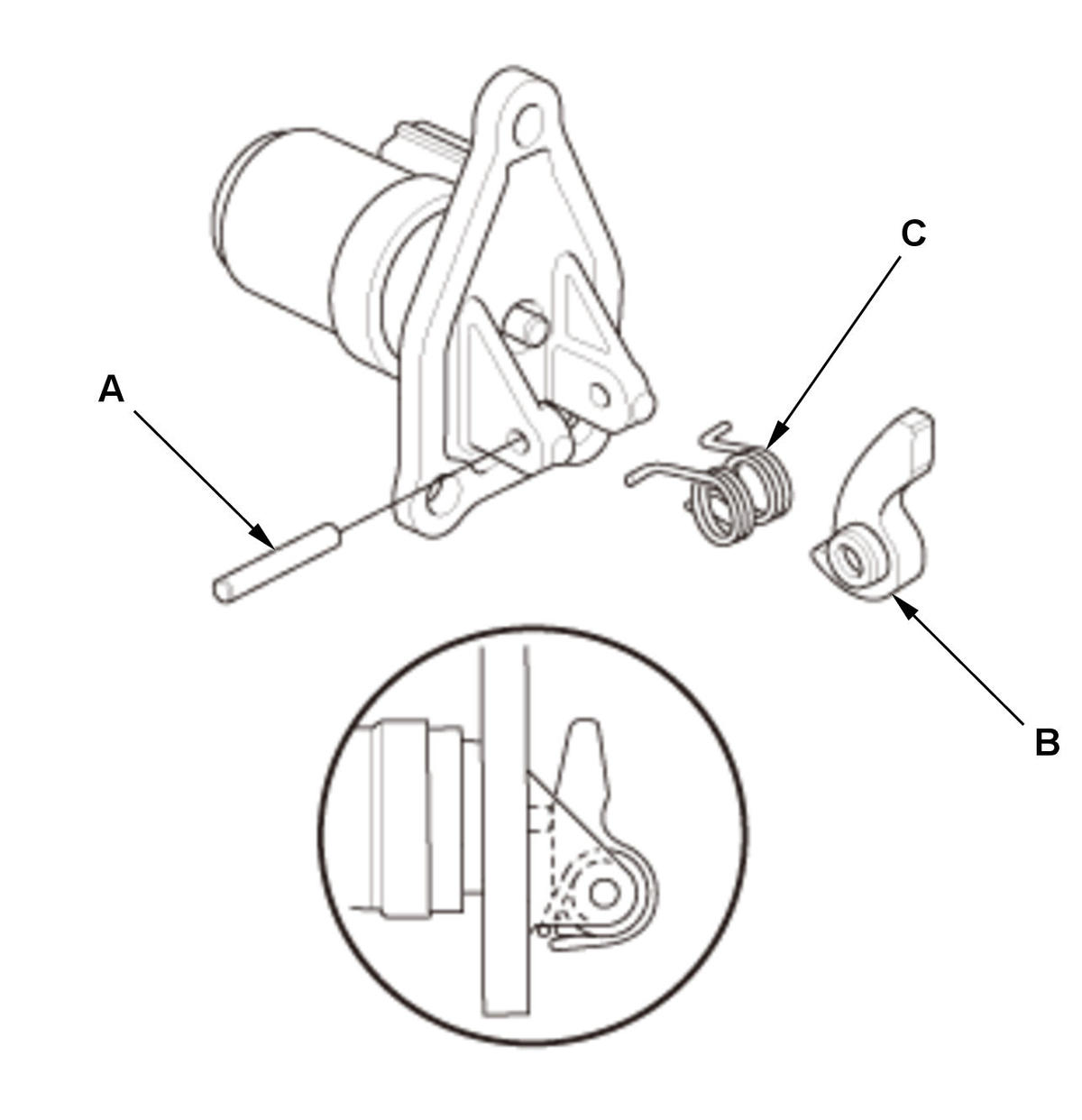

Courtesy of HONDA, U.S.A., INC.

1. Remove the pin (A), the select lock return spring (C), and select lock cam B.
