Back-Up Light Switch Test(M/T) (2016 2017 2018): Test

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

Back-Up Light Side

  1. Air Cleaner - Remove
  2. Back-Up Light Switch - Test
    GHH437143Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

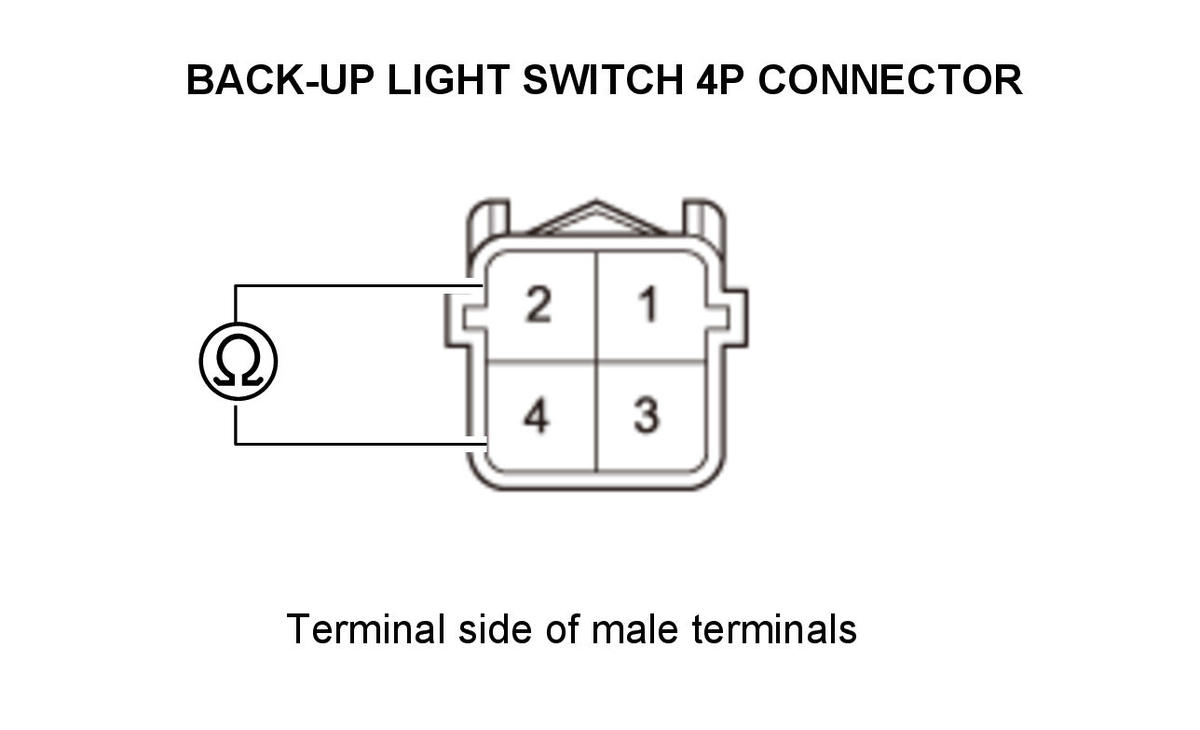

    GHH437144Courtesy of HONDA, U.S.A., INC.
    		 2. Check for continuity between back-up light switch 4P connector terminals No. 2 and No. 4. There should be continuity only when the shift lever is in reverse.
    • If the test result is OK, go to step 5.
    • If the test result is not OK, go to step 3.

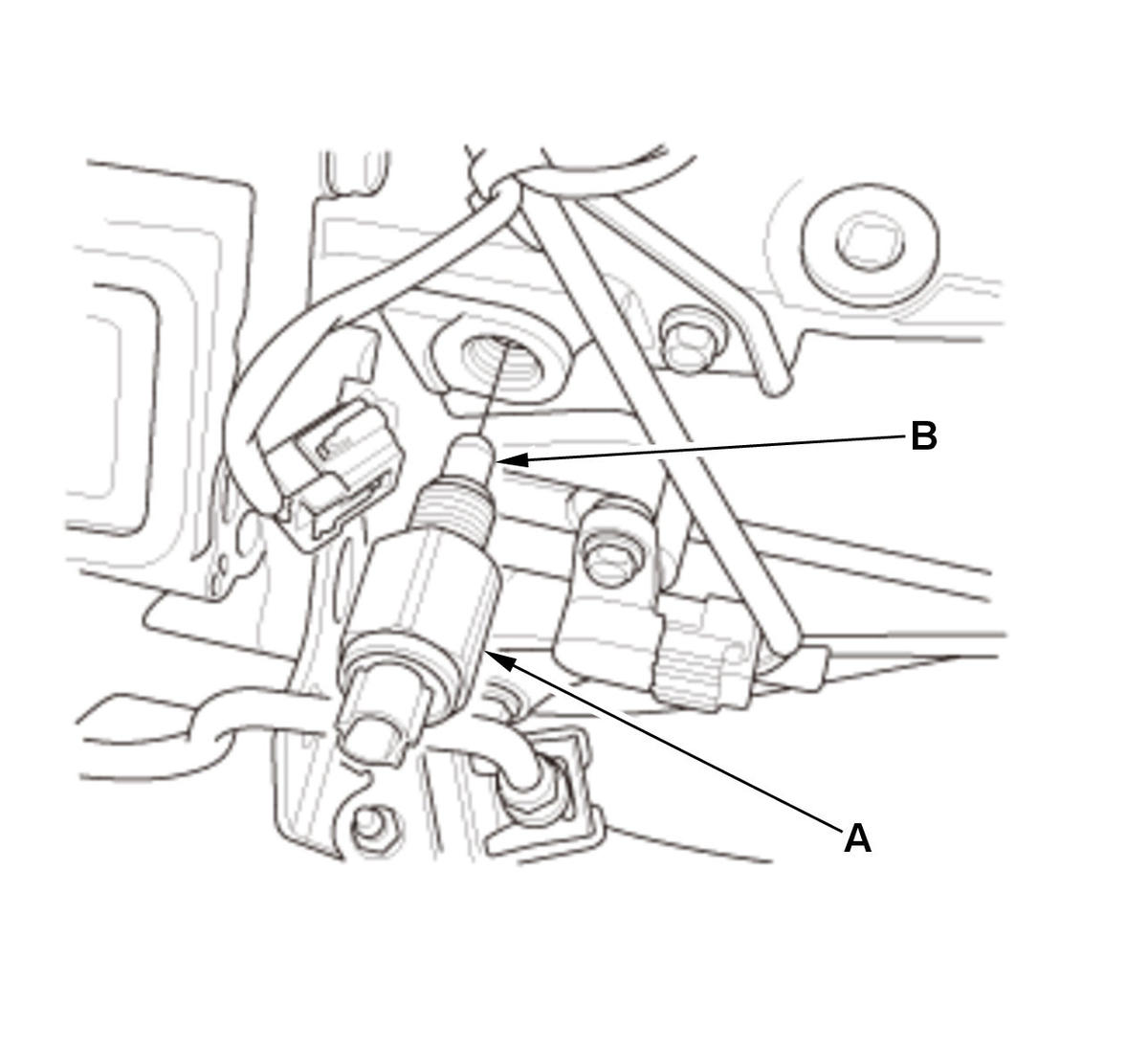

    GHH437145GHH437146Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH437145GHH437146Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 3. Remove the back-up light switch (A).

    4. Check for continuity between back-up light switch 4P connector terminals No. 2 and No. 4. There should be continuity when the switch end (B) is pressed, and no continuity when the switch end is released.

    • If the test result is OK, check the reverse shift mechanism in the transmission.
    • If the test result is not OK, replace the back-up light switch.
    GHH437147Courtesy of HONDA, U.S.A., INC.
    		 5. Clean any dirt and oil from the sealing surface of the back-up light switch and the transmission housing.

    6. Apply liquid gasket (P/N 08C70- K0334M) to the threads of the back-up light switch (A). Install the back-up light switch within 5 minutes of applying the liquid gasket.

    NOTE:  If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
    GHH437148Courtesy of HONDA, U.S.A., INC.
    		 7. Connect the connector (A).
  3. Air Cleaner - Install

    VSA Modulator-Control Unit Side

  4. Air Cleaner - Remove
  5. Back-Up Light Switch - Test
    GHH437149Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

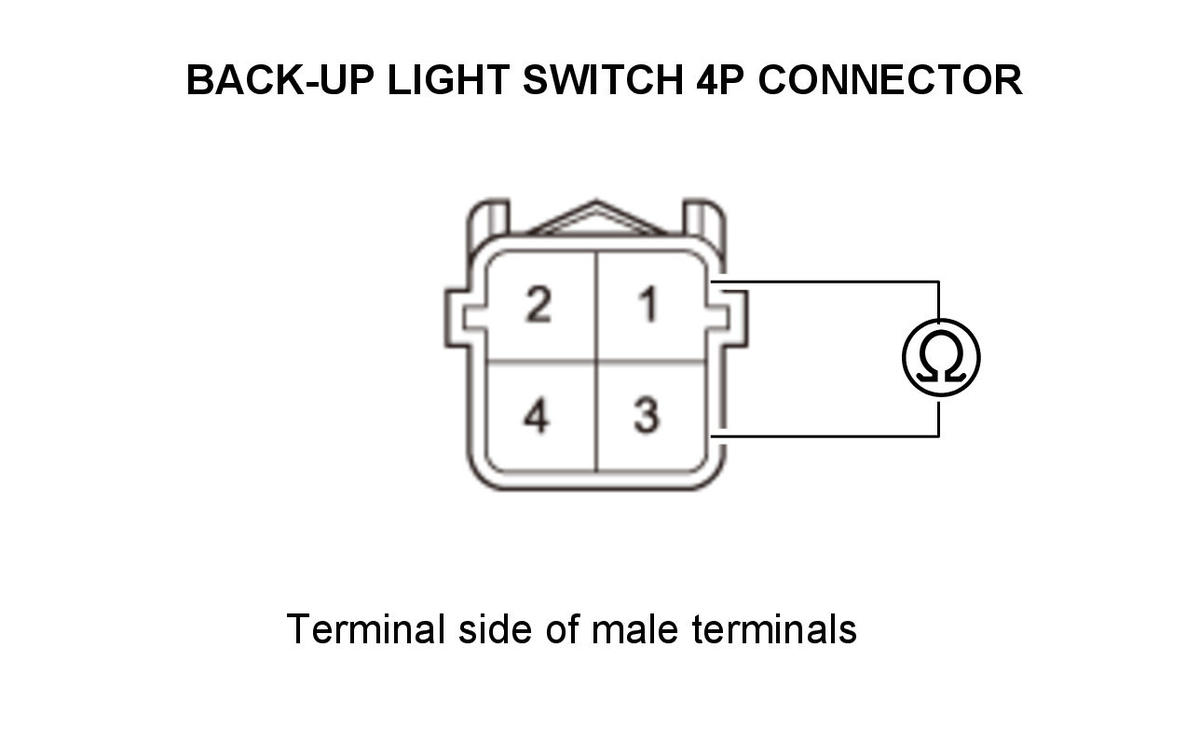

    GHH437150Courtesy of HONDA, U.S.A., INC.
    		 2. Check for resistance value between back-up light switch 4P connector terminals No. 1 and No. 3. There should be resistance value only when the shift lever is in reverse.
    • If the test result is OK, go to step 6.
    • If the test result is not OK, go to step 3.
    Specification
      Resistance Value: 750 Ω
    GHH437151GHH437152Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH437151GHH437152Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 3. Remove the back-up light switch (A).

    4. Check for resistance value between back-up light switch 4P connector terminals No. 1 and No. 3. There should be continuity when the switch end (B) is pressed, and no resistance value when the switch end is released.

    • If the test result is OK, check the reverse shift mechanism in the transmission.
    • If the test result is not OK, replace the back-up light switch.
    Specification
      Resistance Value: 750 Ω

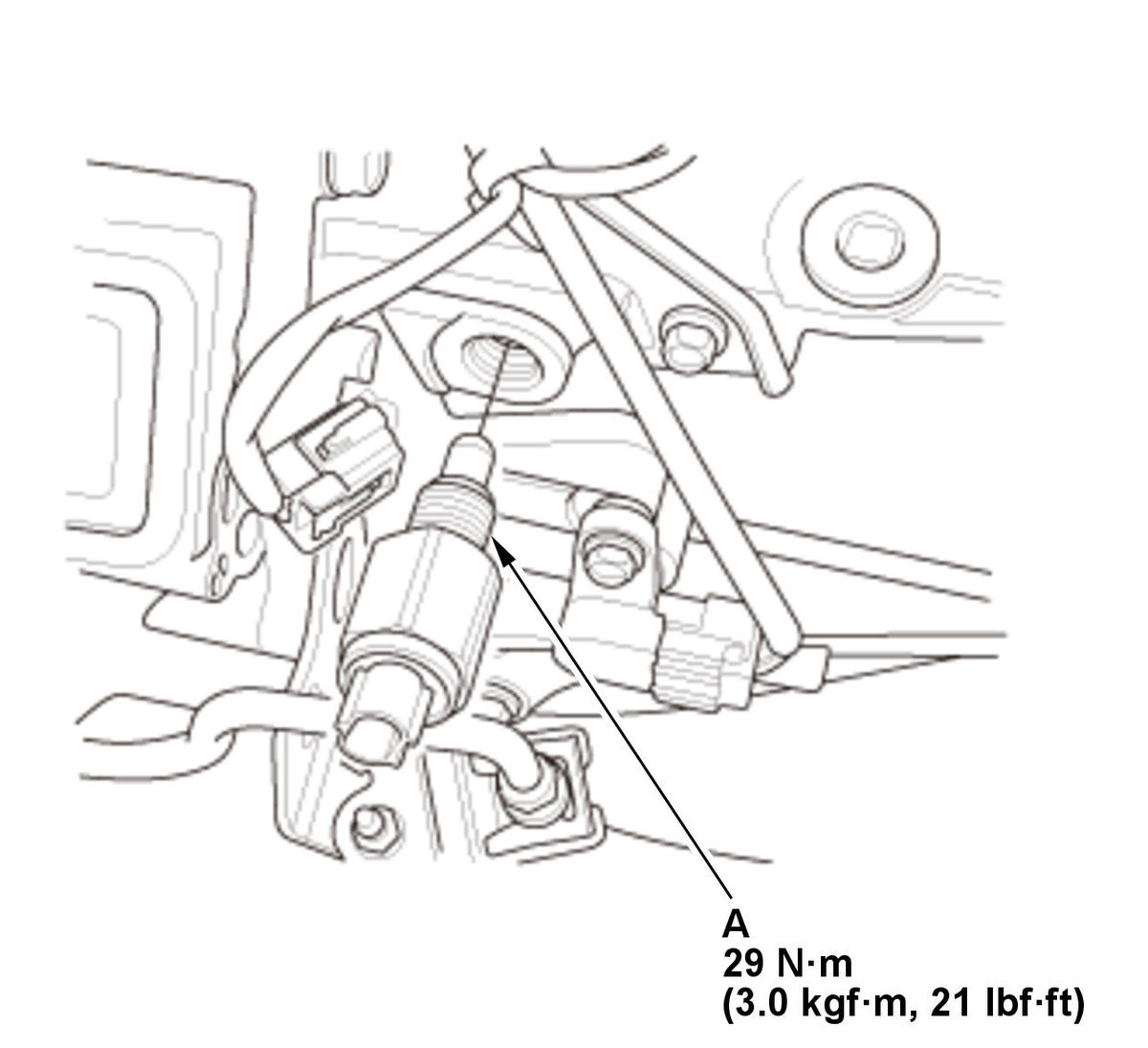

    GHH437153Courtesy of HONDA, U.S.A., INC.
    		 5. Clean any dirt and oil from the sealing surface of the back-up light switch and the transmission housing.

    6. Apply liquid gasket (P/N 08C70- K0334M) to the threads of the back-up light switch (A). Install the back-up light switch within 5 minutes of applying the liquid gasket.

    NOTE:  If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

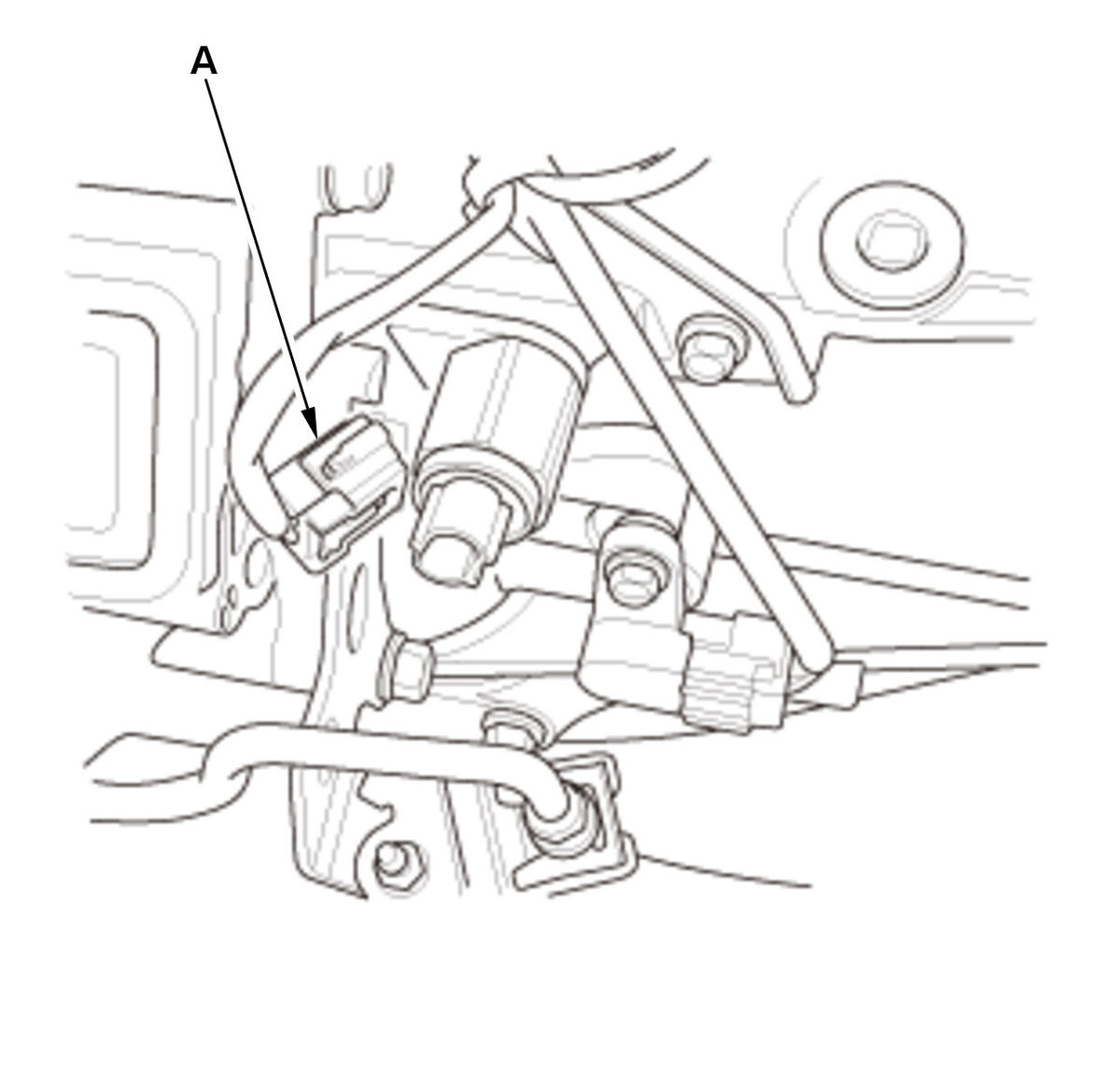

    GHH437154Courtesy of HONDA, U.S.A., INC.
    		 7. Connect the connector (A).
  6. Air Cleaner - Install
