Synchro Sleeve and Hub Disassembly, Reassembly, and Inspection(M/T) (2016 2017 2018): Inspection
WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
- Synchro Sleeve and Hub - Inspect

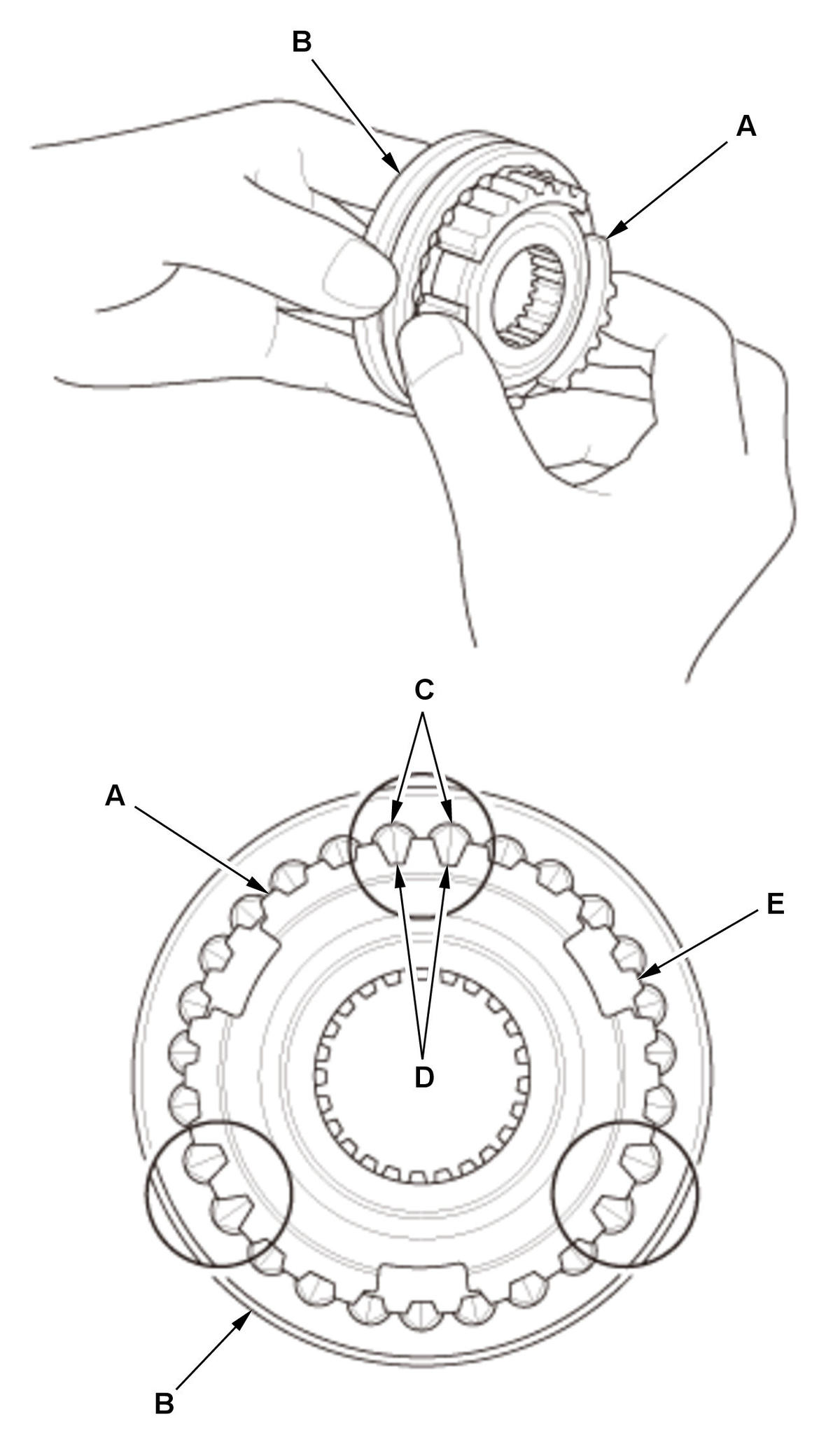

1. Inspect the gear teeth on all synchro hubs and synchro sleeves for wear (rounded off corners). 2. Install each synchro hub (A) in its mating synchro sleeve (B), and check for free movement. Make sure to match the three sets of longer teeth (C) (120 degrees apart) on the synchro sleeve with the three sets of deeper grooves (D) in the synchro hub.
NOTE:- Do not install the synchro sleeve with its longer teeth in the synchro hub slots (E) because it will damage the spring ring.
- If replacement is required, always replace the synchro sleeve and the synchro hub as a set.
