Mainshaft Disassembly, Reassembly, and Inspection(M/T) (2016 2017 2018): Inspection

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

Mainshaft - Inspect

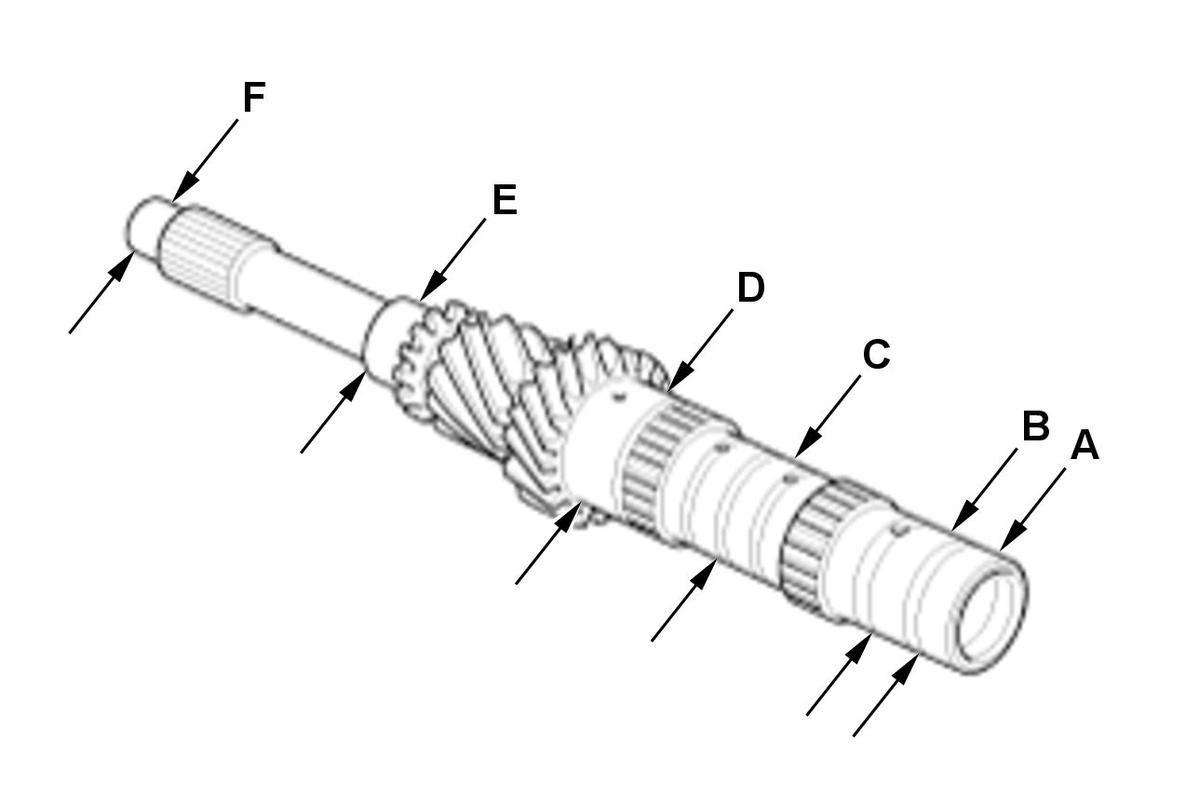

1. Inspect the oil passage, gear, and bearing contact areas for wear and damage, then measure the mainshaft at points A, B, C, D, E, and F. If any part of the mainshaft is less than the service limit, replace it.

Standard:

A Ball Bearing Contact Area (Transmission Housing Side):
	30.984-31.000 mm (1.21984-1.22047 in)
B 6th Gear Distance Collar Contact Area:
	32.984-33.000 mm (1.29858-1.29921 in)
C 4th/5th Gear Distance Collar Contact Area:
	35.984-36.000 mm (1.41669-1.41732 in)
D Needle Bearing Contact Area:
	41.984-42.000 mm (1.65291-1.65354 in)
E Ball Bearing Contact Area (Clutch Housing Side):
	28.002-28.015 mm (1.10244-1.10295 in)
E Crankshaft Pilot Bushing Contact Area:
	20.80-20.85 mm (0.8189-0.8209 in)

Service Limit:

A:	30.984 mm (1.21984 in)
B:	32.984 mm (1.29858 in)
C:	35.984 mm (1.41669 in)
D:	41.984 mm (1.65291 in)
E:	28.002 mm (1.10244 in)
F:	20.80 mm (0.8189 in)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

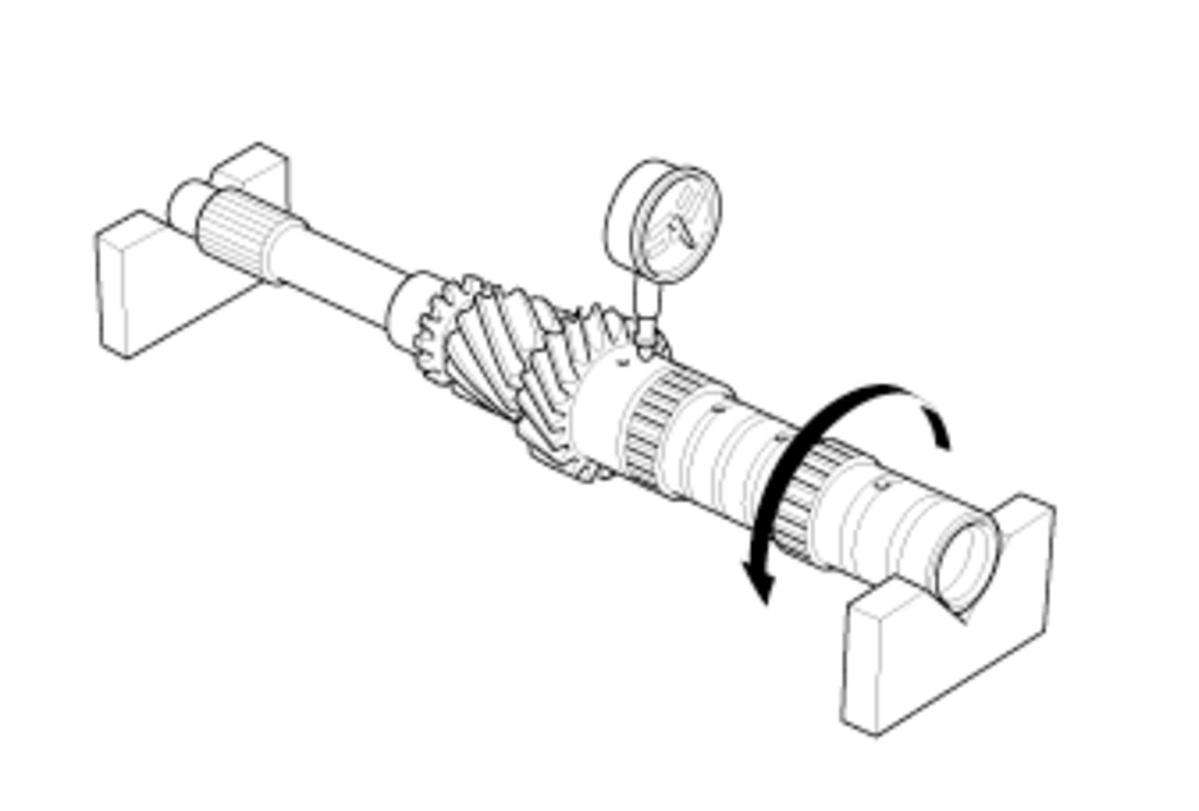

2. Inspect the runout by supporting both ends of the mainshaft. Then rotate the mainshaft two complete turns while measuring with a dial gauge. If the runout exceeds the standard, replace the mainshaft.

Standard:

0.02 mm (0.0008 in) max.
