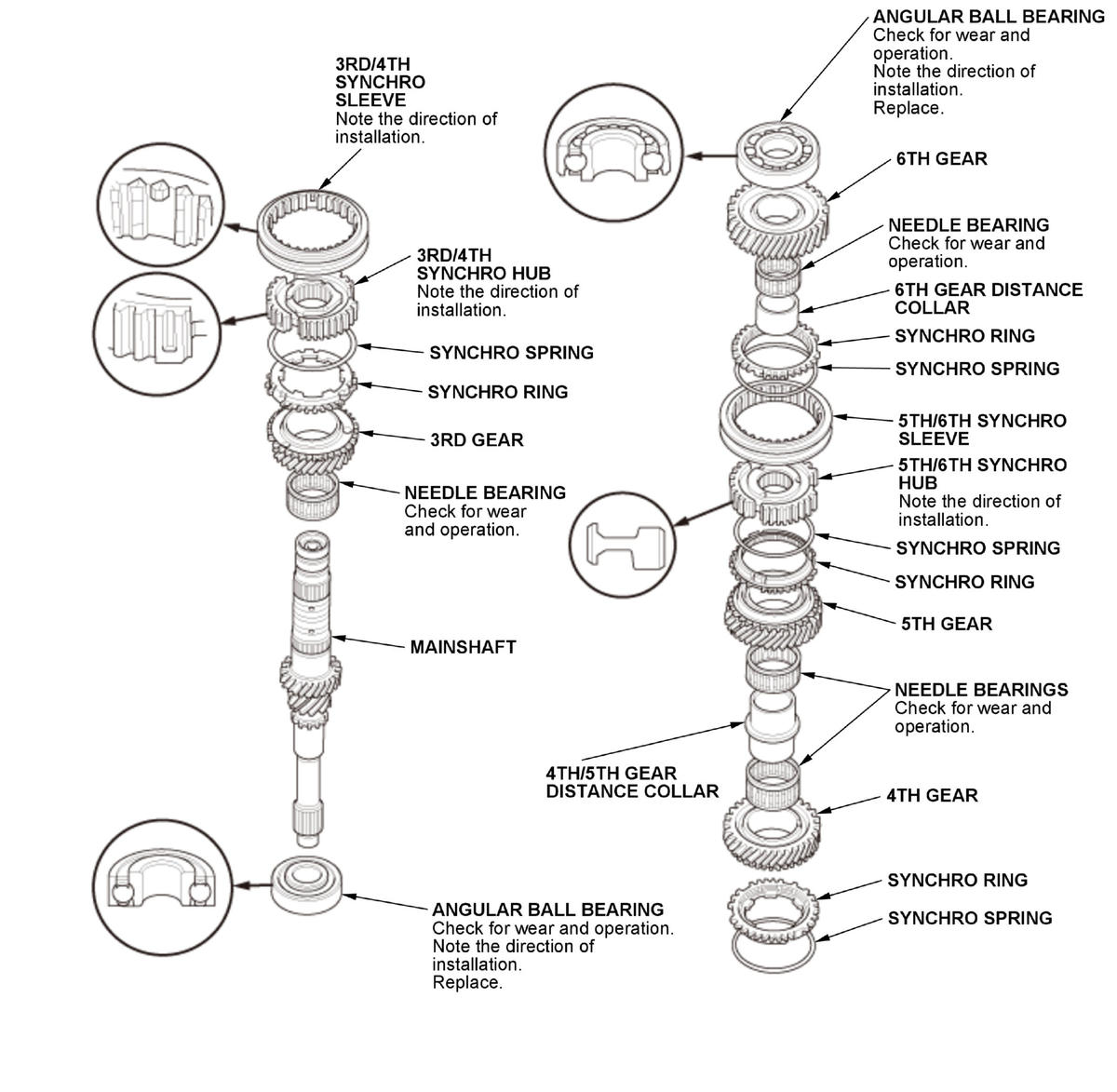

Exploded View

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mainshaft
    GHH437192Courtesy of HONDA, U.S.A., INC.
