Mainshaft Disassembly, Reassembly, and Inspection(M/T) (2016 2017 2018): Disassembly

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Exploded View as needed during this procedure.

Mainshaft - Disassemble

Courtesy of HONDA, U.S.A., INC.

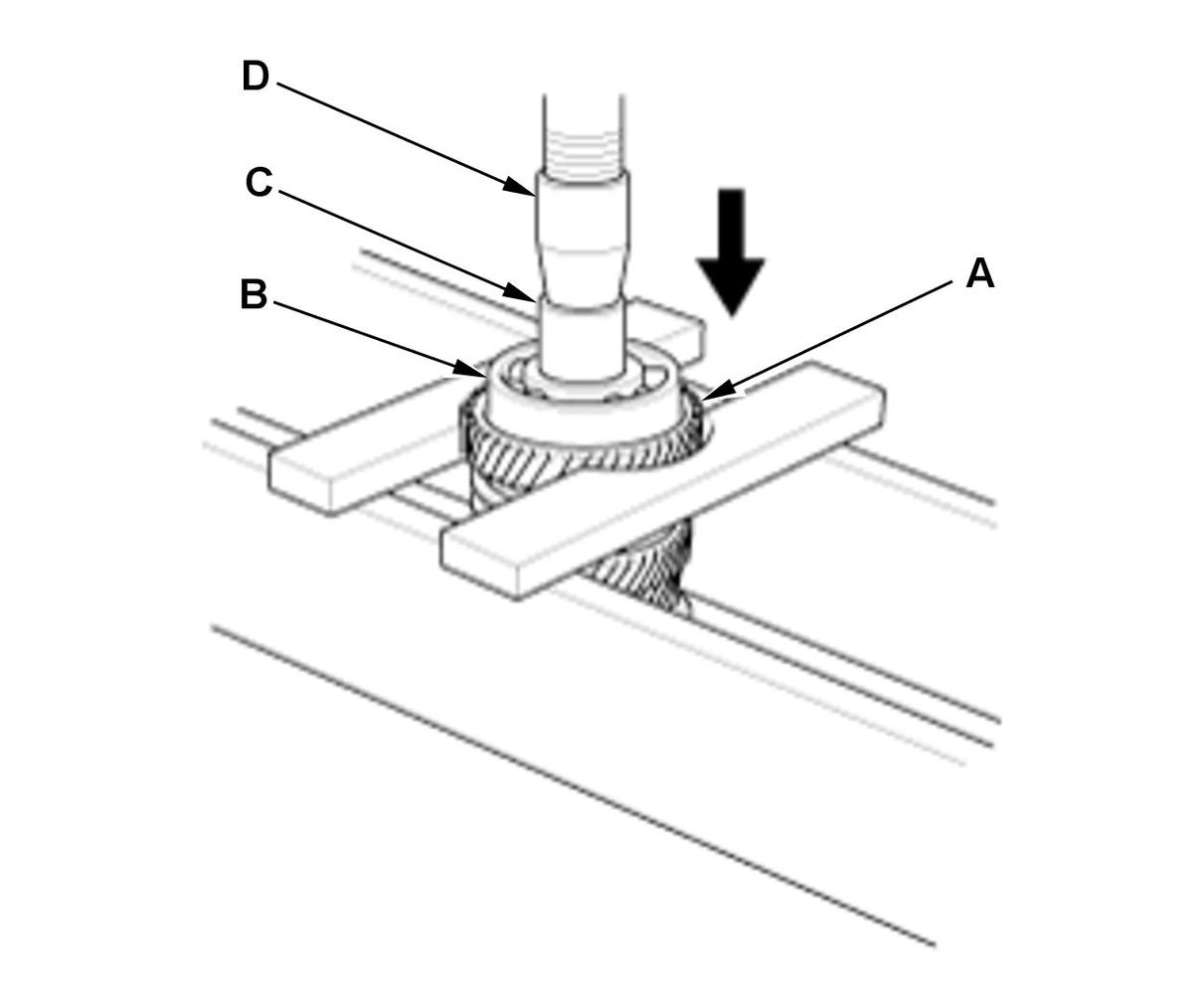

1. Support 6th gear (A) on steel blocks, and press the mainshaft out of the angular ball bearing (B) and 6th gear using an attachment (C) and a press (D).
NOTE: Do not use a jaw-type puller; it can damage the gear teeth.

Courtesy of HONDA, U.S.A., INC.

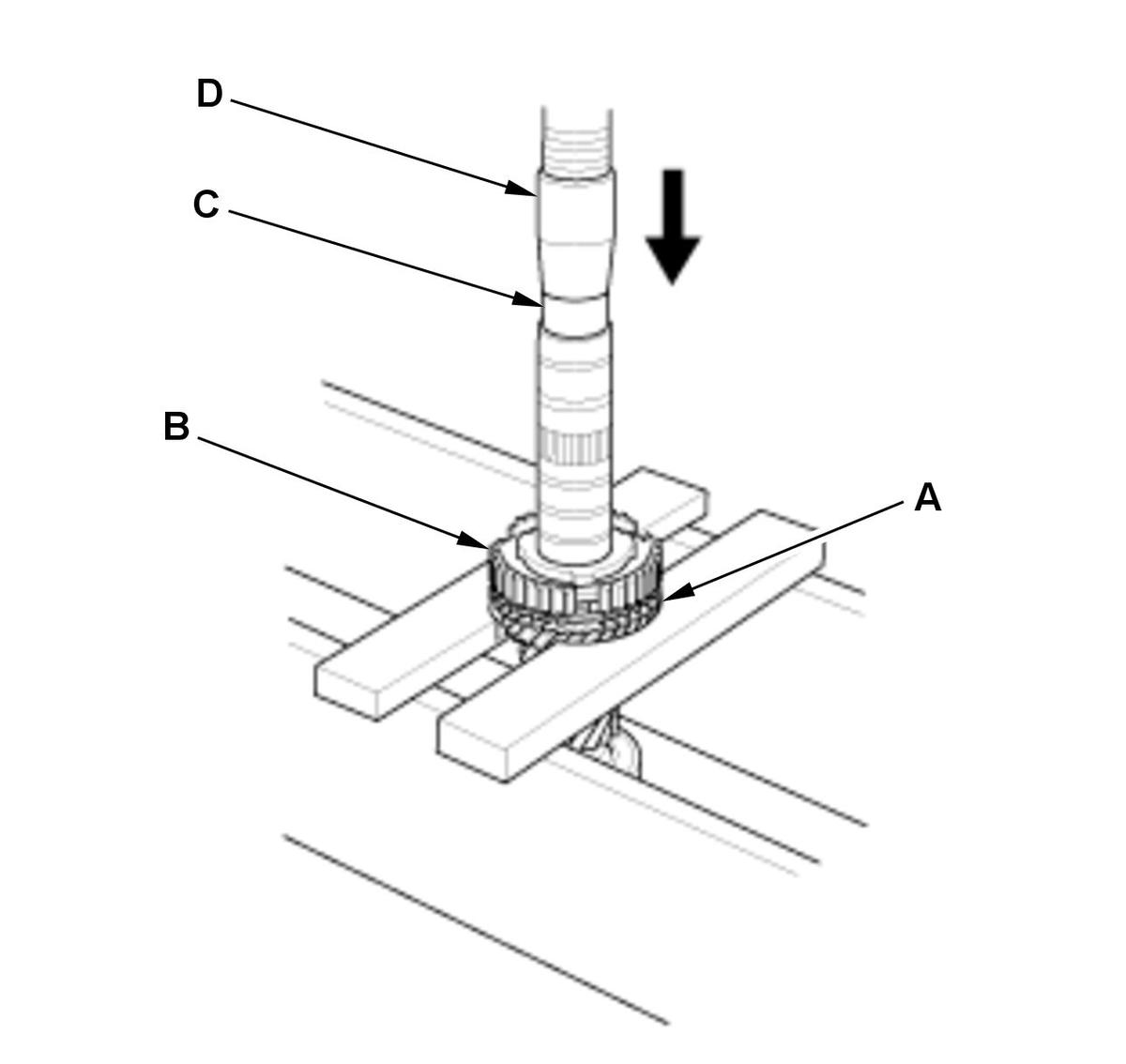

2. Support 5th gear (A) on steel blocks, and press the mainshaft out of the 5th/6th synchro hub (B) and 5th gear using an attachment (C) and a press (D).
NOTE: Do not use a jaw-type puller; it can damage the gear teeth.

Courtesy of HONDA, U.S.A., INC.

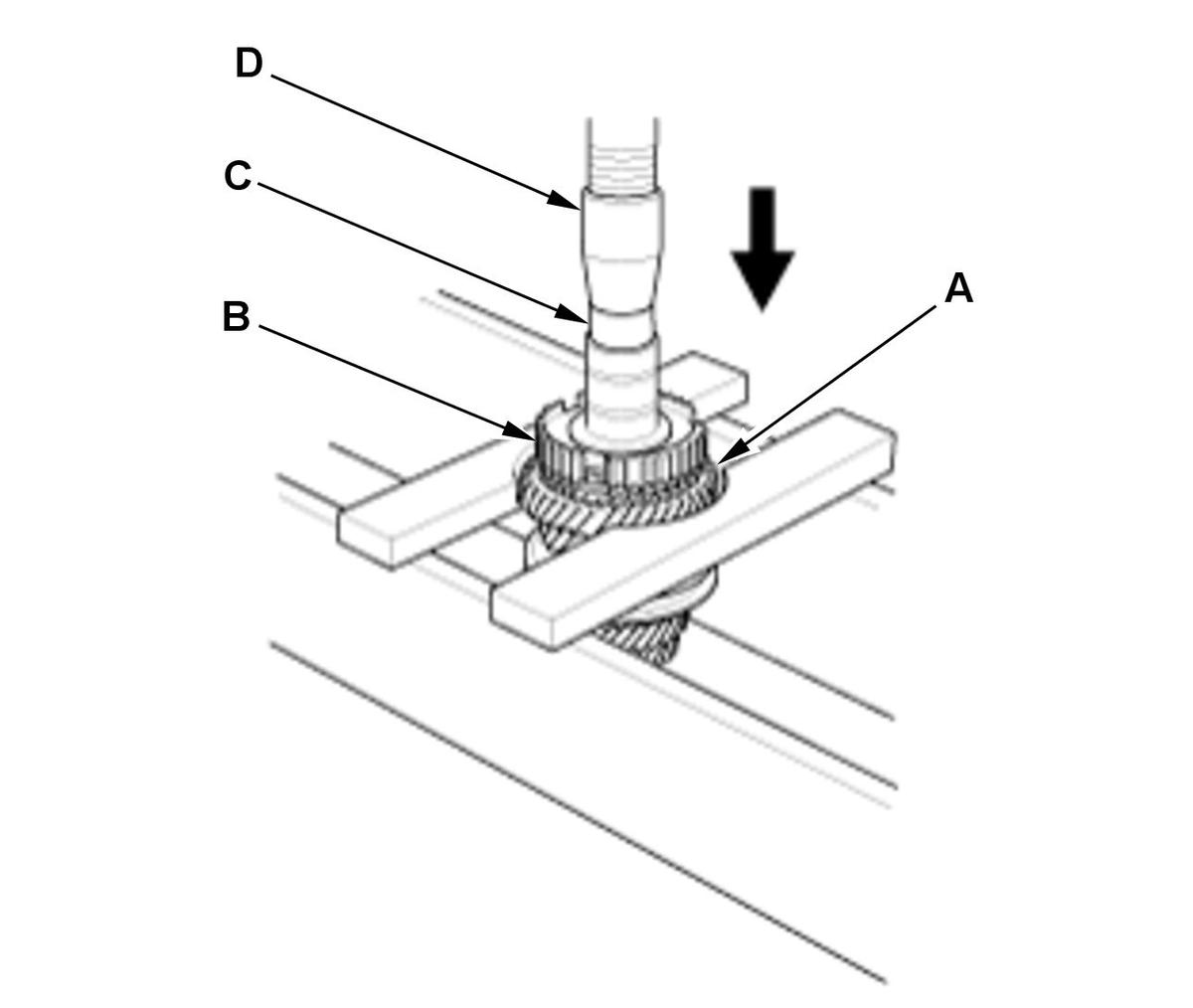

3. Support 3rd gear (A) on steel blocks, and press the mainshaft out of the 3rd/4th synchro hub (B) and 3rd gear using an attachment (C) and a press (D).
NOTE: Do not use a jaw-type puller; it can damage the gear teeth.

Courtesy of HONDA, U.S.A., INC.

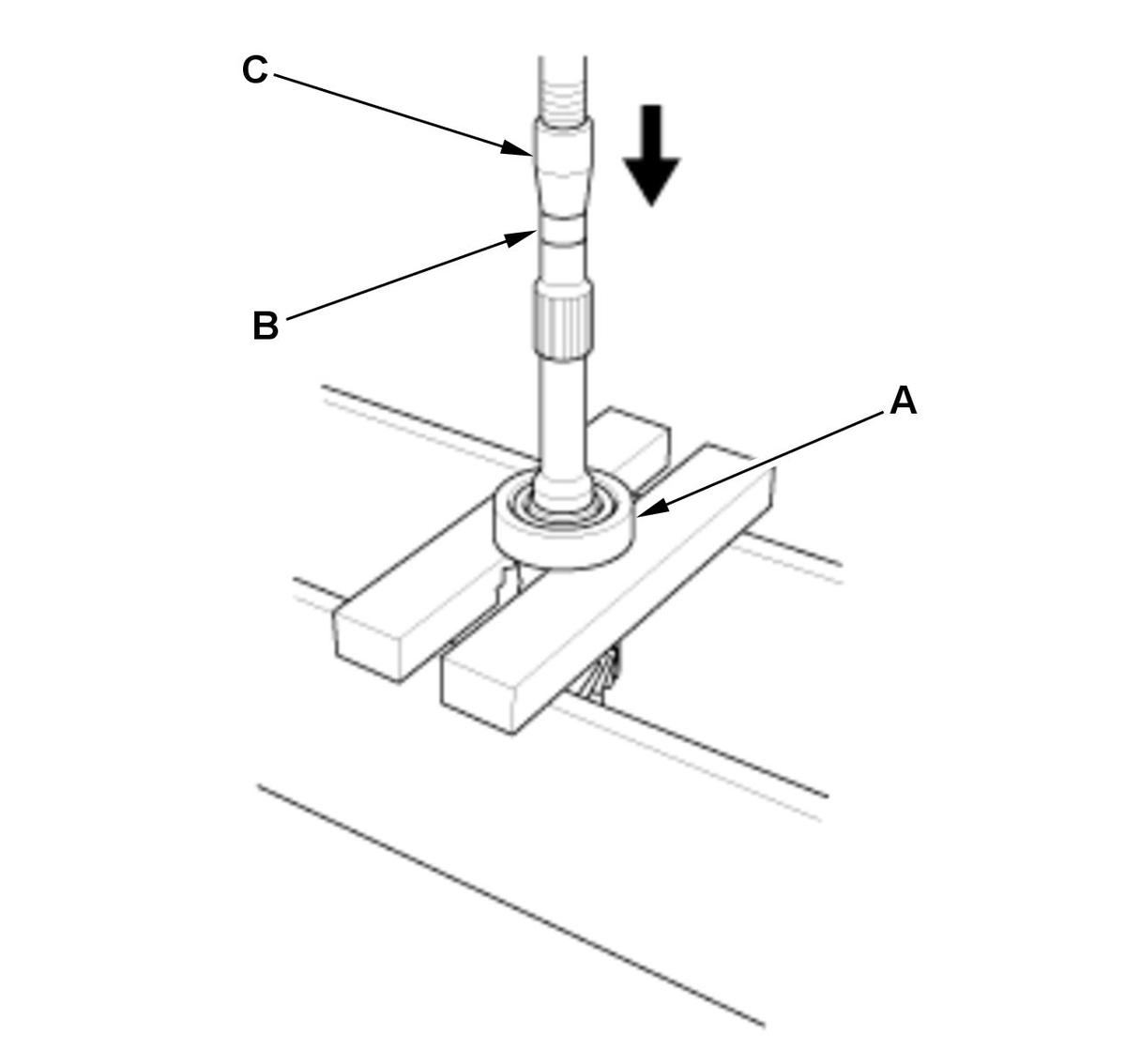

4. Support the angular ball bearing (A) on steel blocks, and press out the mainshaft using an attachment (B) and a press (C).
