Countershaft - Inspect

Courtesy of HONDA, U.S.A., INC.

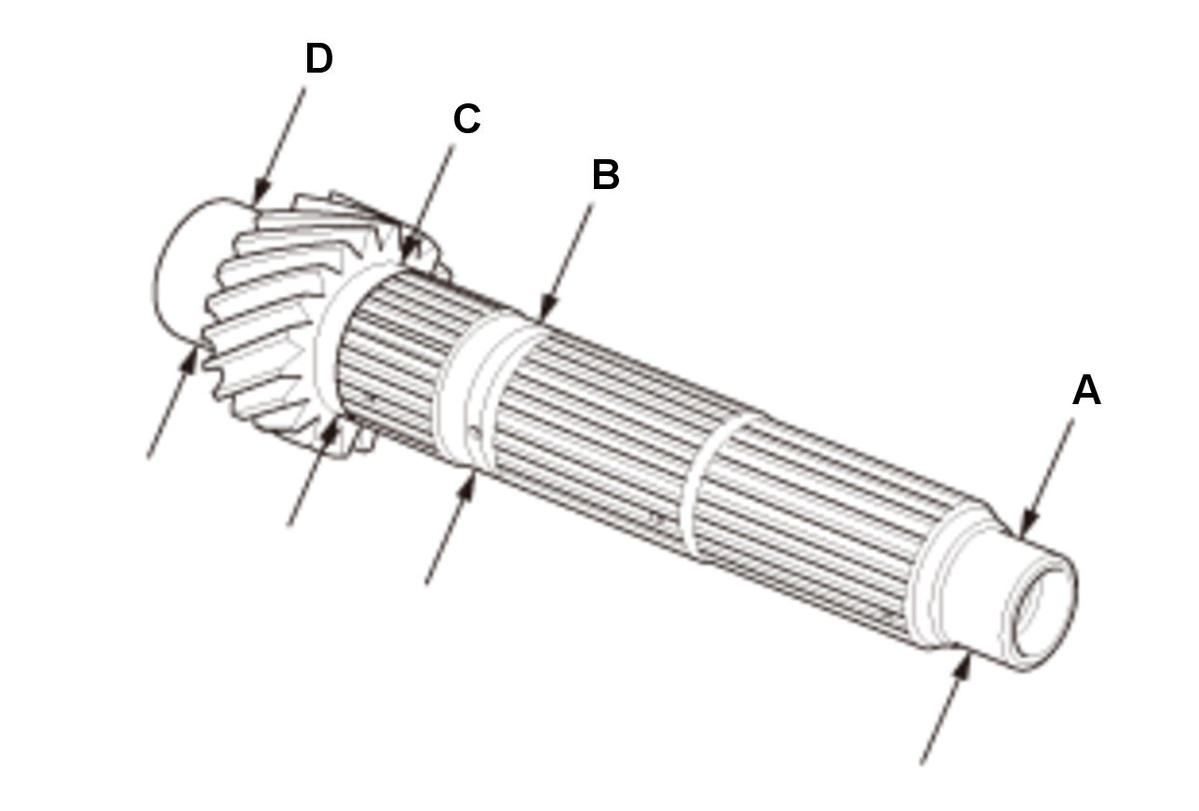

1. Inspect the oil passage, gear, and bearing contact areas for wear and damage, then measure the countershaft at points A, B, C, and D. If any part of the countershaft is less than the service limit, replace it.

Standard:

Service Limit:

A:	30.002 mm (1.18118 in)
B:	40.2 mm (1.583 in)
C:	42.975 mm (1.69193 in)
D:	35.000 mm (1.37795 in)

A Ball Bearing Contact Area (Transmission Housing Side):
	30.002-30.015 mm (1.18118-1.18169 in)
B 2nd Gear Distance Collar Contact Area:
	40.2-40.6 mm (1.583-1.598 in)
C Countershaft Reverse Gear Contact Area:
	42.975-42.991 mm (1.69193-1.69256 in)
D Needle Bearing Contact Area (Clutch Housing Side):
	35.000-35.015 mm (1.37795-1.37854 in)

Courtesy of HONDA, U.S.A., INC.

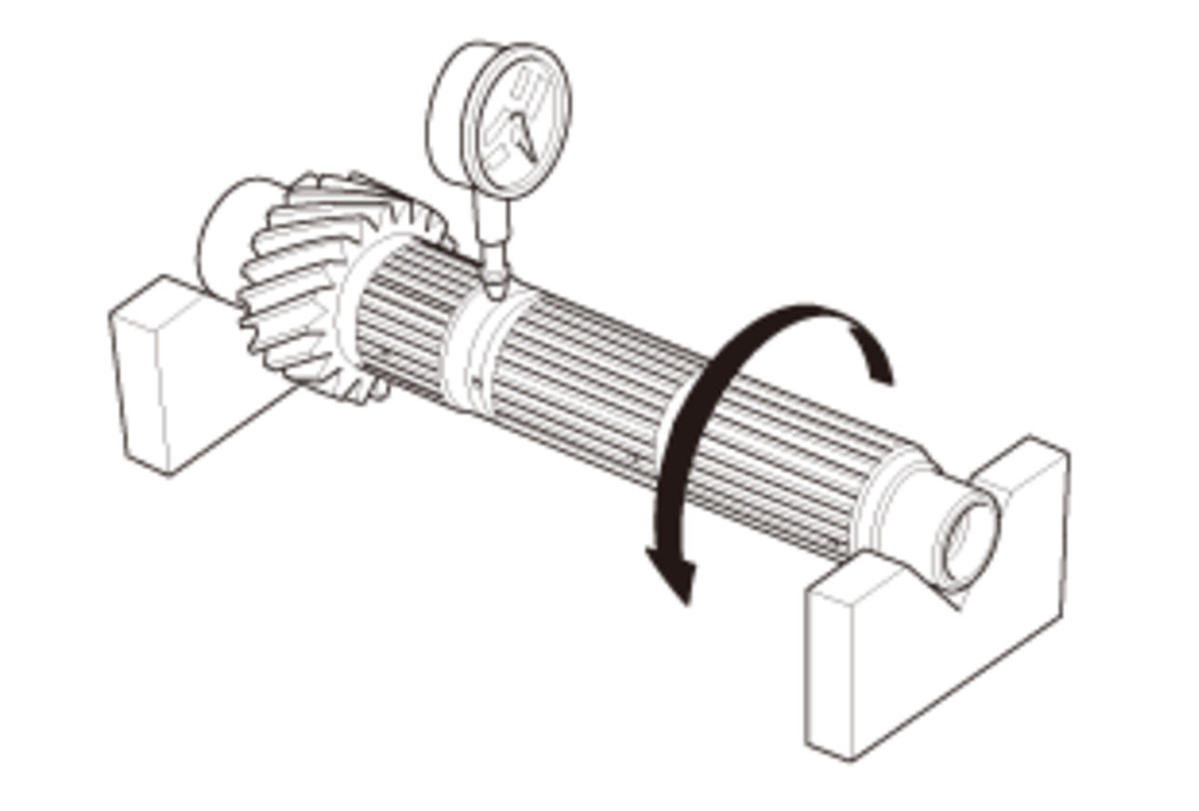

2. Inspect the runout by supporting both ends of the countershaft. Then rotate the countershaft two complete turns while measuring with a dial gauge. If the runout exceeds the standard, replace the countershaft.

Standard:

0.02 mm (0.0008 in) max.
