Countershaft Disassembly, Reassembly, and Inspection(M/T) (2016 2017 2018): Disassembly

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Exploded View as needed during this procedure.

Countershaft - Disassemble

Courtesy of HONDA, U.S.A., INC.

1. Securely clamp the countershaft assembly in a bench vise with wood blocks.

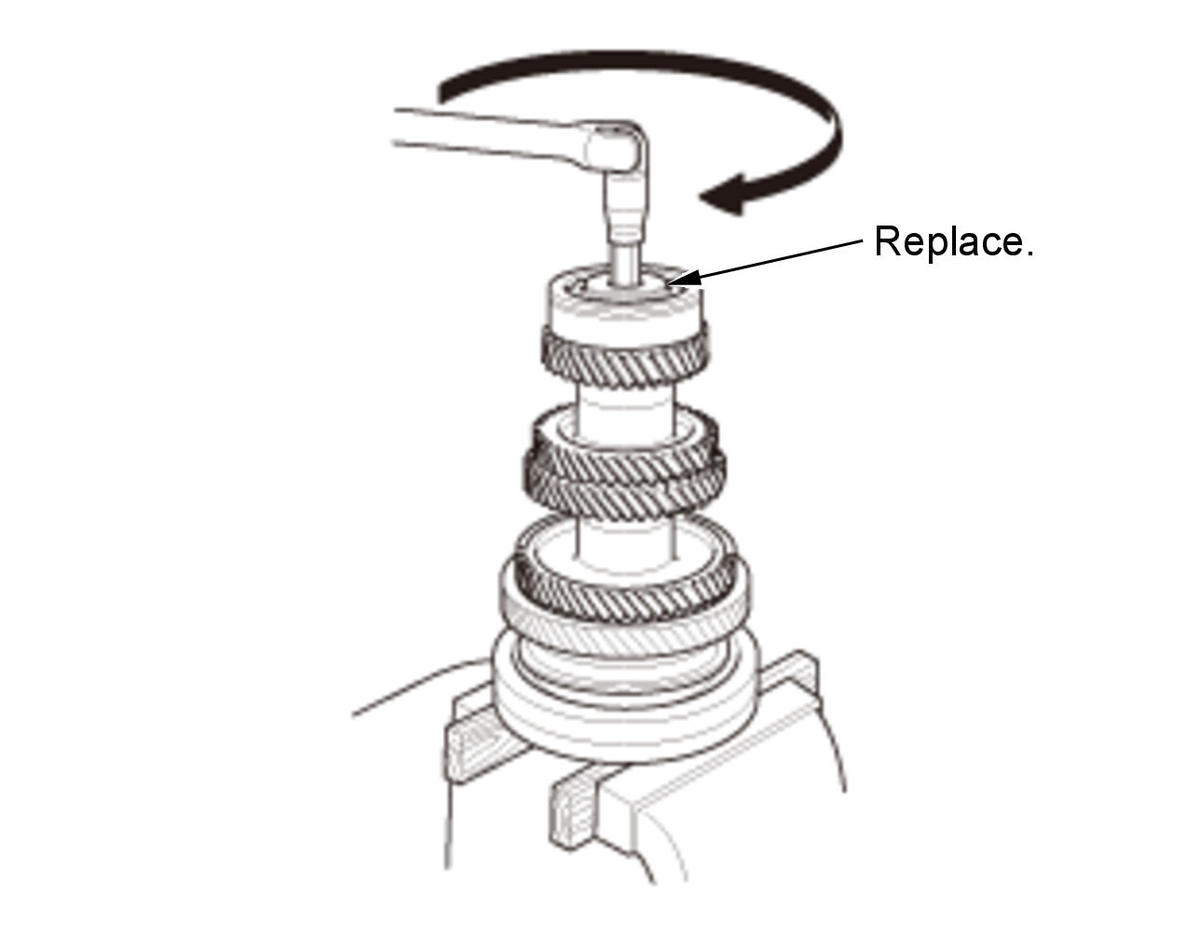

2. Remove the special bolt (left-hand threads).

Courtesy of HONDA, U.S.A., INC.

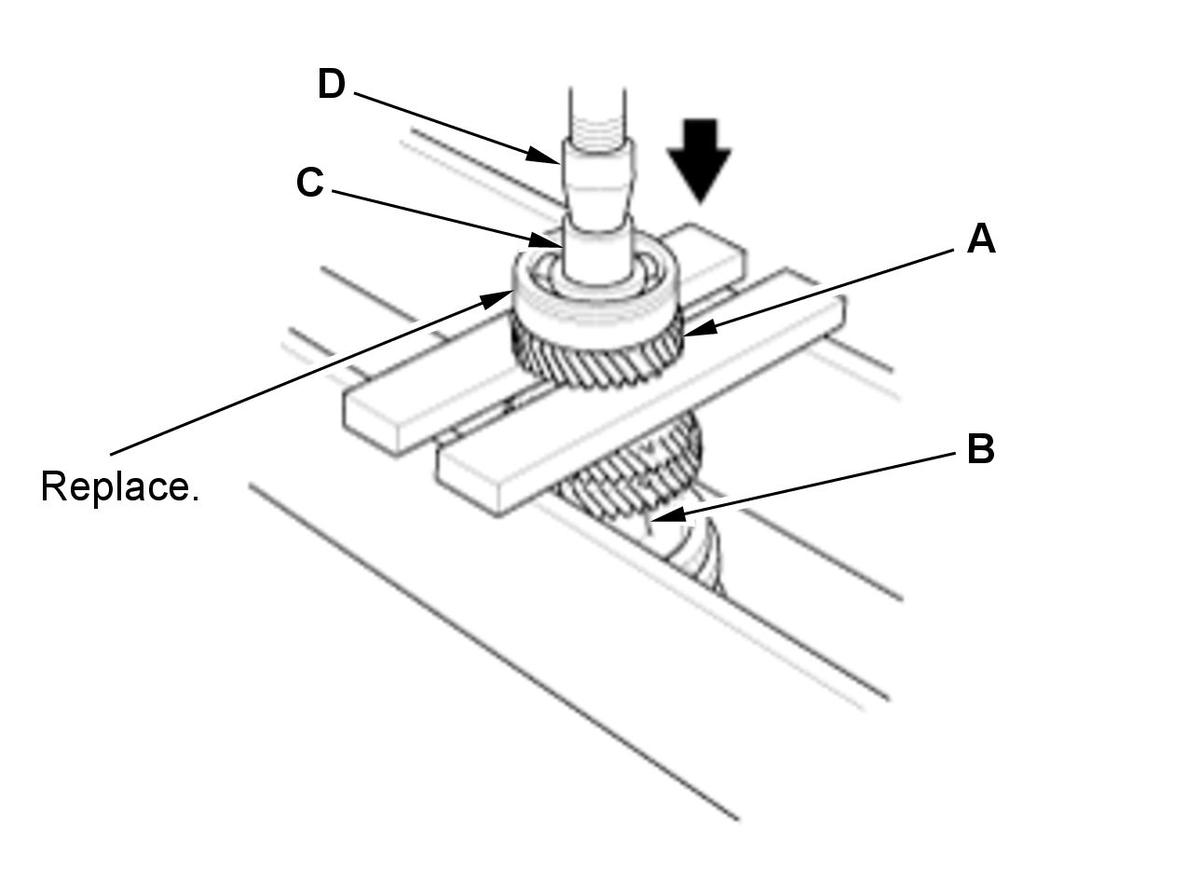

3. Support 6th gear (A) on steel blocks, and press the countershaft (B) out of the ball bearing and 6th gear using an attachment (C) and a press (D).

4. Remove the 35 mm shim.

Courtesy of HONDA, U.S.A., INC.

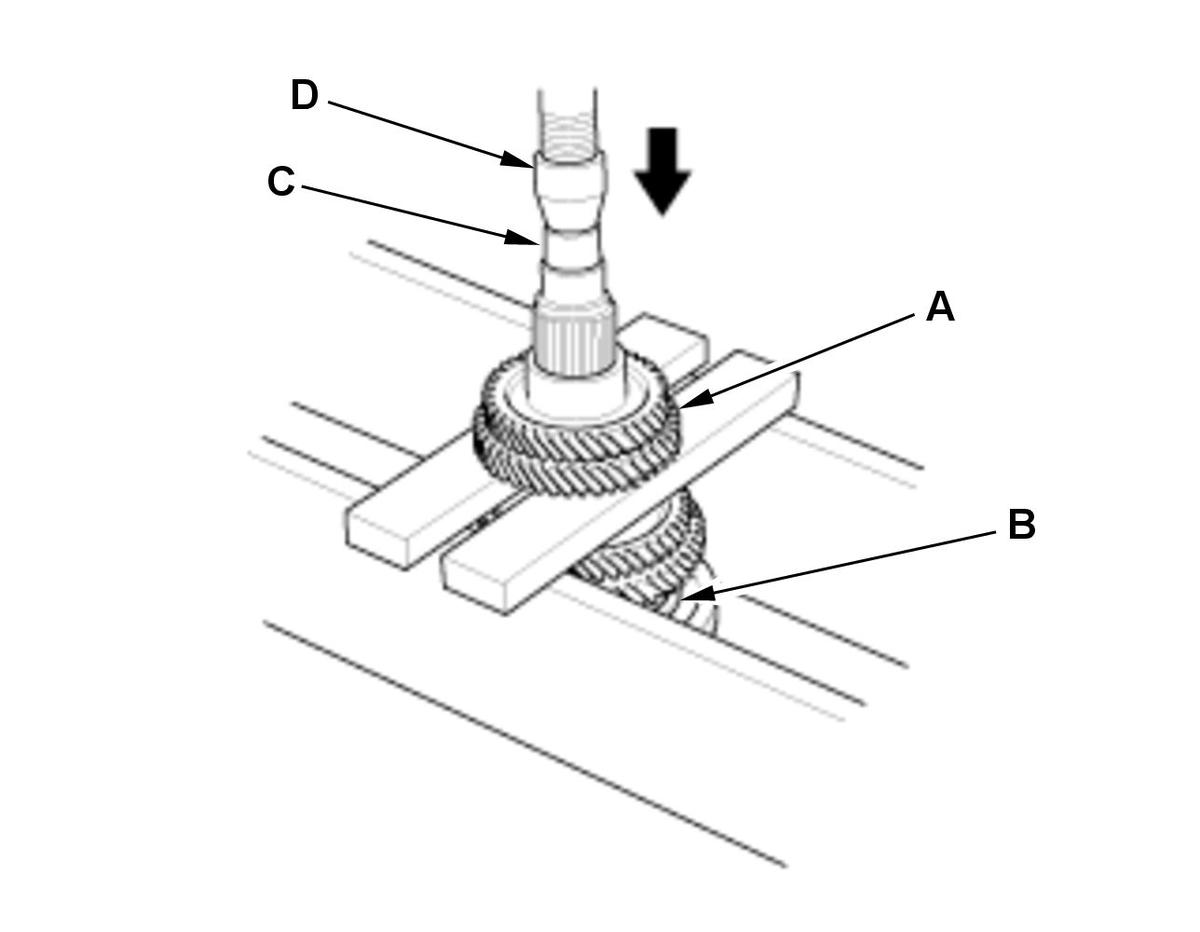

5. Support 4th gear (A) on steel blocks, and press the countershaft (B) out of 4th gear and 5th gear using an attachment (C) and a press (D).

Courtesy of HONDA, U.S.A., INC.

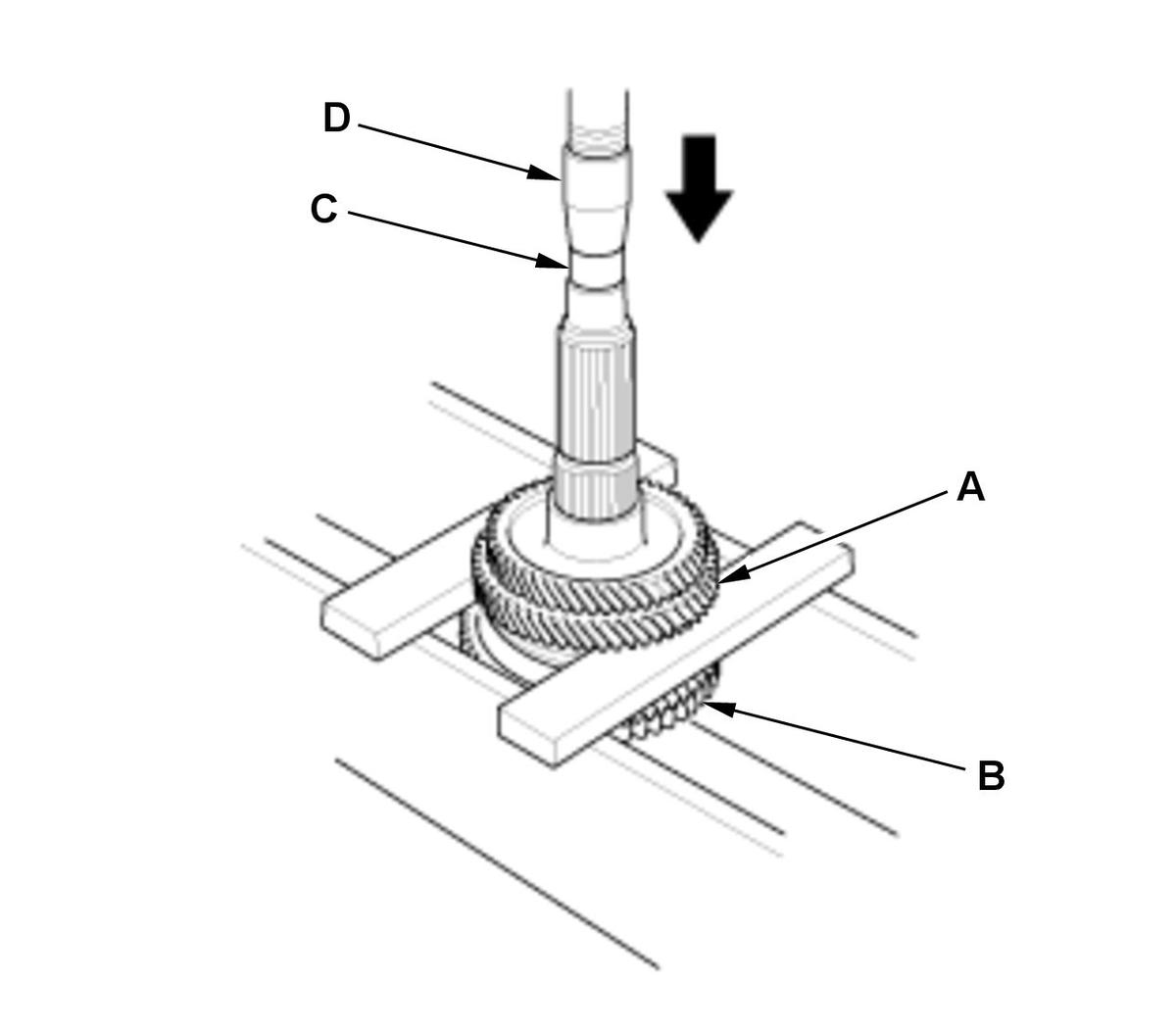

6. Support 2nd gear (A) on steel blocks, and press the countershaft (B) out of 2nd gear and 3rd gear using an attachment (C) and a press (D).
