MTF Inspection and Replacement(M/T) (2016 2017 2018): Replacement

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle - Lift

MTF - Drain

Courtesy of HONDA, U.S.A., INC.

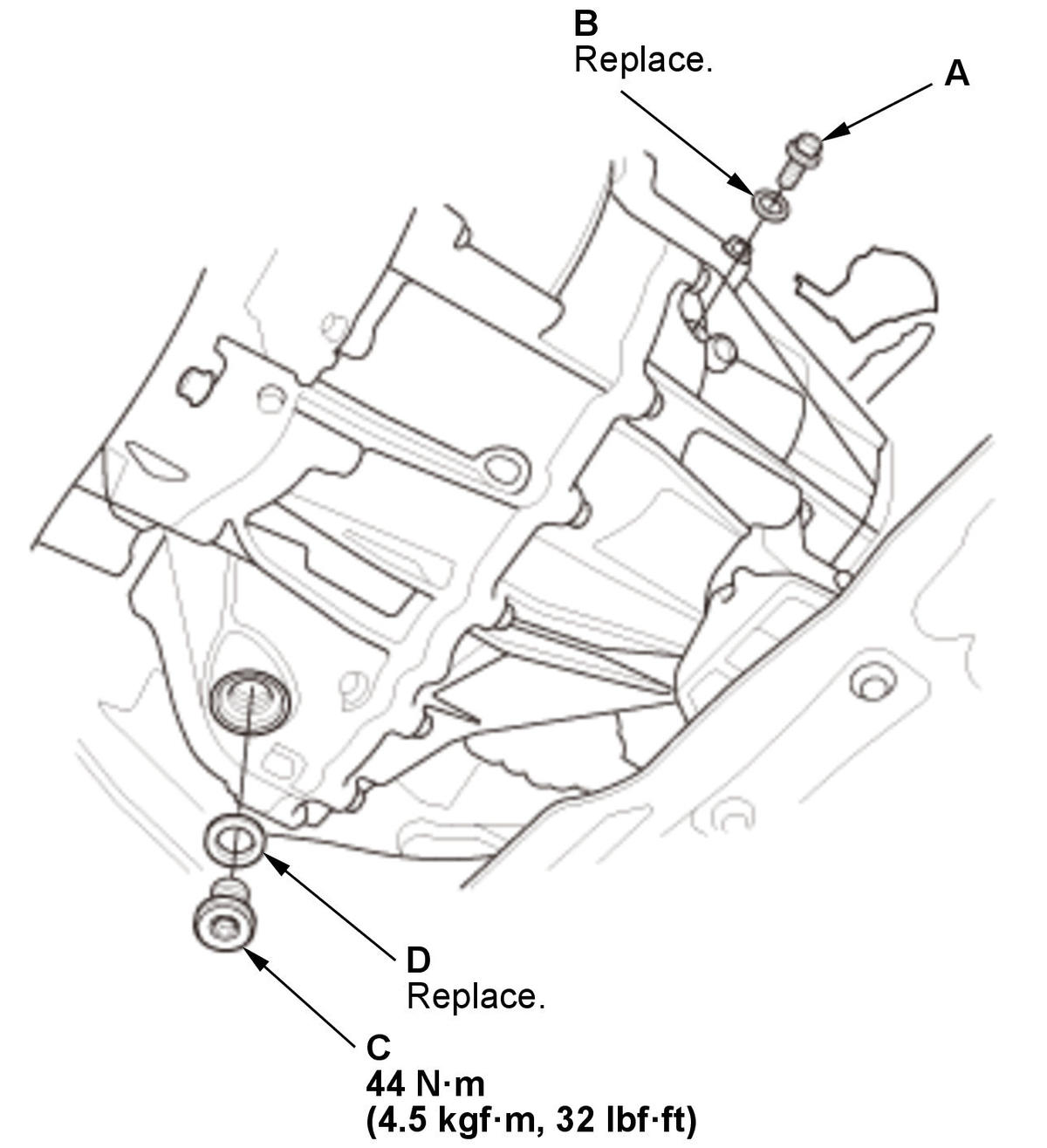

1. Remove the oil check bolt (A) and the 6 mm sealing washer (B).

2. Remove the drain plug (C) and the 20 mm sealing washer (D), and drain the MTF.

3. Install the drain plug with a new 20 mm sealing washer.

Air Cleaner - Remove

MTF - Refill

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

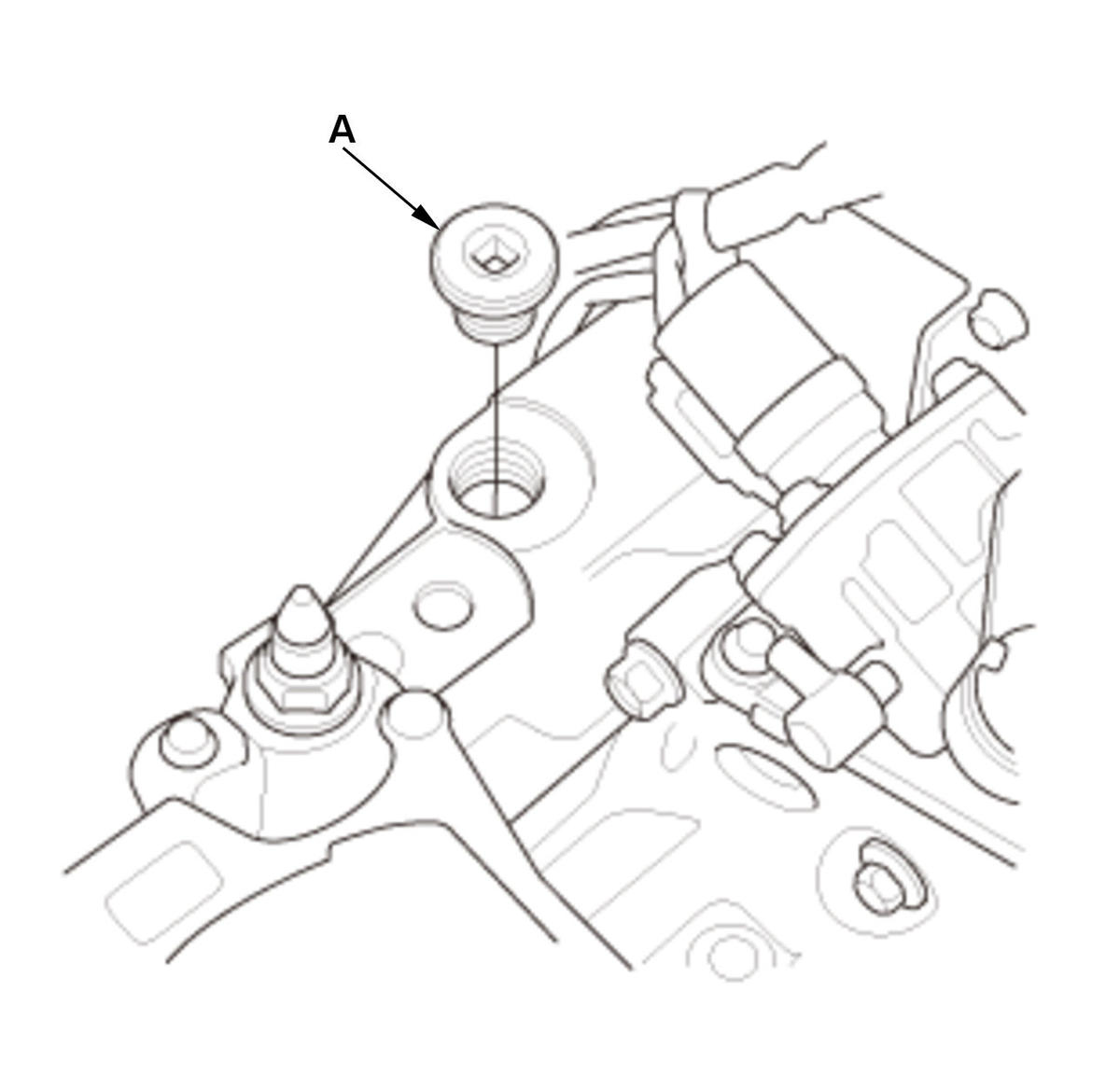

1. Remove the filler plug (A).

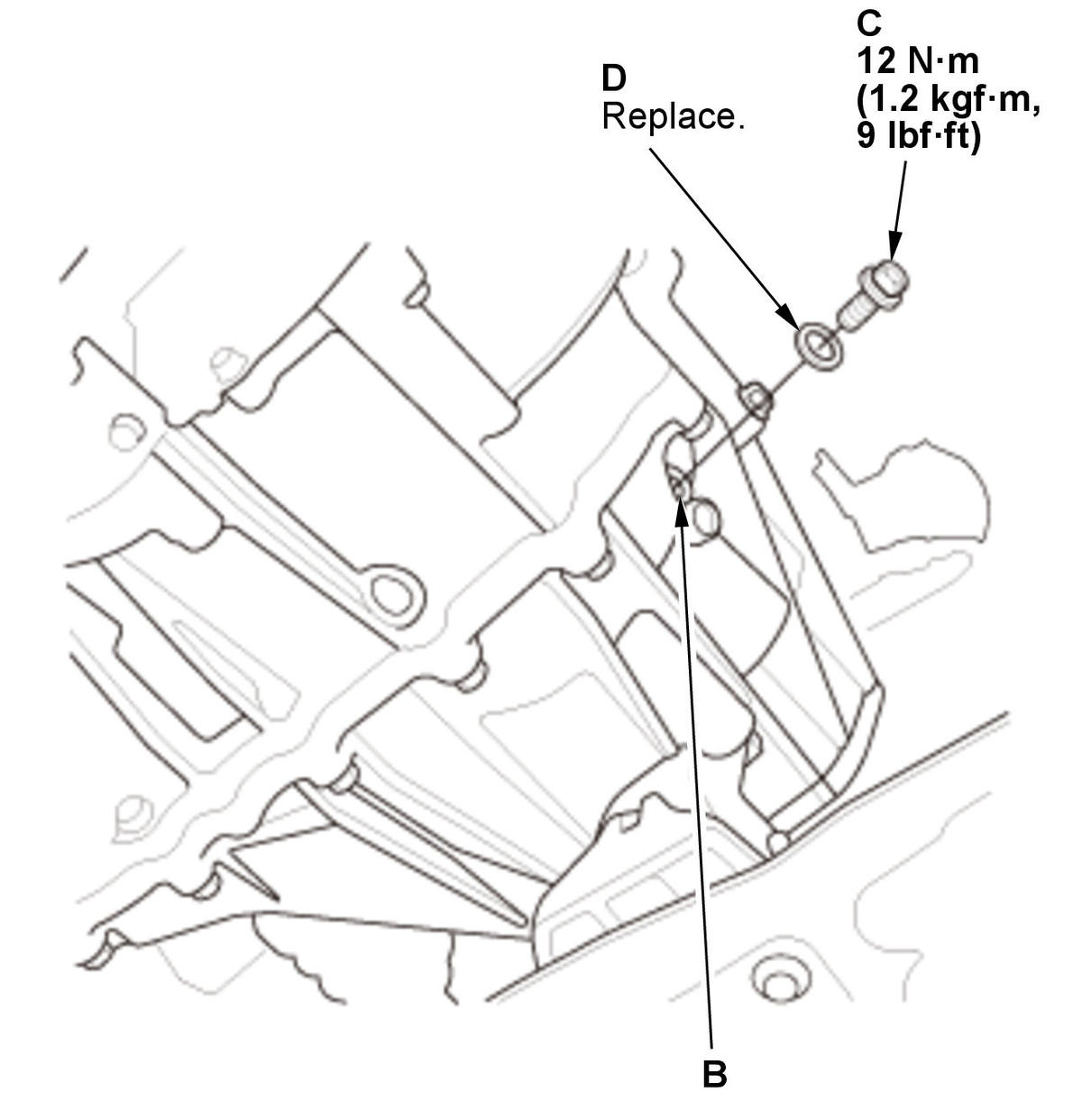

2. Refill the MTF from the filler plug hole on the transmission, until the MTF overflows from the oil check bolt hole (B). Always use Genuine Honda Manual Transmission Fluid (MTF).

3. After the fluid stops overflowing, install the oil check bolt (C) with a new 6 mm sealing washer (D).

Fluid Capacity:
	1.9 L (2.0 US qt) at fluid change
	2.0 L (2.1 US qt) at overhaul

Filler Plug - Install

Courtesy of HONDA, U.S.A., INC.

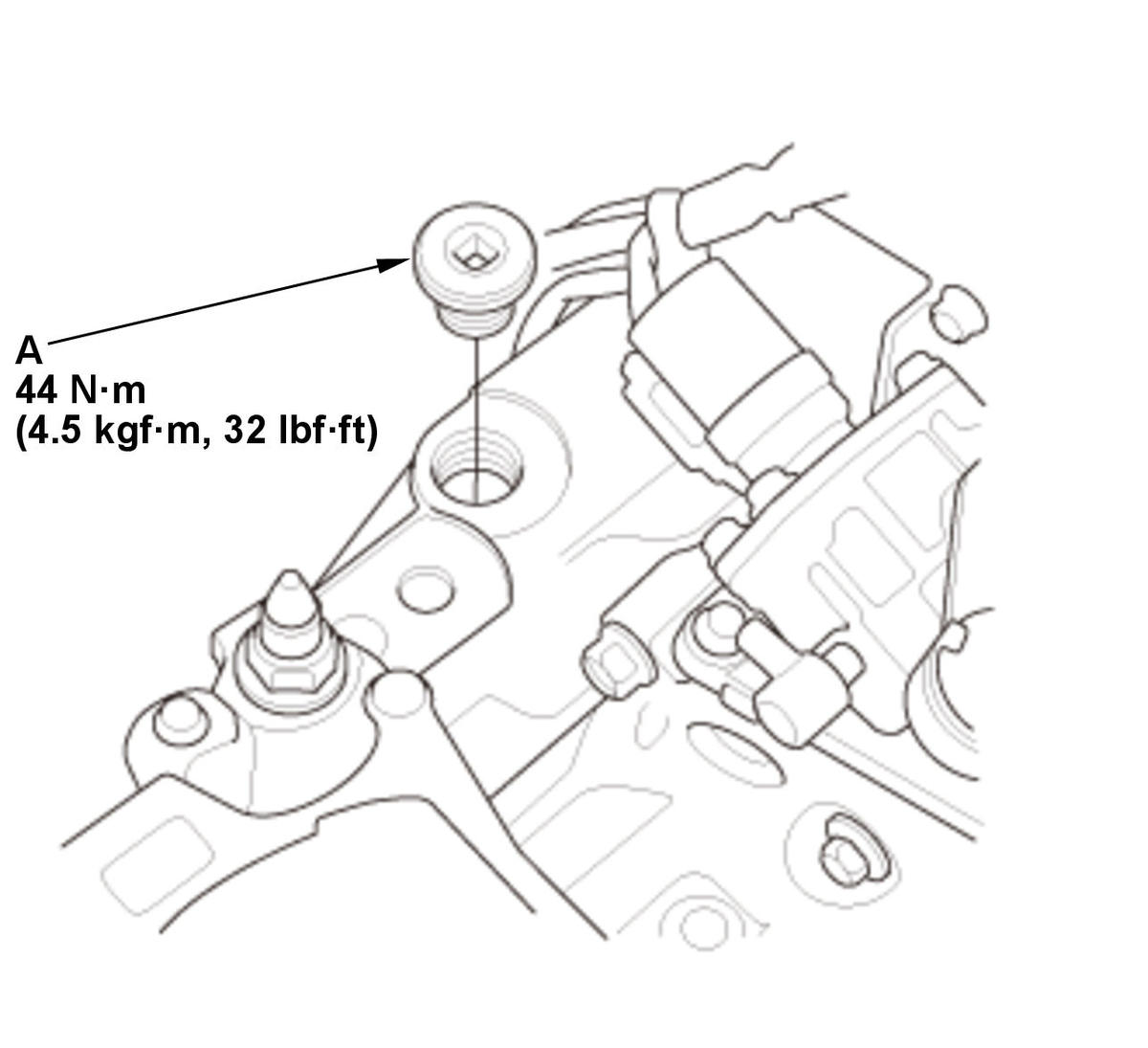

1. Clean any dirt and oil from the sealing surface of the filler plug (A) and the transmission housing.

2. Apply liquid gasket (P/N 08C70- K0334M) to the threads of the filler plug. Install the filler plug within 5 minutes of applying the liquid gasket.

NOTE: If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

Air Cleaner - Install
