MTF Inspection and Replacement(M/T) (2016 2017 2018): Inspection

WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle - Lift
Engine Undercover - Remove

MTF - Check

Courtesy of HONDA, U.S.A., INC.

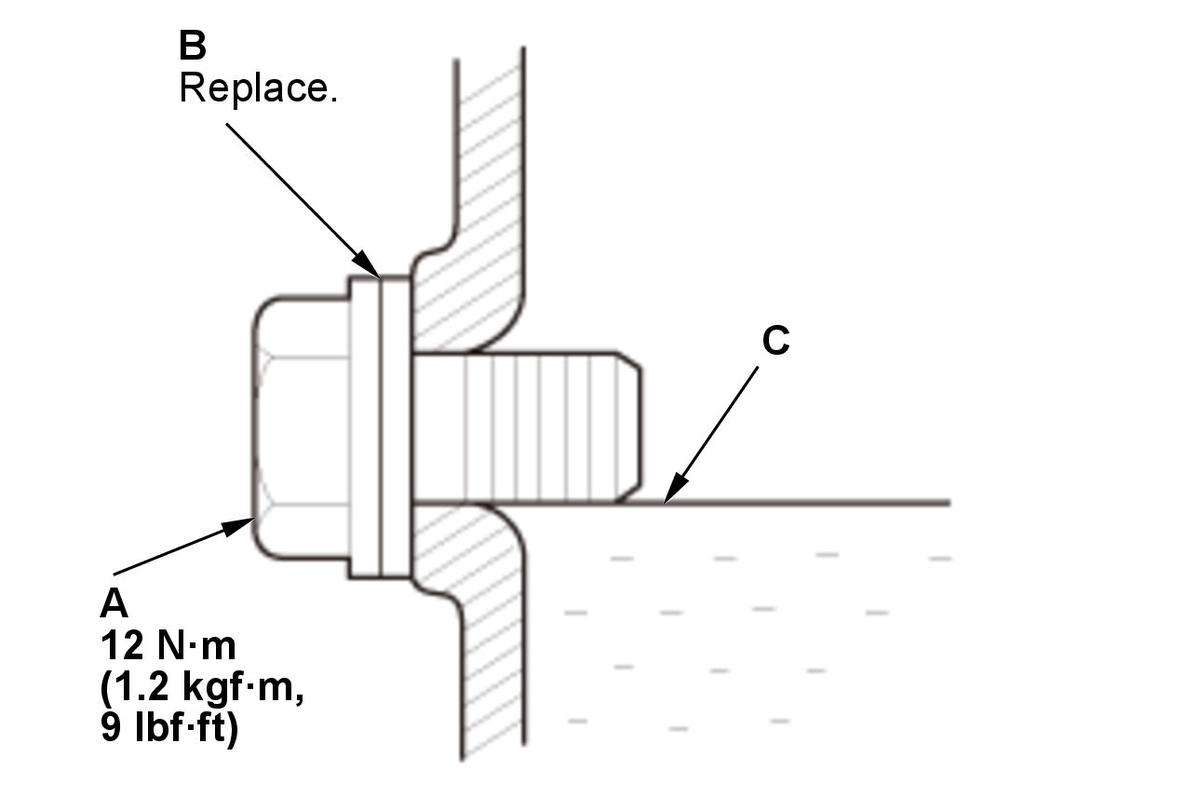

1. Remove the oil check bolt (A) and the 6 mm sealing washer (B).

2. Check the condition of the MTF and make sure it is at the proper level (C).

NOTE: If the fluid is dirty, replace the MTF.

3. Install the oil check bolt with a new 6 mm sealing washer.

Engine Undercover - Install
