Manual Transmission System Description(M/T) (2016 2017 2018)

Overview

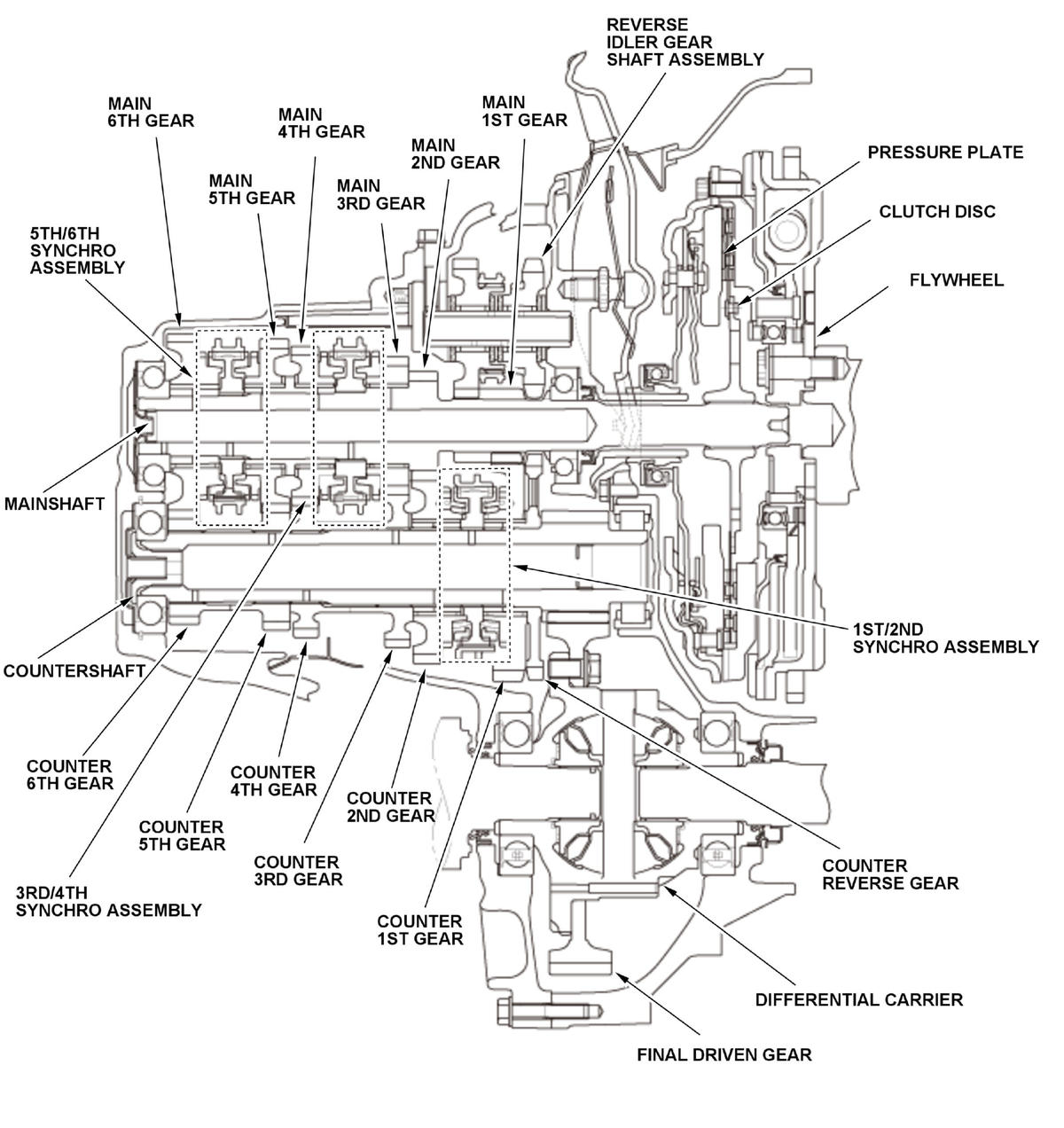

The manual transmission employs a parallel dual axes type geartrain with a mainshaft and countershaft, and a full time engagement type for forward side gears and reverse idler select slide type for reverse side gears. The 1st, 2nd gear and reverse gear are integrated on the mainshaft and the final gear is integrated on the countershaft.

Courtesy of HONDA, U.S.A., INC.

Operation

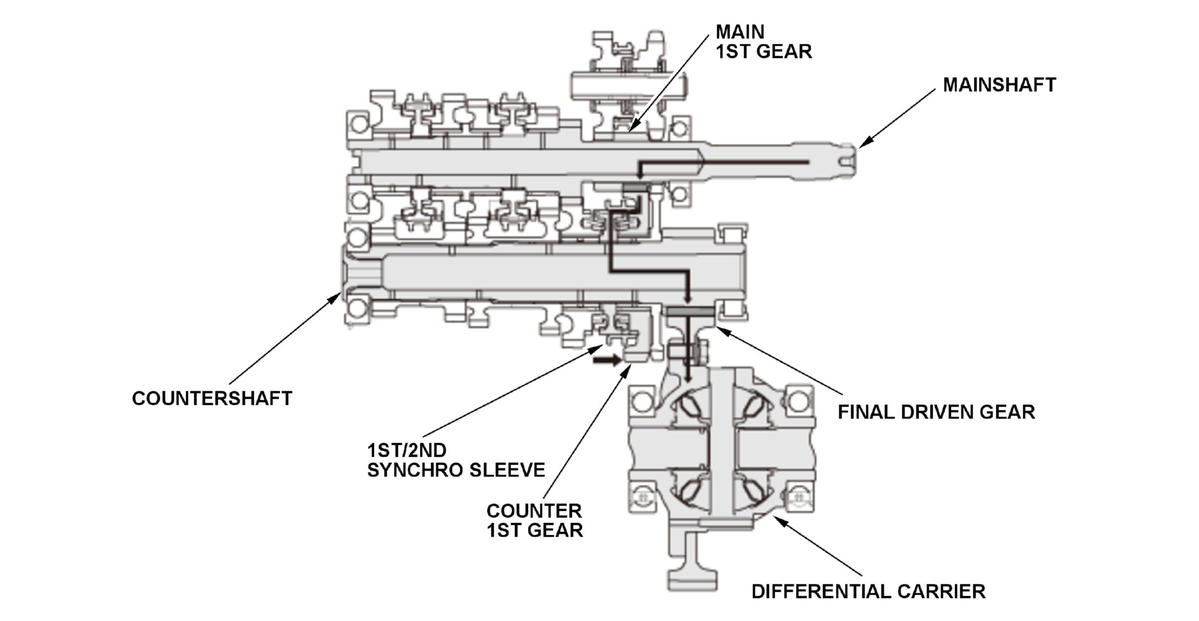

Power is transmitted from a mainshaft to a differential gear via a main 1st gear, a counter 1st gear, a countershaft, a final driven gear during geartrain operation in 1st gear.

Courtesy of HONDA, U.S.A., INC.

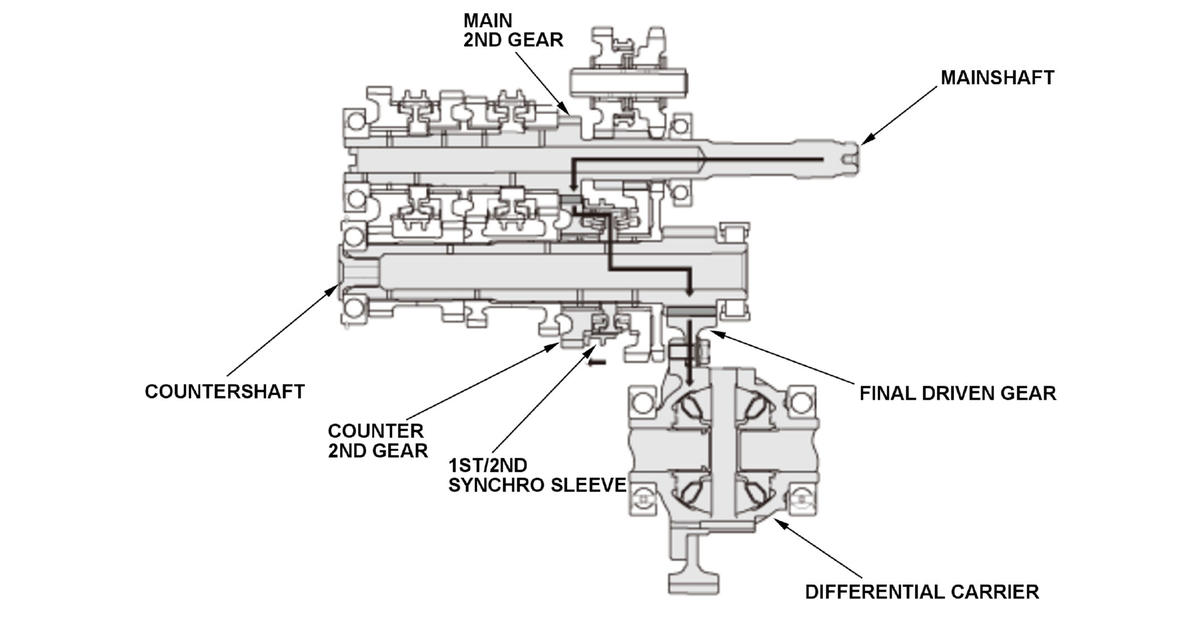

Power is transmitted from a mainshaft to a differential gear via a main 2nd gear, a counter 2nd gear, a countershaft, a final driven gear during geartrain operation in 2nd gear.

Courtesy of HONDA, U.S.A., INC.

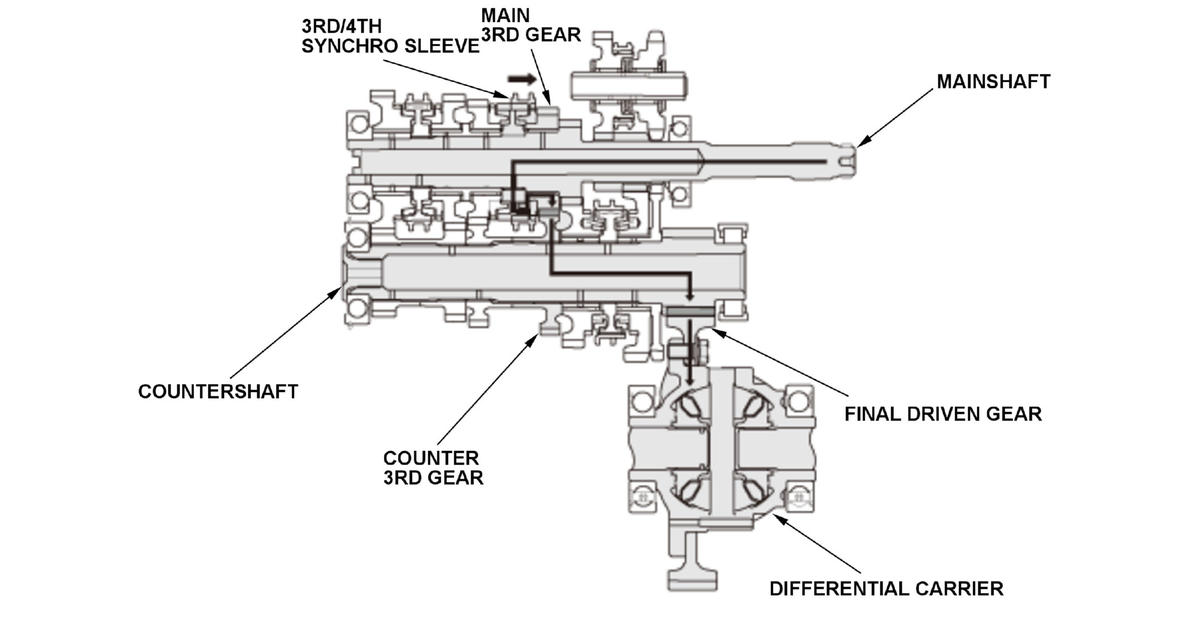

Power is transmitted from a mainshaft to a differential gear via a main 3rd gear, a counter in 3rd gear, a countershaft, a final driven gear during geartrain operation in 3rd gear.

Courtesy of HONDA, U.S.A., INC.

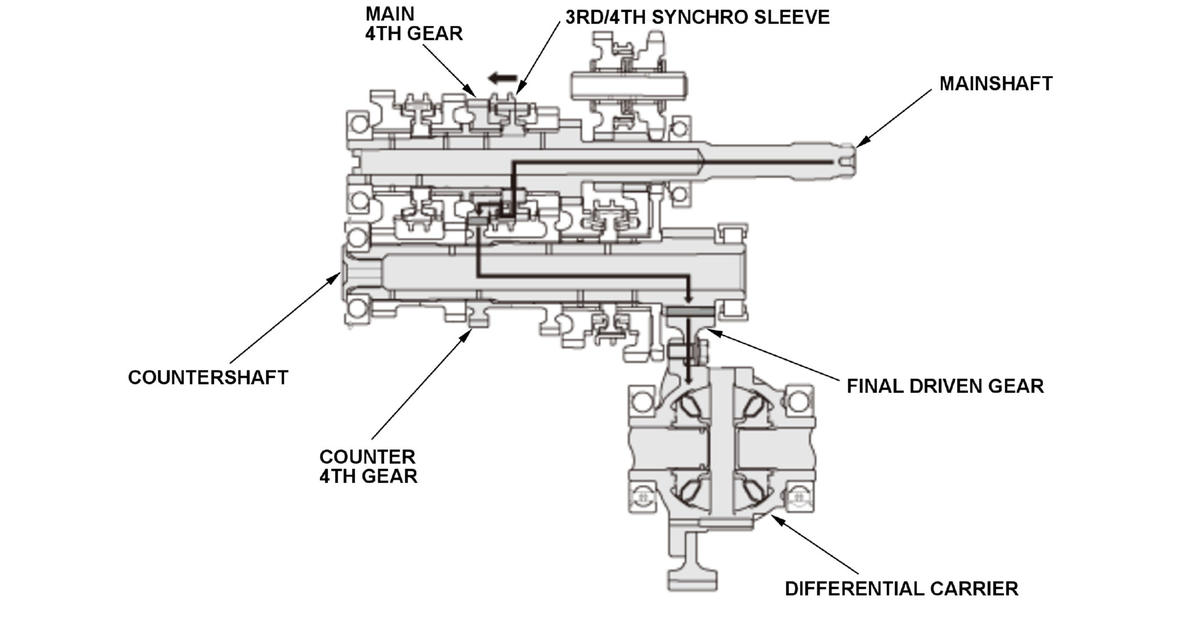

Power is transmitted from a mainshaft to a differential gear via a main 4th gear, a counter 4th gear, a countershaft, a final driven gear during geartrain operation in 4th gear.

Courtesy of HONDA, U.S.A., INC.

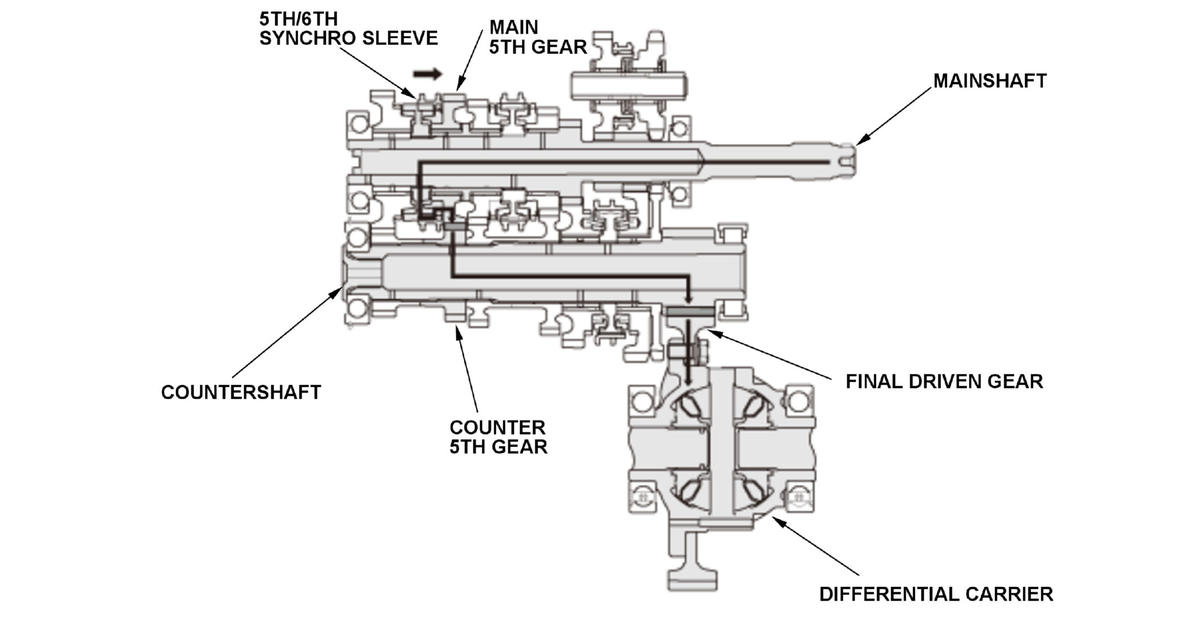

Power is transmitted from a mainshaft to a differential gear via a main 5th gear, a counter in 5th gear, a countershaft, a final driven gear during geartrain operation in 5th gear.

Courtesy of HONDA, U.S.A., INC.

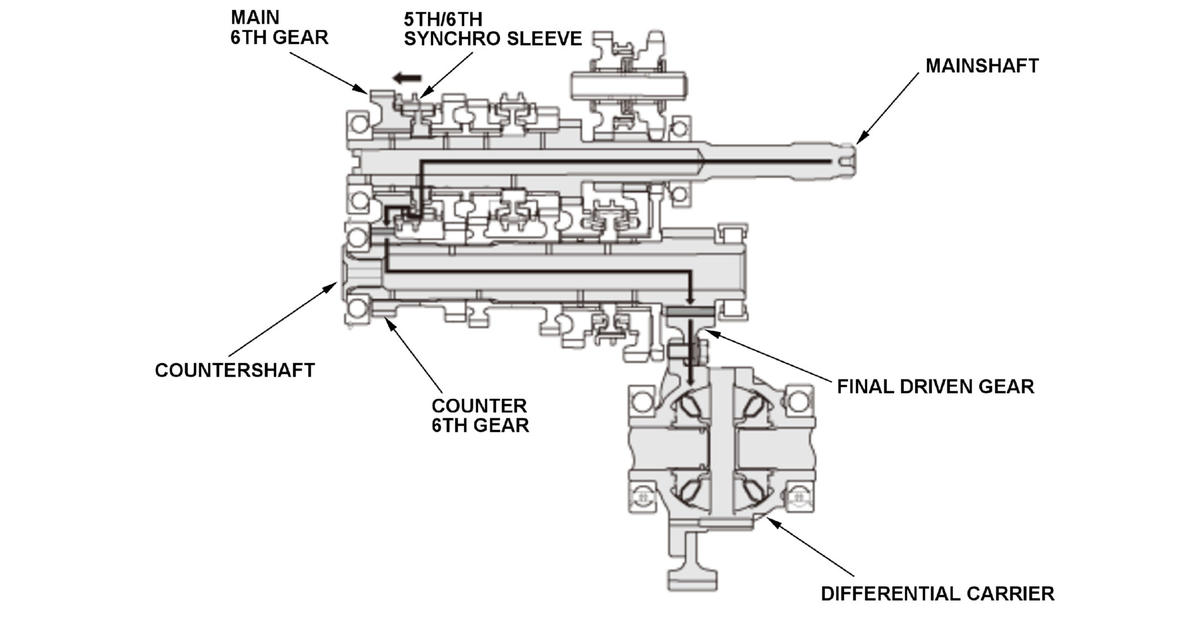

Power is transmitted from a mainshaft to a differential gear via a main 6th gear, a counter in 6th gear, a countershaft, a final driven gear during geartrain operation in 6th gear.

Courtesy of HONDA, U.S.A., INC.

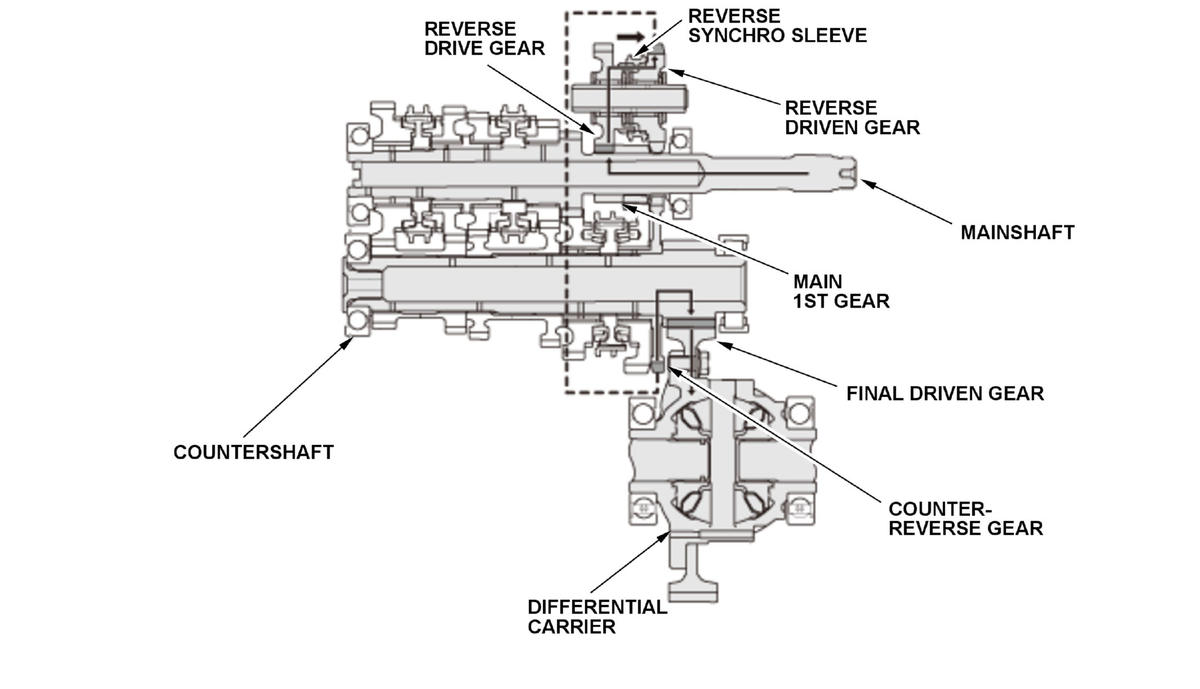

Power is transmitted from a mainshaft to a differential gear via a reverse drive gear, a reverse driven gear, a counter-reverse gear, a countershaft, a final driven gear during geartrain operation in reverse.

Courtesy of HONDA, U.S.A., INC.

Reverse Lockout System

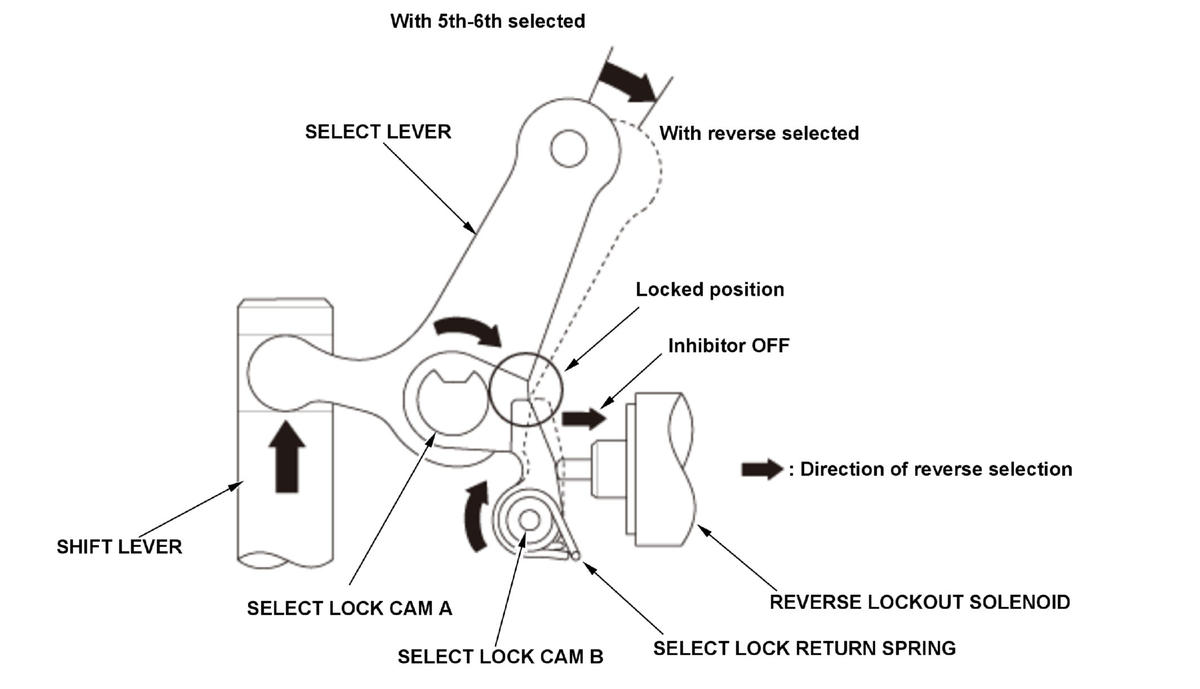

At vehicle speeds of 12 mph (20 km/h) or more, the PCM, which monitors the signals from the output shaft (countershaft) speed sensor, activates the reverse lockout solenoid, which pushes the select lock cam into the locked position. As a result, the select lever cannot rotate to the reverse select position, making it impossible to engage the reverse gear. As the vehicle speed drops to 9 mph (15 km/h) or less, the PCM turns off the reverse lockout solenoid. The select lock return spring pulls back the select lock cam, enabling the select lever to move freely so the reverse gear can be selected.

Courtesy of HONDA, U.S.A., INC.
