Clutch System Description - Clutch Pedal Stroke Sensor(M/T) (2016 2017 2018)
WARNING: This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
Clutch Pedal Stroke Sensor

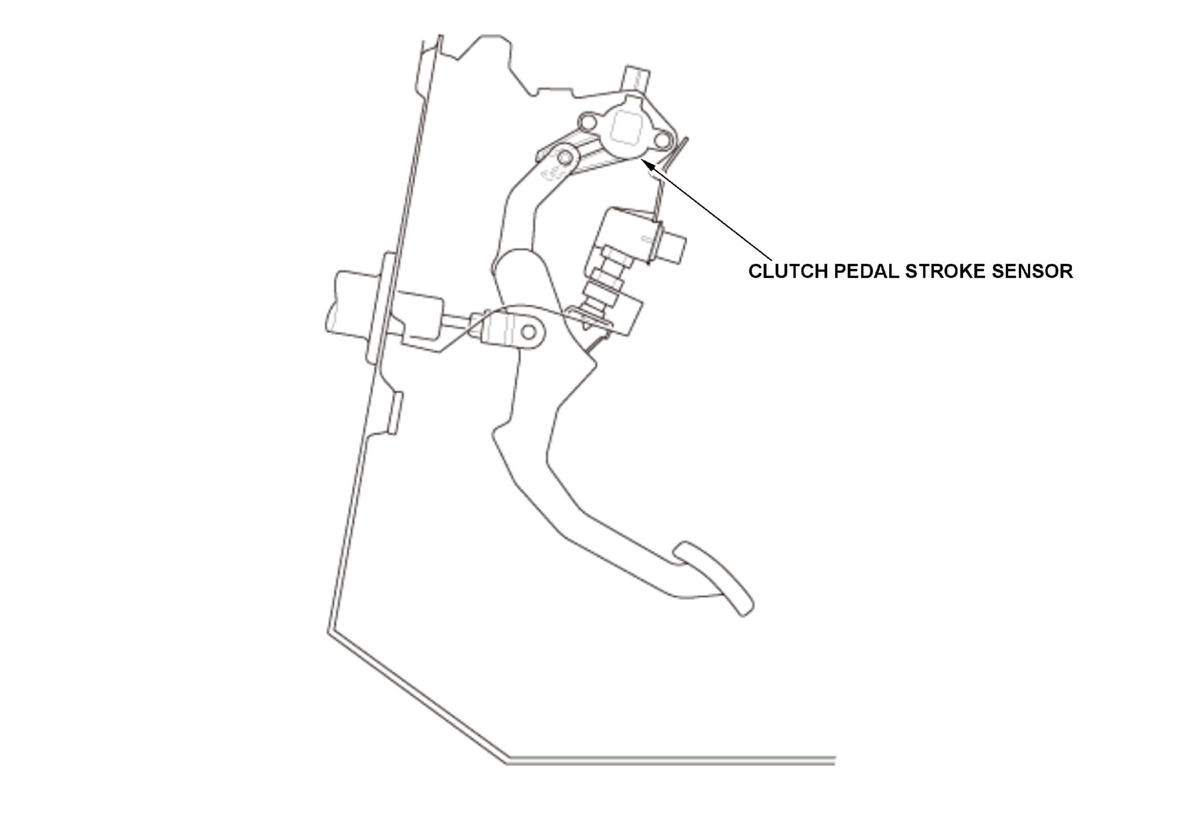

A clutch pedal stroke sensor is installed on the clutch pedal. The clutch pedal stroke sensor detects the level of clutch pedal force and reduces the number of the clutch pedal position switches used in the system.

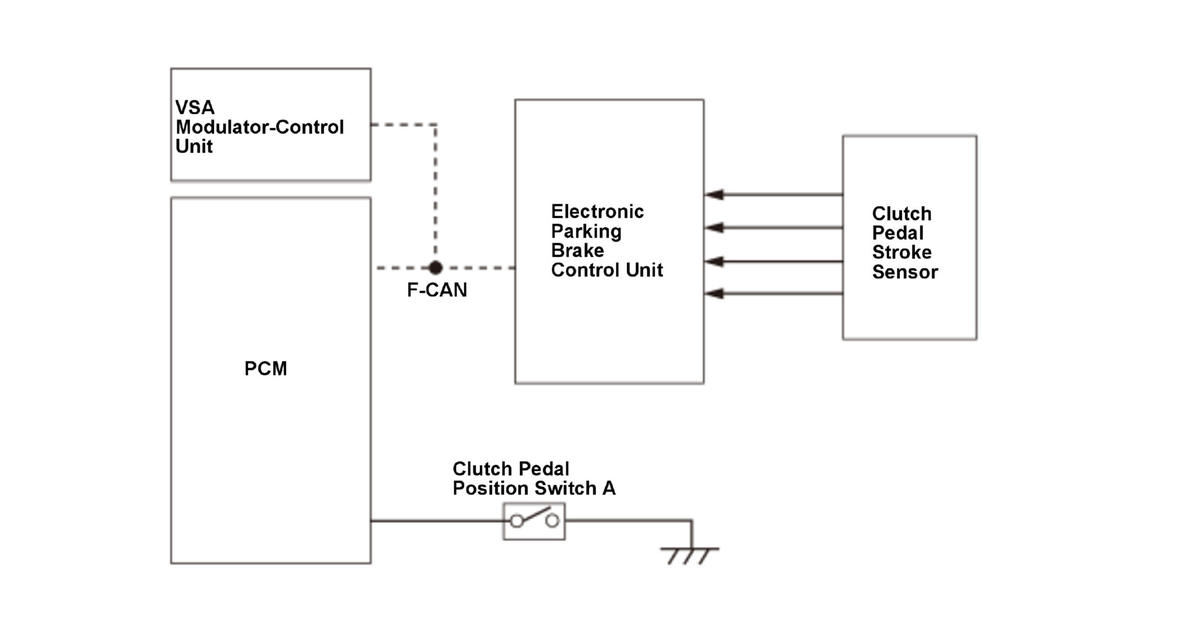

The signals from the clutch pedal stroke sensor are sent to the electronic parking brake control unit. The electronic parking brake control unit sends the stroke level of clutch pedal to the PCM or the VSA modulator-control unit via the CAN communication lines.
Signals sent from the clutch pedal stroke sensor are used for the following purposes.
| Control | Operation |
| ECO ambient meter display control | After being sent to the gauge control module via the CAN communication lines, the signals are used for determining whether or not to activate the ECO ambient meter. |
| Cruise Control | The signals are used for determining whether to turn on or off the Cruise Control System. |
| Automatic brake hold control | The signals are used for determining whether to turn on or off the automatic brake hold control. |
