Section 1 (Manual Transaxle (M/T) - Testing & Troubleshooting)
>>
Component Location Index
>>

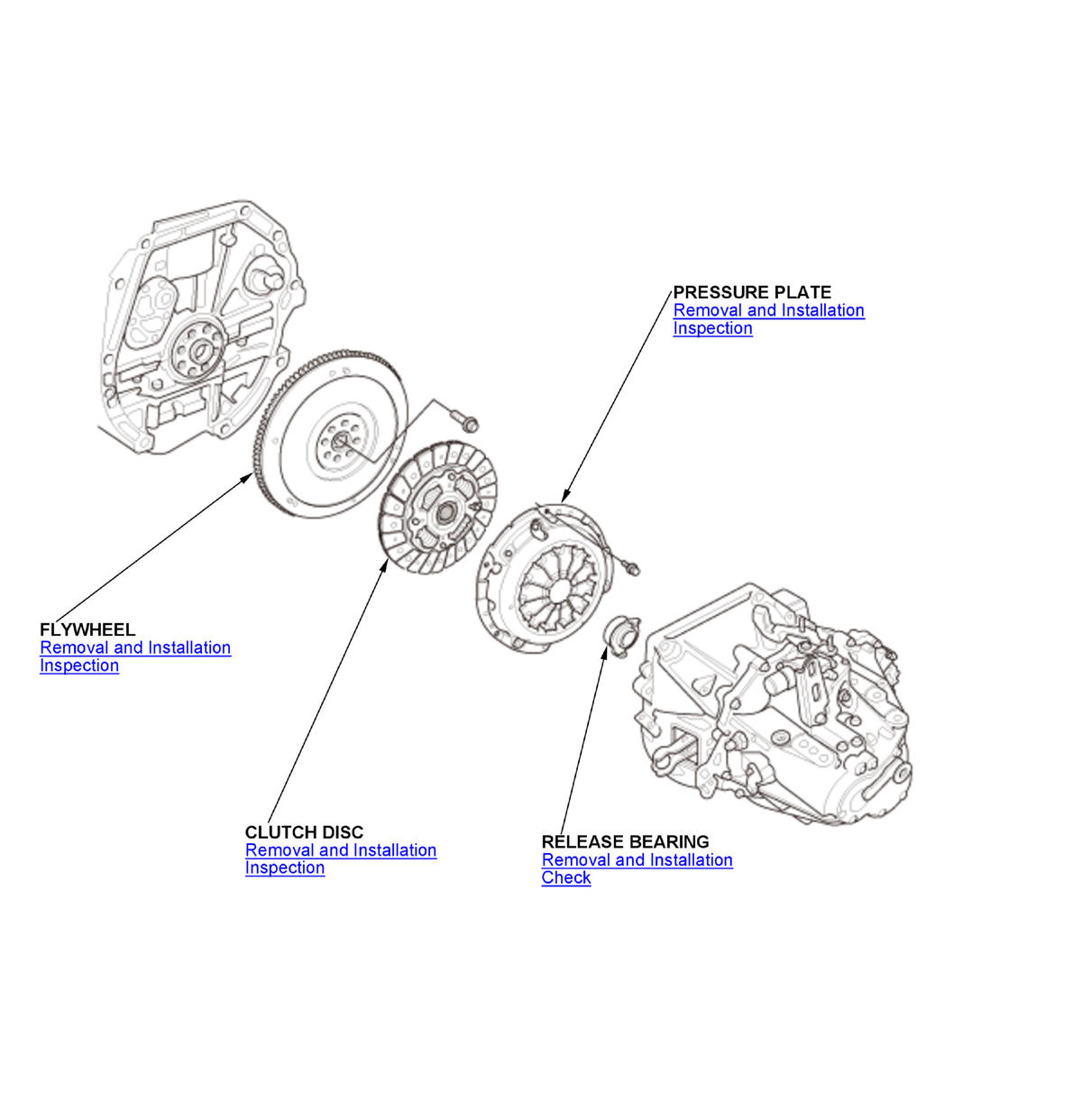

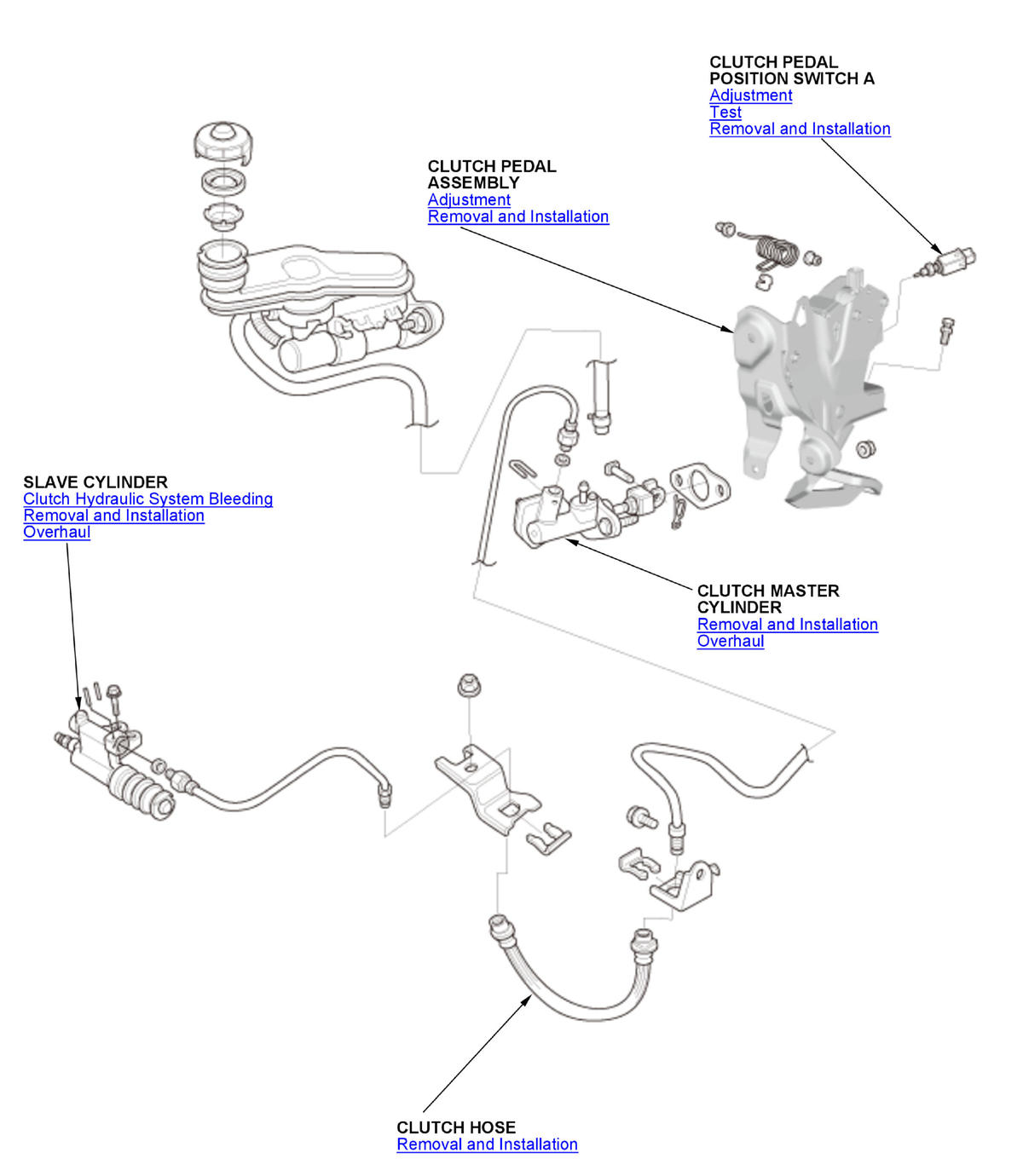

Clutch Component Location Index(M/T) (2016 2017 2018)
Clutch Component Location Index(M/T) (2016 2017 2018)
WARNING:
This page is about a different car, the 2018 Honda HR-V, 2017 Honda HR-V, and 2016 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
