Wire Harness and Ground Locations (2016 2017 2018)

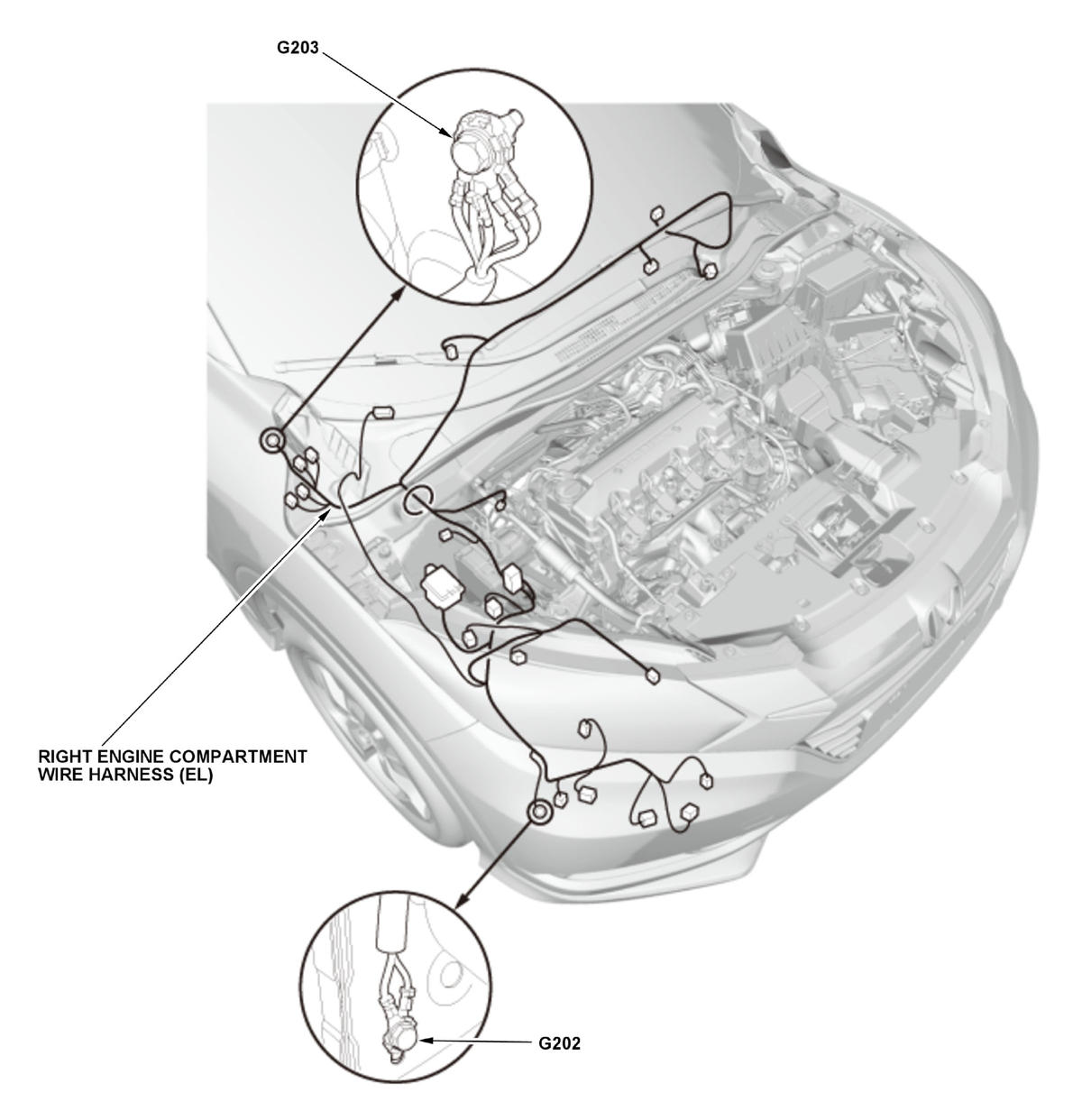

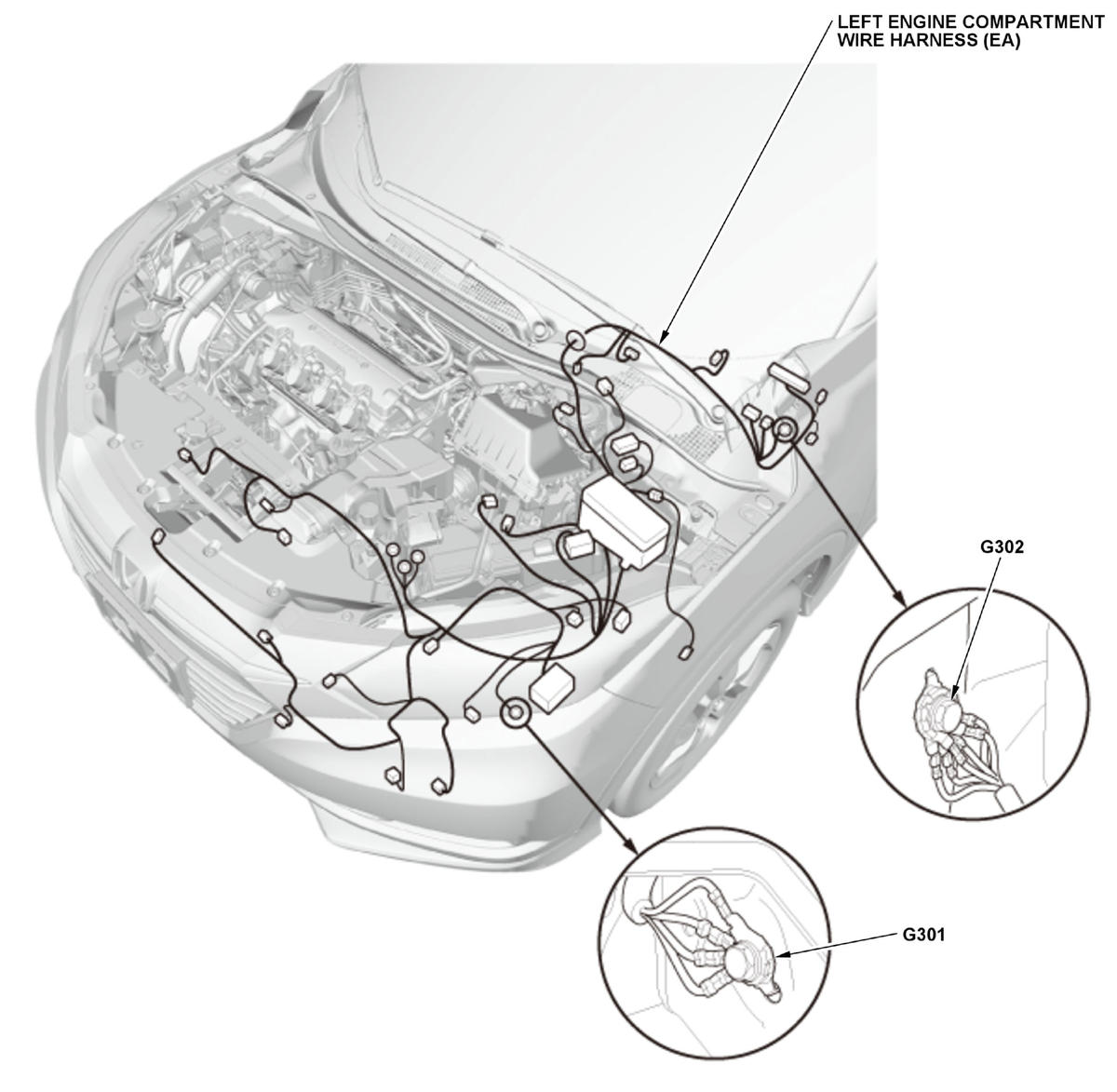

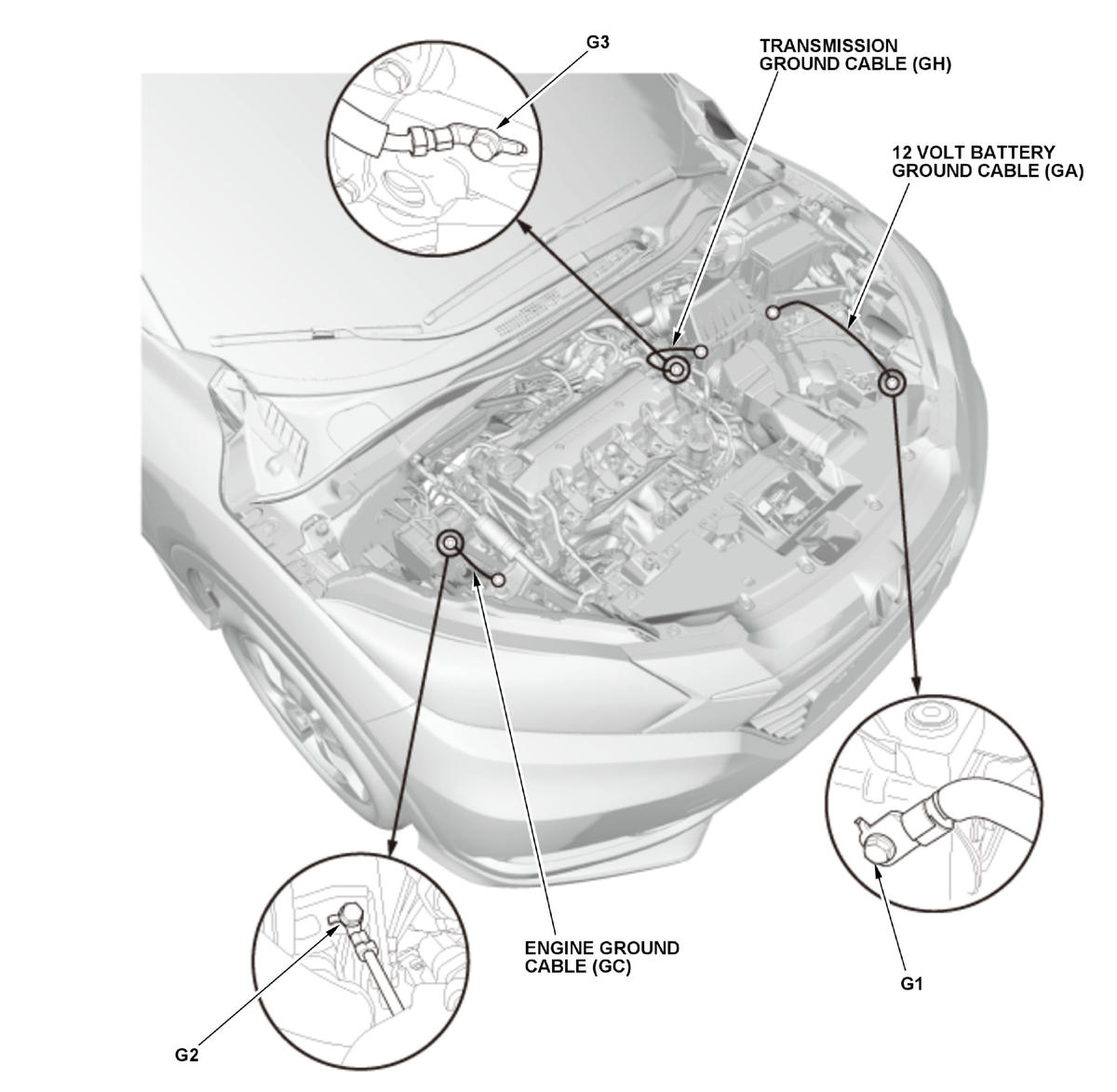

Engine Compartment (1/5)
Courtesy of HONDA, U.S.A., INC.
Engine Compartment (2/5) (CVT)
Courtesy of HONDA, U.S.A., INC.

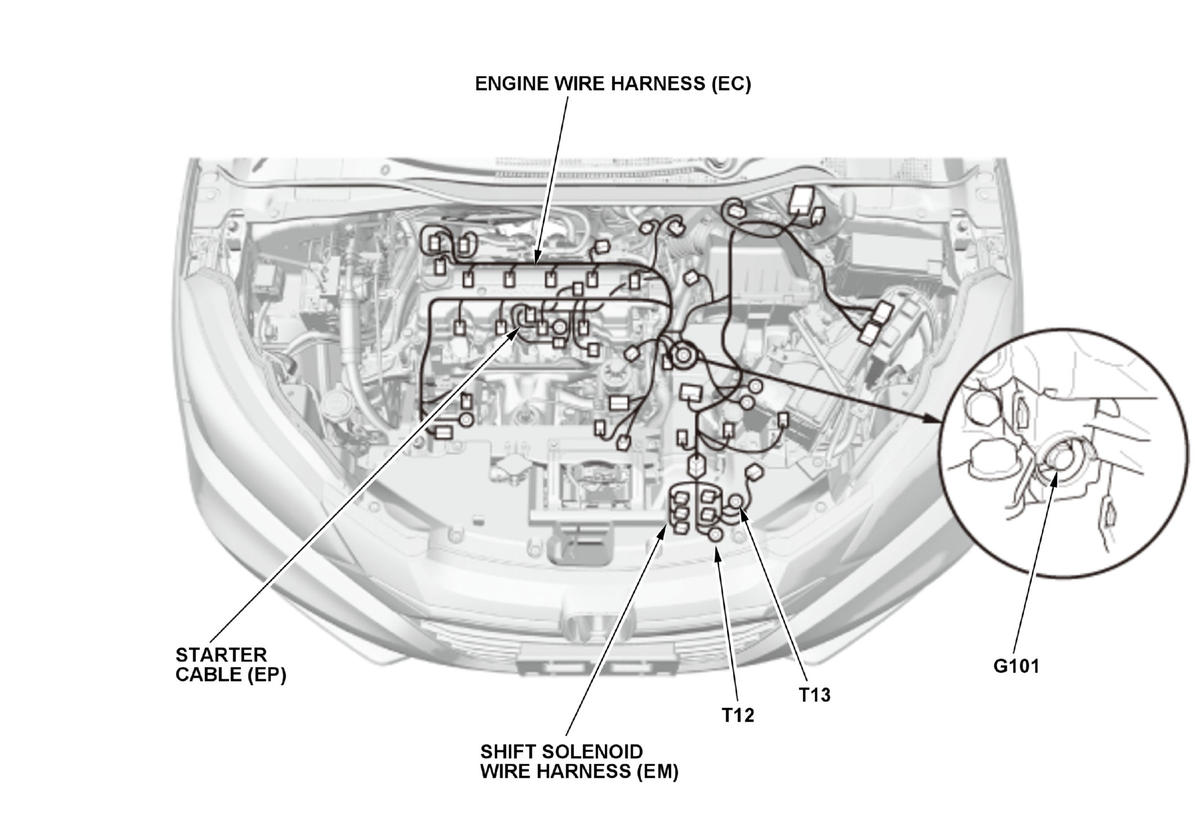

Engine Compartment (3/5) (M/T)
Courtesy of HONDA, U.S.A., INC.

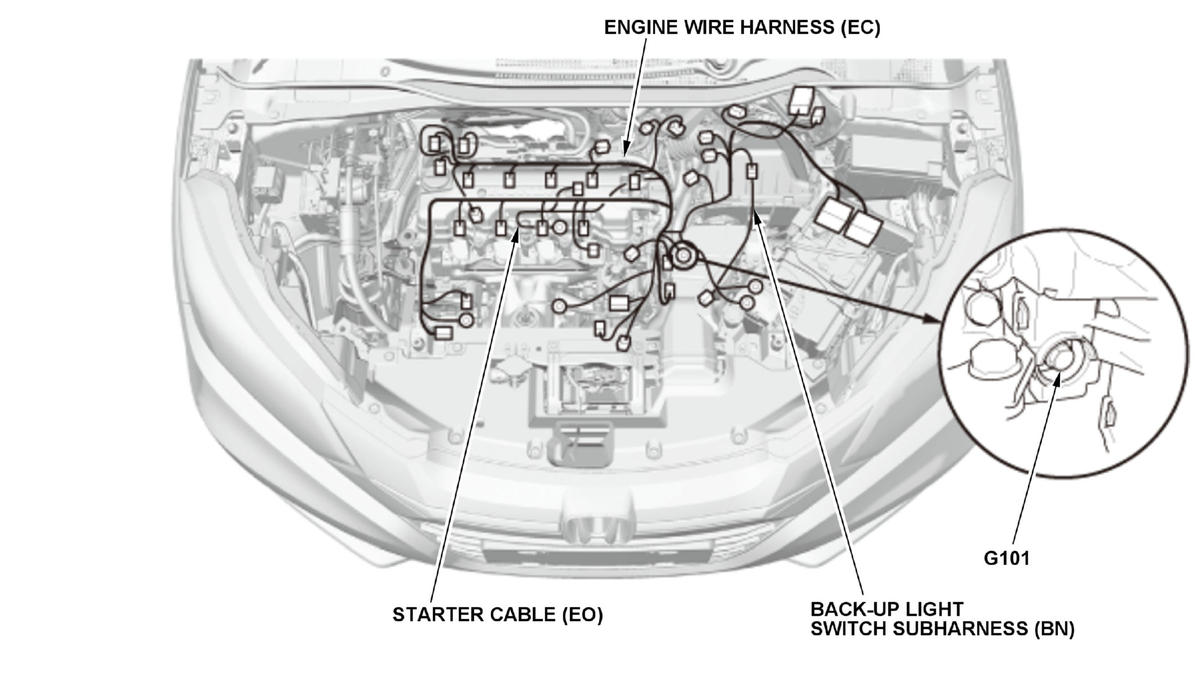

Engine Compartment (4/5)
Courtesy of HONDA, U.S.A., INC.
Engine Compartment (5/5)
Courtesy of HONDA, U.S.A., INC.

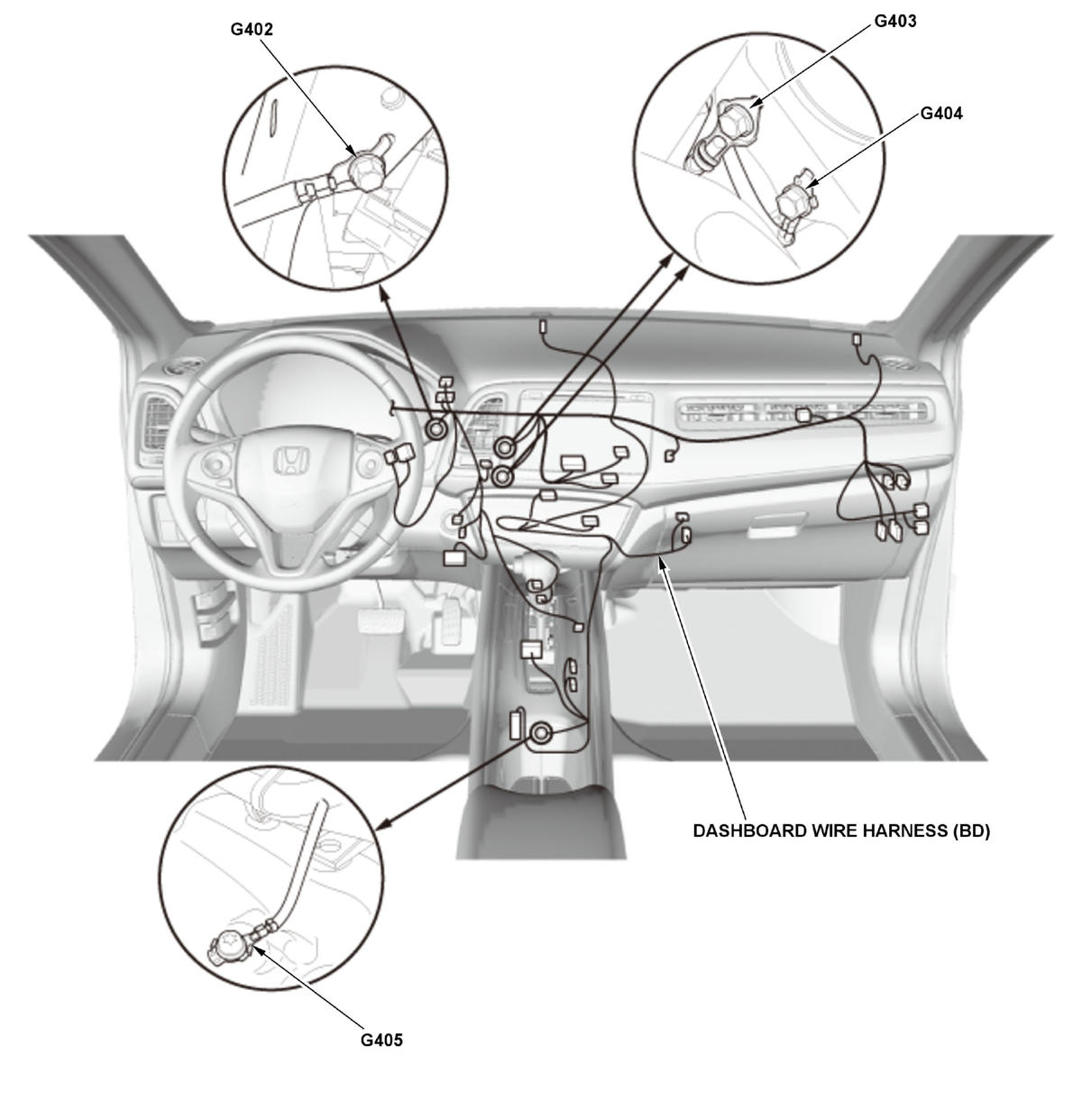

Dashboard (1/2)
Courtesy of HONDA, U.S.A., INC.

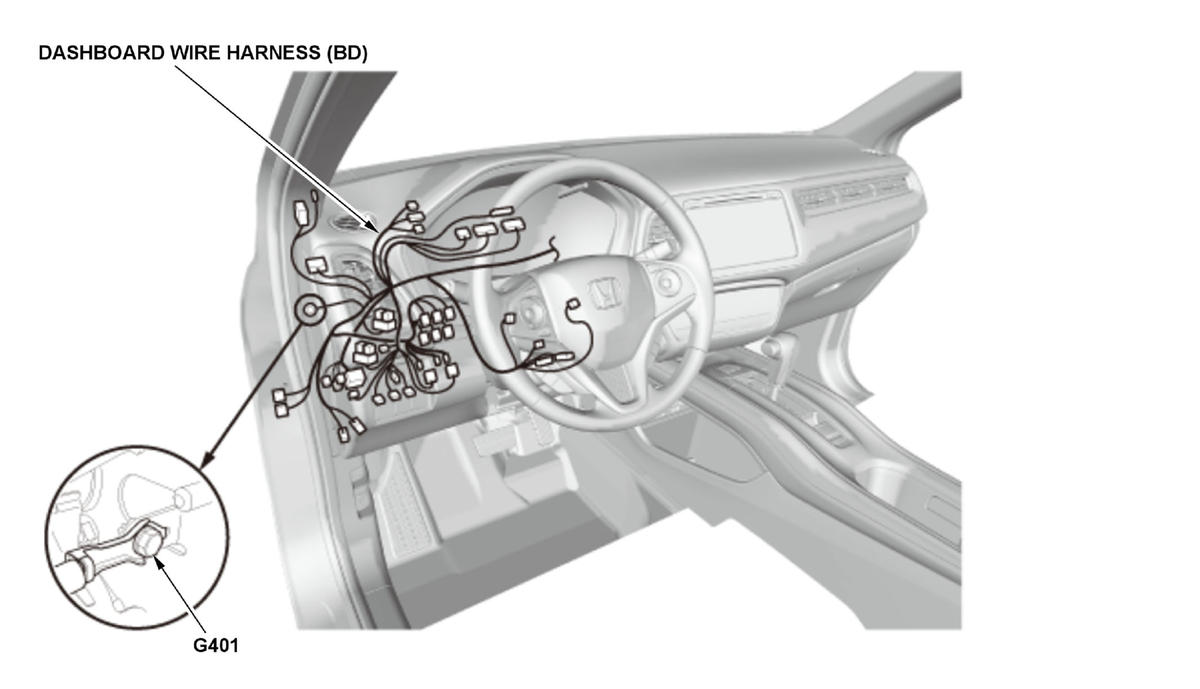

Dashboard (2/2)
Courtesy of HONDA, U.S.A., INC.

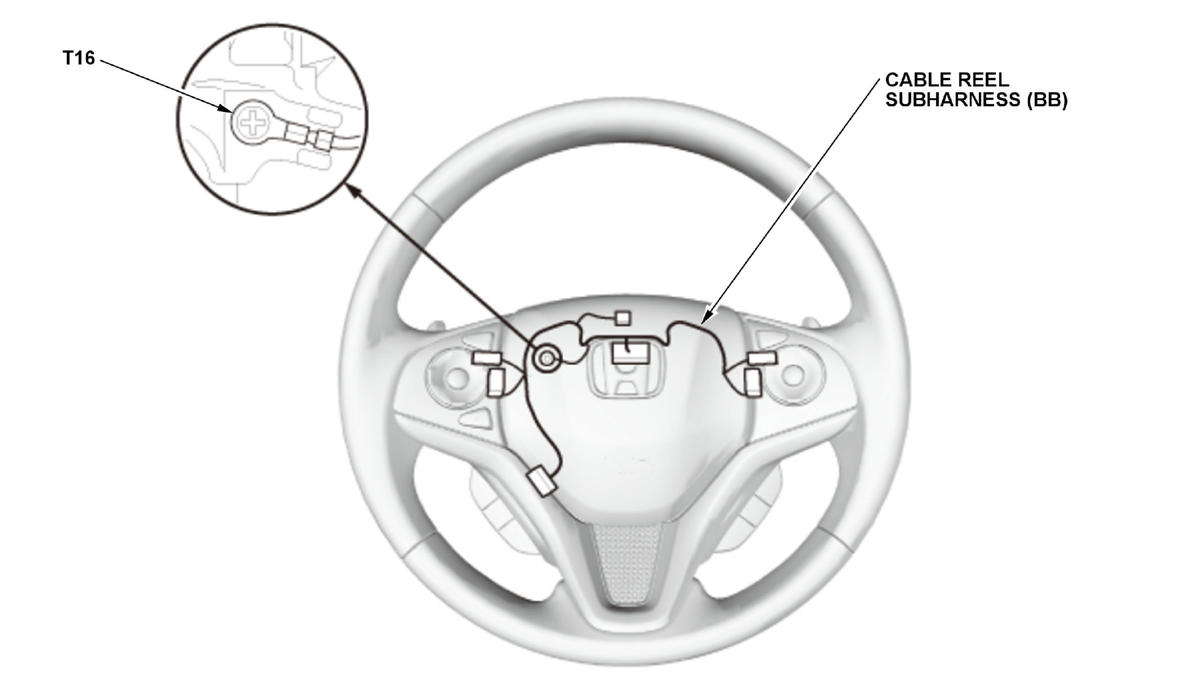

Steering
Courtesy of HONDA, U.S.A., INC.

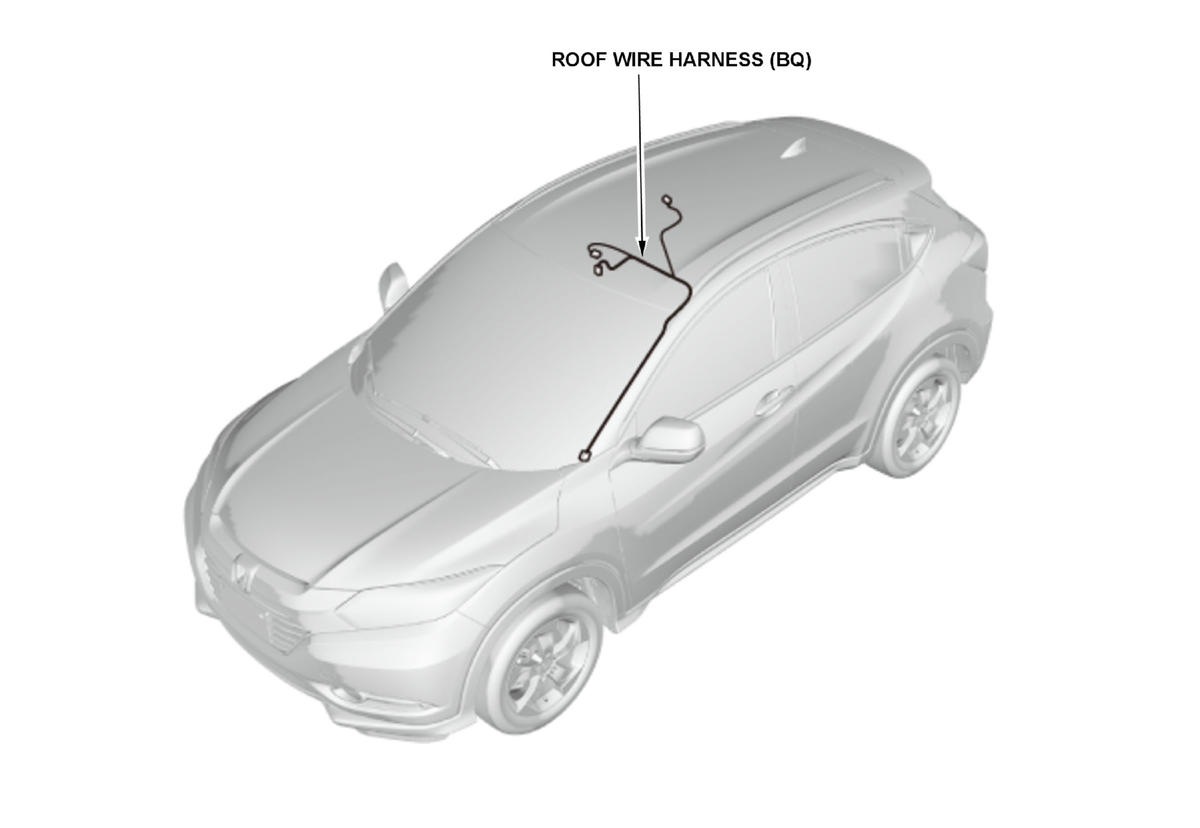

Roof (1/2) (Without moonroof)
Courtesy of HONDA, U.S.A., INC.

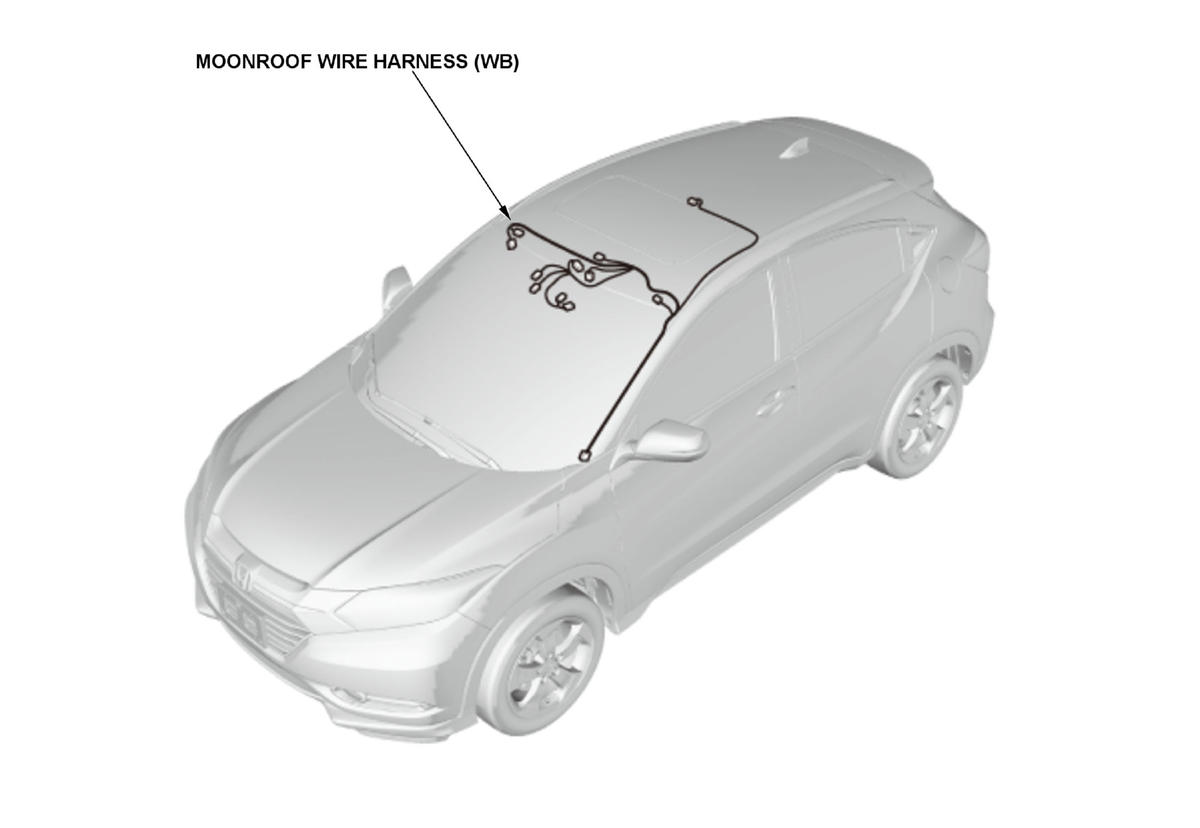

Roof (2/2) (With moonroof)
Courtesy of HONDA, U.S.A., INC.

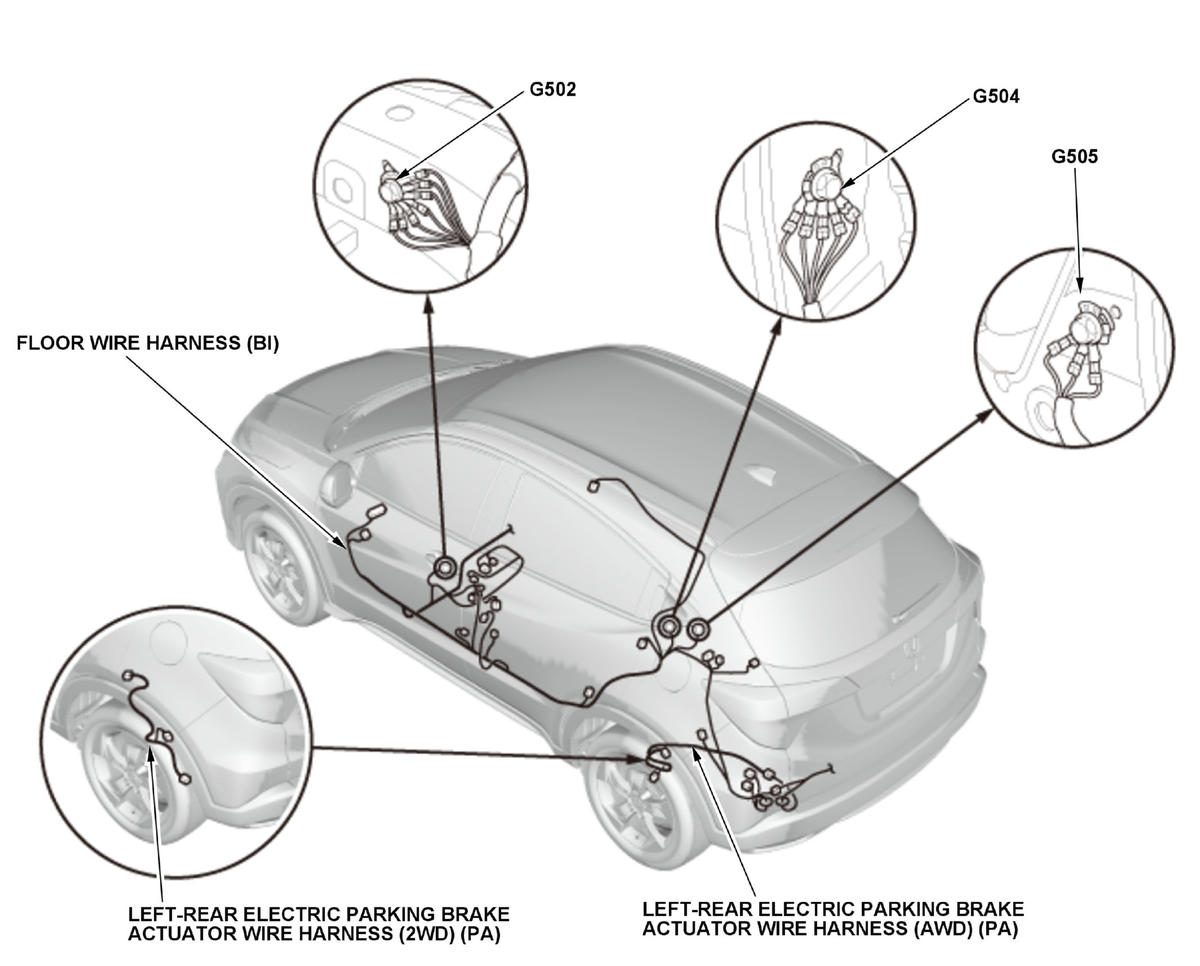

Floor (1/2)
Courtesy of HONDA, U.S.A., INC.

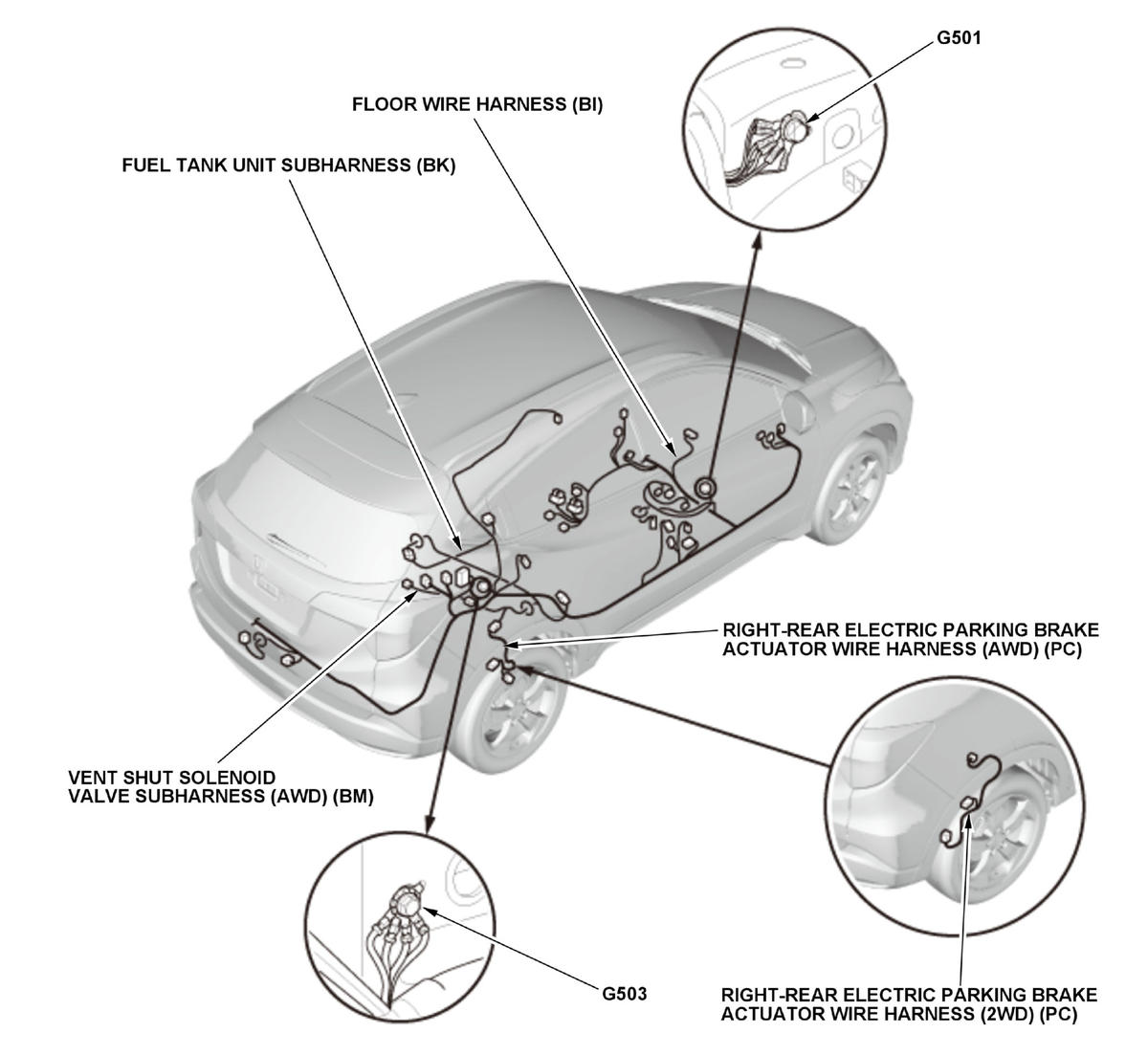

Floor (2/2)
Courtesy of HONDA, U.S.A., INC.

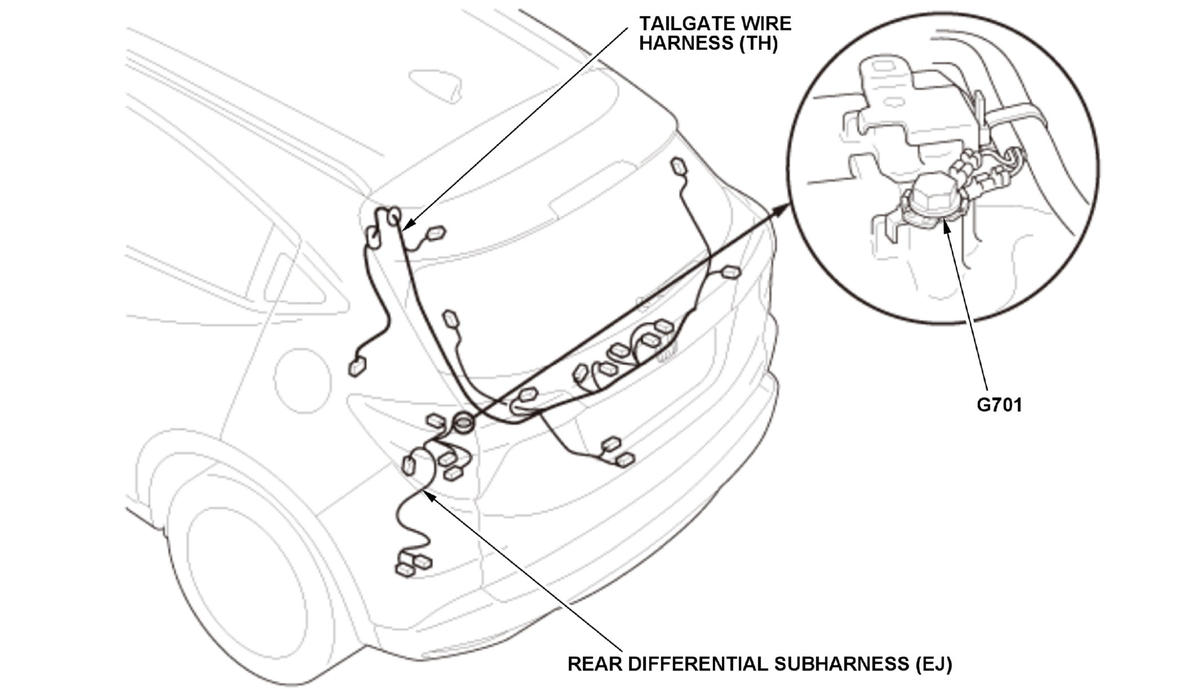

Rear and Tailgate
Courtesy of HONDA, U.S.A., INC.

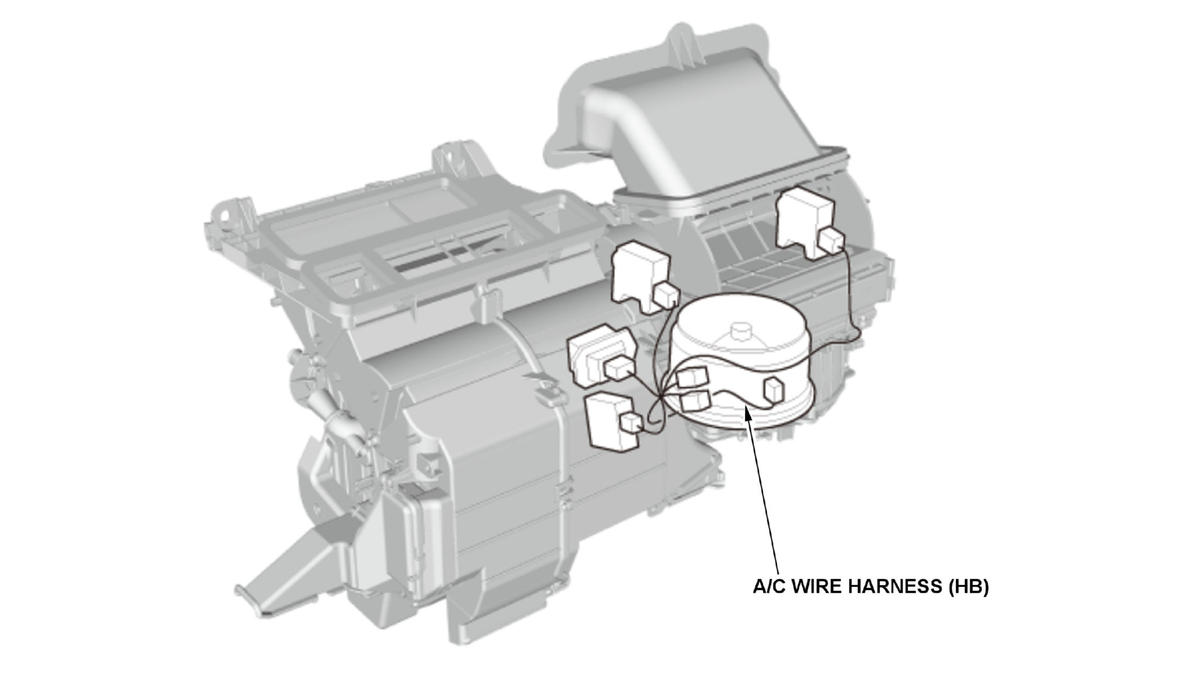

Blower
Courtesy of HONDA, U.S.A., INC.

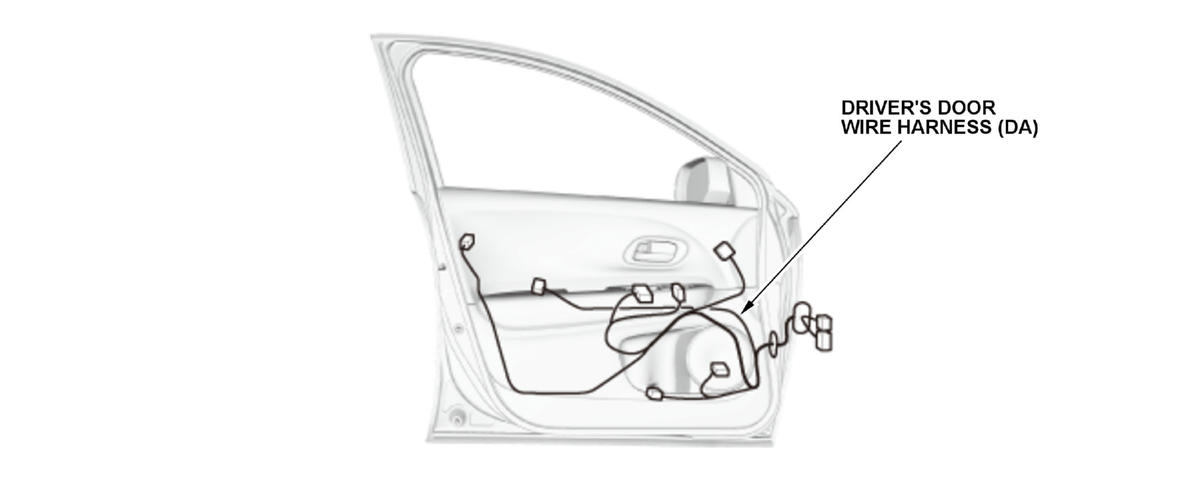

Door (1/4)
Courtesy of HONDA, U.S.A., INC.

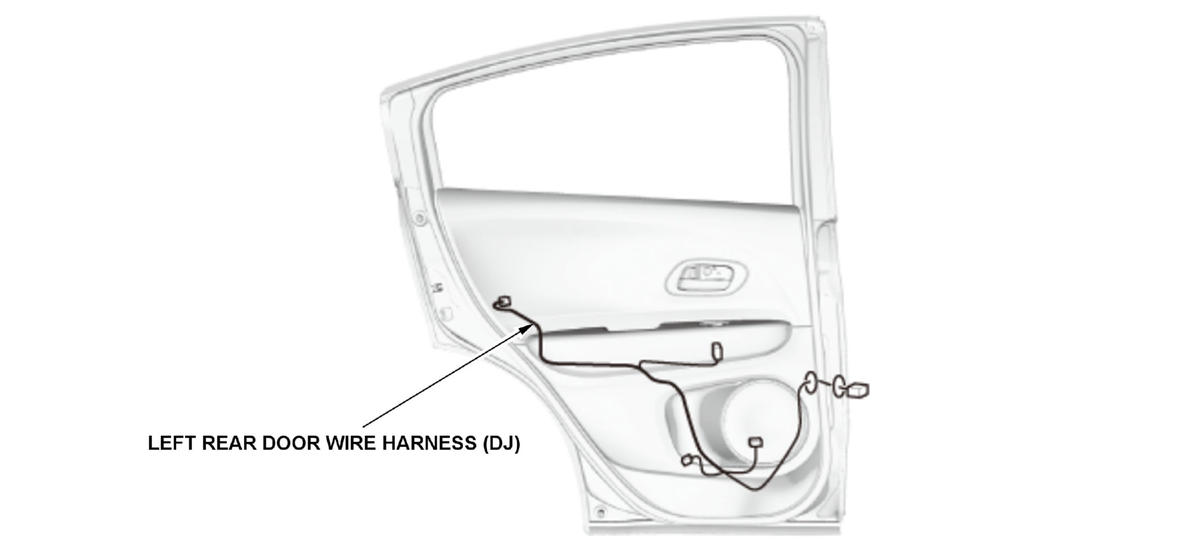

Door (2/4)
Courtesy of HONDA, U.S.A., INC.

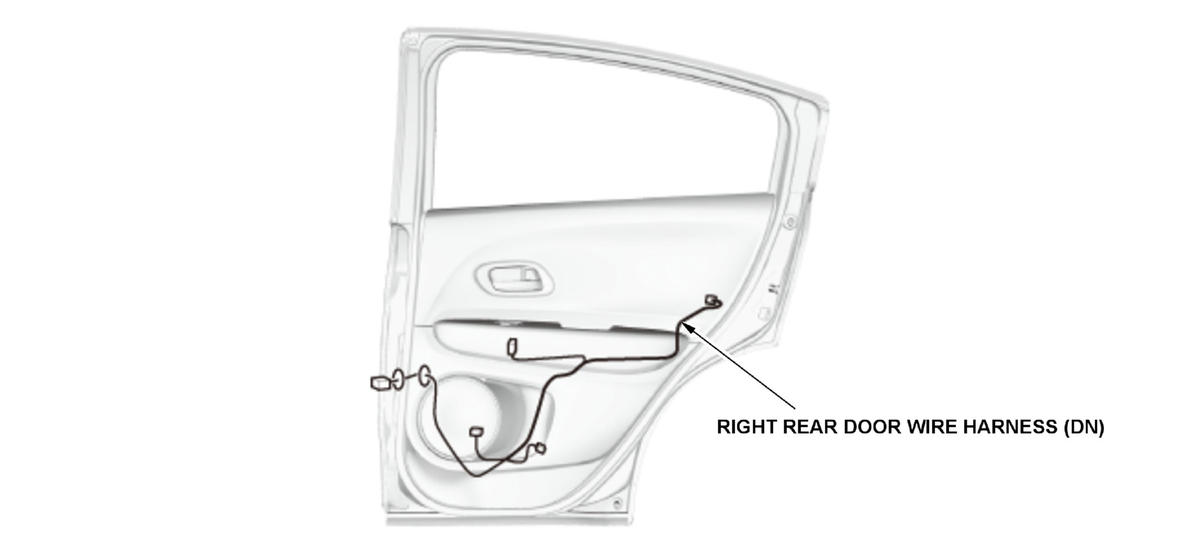

Door (3/4)
Courtesy of HONDA, U.S.A., INC.

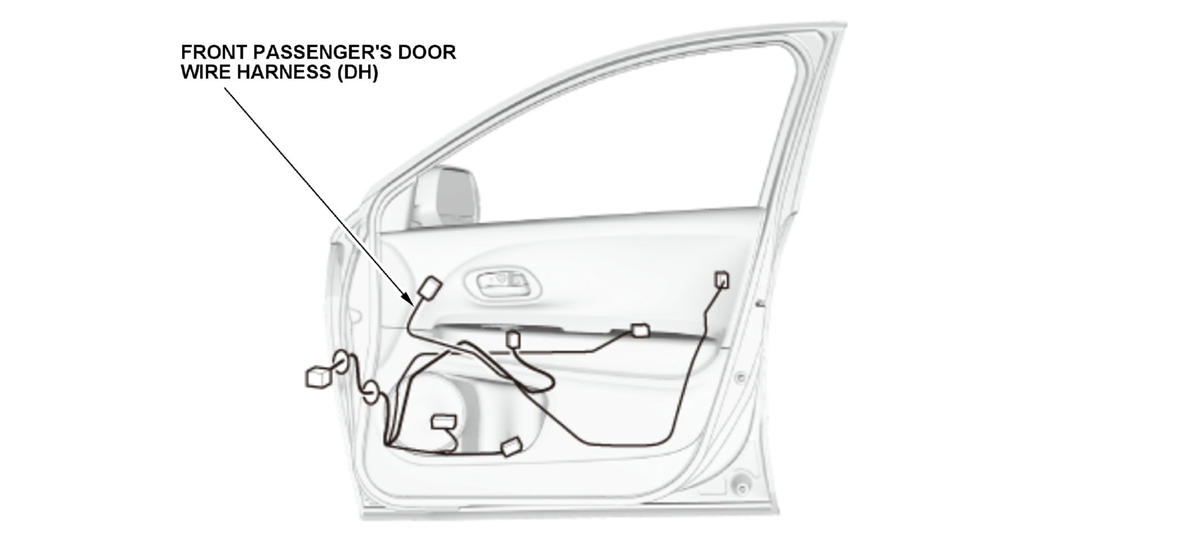

Door (4/4)
Courtesy of HONDA, U.S.A., INC.
