DTC 86-12, 86-13, 86-14, 86-16, 86-19, 86-21, 86-22 (2016 2017 2018)
DTC 86-12 : F-CAN Communication With PCM (Engine) Malfunction
DTC 86-13 : F-CAN Communication With PCM (AT/CVT) Malfunction
DTC 86-14 : F-CAN Communication With Gauge Control Module Malfunction
DTC 86-16 : F-CAN Communication With AWD Control Unit
DTC 86-19 : F-CAN Communication With Steering Angle Sensor Malfunction
DTC 86-21 : F-CAN Communication With Electric Parking Brake Control Unit Malfunction
DTC 86-22 : F-CAN Communication With SRS Unit Malfunction
NOTE:
- Before you troubleshoot, review the general troubleshooting information.
- Refer to the DTC code shown on the display, and then inspect the connectors and terminals based on the instructions in the table below.
- The DTC may be stored due to loss of voltage supply or ground at the transmitting control unit. Verify voltage supply and ground are OK on the control unit related to the specific code before following this troubleshooting.
| DTC Description | DTC | Freeze Frame |
|---|---|---|
| 86-12 F-CAN Communication With PCM (Engine) Malfunction | ||
| 86-13 F-CAN Communication With PCM (AT/CVT) Malfunction | ||
| 86-14 F-CAN Communication With Gauge Control Module Malfunction | ||
| 86-16 F-CAN Communication With AWD Control Unit | ||
| 86-19 F-CAN Communication With Steering Angle Sensor Malfunction | ||
| 86-21 F-CAN Communication With Electric Parking Brake Control Unit Malfunction | ||
| 86-22 F-CAN Communication With SRS Unit Malfunction |
DTCs (VSA)
- Problem verification
-1. Turn the vehicle to the ON mode.
-2. Clear the DTC with the HDS.
-3. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
-4. Check for DTCs with the HDS.
DTC Description DTC Freeze Frame 86-12 F-CAN Communication With PCM (Engine) Malfunction 86-13 F-CAN Communication With PCM (AT/CVT) Malfunction 86-14 F-CAN Communication With Gauge Control Module Malfunction 86-16 F-CAN Communication With AWD Control Unit 86-19 F-CAN Communication With Steering Angle Sensor Malfunction 86-21 F-CAN Communication With Electric Parking Brake Control Unit Malfunction 86-22 F-CAN Communication With SRS Unit Malfunction Is any of DTC indicated?
YES
Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the transmitting control units, and VSA modulator-control unit. Refer to intermittent failures troubleshooting . If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.
- Open wire check (F-CAN_H, F-CAN_L lines)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the receiving control unit connector.
VSA modulator-control unit 21P connector
-3. Disconnect the transmitting control unit connectors.(Refer to the DTC code shown on the display, and then disconnect the connector(s) based on the instructions in the table below.)
NOTE: Always short the SCS line with the HDS before removing PCM connector(s).

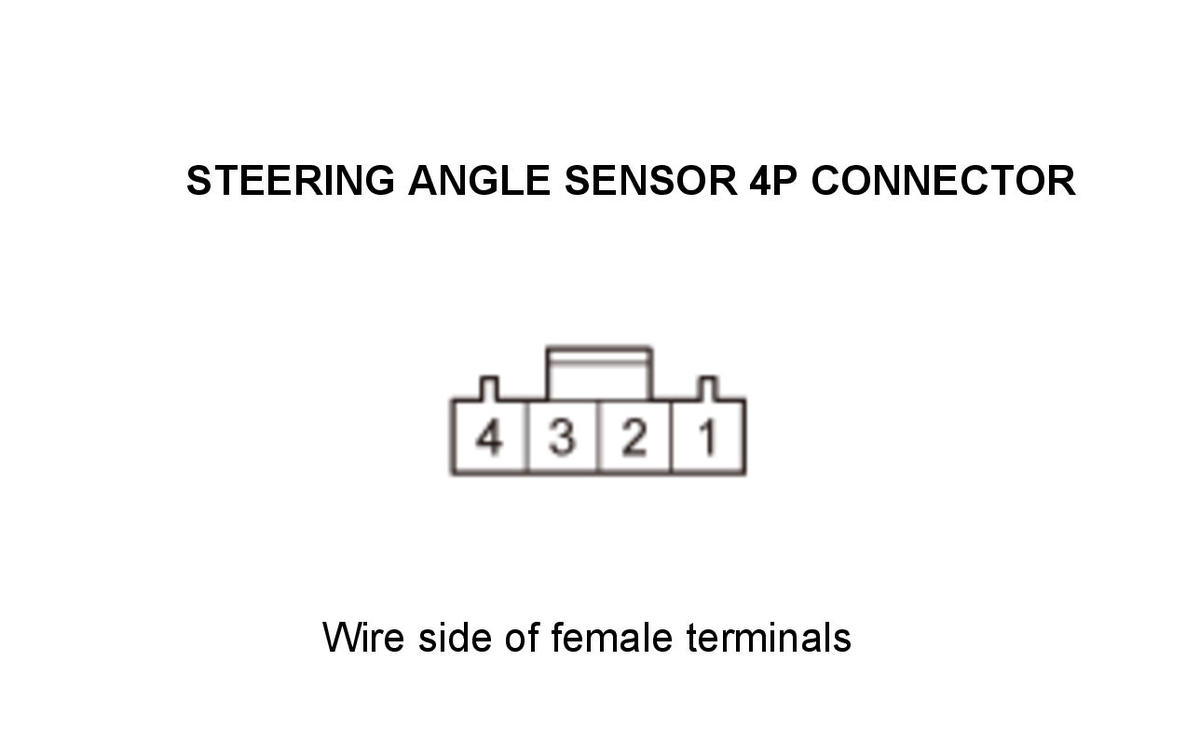

PCM connector A (51P) Gauge control module 32P connector AWD control unit 24P connector Steering angle sensor 4P connector Electric parking brake control unit 30P connector SRS unit connector A (39P) -4. Check for continuity between the receiving control unit and the transmitting control unit on the F-CAN_H circuit and the F-CAN_L circuit as specified in the table while in the vehicle OFF (LOCK) mode.
Test condition Vehicle OFF (LOCK) mode DTC CIRCUIT NAME RECEIVING CONTROL UNIT TRANSMITTING CONTROL UNIT Is there continuity?
YES
The F-CAN_H and F-CAN_L wires are OK. Go to step 3.
NO
Repair an open in the F-CAN_H and/or F-CAN_L wires between the receiving control unit and the transmitting control unit.
- Determine possible failure area (the receiving control unit or the transmitting control unit)
-1. Reconnect all connectors.
-2. Turn the vehicle to the ON mode.
-3. Clear the DTC with the HDS.
-4. Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
-5. Check for DTCs with the HDS.
DTC Description DTC Freeze Frame 86-12 F-CAN Communication With PCM (Engine) Malfunction 86-13 F-CAN Communication With PCM (AT/CVT) Malfunction 86-14 F-CAN Communication With Gauge Control Module Malfunction 86-16 F-CAN Communication With AWD Control Unit 86-19 F-CAN Communication With Steering Angle Sensor Malfunction 86-21 F-CAN Communication With Electric Parking Brake Control Unit Malfunction 86-22 F-CAN Communication With SRS Unit Malfunction Are more than one DTCs indicated?
YES
Check for loose terminals and poor connections in the VSA modulator-control unit 21P connector. If the VSA modulator-control unit was updated and the symptom/indication is still present, replace the VSA modulator-control unit .
NO
The VSA modulator-control unit is OK at this time, replace the transmitting control unit.(Refer to the DTC code shown on the display, and then replace the control unit based on the instructions in the table below.)
DTC TRANSMITTING CONTROL UNIT 86-12 F-CAN Communication With PCM (Engine) Malfunction PCM 86-13 F-CAN Communication With PCM (AT/CVT) Malfunction PCM 86-14 F-CAN Communication With Gauge Control Module Malfunction Gauge control module 86-16 F-CAN Communication With AWD Control Unit AWD control unit 86-19 F-CAN Communication With Steering Angle Sensor Malfunction Steering angle sensor 86-21 F-CAN Communication With Electric Parking Brake Control Unit Malfunction Electric parking brake control unit 86-22 F-CAN Communication With SRS Unit Malfunction SRS Unit
