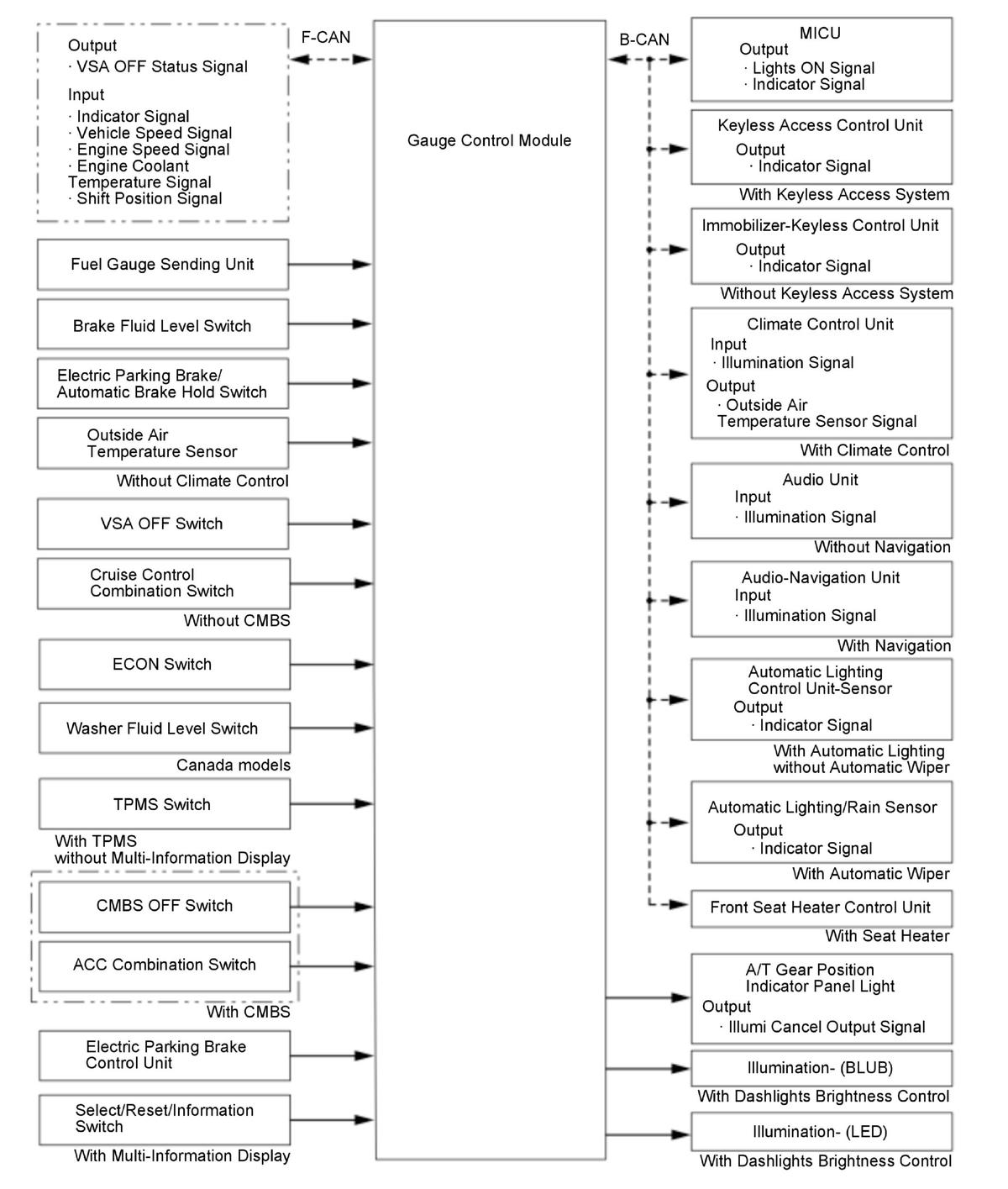

Gauges System Description - System Diagram (2019 2020 2021)
Gauges System Description - System Diagram (2019 2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
